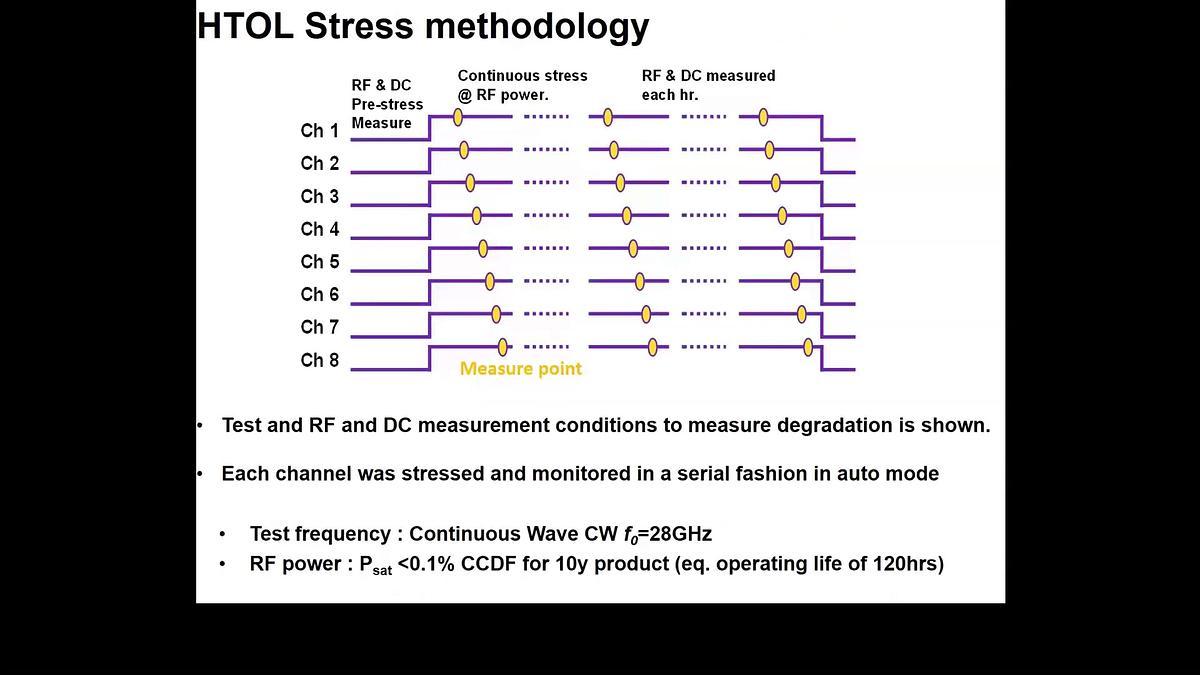

RF High Temperature Operating Life (HTOL) of  5G mmWave beamformer chip is evaluated at 28GHz under worst case operating life conditions. Each packaged chip with 8 channel Power Amplifier used for generating omnidirectional beam was evaluated for &amp;gt;= 120hrs at 0.1%CCDF under accelerated Psat RF stress at Tj ~ 85C. Excellent initial RF metrics were observed for all ~32 samples measured. Overall Pout and gain degrades by &amp;lt;0.5dB while DC current degrades &amp;lt;10% meeting the 10yr product life criteria demonstrating excellent RF HTOL processed using GF 45RFSOI technology. Excellent aging model to hardware correlation was also observed showing excellent predictability.

IRPS 2022 Main Conference

Excellent RF Product HTOL reliability of 5G mmWave beamformer chip fabricated using GF 45RFSOI technologies

htol

RF High Temperature Operating Life (HTOL) of  5G mmWave beamformer chip is evaluated at 28GHz under worst case operating life conditions. Each packaged chip with 8 channel Power Amplifier used for generating omnidirectional beam was evaluated for &gt;= 120hrs at 0.1%CCDF under accelerated Psat RF stress at Tj ~ 85C. Excellent initial RF metrics were observed for all ~32 samples measured. Overall Pout and gain degrades by &lt;0.5dB while DC current degrades &lt;10% meeting the 10yr product life criteria demonstrating excellent RF HTOL processed using GF 45RFSOI technology. Excellent aging model to hardware correlation was also observed showing excellent predictability.
