We present HBp-index, a novel quantitative model that explains the combination effect of hydrogen and process heat on peripheral transistors in 3D NAND flash memory. We observed the index linearly matched with the change of electrical characteristics of the transistors for various heat processes. Furthermore, we found the NBTI life time of the peripheral transistors increased by 90mV, which is due to the expansion of the poly-depletion region by increasing hydrogen concentration during cell fabrication.

IRPS 2024 Main Conference

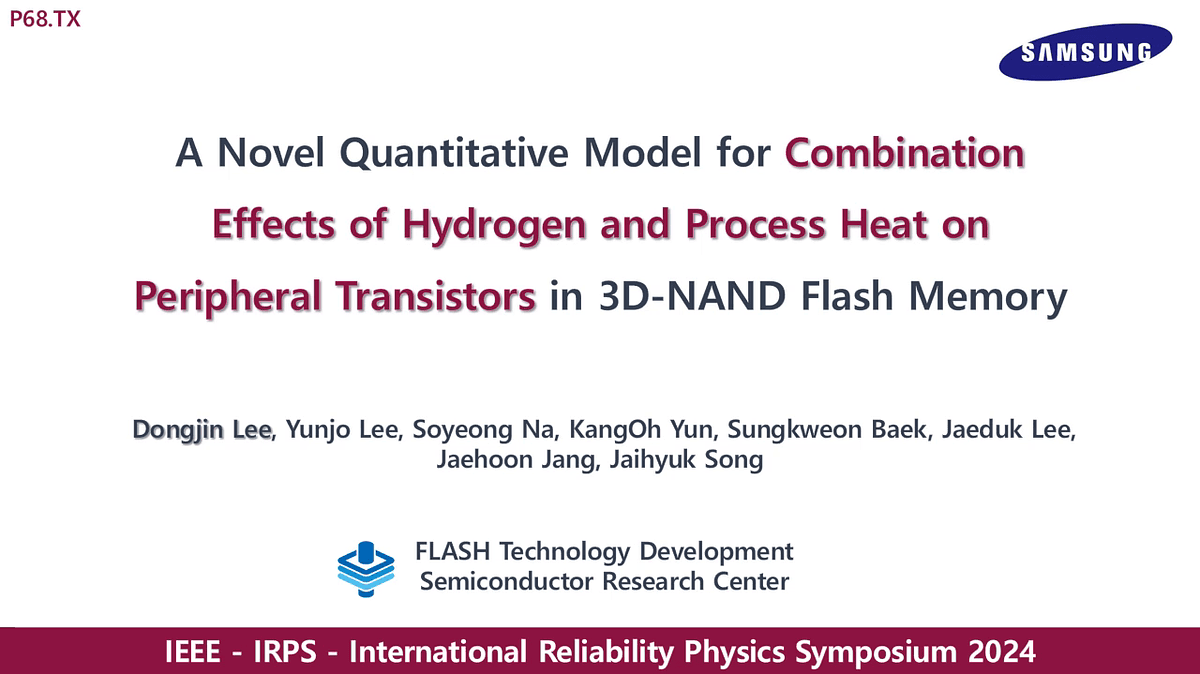

A Novel Quantitative Model for Combination Effects of Hydrogen and Process Heat on Peripheral Transistors in 3D-NAND Flash Memory

poster
