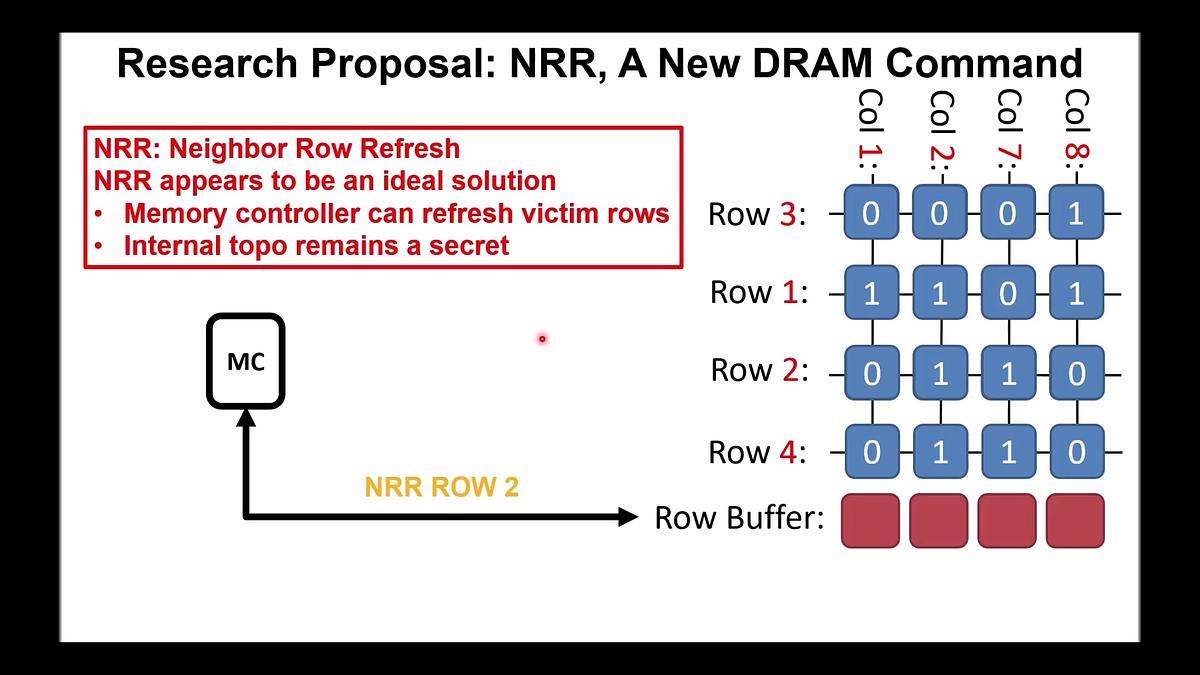

  DRAM vendors today choose to keep the internal topologies of DRAM devices secret.  This decision introduces significant practical challenges for designers of memory controllers who wish to provide their own forms of Rowhammer defenses. This paper describes three such challenges and the vulnerabilities, inefficiencies, and overhead they introduce. Defenses implemented at the memory controller could reduce (if not eliminate) these deficiencies should internal DRAM topology be made available.

IRPS 2022

The Price of Secrecy: How Hiding Internal DRAM Topologies Hurts Rowhammer Defenses

rowhammer

dram

security

technical paper

[![](https://assets.underline.io/uploads/markdown_image/1/image/f6b8cf9ecca2209dd3e0fcebe80a2915.png)](https://underline.io/events/282/reception)
[![](https://assets.underline.io/uploads/markdown_image/1/image/6b7a695cee2a4e6d07c0594938f00e41.png)](https://drive.google.com/file/d/1_V_fHL72jJWTmq-pUe-JJAR97y3dN5RX/view?usp=sharing)
[![](https://assets.underline.io/uploads/markdown_image/1/image/e787ff477f8d2b687fb0b54d83d35e11.png)](https://drive.google.com/drive/folders/1GAycr7pPrZG2ZzZP-geUL8vGWswjCB1N?usp=sharing)
[![](https://assets.underline.io/uploads/markdown_image/1/image/924447c4755e4e804db480b0504f6c13.png)](https://drive.google.com/drive/folders/1Mxu8R6jiCM_F1m_4pFdqgVKDfYaoTbtn?usp=sharing)
[![](https://assets.underline.io/uploads/markdown_image/1/image/7492fafcc0c623afe96fe15207855ed9.png)](https://www.irps.org/)




![](https://assets.underline.io/uploads/markdown_image/1/image/e1ce7df3286ab3a750966a5bf555716e.png)



**PROGRAM AT A GLANCE:**


![](https://assets.underline.io/uploads/markdown_image/1/image/fd55e96d31b53ac223d4e9b8d0186848.png)



**2022 IEEE International Reliability Physics Symposium has gone mobile!**

![](https://assets.underline.io/uploads/markdown_image/1/image/07a1cc9ee775657110a89eddbcc41388.jpg)




![](https://assets.underline.io/uploads/markdown_image/1/image/7a5e45b43771adf5ae4d3f97c1861ac1.png)
[![](https://assets.underline.io/uploads/markdown_image/1/image/a0cab03a0ec30cc71c71b5efec2ba603.png)](https://www.amd.com/en)[![](https://assets.underline.io/uploads/markdown_image/1/image/2921931b8aa0a090d96fd463670a0305.png)](https://www.cisco.com/)[![](https://assets.underline.io/uploads/markdown_image/1/image/d0cd3844560c9bdf8d4303b36d82dc69.png)](https://amazon.jobs/en/teams/lab126/)

![](https://assets.underline.io/uploads/markdown_image/1/image/c849d66095021f867725ff54b2c1f53e.png)
[![](https://assets.underline.io/uploads/markdown_image/1/image/8e648631fe7093b9613454de264d6745.png)](https://www.intel.com/content/www/us/en/homepage.html)[![](https://assets.underline.io/uploads/markdown_image/1/image/76970c33d96c19445badc60c21d890e8.png)](https://www.kioxia.com/en-emea/top.html)[![](https://assets.underline.io/uploads/markdown_image/1/image/546ecacb92116a8373a0cb2b3462dc1e.png)](https://about.google/)[![](https://assets.underline.io/uploads/markdown_image/1/image/91dca9e7aff5399ce0ea709d196c4f6a.png)](https://www.ibm.com/hr-en)[![](https://assets.underline.io/uploads/markdown_image/1/image/d1a1c95a5b0b551edea10f686f959c0d.png)](https://www.qualcomm.com/)[![](https://assets.underline.io/uploads/markdown_image/1/image/fa628a3cef7a5300e4ab59da0e0552fa.png)](https://www.samsung.com/hr/smartphones/galaxy-s22-ultra/?page=home)[![](https://assets.underline.io/uploads/markdown_image/1/image/948a0108c6b1b84e336b6f39bbc57fcf.png)](https://www.micron.com/)[![](https://assets.underline.io/uploads/markdown_image/1/image/74e631e654862d71a16d009817467e5c.png)](https://www.nvidia.com/en-eu/geforce/)[![](https://assets.underline.io/uploads/markdown_image/1/image/224a109509478bb0c4d361401ba65fae.png)](https://www.tsmc.com/english)[![](https://assets.underline.io/uploads/markdown_image/1/image/d70304be54ef831492c3cb99d8c1f3c7.png)](https://www.tel.com/)[![](https://assets.underline.io/uploads/markdown_image/1/image/7e60586f1c46e0157f2f452d4005fb54.png)](https://gf.com/)[![](https://assets.underline.io/uploads/markdown_image/1/image/e1c9bbe8892bbd4d89b81de064f31dfa.png)](https://www.appliedmaterials.com/)[![](https://assets.underline.io/uploads/markdown_image/1/image/dc19add30e3105172bdc93580e944dee.png)](https://www.ti.com/)[![](https://assets.underline.io/uploads/markdown_image/1/image/8e81ebc466ddd94f3fde7f3cdebb86c0.png)](https://www.skhynix.com/)[![](https://assets.underline.io/uploads/markdown_image/1/image/ccfa43258b058874e38e5903f79e63bc.png)](https://www.st.com/content/st_com/en.html)


![](https://assets.underline.io/uploads/markdown_image/1/image/e4c5690a7016a468518eeab6ed0f7e56.png)
[![](https://assets.underline.io/uploads/markdown_image/1/image/c33da95f78e91c05d51b787f02a1af01.png)](https://www.infineon.com/)
![](https://assets.underline.io/uploads/markdown_image/1/image/e708450912afd1718c5af9e9dfd70d3f.png)
[![](https://assets.underline.io/uploads/markdown_image/1/image/ffd1b2531ec1531672693a786e5a1b37.png)](https://eds.ieee.org/)[![](https://assets.underline.io/uploads/markdown_image/1/image/0a58c969093f21f088af904b1cb4e112.png)](https://rs.ieee.org/)

IRPS provides numerous opportunities for attendees to increase their knowledge and understanding of all aspects of microelectronics reliability. It is also an outstanding chance to meet and network with reliability colleagues from around the world.

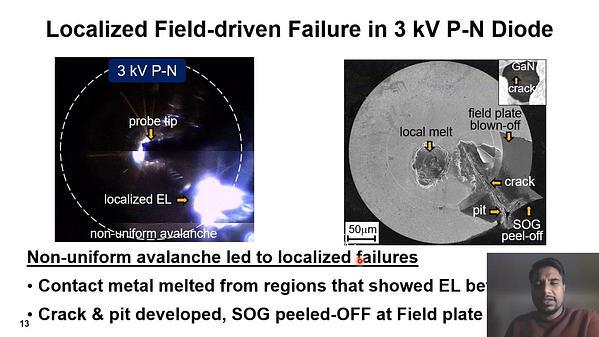

This work investigates both avalanche behavior and failure mechanism of 3 kV GaN-on-GaN vertical P-N diodes, that were fabricated and later tested under unclamped inductive switching (UIS) stress. The goal of this study is to use the particular avalanche characteristics and the failure mechanism to identify issues with the field termination and then provide feedback to improve the device design. DC breakdown is measured at the different temperatures to confirm the avalanche breakdown. Diode’s avalanche robustness is measured on-wafer using a UIS test set-up which was integrated with a wafer chuck and CCD camera. Post failure analysis of the diode is done using SEM and optical microscopy to gain insight into the device failure physics.
