For plasma process induced damage (PID) qualifications stresses are necessary to detect lifetime reduction risks. JEDEC JEP001 requires HCS, BTS, and TDDB stresses, or a revealing stress for this detection. Due to the large number of devices that should be tested the revealing stress can be preferable. This paper reviews the two main options for the revealing stress for thick oxides, constant gate current (CGC) versus constant gate voltage (CGV) stresses. The results are also intended as input to the discussions in the current JEDEC 14.2 PID standard working group.

IRPS 2022

Revealing stresses for plasma induced damage detection in thick oxides

revealing stress

antenna

plasma damage

technical paper

[![](https://assets.underline.io/uploads/markdown_image/1/image/f6b8cf9ecca2209dd3e0fcebe80a2915.png)](https://underline.io/events/282/reception)
[![](https://assets.underline.io/uploads/markdown_image/1/image/6b7a695cee2a4e6d07c0594938f00e41.png)](https://drive.google.com/file/d/1_V_fHL72jJWTmq-pUe-JJAR97y3dN5RX/view?usp=sharing)
[![](https://assets.underline.io/uploads/markdown_image/1/image/e787ff477f8d2b687fb0b54d83d35e11.png)](https://drive.google.com/drive/folders/1GAycr7pPrZG2ZzZP-geUL8vGWswjCB1N?usp=sharing)
[![](https://assets.underline.io/uploads/markdown_image/1/image/924447c4755e4e804db480b0504f6c13.png)](https://drive.google.com/drive/folders/1Mxu8R6jiCM_F1m_4pFdqgVKDfYaoTbtn?usp=sharing)
[![](https://assets.underline.io/uploads/markdown_image/1/image/7492fafcc0c623afe96fe15207855ed9.png)](https://www.irps.org/)




![](https://assets.underline.io/uploads/markdown_image/1/image/e1ce7df3286ab3a750966a5bf555716e.png)



**PROGRAM AT A GLANCE:**


![](https://assets.underline.io/uploads/markdown_image/1/image/fd55e96d31b53ac223d4e9b8d0186848.png)



**2022 IEEE International Reliability Physics Symposium has gone mobile!**

![](https://assets.underline.io/uploads/markdown_image/1/image/07a1cc9ee775657110a89eddbcc41388.jpg)




![](https://assets.underline.io/uploads/markdown_image/1/image/7a5e45b43771adf5ae4d3f97c1861ac1.png)
[![](https://assets.underline.io/uploads/markdown_image/1/image/a0cab03a0ec30cc71c71b5efec2ba603.png)](https://www.amd.com/en)[![](https://assets.underline.io/uploads/markdown_image/1/image/2921931b8aa0a090d96fd463670a0305.png)](https://www.cisco.com/)[![](https://assets.underline.io/uploads/markdown_image/1/image/d0cd3844560c9bdf8d4303b36d82dc69.png)](https://amazon.jobs/en/teams/lab126/)

![](https://assets.underline.io/uploads/markdown_image/1/image/c849d66095021f867725ff54b2c1f53e.png)
[![](https://assets.underline.io/uploads/markdown_image/1/image/8e648631fe7093b9613454de264d6745.png)](https://www.intel.com/content/www/us/en/homepage.html)[![](https://assets.underline.io/uploads/markdown_image/1/image/76970c33d96c19445badc60c21d890e8.png)](https://www.kioxia.com/en-emea/top.html)[![](https://assets.underline.io/uploads/markdown_image/1/image/546ecacb92116a8373a0cb2b3462dc1e.png)](https://about.google/)[![](https://assets.underline.io/uploads/markdown_image/1/image/91dca9e7aff5399ce0ea709d196c4f6a.png)](https://www.ibm.com/hr-en)[![](https://assets.underline.io/uploads/markdown_image/1/image/d1a1c95a5b0b551edea10f686f959c0d.png)](https://www.qualcomm.com/)[![](https://assets.underline.io/uploads/markdown_image/1/image/fa628a3cef7a5300e4ab59da0e0552fa.png)](https://www.samsung.com/hr/smartphones/galaxy-s22-ultra/?page=home)[![](https://assets.underline.io/uploads/markdown_image/1/image/948a0108c6b1b84e336b6f39bbc57fcf.png)](https://www.micron.com/)[![](https://assets.underline.io/uploads/markdown_image/1/image/74e631e654862d71a16d009817467e5c.png)](https://www.nvidia.com/en-eu/geforce/)[![](https://assets.underline.io/uploads/markdown_image/1/image/224a109509478bb0c4d361401ba65fae.png)](https://www.tsmc.com/english)[![](https://assets.underline.io/uploads/markdown_image/1/image/d70304be54ef831492c3cb99d8c1f3c7.png)](https://www.tel.com/)[![](https://assets.underline.io/uploads/markdown_image/1/image/7e60586f1c46e0157f2f452d4005fb54.png)](https://gf.com/)[![](https://assets.underline.io/uploads/markdown_image/1/image/e1c9bbe8892bbd4d89b81de064f31dfa.png)](https://www.appliedmaterials.com/)[![](https://assets.underline.io/uploads/markdown_image/1/image/dc19add30e3105172bdc93580e944dee.png)](https://www.ti.com/)[![](https://assets.underline.io/uploads/markdown_image/1/image/8e81ebc466ddd94f3fde7f3cdebb86c0.png)](https://www.skhynix.com/)[![](https://assets.underline.io/uploads/markdown_image/1/image/ccfa43258b058874e38e5903f79e63bc.png)](https://www.st.com/content/st_com/en.html)


![](https://assets.underline.io/uploads/markdown_image/1/image/e4c5690a7016a468518eeab6ed0f7e56.png)
[![](https://assets.underline.io/uploads/markdown_image/1/image/c33da95f78e91c05d51b787f02a1af01.png)](https://www.infineon.com/)
![](https://assets.underline.io/uploads/markdown_image/1/image/e708450912afd1718c5af9e9dfd70d3f.png)
[![](https://assets.underline.io/uploads/markdown_image/1/image/ffd1b2531ec1531672693a786e5a1b37.png)](https://eds.ieee.org/)[![](https://assets.underline.io/uploads/markdown_image/1/image/0a58c969093f21f088af904b1cb4e112.png)](https://rs.ieee.org/)

IRPS provides numerous opportunities for attendees to increase their knowledge and understanding of all aspects of microelectronics reliability. It is also an outstanding chance to meet and network with reliability colleagues from around the world.

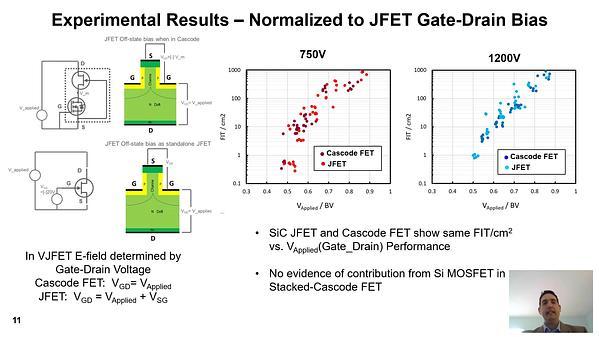

The terrestrial Neutron failure rate of SiC JFETs and JFET based Cascode FETs are investigated for the first time.  The contributions of the co-packaged low voltage Si MOSFETs within the Cascode FETs were found to be insignificant in the overall FIT of the high-voltage switches.  Meanwhile, the SiC JFET and resulting Cascode FETs were found to be comparable with the previously reported “Universal” behavior of SiC unipolar devices when analyzed as FIT/cm2 versus applied voltage when normalized to device breakdown voltage.  These results suggest that, due to their superior specific on-resistance (RDS,On x Active Area), SiC JFETs and Cascode FETs will offer lower terrestrial FIT for a given on-resistance.
