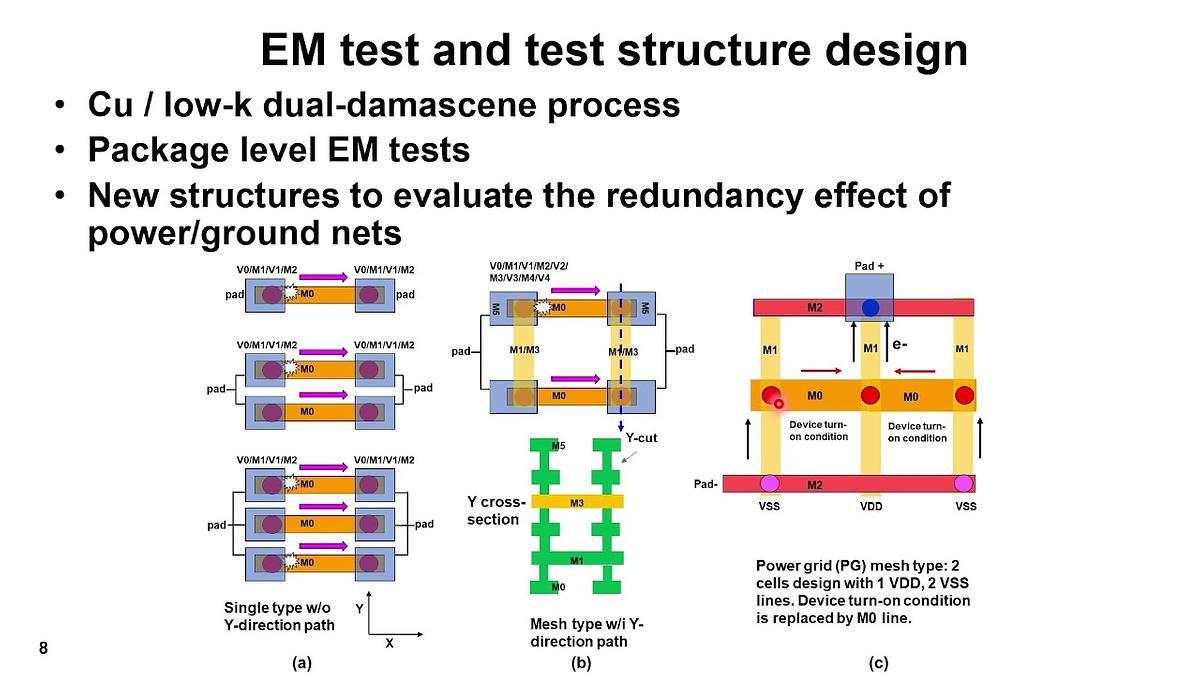

We characterize the redundancy effect on EM failure time in power grid networks and propose a flow to leverage the benefit of the redundancy effect on EDA tools. Experimental results fit Monte-Carlo simulation based on a parallel model incorporating time-dependent stress loading. Ring oscillator frequency degradation and clock tree time delay are also evaluated on simplified power mesh networks as EM voids occur. A simple and practical EM check algorithm for EDA tools that takes the benefit of the redundancy effect on power grid networks into account is proposed.

IRPS 2022

Redundancy Effect on Electromigration Failure Time in Power Grid Networks

power grid

redundancy

monte carlo simulation

technical paper
