United States

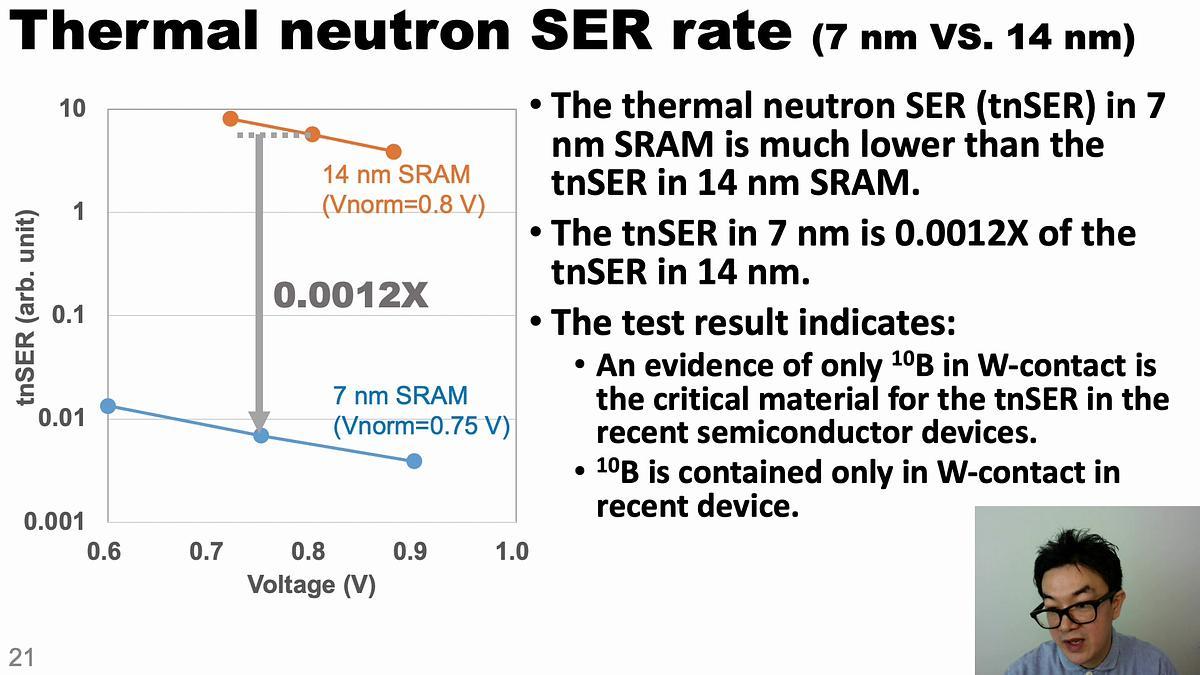

This paper presents thermal-neutron soft error rates (tnSER) in 7 nm bulk-FinFET technology with applied Cobalt (Co) contact. A thermal-neutron irradiation test at MURR shows tnSER reduction in the 7 nm: the tnSER in the 7 nm (Co-contact) is 0.0012X of the tnSER in 14 nm (Tungsten (W)-contact). Simulation analysis shows that tnSER changed by 0.21X due to the advancement of transistor technology (from 14nm to 7nm) and 0.0057X due to the change in contact-material (from W to Co).




IRPS 2022

Thermal-Neutron SER Mitigation by Cobalt-Contact in 7 nm Bulk-FinFET Technology

7 nm

thermal neutron

soft error

cobalt

contact

finfet

technical paper

[![](https://assets.underline.io/uploads/markdown_image/1/image/f6b8cf9ecca2209dd3e0fcebe80a2915.png)](https://underline.io/events/282/reception)
[![](https://assets.underline.io/uploads/markdown_image/1/image/6b7a695cee2a4e6d07c0594938f00e41.png)](https://drive.google.com/file/d/1_V_fHL72jJWTmq-pUe-JJAR97y3dN5RX/view?usp=sharing)
[![](https://assets.underline.io/uploads/markdown_image/1/image/e787ff477f8d2b687fb0b54d83d35e11.png)](https://drive.google.com/drive/folders/1GAycr7pPrZG2ZzZP-geUL8vGWswjCB1N?usp=sharing)
[![](https://assets.underline.io/uploads/markdown_image/1/image/924447c4755e4e804db480b0504f6c13.png)](https://drive.google.com/drive/folders/1Mxu8R6jiCM_F1m_4pFdqgVKDfYaoTbtn?usp=sharing)
[![](https://assets.underline.io/uploads/markdown_image/1/image/7492fafcc0c623afe96fe15207855ed9.png)](https://www.irps.org/)




![](https://assets.underline.io/uploads/markdown_image/1/image/e1ce7df3286ab3a750966a5bf555716e.png)



**PROGRAM AT A GLANCE:**


![](https://assets.underline.io/uploads/markdown_image/1/image/fd55e96d31b53ac223d4e9b8d0186848.png)



**2022 IEEE International Reliability Physics Symposium has gone mobile!**

![](https://assets.underline.io/uploads/markdown_image/1/image/07a1cc9ee775657110a89eddbcc41388.jpg)




![](https://assets.underline.io/uploads/markdown_image/1/image/7a5e45b43771adf5ae4d3f97c1861ac1.png)
[![](https://assets.underline.io/uploads/markdown_image/1/image/a0cab03a0ec30cc71c71b5efec2ba603.png)](https://www.amd.com/en)[![](https://assets.underline.io/uploads/markdown_image/1/image/2921931b8aa0a090d96fd463670a0305.png)](https://www.cisco.com/)[![](https://assets.underline.io/uploads/markdown_image/1/image/d0cd3844560c9bdf8d4303b36d82dc69.png)](https://amazon.jobs/en/teams/lab126/)

![](https://assets.underline.io/uploads/markdown_image/1/image/c849d66095021f867725ff54b2c1f53e.png)
[![](https://assets.underline.io/uploads/markdown_image/1/image/8e648631fe7093b9613454de264d6745.png)](https://www.intel.com/content/www/us/en/homepage.html)[![](https://assets.underline.io/uploads/markdown_image/1/image/76970c33d96c19445badc60c21d890e8.png)](https://www.kioxia.com/en-emea/top.html)[![](https://assets.underline.io/uploads/markdown_image/1/image/546ecacb92116a8373a0cb2b3462dc1e.png)](https://about.google/)[![](https://assets.underline.io/uploads/markdown_image/1/image/91dca9e7aff5399ce0ea709d196c4f6a.png)](https://www.ibm.com/hr-en)[![](https://assets.underline.io/uploads/markdown_image/1/image/d1a1c95a5b0b551edea10f686f959c0d.png)](https://www.qualcomm.com/)[![](https://assets.underline.io/uploads/markdown_image/1/image/fa628a3cef7a5300e4ab59da0e0552fa.png)](https://www.samsung.com/hr/smartphones/galaxy-s22-ultra/?page=home)[![](https://assets.underline.io/uploads/markdown_image/1/image/948a0108c6b1b84e336b6f39bbc57fcf.png)](https://www.micron.com/)[![](https://assets.underline.io/uploads/markdown_image/1/image/74e631e654862d71a16d009817467e5c.png)](https://www.nvidia.com/en-eu/geforce/)[![](https://assets.underline.io/uploads/markdown_image/1/image/224a109509478bb0c4d361401ba65fae.png)](https://www.tsmc.com/english)[![](https://assets.underline.io/uploads/markdown_image/1/image/d70304be54ef831492c3cb99d8c1f3c7.png)](https://www.tel.com/)[![](https://assets.underline.io/uploads/markdown_image/1/image/7e60586f1c46e0157f2f452d4005fb54.png)](https://gf.com/)[![](https://assets.underline.io/uploads/markdown_image/1/image/e1c9bbe8892bbd4d89b81de064f31dfa.png)](https://www.appliedmaterials.com/)[![](https://assets.underline.io/uploads/markdown_image/1/image/dc19add30e3105172bdc93580e944dee.png)](https://www.ti.com/)[![](https://assets.underline.io/uploads/markdown_image/1/image/8e81ebc466ddd94f3fde7f3cdebb86c0.png)](https://www.skhynix.com/)[![](https://assets.underline.io/uploads/markdown_image/1/image/ccfa43258b058874e38e5903f79e63bc.png)](https://www.st.com/content/st_com/en.html)


![](https://assets.underline.io/uploads/markdown_image/1/image/e4c5690a7016a468518eeab6ed0f7e56.png)
[![](https://assets.underline.io/uploads/markdown_image/1/image/c33da95f78e91c05d51b787f02a1af01.png)](https://www.infineon.com/)
![](https://assets.underline.io/uploads/markdown_image/1/image/e708450912afd1718c5af9e9dfd70d3f.png)
[![](https://assets.underline.io/uploads/markdown_image/1/image/ffd1b2531ec1531672693a786e5a1b37.png)](https://eds.ieee.org/)[![](https://assets.underline.io/uploads/markdown_image/1/image/0a58c969093f21f088af904b1cb4e112.png)](https://rs.ieee.org/)

IRPS provides numerous opportunities for attendees to increase their knowledge and understanding of all aspects of microelectronics reliability. It is also an outstanding chance to meet and network with reliability colleagues from around the world.

n advanced technology, the effect of self-heating (SH) on hot-carrier degradation (HCD) activation energy (Ea) has been studied by temperature correction under DC stress but frequency dependance of HCD under AC condition is discussed thoroughly. In this study, it is experimentally observed that after considering the influence of SH, device lifetime still increases with shorter stress pulse width. Based on these experimental results, a universal HCD model is proposed which could cover both DC and AC stress waveforms with different pulse width (pstress).

Universal Hot Carrier Degradation Model under DC and AC Stress

We report preliminary results on bias temperature instabilities (BTI) on 28FDSOI MOS transistors from 300K to 4K. Common models describe BTI as a temperature-activated effect, which is suppressed at cryogenic temperature. Our measurements show that some BTI remains even at 4K, underlying another degradation mechanism, and we offer insight into the characteristic temperature and time scales. We show that the back-gate voltage can be used to mitigate BTI degradations. An anomalous signal is observed in small PMOS, which can be caused by trapping from the gate.

Fast Measurement of BTI on 28nm Fully Depleted Silicon-On-Insulator MOSFETs at Cryogenic Temperature down to 4K

In advanced DRAM technology, buried-channel-array transistor (BCAT) will generate additional leakage during long-term read/write operations, leading to retention time reduction. In this work, we designed the accelerated aging test in wafer level and proposed a model for the long-term retention time prediction. By adding into conventional retention time simulation flow, the data of retention time at different operation time can be predicted. It was found that the aging can degrade retention time tail around 13% in 10 years. This work is thus helpful to the refresh scheme development considering aging effect.

New Insight into the Aging Induced Retention Time Degradation of Advanced DRAM Technologies

We present a reliable magnetic tunnel junction (MTJ) TDDB model using 40Mb 22FDX® STT-MRAM at sub-PPM failure rate. This model is based on the precise estimation of voltage across MTJ at bit-cell level derived from compact model and design simulations to cover the product level endurance performance from MTJ diameter, resistance-area product, and temperature effects. We discuss the implications of pre/post MTJ switching, circuit variations and write pulse on MRAM endurance. By using design-process-test co-optimization, we show robust MRAM product reliability to meet &gt;1M cycles with solder reflows and path towards achieving &gt;E12 cycles for cache applications.

Extended MTJ TDDB Model, and Improved STT-MRAM Reliability with Reduced Circuit and Process Variabilities

The concept of Abutting source/body and drain/anode junction is studied in detail in high voltage LDMOS-SCR with 2D and 3D TCAD simulations. The SCR turn-on and low current filament formation are strongly influenced by the isolation at the anode and cathode side in LDMOS-SCR. While the anode side isolation impacts the filament-induced failures at low currents, the cathode side isolation has a minor impact. The physical insights are given on the SCR turn-on degradation with abutting and its influence on the filament formation and spreading. The obtained understanding helps to build the ESD robust, self-protected LDMOS-SCRs.

Effect of Source & Drain Side Abutting on the Low Current Filamentation in LDMOS-SCR Devices

The root causes for the anomalous Pf-tf scaling behavior in the adiabatic regime are identified for a BiCMOS-based ESD protection for the first time. TCAD is used both to understand the turn-on of the integrated architecture with two coupled bipolar transistors under different ESD pulses and to explore the main physical mechanisms leading to the thermal runaway and failure. Simulations clearly show the complex interaction between the conductance modulation and the onset of hot spots in the full volume of the device structure, leading to the identification of critical parameters for the optimization of the proposed ESD cell.

TCAD investigation of Power-to-Failure evaluation for ultrafast events in BJT-based ESD protection cells

Periphery pFETs fabricated with the sub-20nm technology are investigated under hot carrier stress conditions when the gate voltage (|Vg|) is lower than the drain voltage (|Vd|). Two types of defects are identified: the donor-like interface trap generation causes the positive charge formation while the electron trapping in oxide traps leads to the negative charge accumulation. The corresponding energy and spatial locations are identified by analyzing the defect-induced mobility degradation and the recovery characteristic. Finally, a defect-based model is proposed for both the threshold voltage shift and the mobility degradation, which allows the prediction of the full IV after aging. This work paves a new avenue to develop accurate reliability model of periphery pFETs, a prerequisite for future device/circuit co-optimization in DRAM peripheral circuits.

Characterization and Modelling of Hot Carrier Degradation in pFETs under Vd>Vg Condition for sub-20nm DRAM Technologies

The first experimental study of floating-body characteristics for both n- and p-channel devices is demonstrated using the vertical gate-all-around split-gate Flash with channel diameter around 60nm. The maximal Vt shifts are around ~0.38V and 0.32V for n- and p-channel devices, respectively. The retention is ~80usec for n-channel devices, but is extended to nearly 10msec for p-channel devices. 3D TCAD model was established to comprehend the FBC of the vertical split-gate GAA structure. This work suggests the transient charge storage in large GAA diameter. For ordinary Flash memory or LOGIC operations, the aggressive scaled GAA diameter can avoid transient FBC effects.


First Experimental Study of Floating-Body Cell Transient Reliability Characteristics of Both N- and P-Channel Vertical Gate-All-Around Devices with Split-Gate Structures

This paper provides a summary of most recent advances and trends in automotive safety, especially related to Automated Driving Systems (ADS). It covers both functional safety, safety of the intended functionality (SOTIF) and their relationships with other areas of dependability such as cybersecurity. It also covers the several standardization activities currently ongoing in safety and Artificial Intelligence. The paper mostly focuses on HW but it also describes the major challenges related to HW-SW interface.

Recent advances and trends on automotive safety

In this work we compared AC and DC bias temperature instability (BTI) degradations induced by stressing the channel and Junction-FET regions in 4H polytype n-channel Silicon Carbide (SiC) based power MOSFETs. We observed that the degradation caused by AC BTI stress is dependent on the device technology generation unlike the DC BTI stress degradation, which is found to be independent of technology generation. Also, we found that the AC BTI stress causes more permanent damage to the device due to the creation of interface traps and border traps in contrast to DC BTI where only border traps are responsible for the degradation.

Premium content

Thermal-Neutron SER Mitigation by Cobalt-Contact in 7 nm Bulk-FinFET Technology

Downloads

Next from IRPS 2022

Universal Hot Carrier Degradation Model under DC and AC Stress

Stay up to date with the latest Underline news!

PRESENTATIONS

CONFERENCES

COMPANY

RESOURCES
