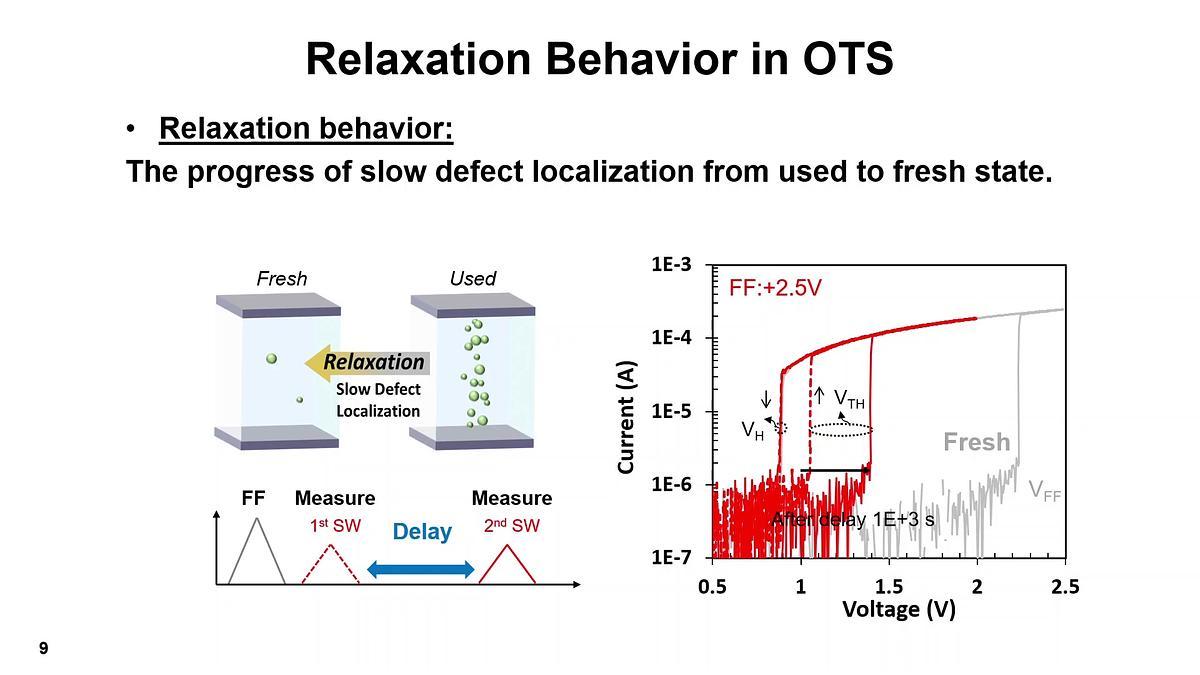

Ovonic Threshold Switching Selector faces challenges of VTH stability in intensive applications due to relaxation and the degradation upon endurance cycling. This work investigates the first fire (FF) voltage effects and mechanisms related to the switching characteristics on GeCTe-based selectors. Higher VTH stability and more uniform Ioff-VTH control during endurance cycling were achieved by higher FF design. A power-law model with strong correlation between endurance and pulse-energy was also demonstrated in this study.

IRPS 2022 Main Conference

Investigation of First Fire Effect on VTH Stability and Endurance in GeCTe Selector

acceleration.

cycling degradation

relaxation

gecte

ovonic threshold switching selector

endurance

stability

technical paper
