In this work, we develop an inherently self-consistent methodology to resolve the long-standing challenges of variability-induced TDDB degradation in MOL/BEOL/MIMCAP applications. A grand scheme of modelling methodology is outlined to accurately extract degradation parameters (distribution scale and shape factors) in matching experimental data while maintaining the methodology rigour.   We identify not only the degradation parameters affecting TDDB performance but also a variety of variability distributions as well as their bimodality in superposition or competition as additional sources of variability.  We show excellent agreement with large sets of experimental data. The methodology can be readily used for accurate reliability projection.

IRPS 2022

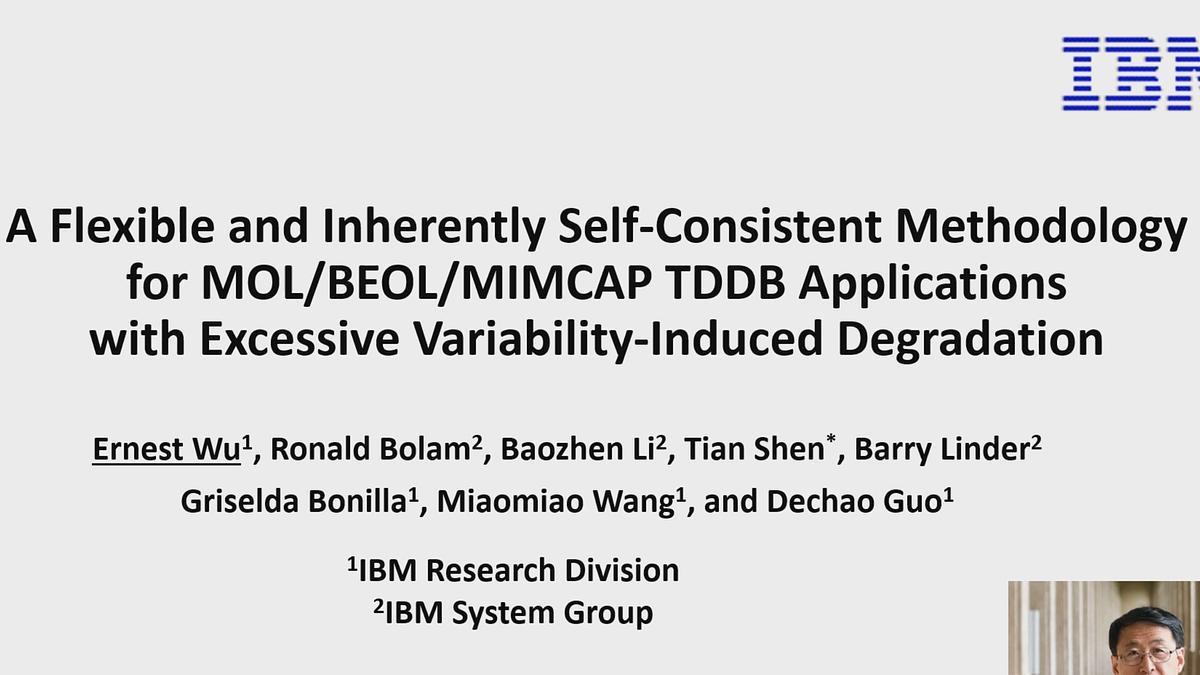

A Flexible and Inherently Self-Consistent Methodology for MOL/BEOL/MIMCAP TDDB Applications with Excessive Variability-Induced Degradation

tddb

variability

degradation

technical paper
