We characterize the reliability of BEOL dielectrics between two metal tips using a design-representative test structure. To distinctively study the different failure modes, being line-to-line, via-to-line and tip-to-tip breakdown, an experimental test procedure called “double V-ramp stress” is proposed. By analyzing the leakage currents at different terminals under 4-point voltage stress, the different failure modes can be identified electrically. Our results confirm that the tip spacing control is pivotal for the tip-to-tip dielectric reliability.

IRPS 2024 Main Conference

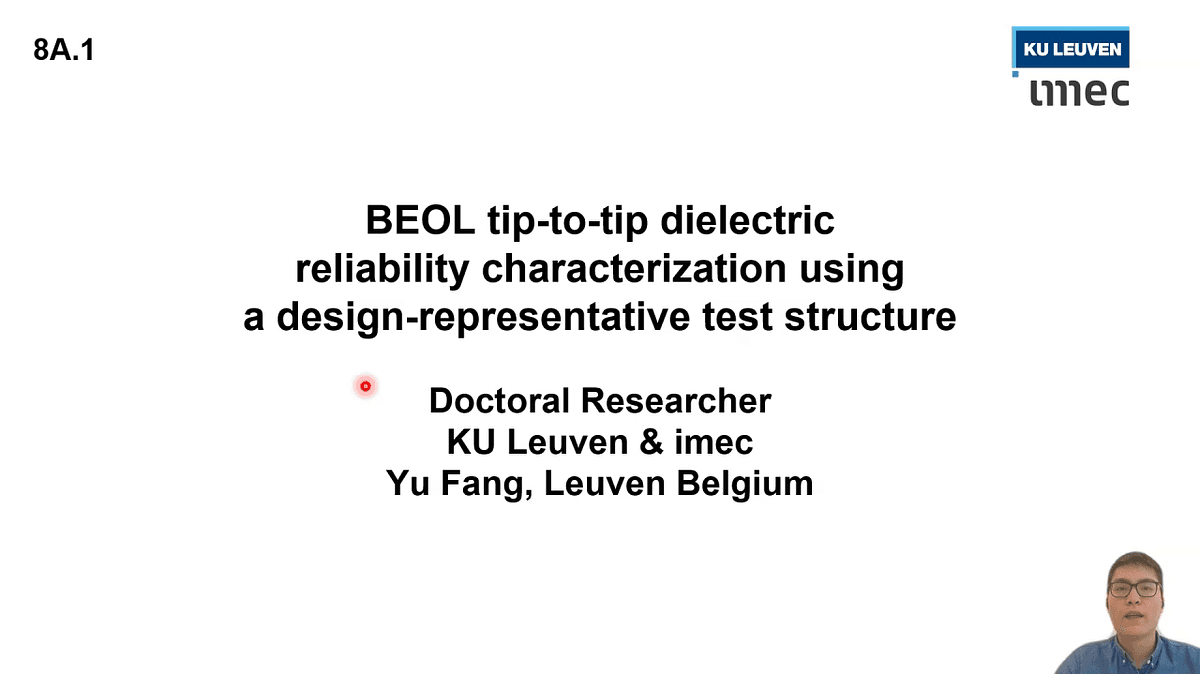

BEOL tip-to-tip dielectric reliability characterization using a design-representative test structure

tip-to-tip

tddb

beol

technical paper
