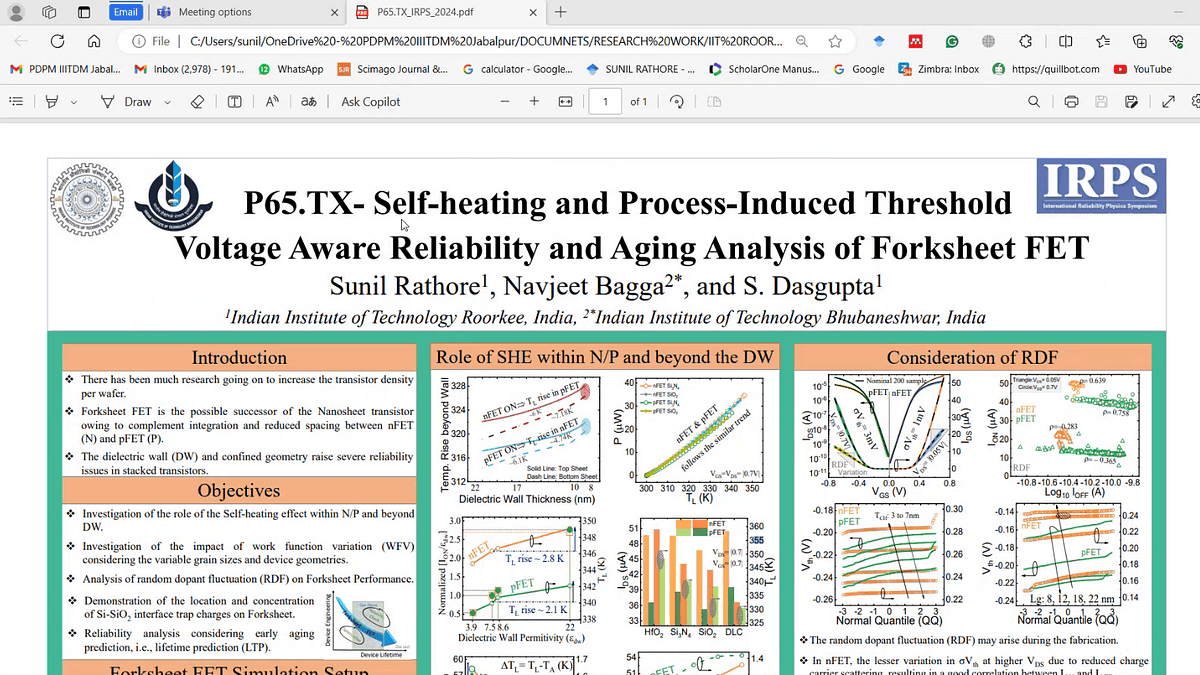

Sheet/channel wrapping by low-thermal conductive material, sheet-stacking, and dielectric wall (DW) for N/P separation puts reliability concerns in Forksheet FET. Using TCAD we analyzed (i) the role of self-heating-effect within N/P and beyond DW; (ii) impact of random dopant fluctuation on ION and Vth (iii) impact of metal- grain-granularities and ratio of grain-size to gate area (RGG) on Vth and finally (iv) the benchmarking of devices’ aging, i.e., lifetime-prediction (LTP), defined by Vth = ±50mV.

IRPS 2024 Main Conference

Self-heating and Process-Induced Threshold Voltage Aware Reliability and Aging Analysis of Forksheet FET

poster
