We investigated the RowPress (RP) effect for sub-20 nm DRAM. Single- and double-sided RP are compared with row hammer (RH). Distinct RP leakage mechanisms are identified, illuminating its different cell vulnerability in contrast to RH. AWL-induced RP results in 0 failure, whereas PWL-induced RP leads to 1 failure, demonstrating different bit-flip directionality from RH. Mechanisms behind the differences in the dependences on temperature and access pattern between RH and RP are analyzed.

IRPS 2024 Main Conference

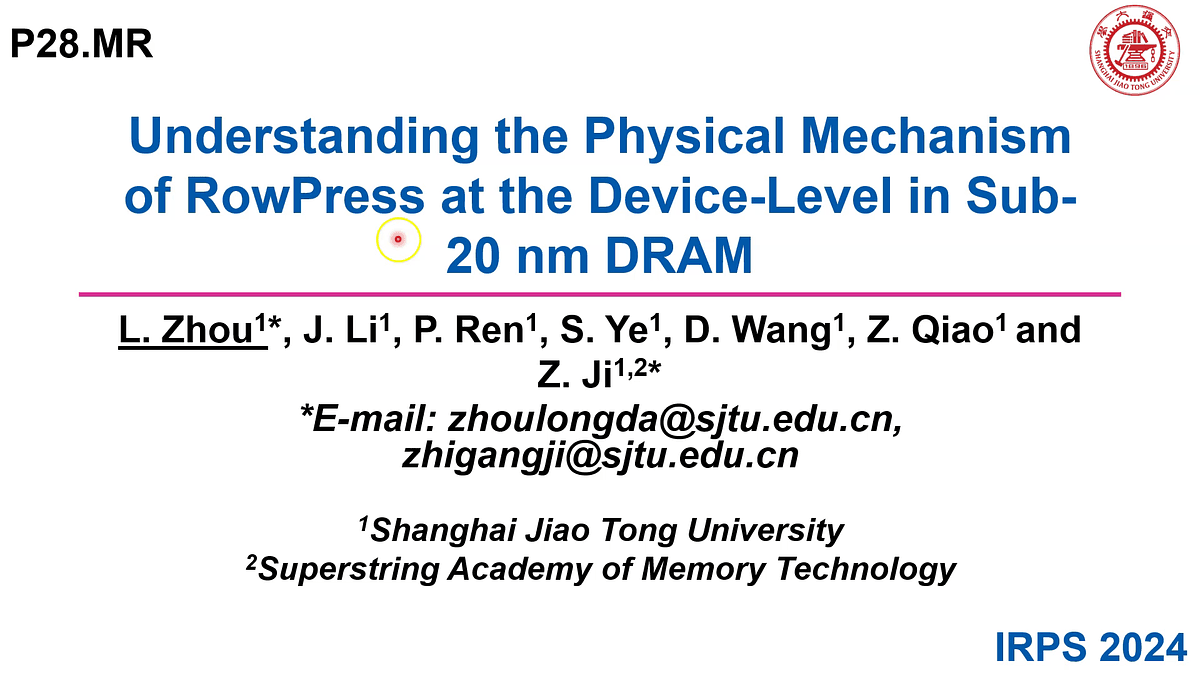

Understanding the Physical Mechanism of RowPress at the Device-Level in Sub-20 nm DRAM

poster
