In this work, we report on the use of Triethyl Gallium for ‘in-situ Ga etching’ of β-Ga2O3 inside an MOCVD reactor. We demonstrate a maximum etch rate of ~8.5 μm/hr at a substrate temperature of 1000 °C and Ga flux of 140.47 μmol/min. In addition, low surface roughness of 2.9 nm was also obtained at a Ga flux of 6.05 μmol/min and substrate temperature of 800 °C. The ultra-wide band gap semiconductor β-Ga2O3 (band gap=4.7 eV, breakdown field=8 MV/cm) has made rapid strides in terms of substrates, material quality and device performance over the last decade. Ga2O3 devices with performance exceeding that of SiC has already been demonstrated [ref]. Several promising device structures in β-Ga2O3 require the use of 3-D structures like fins and trenches. For fabrication of such structures in β-Ga2O3, dry etching using BCl3/Ar has been widely used as the standard process. However, a key challenge when using dry etching is the induced subsurface damage. This has been shown to be significant in Ga2O3 resulting in charge depletion, reduction in channel mobility and increased sidewall roughness. In addition to dry etching, wet etching using HF, H3PO4 and KOH has also been reported. However, wet etching is found to mostly result in angled sidewalls which are not ideal. A promising etch technique for Ga2O3 is the use of suboxide formation upon exposure to Ga (Ga (s)+ Ga2O3 (s) Ga2O (g)) at sufficiently high temperatures. Suboxide based etching of β-Ga2O3 performed in an MBE chamber was previously shown to result in low damage etching of Ga2O3 along with vertical sidewalls for fins and trenches [1]. In this work, we studied ‘in-situ Ga etching’ performed inside an MOCVD reactor using Triethyl Gallium (TEGa) precursor. At sufficiently high substrate temperature, TEGa undergoes cracking resulting in the deposition of Ga on the substrate surface while the remaining hydro-carbon group (CxHy) get pumped out of the chamber. The deposited Ga reacts with Ga2O3 forming volatile suboxide, resulting in etching. We studied the effects of various parameters like TEGa flow rate, substrate temperature (Tsub) and substrate orientation ((001) and (010)) on etch characteristics like etch rate and surface roughness. Substrate temperatures ranged from 650 °C to 1000 °C to determine the effect on etch rate and surface roughness. Pressure was held constant at 15 Torr throughout the experiments. Samples with a constant etch depth of ~300 nm was used to measure surface roughness using AFM. Gallium flux spanned from 3.63 μmol/min to 140.47 μmol/min to determine its effect on the previously stated etch characteristics. The etch rate was found to increase with substrate temperature from 1.8 m/hr at Tsub=700 to 3.7 m/hr at Tsub=1000 . The surface roughness of etched surfaces also decreased with increase in Tsub for both (010) and (001) Ga2O3 surfaces. As expected, etch rate was found to monotonically increase with TEGa flow rates both at Tsub=800 and Tsub=1000 . At a substrate temperature of 1000 and TEGa molar flow of 140.5 μmol/min, etch rates exceeding 8.5 m/hr was achieved. However, RMS roughness ((010) β-Ga2O3 surface) was also found to increase at high TEGa flow rates. Lowest surface roughness was obtained at low TEGa flow rates (&lt;12 μmol/min) and Tsub=800 with the lowest obtained RMS roughness of ~2.8 nm. Patterned etching using SiO2 hard mask was also demonstrated with a total etch depth of 2 m. In conclusion, we demonstrate MOCVD-based ‘in-situ Ga etching’ using TEGa as the Ga source. Etch rates as high as 8.5 μm/hr was obtained at a substrate temperature of 1000 and TEGa flow rate of 140.47 μmol/min. In addition, low surface roughness &lt;3 nm and patterned etching using SiO2 as the hard mask is also demonstrated. This work was supported by faculty startup fund from Arizona State University. References: [1] Kalarickal, N. K., Applied Physics Letters, 119(12), 123503.

EMC 2023

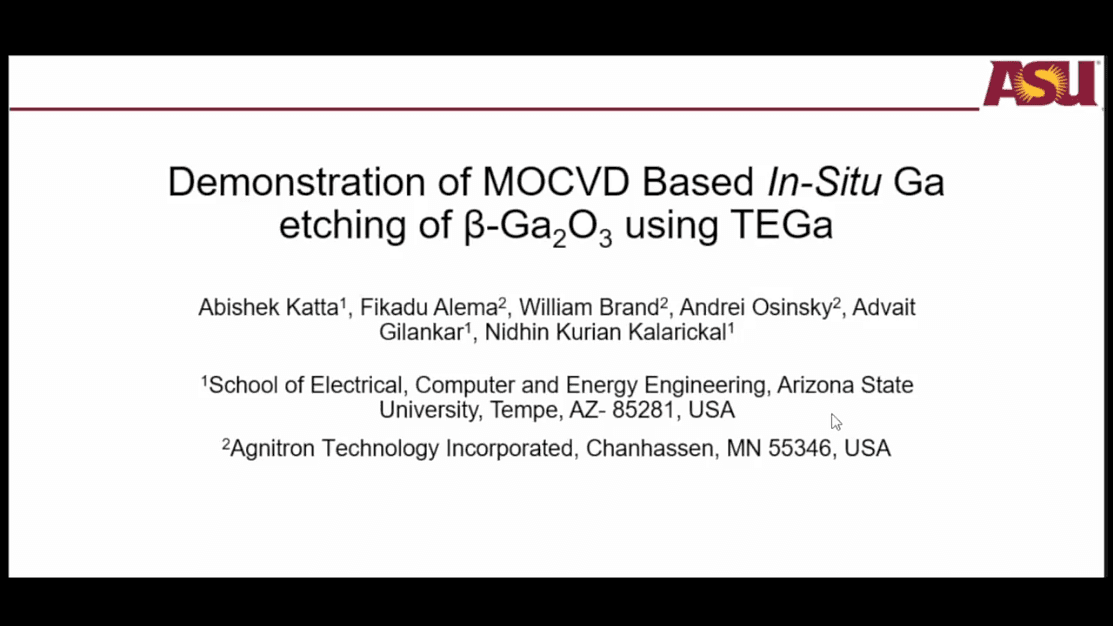

Demonstration of MOCVD Based &#39;in situ Ga Etching’ of β-Ga2O3 Using TEGa

in-situ etching

mocvd

gallium oxide

In this work, we report on the use of Triethyl Gallium for ‘in-situ Ga etching’ of β-Ga2O3 inside an MOCVD reactor. We demonstrate a maximum etch rate of ~8.5 μm/hr at a substrate temperature of 1000 °C and Ga flux of 140.47 μmol/min. In addition, low surface roughness of 2.9 nm was also obtained at a Ga flux of 6.05 μmol/min and substrate temperature of 800 °C. The ultra-wide band gap semiconductor β-Ga2O3 (band gap=4.7 eV, breakdown field=8 MV/cm) has made rapid strides in terms of substrates, material quality and device performance over the last decade. Ga2O3 devices with performance exceeding that of SiC has already been demonstrated [ref]. Several promising device structures in β-Ga2O3 require the use of 3-D structures like fins and trenches. For fabrication of such structures in β-Ga2O3, dry etching using BCl3/Ar has been widely used as the standard process. However, a key challenge when using dry etching is the induced subsurface damage. This has been shown to be significant in Ga2O3 resulting in charge depletion, reduction in channel mobility and increased sidewall roughness. In addition to dry etching, wet etching using HF, H3PO4 and KOH has also been reported. However, wet etching is found to mostly result in angled sidewalls which are not ideal. A promising etch technique for Ga2O3 is the use of suboxide formation upon exposure to Ga (Ga (s)+ Ga2O3 (s) Ga2O (g)) at sufficiently high temperatures. Suboxide based etching of β-Ga2O3 performed in an MBE chamber was previously shown to result in low damage etching of Ga2O3 along with vertical sidewalls for fins and trenches [1]. In this work, we studied ‘in-situ Ga etching’ performed inside an MOCVD reactor using Triethyl Gallium (TEGa) precursor. At sufficiently high substrate temperature, TEGa undergoes cracking resulting in the deposition of Ga on the substrate surface while the remaining hydro-carbon group (CxHy) get pumped out of the chamber. The deposited Ga reacts with Ga2O3 forming volatile suboxide, resulting in etching. We studied the effects of various parameters like TEGa flow rate, substrate temperature (Tsub) and substrate orientation ((001) and (010)) on etch characteristics like etch rate and surface roughness. Substrate temperatures ranged from 650 °C to 1000 °C to determine the effect on etch rate and surface roughness. Pressure was held constant at 15 Torr throughout the experiments. Samples with a constant etch depth of ~300 nm was used to measure surface roughness using AFM. Gallium flux spanned from 3.63 μmol/min to 140.47 μmol/min to determine its effect on the previously stated etch characteristics. The etch rate was found to increase with substrate temperature from 1.8 m/hr at Tsub=700 to 3.7 m/hr at Tsub=1000 . The surface roughness of etched surfaces also decreased with increase in Tsub for both (010) and (001) Ga2O3 surfaces. As expected, etch rate was found to monotonically increase with TEGa flow rates both at Tsub=800 and Tsub=1000 . At a substrate temperature of 1000 and TEGa molar flow of 140.5 μmol/min, etch rates exceeding 8.5 m/hr was achieved. However, RMS roughness ((010) β-Ga2O3 surface) was also found to increase at high TEGa flow rates. Lowest surface roughness was obtained at low TEGa flow rates (<12 μmol/min) and Tsub=800 with the lowest obtained RMS roughness of ~2.8 nm. Patterned etching using SiO2 hard mask was also demonstrated with a total etch depth of 2 m. In conclusion, we demonstrate MOCVD-based ‘in-situ Ga etching’ using TEGa as the Ga source. Etch rates as high as 8.5 μm/hr was obtained at a substrate temperature of 1000 and TEGa flow rate of 140.47 μmol/min. In addition, low surface roughness <3 nm and patterned etching using SiO2 as the hard mask is also demonstrated. This work was supported by faculty startup fund from Arizona State University. References: [1] Kalarickal, N. K., Applied Physics Letters, 119(12), 123503.

Demonstration of MOCVD Based 'in situ Ga Etching’ of β-Ga2O3 Using TEGa

technical paper

The Electronic Materials Conference (EMC) is the premier annual forum on the preparation, characterization and use of electronic materials. This year’s event will feature a plenary session, topical sessions, a poster session and more.

EMC is coordinated with the Device Research Conference (DRC). This recognizes the strong interaction between device and electronic materials research and provides fruitful exchange of information between attendees of both Conferences.

The Electronic Materials Conference (EMC) is the premier annual forum on the preparation, characterization and use of electronic materials.

There is an ever-increasing demand for energy-efficient multifunctional sensors or transducers based on low-cost and environmentally acceptable material systems. This demand is a direct result of the remarkable improvement of current technology, which has led to an increase in energy consumption. In this context, we describe a self-assembled vertically aligned β–Ga2–XWXO3 nanocomposite (GWO-VAN) architecture-assisted ultrafast deep-ultraviolet (DUV) photodetection on a silicon platform. Silicon has traditionally served as the core of traditional electronics. By carefully controlling the growth settings, it was possible to demonstrate the growth of W-enriched vertical β–Ga2–XWXO3 nanocolumns contained within a W-deficient β–Ga2–XWXO3 matrix on a silicon substrate. The presence of a nanocomposite of β–Ga2–XWXO3 with a high structural and chemical quality has been confirmed by detailed structural and morphological investigations. In addition, absorption and photoluminescence spectroscopy are able to describe photo-absorption dynamics as well as the recombination process through the use of various donor-acceptor energy levels. The GWO-VAN architecture makes it possible to have equally scattered nanoregions with asymmetric donor energy state distribution, which ultimately results in the formation of build-in potential at those vertical β–Ga2–XWXO3 interfaces. Under UV irradiation, the heterostructure displays the characteristics of a photovoltaic cell. A responsivity of ~30 A/W is seen alongside an ultrafast response time of ~350 microseconds under transient triggering. The corresponding detectivity and efficiency values are 7.9×1012 Jones and 1.4×104 %, respectively. The implications of the aforementioned approach are enormous in terms of designing electronic devices for extreme environment applications and have immense potential to demonstrate a significant improvement in low-cost UV photodetector technology.

Vertically Aligned β–Ga2–XWXO3 Nanocomposites for Ultrafast Deep-UV Photodetectors

(MgxGa1-x)2O3 alloys with bandgap energy from ~5.0 to ~6.0 eV can provide opportunities for optoelectronics in deep ultraviolet spectral range and electronics with extremely high critical field strength. It is important to grow high-quality (MgxGa1-x)2O3 alloys with varied Mg compositions and understand their structural, optical and electrical properties. In this project, (MgxGa1-x)2O3 ternary alloy thin films of different Mg concentrations were grown by using oxygen plasma assisted molecular beam epitaxy (MBE). The atomic ratios of Mg and Ga from sample 1 to sample 20 were recorded from 0 at.%/100 at.% to 100 at.%/ 0 at.% separately, which were measured by energy-dispersive X-ray spectroscopy (EDX). The lattice structures, which have transformed from β-phase in Ga-rich materials, to beta and rock salt mixture phase in high-Ga high-Mg alloys, and to pure rock salt phase in Mg-rich alloys, were investigated by high resolution x-ray diffraction (HR-XRD) and reciprocal space mapping (RSM). The change of film quality and lattice parameter with different Mg at.% was revealed. Surface morphology was characterized by atomic force microscopy (AFM), and the change of surface roughness with Mg at.% was recorded. Ultrawide bandgap absorption and transmittance spectra were measured using a high-performance UV-Vis-NIR spectrophotometer. Bandgap tuning from 5.03 eV to 5.89 eV was achieved, and all samples have the transmittance over 90% in the visible spectral range.

Investigation of Phase Transition and Bandgap Engineering in (MgxGa1-x)2O3 Thin Films Grown by Molecular Beam Epitaxy

Ultra-wide bandgap semiconductors are promising for many applications such as power electronics and deep-UV photonics. With a bandgap of ~4.9 eV, Gallium Oxide (Ga2O3) has drawn much attention recently. To improve film quality, a low-temperature buffer layer is commonly used. In this research, wider bandgap β-phase Magnesium Gallium Oxide (MgGaO) alloys were grown in a plasma-assisted molecular beam epitaxy system. The relationship between growth temperature and thickness of low-temperature buffer layer and the quality of active layer was studied by X-ray diffraction (XRD) and by analyzing metal-semiconductor-metal (MSM) photodetector devices based on these films. Low-temperature homo-buffer layers with a growth temperature of 300-500 °C and a thickness of 0-40 nm, respectively, were deposited on c-sapphire substrates, followed by two-hour active layer growth at a temperature of 650 °C. Scanning electron microscope (SEM) and atomic force microscope (AFM) were used to analyze the surface morphology. Energy dispersive X-ray spectroscopy (EDX) was used and the average composition for Ga and Mg is 85 at. % and 15 at. %, respectively. Bandgaps were extracted from the Tauc plot with a value of 5.1 eV for all samples. X-ray diffraction results show all samples are oriented -phase MgGaO. The X-ray rocking curve measurement shows that the full width at half maximum (FWHM) increases as the buffer layer thickness increases, and this may be due to the poor quality of the buffer layer. Current-voltage measurement for the interdigitated electrode photodetectors shows that the current increases as the low-temperature buffer layer increases. Photocurrent decay time increases as the buffer layer thickness increases, indicating that the quality of the active layer improves. Recombination of photo-generated electrons and holes is reduced with fewer defects in the active layer, resulting in a larger current under illumination and a longer photocurrent decay time.

Improving Quality of β–Phase MgGaO Thin Films by Using Low-Temperature Homo-Buffer Layer

Epitaxial lateral overgrowth (ELO) is an established technique for the reduction of the high threading dislocation density of GaN grown on sapphire substrates. ELO is typically carried out via a selective area growth process with stripes of SiO2 as a mask. While the benefits of ELO were instrumental in the development of early GaN optoelectronics, the phenomenon known as “wing tilt” is a longstanding drawback. So-named due to the crystallographic tilt induced in the “wing” regions above the SiO2 mask, the effect is associated with a tilt boundary at the coalescence boundary. While various approaches have been suggested to mitigate the impact of wing tilt, there is not currently a scheme to eliminate the effect. In this study, we demonstrate that wing tilt is a direct result of the use of the SiO2 mask, and that the tilt occurs even before coalescence. We also demonstrate GaN layers free of wing tilt using a mask-free facet-controlled ELO (FACELO) scheme. For this investigation, ammonothermally grown bulk GaN substrates were used. One template was prepared for traditional ELO with SiO2 stripes of 2 μm separated by windows of 2 μm for a period of 4 μm; another template was prepared with a mask-free pattern by etching trenches of 2 μm width and depth, leaving behind 2 μm stripes. Both templates had stripes oriented along the m-direction of GaN. As the first step in the ELO growth scheme, these templates were grown at a low temperature (950 °C) to promote the evolution of semipolar facets, resulting in triangular cross-sections over the stripes. The second growth step to achieve c-plane coalescence was then performed at a higher temperature (1100 °C). The samples were characterized at both steps via SEM and XRD, as well as TEM after coalescence. The (002) ω-rocking curve of the SiO2-grown triangles shows symmetric satellite peaks about the main peak characteristic of wing tilt. Additionally, the FWHM of the peak has increased from 40 arcsec for the substrate to 150 arcsec for the regrown structure. This result shows that even before coalescence, the growth of GaN over SiO2 results in a change in crystalline quality. After coalescence, the FWHM of the peak increases to 180 arcsec, a value suggesting a threading dislocation density in the high 108 cm-2 range. By contrast, the maskless sample shows no satellite peaks in the (002) ω-rocking curve, and at both steps the FWHM of the original template is maintained. The findings of the XRD are confirmed via TEM. In epitaxial layers above the SiO2 patterned sample, a significant density of dislocations can be seen. By contrast, the maskless sample showed no visible dislocations. We therefore conclude that wing tilt and its associated dislocations are caused by the presence of the SiO2 mask, and that by use of a maskless etched template, these deformations and defects can be avoided.

Wing Tilt in ELO-Grown GaN

ScAlN alloys are promising due to their high spontaneous and piezoelectric polarizations and ferroelectric properties for various technologies including high electron mobility transistors (HEMTs), acoustic devices, etc. Despite the common belief that Molecular Beam Epitaxy (MBE) synthesis requires N-rich conditions to avoid metallic phase inclusions, our previous studies1,2 have demonstrated that the metal modulated epitaxy (MME) allows growth of state-of-the-art structural quality ScAlN in metal-rich conditions at a low substrate temperature (Tsub) of 400 °C by using precise control of metal adlayer buildup. Additionally, these previous studies found an extremely unusual feature wherein, a significant catalytic effect of Sc leads to more available nitrogen and thus, ~3x faster growth rates when Sc is present in large coverages on the surface. Accounting for this critical new feature, MME allows improved crystal quality by x-ray diffraction (XRD) figures of merit and surface roughness as low as 250 arcsec and 0.73 nm, respectively. The HEMT structure in the previous studies have shown an improved sheet resistance of 152 W/■, a mobility of 700 cm2/Vs, and a sheet charge of 5.9 x 1013 cm-2 which is near the theoretical limit, exhibiting MME’s great potential for ScAlN HEMT applications. Although the optimization of III/V ratio and growth temperature was done in the previous studies1,2, the structural properties of ScAlN are not well investigated yet especially for the MME grown films which involves low-growth temperature. The present transmission electron microscopy (TEM) study contrasts the unique characteristics of MME grown Sc0.2Al0.8N at low Tsub of 400 °C, and 650 °C without metallic inclusions and 600 °C samples that showed the metallic inclusions. Significant twist is present in the 600 °C grown sample that is absent in the 400 °C sample. MME Sc0.2Al0.8N were grown on MME GaN on hydride vapor phase epitaxy (HVPE) GaN templates on c-plane sapphire substrates as described elsewhere1,2, using plasma-assisted molecular-beam-epitaxy (PA-MBE). TEM and four-dimensional scanning TEM (4D-STEM) are employed to evaluate the structural properties. The cross-sectional sample is prepared by focused ion beam (FIB) under cryogenic temperature. TEM images close to the zone axis, and for the sample with Tsub = 400 °C show better film quality than the two higher temperature samples, having distinctive contrasts of dislocations. The 600 °C sample showed complicated and dense contrasts. This fact correlates with the previous results in XRD 2θ-ω scans indicating that the 600 °C sample had inclusions of Al3Sc phases, which are not present in the other two samples. AFM also showed smoother surface roughness for the 400 °C sample other samples.1,2 Local diffraction patterns (DPs) obtained from 4D-STEM taken for the 600 °C sample shows ScAlN is twisted ~5° along c-axis from underlying GaN, which is confirmed by twisting the sample around the c-axis in the measurement. Some local DPs show additional crystalline tilt by ~6° off the c-axis. These twist and tilt features are supported by the existence Moire fringes in the bulk of the film from TEM images observed in 600 °C sample, but not in 400 °C sample. In addition, multiple DP spots outside the wurtzite DPs are found in some regions, implying the inclusion of multiple phases, e.g., possibly rock-salt or Al3Sc phases, which could be from phase separation as revealed in XRD 2θ-ω scan in the previous studies.1,2 These features in 4D-STEM are not observed in 400 °C sample. The present study helps to understand the mechanisms of better crystal quality in the epitaxially grown ScAlN under low substrate temperatures. 1Z. Engel, et. al., J. Appl. Phys., 132, 185302, 2022. 2 Z. Engel, Doctoral Dissertation, Georgia Institute of Technology, Approved on Dec. 5th, 2022.

Structural Analysis and Observation of Tilts, Twists and Crystallographic Orientation of High-Quality, Metal Rich Grown Sc0.2Al0.8N

Manufacturing high-quality inorganic thin films on large-area flexible substrates is a key technology to utilize for flexible devices such as wearable sensors, flexible displays, and electronic devices. For the device fabrications, epitaxial thin films were grown on two-dimensional (2-D) layered materials such as graphene and h-BN. Since the 2-D materials offer weak bonding to the as-grown films, the exfoliation of epilayers from 2-D materials is easily feasible. In particular, remote epitaxy has recently been reported by molecular beam epitaxial growth of GaN thin films on the graphene buffer layer (GBL) on SiC substrates. This remote epitaxial growth method enables to grow the single-crystal thin films on graphene-coated polar substrates by maintaining the epitaxial relationship between the substrate and the epilayer because the graphene does not wholly screen the electrostatic potential of the substrate. However, metalorganic vapor-phase epitaxy (MOVPE), commercially used for manufacturing GaN devices, could not be used for the remote epitaxial growth and exfoliation of high-quality GaN thin films on graphene. During the MOVPE growth, graphene substrates are affected by H2 and NH3 ambient gases at high growth temperatures, resulting in the failure of GaN exfoliation from the graphene substrate. Here, we report a new strategy for MOVPE growth of transferable single-crystal GaN thin films on graphene/c-sapphire by using pulse operation of NH3 flow to prevent deterioration of graphene substrates during GaN growth. The basic strategy for epitaxial growth of transferable single-crystal GaN thin films on graphene/c-sapphire is to use pulse operation of NH3 flow to prevent deterioration of graphene substrates during GaN growth. In the NH3 pulsed-flow growth, the NH3 injection into the reactor was periodically interrupted while the trimethylgallium (TMGa) was continuously injected. By a controlled V/III ratio under the pulsed NH3 injection, the lateral growth of the GaN buffer islands was enhanced merging into a continuous film. By optimizing the growth parameters, including the duration and period of the pulsed ammonia flow, high-quality GaN films were grown on the graphene-coated sapphire substrates, easily lifted off, and transferred onto a foreign substrate by simple mechanical exfoliation using a tape. Furthermore, we investigated the role of the pulsed operation of ammonia flow as a critical factor for the fabrication of high-quality free-standing GaN films. The freestanding GaN films, exhibiting excellent single crystallinity and electrical and optical characteristics, were also applied for transferrable GaN LEDs by heteroepitaxially growing InxGa1-xN/GaN multiple quantum wells and p-type GaN layers on the GaN films and transferring them onto Cu foil.

Pulsed-Mode Metalorganic Vapor-Phase Epitaxial Growth of GaN on Graphene/c-Sapphire for Freestanding GaN Thin Films

A combination of high electron saturation velocity, high electron mobility, large breakdown field, and high electron density can be simultaneously achieved in GaN high electron mobility transistors (HEMTs), making them attractive for high-power, high-frequency power amplifiers. N-polar GaN epi-structures offer scaling of the gate-to-channel distance without losing 2DEG density and a built-in back-barrier for better pinch-off performance. Additionally, N-polar GaN enables the implementation of a thick in-situ GaN-cap layer, which keeps surface states away from the channel and minimizes their effect on device performance. By using N-polar HEMT epi-structure with a GaN cap (deep recess HEMT) 8 W mm−1 output power with 27.8% power added efficiency (PAE) at 94 GHz has been demonstrated, which is more than twice the output power and efficiency of conventional Ga-polar AlGaN/GaN HEMTs [1]. Despite numerous benefits, there are challenges associated with N-polar deep recess HEMTs. Dry etching used in recess etching causes surface damage in the gate area and the trench sidewalls leading to high gate leakage and low breakdown voltage. These issues are currently addressed by inserting SiNx gate dielectric deposited via metal organic chemical vapor deposition (MOCVD), a high temperature deposition technique that could be a limiting factor in device fabrication and integration. Moreover, inserting a thick dielectric layer under the gate increases the gate-to-channel distance, which is not desirable in scaled devices. Therefore, there is a need for developing a gate insulator with a high dielectric constant with low bulk and interface trap density. Moreover, a low-temperature deposition technique such as ALD allows for more flexibility in the fabrication process and is more desirable for manufacturing. Recent studies in our group have shown the successful application of ALD- HfO2 as gate dielectric in N-polar planar GaN HEMTs. [2] In this work, for the first time, a thermal-ALD HfO2 was used as the gate dielectric in N-polar deep recess GaN HEMTs. DC, pulsed IV, and small signal measurements were conducted to evaluate the device performance. Results show low gate leakage current, high transconductance, high dielectric breakdown field, and low dispersion, which indicates a high quality dielectric and dielectric/GaN interface. This work shows the potential for HfO2 as a gate insulator in N-polar deep recess HEMTs with a scaled channel. MOCVD-grown N-polar deep recess GaN HEMT structure with a 12 nm thick GaN channel and a 47.5 nm thick GaN-Cap was used for this study. The devices presented here have a 100 μm gate width, and 1.75 μm source to drain distance. The etched region length for the gate recess is 200 nm and placed 650 nm away from the source. Ti/Au gate metal has 450 nm thickness, 900 nm length, and 300 nm away from the source. DC measurements showed 0.9 A/mm maximum drain current, 2 Ohm.mm on-resistance, and 2.2 V knee voltage at 1 V gate bias. The threshold voltage was -1.5 V. The maximum transconductance of 420 mS/mm was measured at VG of -0.75 V and VD of 3 V. Gate leakage current of 140 nA/mm, and a 6.2 MV/cm dielectric breakdown field. More importantly, near zero hysteresis was observed in DC measurements. Pulsed IV measurements revealed less than 5% dispersion. Unity current gain frequency (fT) of 30.5 GHz and 53 GHz maximum oscillation frequency (fMAX) were measured. These results show the potential of using HfO2 as the gate dielectric in the future ultra-scaled N-polar deep recess GaN HEMTs. [1] B. Romanczyk et al., "W-band N-polar GaN MISHEMTs with high power and record 27.8% efficiency at 94 GHz," 2016 IEEE International Electron Devices Meeting (IEDM), 2016, pp. 3.5.1-3.5.4, doi: 10.1109/IEDM.2016.7838339. [2] S. Mohanty, A. Jian, K. Khan, and E. Ahmadi, “Demonstration of N-polar GaN MIS-HEMT with high-k atomic layer deposited HfO 2 as gate dielectric,” Accepted to appear in Journal of Electronic Materials (JEMS).

N-Polar GaN Deep Recess HEMTs with ALD HfO2 as Gate Dielectric

Semiconductor polytype heterostructures, which consist of chemically homogeneous structures formed via an abrupt change in crystal structure, offer opportunities for performance exceeding those of composition-based semiconductor heterostructures. Of particular interest are heterostructures formed via an abrupt change in atomic plane stacking sequence, such as the transition from the wurtzite (WZ) polytype, with AB stacking, to the zincblende (ZB) polytype, with ABC stacking. At a fixed chemistry WZ/ZB heterojunction, the lattice mismatch and thermal expansion coefficient mismatch are typically < 0.1%, leading to a negligible interfacial defect concentration. Meanwhile, the WZ/ZB band offset and polarization discontinuity are expected to lead to the confinement of a two-dimensional electron gas (2DEG) at the interface, without the need for impurity doping and/or alloying. Depending on the type I (nested) vs. type II (staggered) band offset at the WZ/ZB polytype junction, such heterostructures would also be promising for high power electronics and single photon emitters. It has been hypothesized that metastable NW polytype selection is governed by surface/interface energies, surface diffusivities, and/or droplet angles that determine ABC vs. AB stacking of atomic planes, resulting in zincblende (ZB) or wurtzite (WZ) polytypes. For ZB-polytype-preferring materials, such as III-As and III-P, ZB vs. WZ polytype selection has been described by empirical “contact angle” models [Panciera, 2020], enabling the design and fabrication of NW polytype superlattices. However, for GaN, a WZ-polytype preferring material, the “contact angle” models for NW polytype selection, using literature values for WZ and ZB GaN surface energies, predict ZB polytype formation, across contact angles, even though WZ GaN NWs are most frequently reported in the literature [Lu, 2021]. We are developing kinetic Monte Carlo (kMC) simulations based on a general lattice framework that can be used for both WZ and ZB polytypes, In these kMC simulations, the adsorption and desorption of Ga and N atoms are determined by the Ga chemical potential and temperature, and the polytype selection for an NW segment is automatically determined by the nucleation events occurring at the NW edges. Together, these thermodynamic and kinetic approaches will be utilized to unravel the mechanisms for polytype selection during the growth of self-catalyzed GaN nanowires. Lu, H., S. Moniri, C. Reese, S. Jeon, A. Katcher, T. Hill, H. Deng, and R.S. Goldman. 2021. “Influence of gallium surface saturation on GaN nanowire polytype selection during molecular-beam epitaxy.” Appl. Phys. Lett. 119:031601. Panciera, F., Z. Baraissov, G. Patriarche, V.G. Dubrovskii, F. Glas, L. Travers, U. Mirsaidov, and J.-C.Harmand. 2020. “Phase selections in self-catalyzed GaAs nanowires.” Nano Lett. 20:1669.

Mechanisms for Polytype Selection During the Growth of Self-Catalyzed GaN Nanowires

Polar dielectric materials such as Silicon Carbide (SiC) have attracted much attention due to the ability to support low loss surface phonon polaritons (SPhPs) in the mid-infrared. As a consequence, SPhPs resonators have been reported with a high resonance quality factor, and have been leveraged for strong coupling to polar liquids. It would be highly useful to leverage SPhP modes to create surface enhancement infrared absorption (SERIA) sensors for phosphide containing molecules. However, so far there have only been a few demonstrations of surface enhancement from SPhP modes, and the results are relatively weak compared to more conventional metal SIRA sensors. This is because there is a lack of detailed models optimize the coupling between free space light, SPhPs modes, and the chemical under analysis. A framework for generalized design of SPhP resonators would solve this issue and provide the knowledge to design SEIRA sensors. Crucially, unlike in previous works, this model must be relatively simple, and quantitatively explain modal quality factors, which is missing from existing models. In the present work, we investigate the impact of geometric parameters in SPhPs resonances that are excited in periodic trenches etched into a SiC surface. Resonances for high aspect ratio grating of 4H-SiC form between the walls of the trenches, and a vertical standing waves that are comparable with resonances in an organ pipe. To model mid-infrared resonant behavior of this structure, we develop two different approaches. The simplest consists of a cavity model which considers the structure as a metal-insulator-metal waveguide, coupled to waves in free space. The second consists of a full transmission line model, which accounts for propagation of the waves in and out of the structure. For both approaches we calculate the impedance of the SPhP mode, using a new approximation which accounts for the electric field concentration inside the SiC. Our results are compared against the 3D electromagnetic solution to Maxwell equations using CST Studio Suite and we observe excellent correspondence between full wave simulations and both our models. In both analytical models, SPhPs resonance, quality factor and absorbance are in good agreement with numerical simulation and follow the same trends, which is not possible to observe using previous models in the literature. Whilst our model is only highly accurate for relatively narrow openings of organ pipe resonators, the general trends match with experimental data. Crucially, our results show the applicability of simplified cavity and transmission line models can be used to design SPhP resonators. The extension to including both SEIRA and strong coupling phenomena is relatively trivial in this domain, which will accelerate the design of SPhP based SEIRA sensors.

Critical Coupling in Phonon Polariton Organ Pipe Resonance for Infrared Sensing

Convolutional neural networks (CNNs) are a powerful tool in computer vision, commonly used for image segmentation and classification. The accuracy and scope of CNNs can generally be improved be increasing the complexity of the network, such as the number of layers, channels, or fully connected layers. However, increasing CNN complexity comes at the cost of increased power consumption and calculation time. The first layer of a CNN detects low level features, such as edges. If an optical system was designed to perform low level feature detection, that task could be offloaded from the computer, allowing for faster, lower-power consumption CNNs, without sacrificing accuracy. Optical edge detection has been explored previously, though current methods have limitations that prevent their use in many practical applications, such as requiring polarized or coherent illumination, requiring bulky 4f systems, or being limited to small apertures. We have designed and experimentally demonstrated systems which overcome these limitations, allowing for broadband optical edge detection of incoherent thermal emission with optimized signal to noise ratio. Further, UNet image segmentation networks trained using our simulated models as an optical front end demonstrated an improved Dice coefficient (from 0.877 to 0.899) with 4 times fewer FLOPs compared to a similar UNet architecture trained on raw images. Our optical edge detection system combines the design flexibility of metasurfaces with the broadband focusing capability of refractive optics. Using gradient descent based inverse design, the metasurface is designed to modify the point spread function (PSF) of the combined optic system to emulate an edge detection kernel. Edge detection kernels have both positive and negative values, which cannot normally be achieved in an incoherent PSF; this can be circumvented by splitting the PSF into positive and negative components, which produce two images that are digitally subtracted produce a single edge image. This is achieved with a single polarization sensitive metasurface which, in conjunction with a refractive lens, forms independent images corresponding to the positive and negative PSF components using two orthogonal polarization states, which can be simultaneously captured using a polarimetry enabled LWIR camera.
