In this study, we demonstrate the utility of impurity band conduction in overcoming the limitations of conventional p-type doping in Al-rich aluminum gallium nitride (AlGaN). First, a model is developed to understand the impurity band conduction mechanism in Mg-doped AlGaN. It is hypothesized that at high Mg doping concentrations (mid-1019 cm-3) -below the Mott transition-, the overlap of the Mg dopant states can cause the dopant energy level to split into a quasi-continuous impurity band. This provides an alternate route for conduction, where the carriers can propagate through the impurity band with a much-reduced activation energy as compared to the relatively large Mg ionization energy required for the valence band transport. It is worthwhile to note that the presence of compensating point defects can disrupt the overlap of the Mg orbitals and, hence, impede the formation of the impurity band. Mg-doped Al-rich AlGaN epilayers were grown on sapphire and single-crystal AlN substrates by metalorganic chemical vapor deposition. In accordance with the model, relatively heavy Mg doping in conjunction with compensation control was found to be critical to induce the impurity band formation. Record-low p-type resistivities of 9.7 and 37 Ωcm were achieved in Al0.7Ga0.3N and Al0.8Ga0.2N films grown on the native substrate. The resistivity exhibited shallow activation energy of ~30 meV for a wide temperature range of 150-500K. Valence band conduction associated with a large Mg ionization energy was observed to dominate above 500K. Interestingly, the Hall coefficient data was found to deviate from classical semiconductor physics. The apparently anomalous results were attributed to the fact that the Hall effect associated with the carriers propagating in the impurity band differs qualitatively from the quasi-free motion of holes in the valence band leading to a fundamentally different Hall scattering factor. This work demonstrates the utility of impurity band conduction to achieve technologically relevant p-type conductivity in Al-rich AlGaN. Al-rich AlGaN devices are poised to enable a host of optoelectronic applications owing to their desired properties such as low size, weight, and potential operating power. While Si doping has been demonstrated to be effective in achieving n-type Al-rich AlGaN films, efficient p-type doping remains a significant challenge. Mg, the most explored p-type dopant in AlGaN presents a rather high ionization energy of &gt;400 meV. This creates a fundamental bottleneck as only a small fraction of the Mg atoms ionizes at room temperature to generate free holes. This results in a high resistivity &gt;100 Ωcm in Mg-doped Al-rich AlGaN grown via the conventional Mg doping approach. While alternate doping approaches such as short-period superlattices, composition modulation, and Mg delta doping allow for low lateral resistivity in p-AlGaN the vertical conduction is limited due to the barriers associated with the periodic oscillation of the energy bands. The polarization-graded AlGaN approach, on the other hand, necessitates the grading toward Ga-rich compositions to achieve high hole concentration and to favor the Ohmic contact formation. This approach suffers from UV-C absorption loss in the p-type layer, significantly decreasing the light extraction efficiency in optoelectronic devices. Therefore, it is of significance to devise techniques for achieving low p-type resistivity in Al-rich AlGaN without modulating the composition or the doping profile.

EMC 2023

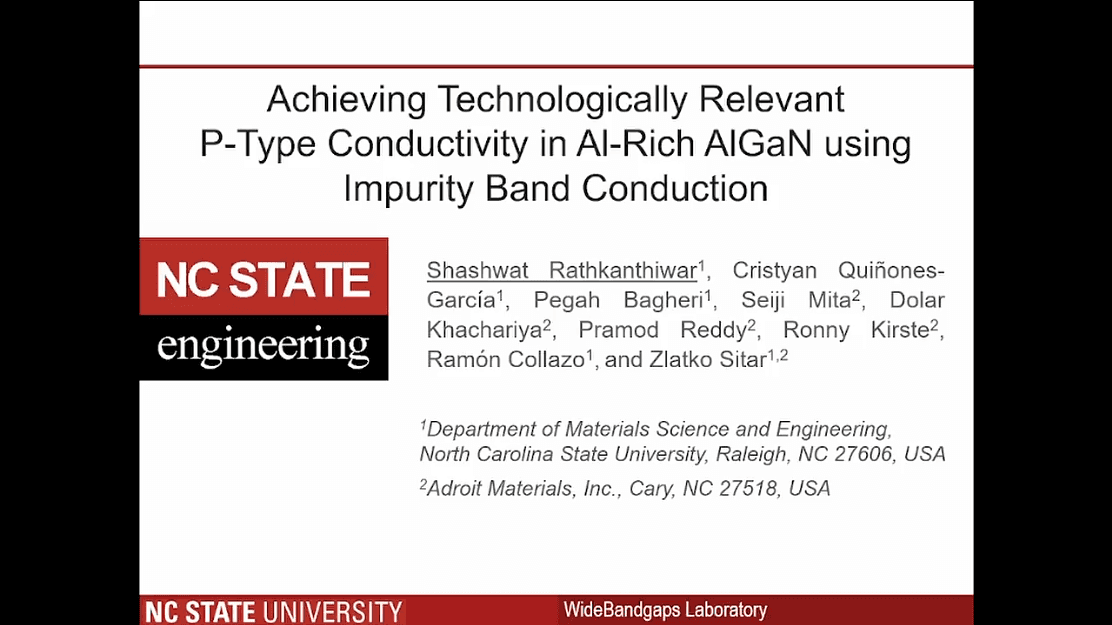

Achieving Technologically Relevant P-Type Conductivity in Al-Rich (&gt;70% Al) AlGaN Using Impurity Band Conduction
