Layered chalcogenides are promising materials for future (opto-)electronic applications. &#39; 2 The semiconductor tin selenide (SnSe) is a member of the monochalcogenide (MX) family, which feature functionality including domain-switching behavior, ferroelasticity, thermo-, piezo- and ferroelectricity.” ~ Orthorhombic a-SnSe has strong in-plane anisotropy with implications for thermal, electronic, and optical properties. It has been studied for next-generation microelectronics, photonics and energy-conversion technologies, and has been the focus of a theoretical proposal for ultra-fast, non-thermal optical domain switching. ’~ Control of rotational domains (i.e., twins) during SnSe thin-film synthesis is key to enable high-quality, single-crystalline SnSe for the proposed applications. This work focusses on MBE of SnSe. We demonstrate (1) a fast and easy method to probe rotational domains in SnSe thin films and (2) a solution to overcome the formation of rotational domains by focusing on symmetry and lattice-matched vdW epitaxy of SnSe on a-plane sapphire surfaces. When orthorhombic SnSe (in-plane lattice parameters; a = 4.15A and b = 4.44A) is epitaxially grown on cubic MgO (a = 4.21A), various rotational domains are formed as a result of the various symmetry structure of both materials. ~ The 2-fold rotational symmetry of SnSe combined with the 4-fold symmetry of MgO results in the formation 90° SnSe twins, and a high density of grain boundaries upon closure of the epitaxial film. Characterizing rotational domains in ultra-thin films of 2D materials is generally challenging (in-plane HR-XRD, ‘large-area’ cs-TEM imaging, etc.). We show that, thanks to the optical anisotropy of a-SnSe in the visible (An = 0.88) | 5 supported by an optical model based on the reflectivity of linearly-polarized light, 90° SnSe twins are easily distinguishable using polarized optical microscopy. When studied under cross-polarization at 45° with respect to the SnSe optical axis, slightly increasing or decreasing the angle of the polarizer with respect to the analyzer enables the color splitting of 0°-oriented and 90°- oriented domains into blue and yellow, respectively, when illuminated with white light. We first demonstrate this method on thicker SnSe epitaxial crystallites (~5Onm), using polarized Raman spectroscopy for validation, and we then apply it to thinner (~5nm) epitaxial SnSe films. The distribution of blue and yellow pixels in the optical image enables the quantification of rotational domains and confirms the presence of a high density of 90° twins on MgO. To overcome the formation of 90° twins, we grow epitaxially on a-plane sapphire [a-AI,0..(1 1-20)] substrates. Similarly as a-SnSe, the surface unit of OAI,0.3(1 1-20) can be constructed using dissimilar in-plane lattice parameters; a = 8.24A andb=12.99A. This favors single-oriented domain epitaxy of (2 x 3) units of SnSe on a-Al., O,,(11-20), explained by the symmetry match and small lattice mismatch in both in-plane directions, and confirmed 3 experimentally by our polarized reflectivity method. The developed optical method and epitaxy on a-plane sapphire represent a very useful combination of film metrology and growth methodology to realize high-quality, single-crystalline epitaxial SnSe thin films free of rotational twin domains. We will also highlight our epitaxial growth techniques, especially a comparison between solid-source and plasma-assisted methods. Singh A et al ACS Photonics 2020, 7 (12) Liu Y et al Nat. Rev. Mater. 2016, 1 (9) Zhou J et al Nano Lett. 2018, 18 (12) Gomes C et al J. Appl. Phys. 2020, 128 (12). Chang K et al Nano Lett. 2020, 20 (9) Chen G et al Prog. Mater. Sci. 2018, 97 Zhao D et al Nature 2014, 508 (7496) Jo S et al Adv. Photonics Res. 2021, 2100176. 9) Mortelmans W et al Appl. Mater. Today 2021, 22 10) Nguyen Q et al J. Alloys Compd. 2020, 840

EMC 2022

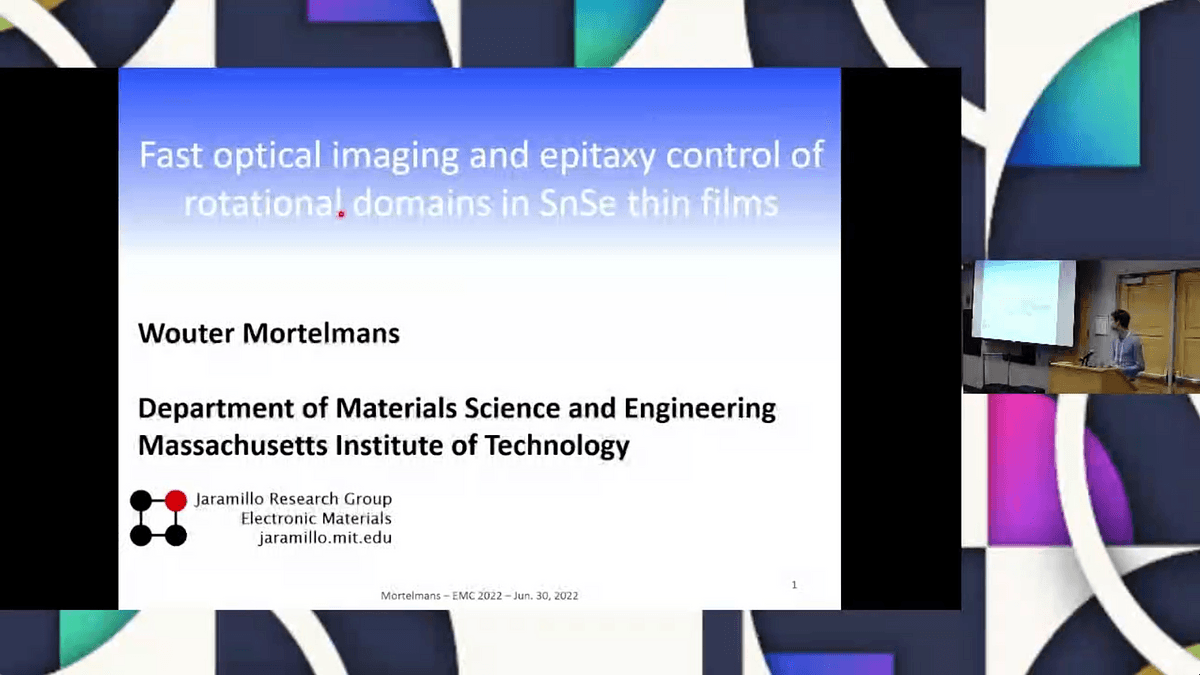

Fast and Easy Optical Imaging and Epitaxial Growth Control of Rotational Domains in SnSe Thin Films

molecular beam epitaxy

two-dimensional materials

photonics
