Modern spintronic based devices, such as magnetic random-access memories and magnetic read head sensors have been designed on the principles of exchange bias effect [1]. A unidirectional interfacial exchange coupling between a ferromagnet (FM) and an antiferromagnet (AFM) is the primary reason for the shift of field-cooled hysteresis loop leading to the exchange bias effect [2]. Other prominent signatures of exchange bias are enhancement of coercivity and observation of training effect. This phenomenon is generally interfacial in origin, however sometimes spins from the ‘bulk’ part of the AFM can also contribute to exchange bias [3]. Besides, the interface can be ferromagnetic, antiferromagnetic or spin-glass in nature. Interestingly, all the above features are system dependent and can vary with the thickness of the films.

We have investigated the role of ‘bulk’ spins of the AFM and also explored the magnetic nature of interface in exchange coupled Fe/IrMn bilayers by varying the thickness of the IrMn layer. In contrast with the conventional FM/AFM exchange bias systems [4], the exchange bias field (HEB) was found to decrease with increasing cooling field (HFC) due to random interface effect [2, 5]. The analysis of the training effect data indicates the presence of frozen and rotatable interfacial spins that contributed to the observed loop shift and coercivity enhancement, respectively.


References: [1] K. O’Grady, S. J. Greaves, S. M. Thompson, J. Magn. Magn. Mater., 322, 883 (2010)

[2] K. D. Usadel, U. Nowak, Phys. Rev. B, 80, 014418 (2009)

[3] A. C. Basaran, T. Saerbeck, J. de la Venta, H. Huckfeldt, A. Ehresmann, Ivan K. Schuller Appl. Phys. Lett., 105, 072403 (2014)

[4] L. D. Bianco, F.Spizzo, M.Tamisari, S.Laureti, Solid State Commun., 151, 351 (2011)

[5] S. Nayak, P. K. Manna, V. Thiruvengadam, B. B. Singh, S. Bedanta, J. Magn. Magn. Mater., 499, 166267 (2020)

MMM 2020

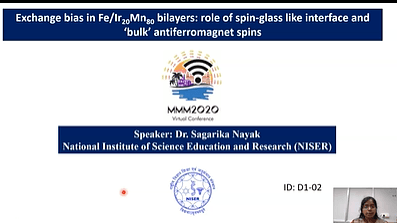

Exchange bias in Fe/Ir20Mn80 bilayers: role of spin-glass like interface and ‘bulk’ antiferromagnet spins
