Over the years, there has been a rising application of artificial intelligence (AI) in computing devices, and studies have been done to develop a cost-effective and energy-efficient approach to machine learning. Advancements in computing and communication technologies have led to the creation of more advanced processors, neuromorphic computers, quantum computing technologies, as well as the increasing usage of 5G networks in the industry. Together, these not only increase the amount of processing that can be done but also the amount of data that can be transmitted at a given time.
The field of AI is becoming very broad, and several studies so far have been able to achieve very high prediction accuracy using convolutional neural networks (CNNs), which is a very popular class of deep neural networks. Neurons in CNNs constantly perform a lot of computation as data is fed into the network. The size of the network (the number of neurons) determines the amount of computation that must be performed. This uses up a lot of energy due to the high number of computations when dealing with large networks.
Spiking neural networks (SNNs) are event-based networks that make use of spikes in learning. Neurons in SNNs are designed to operate like actual biological neurons. The signals in an SNN are propagated in the form of spike trains which are a timed representation of input signals. Neurons within the network only forward propagate signals/action potentials when the neuron potential of a given neuron crosses a predefined threshold value. This implies that the number computation becomes mainly dependent on the amount of dynamic data rather than the size of the network.
Several studies have investigated different forms of collaborative learning such as federated learning, but not many have been done with Spiking Neural Networks, given that SNN learning algorithms have been a bit challenging to develop and haven’t been able to achieve very high accuracy like CNNs.
A study on spiking neural networks has investigated what could happen when weight parameters gotten by training a ReLU Multilayer Perceptron Network (ReLU MLP) model, are shared with a model gotten by training a less-performant Spiking Neural Network model of the same size. The results were an improved performance of the spiking neural network.
The purpose of this project is to investigate the improvement in the machine learning model that can be achieved by employing/simulating a swarm of client marine robots functioning on a distinct image dataset. This can be done by training different instances of a given algorithm on separate groups of datasets representing each client robot, and only updating the parameters across the group whenever any one of the clients have been able to achieve a higher prediction accuracy. This is inspired by the fact that hyperparameters learned during the training process can easily be shared with clients.
The idea behind our design is to use a more powerful computing unit on the backend to perform training while using a less powerful device on the client-side for inference. Each client in our design also has the additional responsibility of supplying data to the backend computing unit where training is done, with each client having a different repository for its dataset to ensure that the data remains distinct.


Initial work in this research has involved employing a time-based backpropagation algorithm to train our spiking neural network and fractional stochastic gradient descent for weight update. We trained our algorithm on the MNIST dataset. Results show a maximum prediction accuracy of 97.03%, on a single client.
This is ongoing research and, in the future, we intend to study the changes or improvements in prediction accuracy that can be gotten by running the training algorithm on distinct MNIST datasets and finally applying the algorithm to a real collection of marine datasets.


NAML 2022

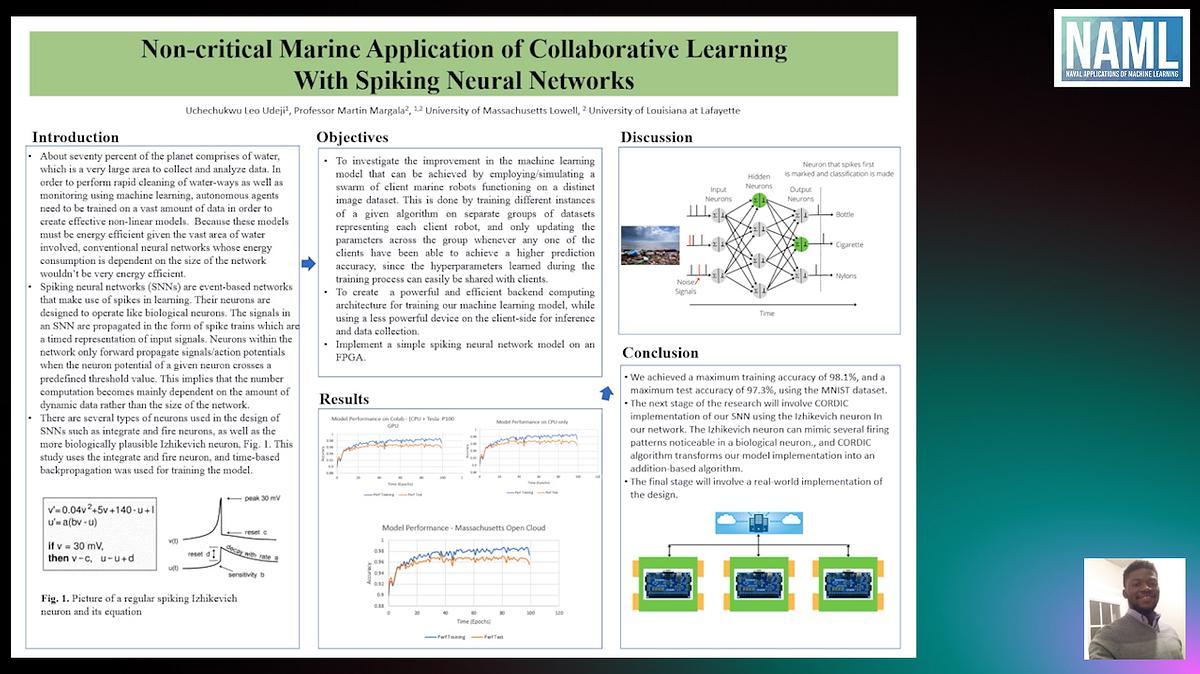

Non-critical Marine Application of Collaborative Learning with Spiking Neural Networks

spiking neural networks

fpga

collaborative learning
