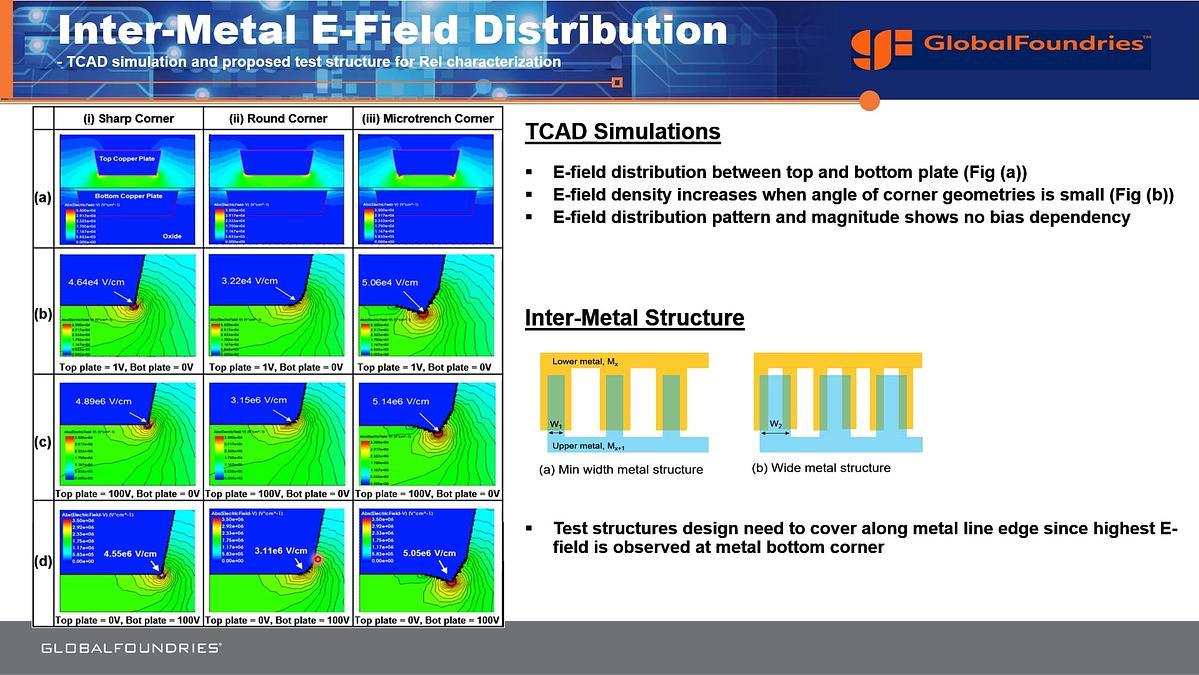

Reliability qualification of HV interconnects is more complicated due to additional consideration of inter-metal impacts under the influence of HV operation. Unlike intra-metal structure, the film stack and bottom physical profile of inter-metal structure is uneven. This explains the reliability response showing dependence on metal line width and bias polarity. We show the E-field distribution is not uniform with the highest E-field density at the bottom corners of metal line. Hence, for a complete inter-metal TDDB reliability qualification, the impacts from test structure design, process variation, and testing methodology need to be considered.

IRPS 2022

Insights on Inter-metal Reliability Assessment of High Voltage Interconnects
