In this work, a detailed analysis of degradation and failure of semi-vertical GaN-on-Si trench MOSFETs is reported. Off-state, semi-on state and on-state conditions were analyzed, to evaluate how the gate and drain bias can impact on the failure voltage. We demonstrate that: a) devices with a bilayer gate insulator (2.5 nm Al2O3 interface dielectric to GaN, + 35 nm SiO2 main dielectric) have a superior performance, compared to single-insulator (35 nm Al2O3) samples; b) in a drain step-stress, the gate voltage (resulting in different operating regimes, off, semi-on or on-state) can significantly impact on the failure voltage of the devices; c) stress at high VGS and/or VDS may induce a significant shift in threshold voltage, which is stronger when the devices are stressed in the on-state. The results – complemented by 2D simulations – provide a description of the factors limiting the breakdown robustness of GaN vertical transistors.

IRPS 2022

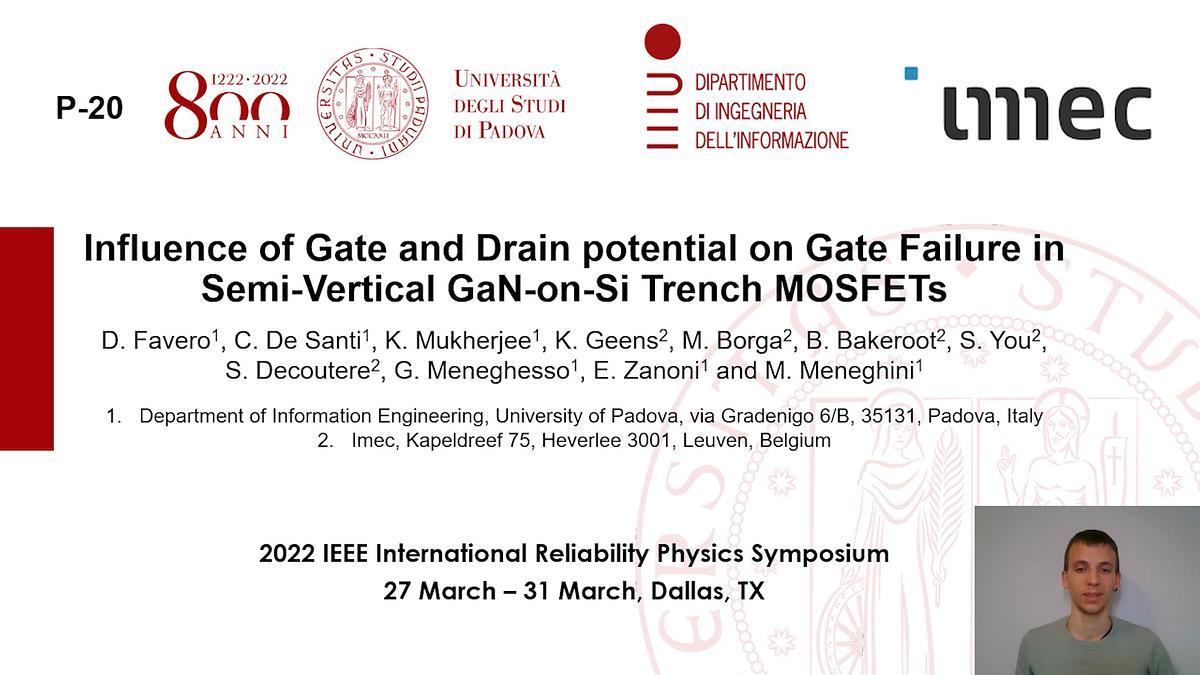

Influence of Drain and Gate Potential on Gate Failure in Semi-Vertical GaN-on-Si Trench MOSFET

poster
