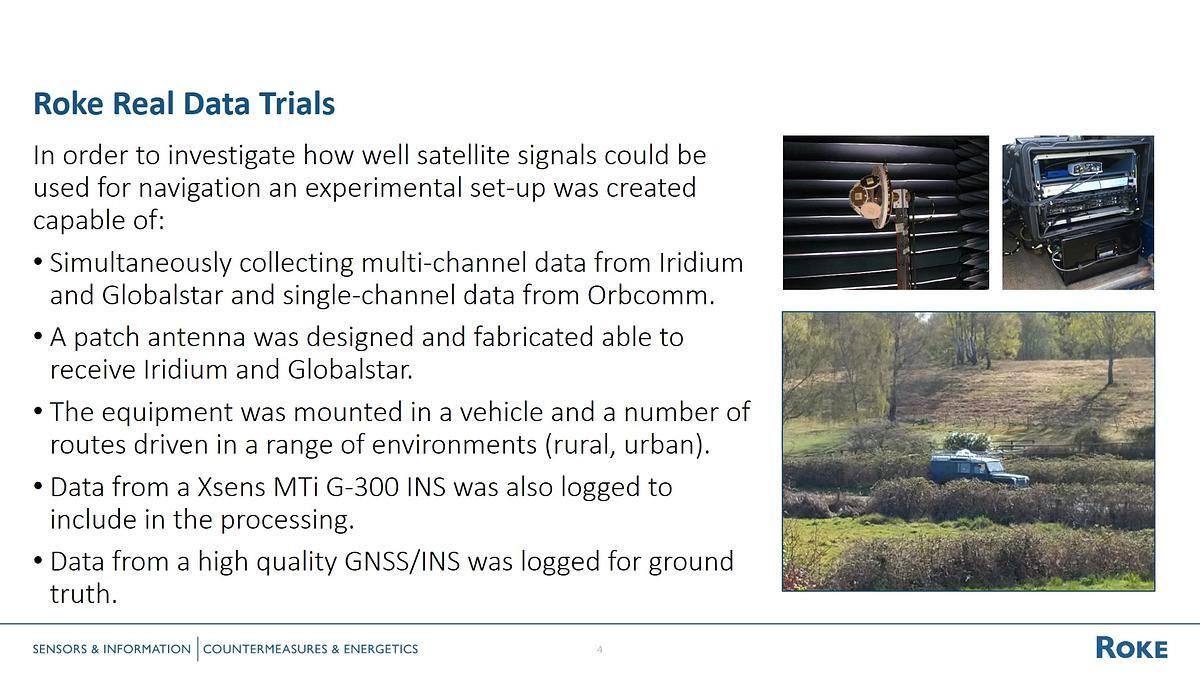

Alternate means of navigation are needed for when GNSS signals are unavailable. Satellite signals of opportunity have the advantages of global, 24/7 cover and are independent of any local outages that may disrupt terrestrial transmissions. This paper examines the use of Iridium, Globalstar and Orbcomm satellite signals for navigation on a moving platform. These signals are intended for use with small user terminals and so can be exploited with a relatively simple antenna array and receiver. The use of direction of arrival as well as Doppler and time of arrival measurements is examined. Data gathering trials are conducted using a vehicle platform. Measurements from all three constellations are combined with IMU data in an extended Kalman filter and the performance assessed compared with GNSS ground truth. It is found that the navigation accuracy achievable is predominantly dependent on the accuracy of the knowledge of the satellite positions and velocities. Using the SGP4 TLE information available from space-track.org, median radial errors around 400m are achieved when driving through a variety of land environments.

Navigation 2021

Using Satellite Signals of Opportunity for Alternate Navigation

### Welcome to Navigation 2021!

Our aim was to bring diverse disciplines together to stimulate insights and knowledge sharing towards a more navigable world. We hope we achieved this!

Navigation and timing are critical to the world we all inhabit. We believe that the work of the wider navigation community enables societal benefit including support to national grand challenges and also the United Nations’ Sustainable Development Goals. To achieve this requires collaboration and understanding across science, technology and practice.

Navigation 2021 is about much more than technology innovation, it also showcases science and research from across the wider community, including animal navigation, cognition and human factors.


Our aim was to bring diverse disciplines together to stimulate insights and knowledge sharing towards a more navigable world. We hope we achieved this!

technical paper

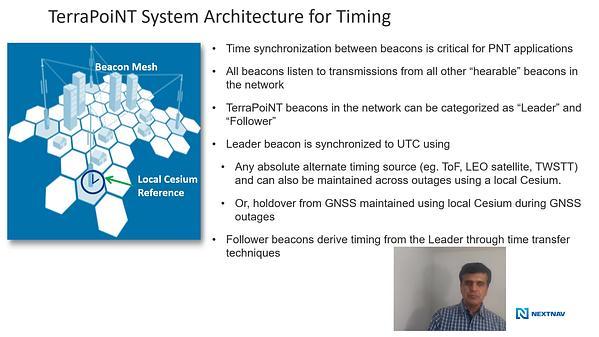

Timing has become a critical resource for various public and defense infrastructure. GNSS systems have been the defacto standard for providing timing service for these infrastructure. Various studies have concluded that GNSS system can be spoofed; hence a need to have multiple systems providing timing information to maintain the resilience. NextNav has developed a TerraPoiNT system, a terrestrial-based positioning, navigation and timing system which can complement existing systems as well as serve as a backup to the GNSS. TerraPoiNT system (a.k.a Metropolitan Beacon System), a type of Terrestrial-Beacon system, is a Time-Of-Arrival multilateration system offering 3D positioning and timing through a dedicated network of synchronized transmitters using Code Division Multiple Access spread spectrum signals. TerraPoiNT beacons can synchronize between themselves without the need for an absolute time source like GNSS, thus proving to be an ideal alternative to the GPS system. Beacons have a timing estimation sub-system which has access to one or more stable time sources like a precise atomic clock (such as Cesium/Rb) allowing long holdover time to be maintained. Each beacon can listen to multiple beacons adding resiliency into the network. This self-synchronization capability is scalable to a large network with only a few beacons requiring absolute time source or atomic clocks due to multi-hop beacon time transfer capability. TerraPoiNT System capabilities were assessed by the U.S. Department of Transportation at NASA-LaRC as part of the alternate navigation technology assessment for positioning, navigation and timing. TerraPoiNT timing accuracy in static indoor test over 72-hours was within 25 ns (95%) and within 30 ns (95%) in a basement location indicating an accurate and robust performance in a challenging locations as well as long-term stability. TerraPoiNT system demonstrated accurate, reliable and robust performance and it was rated #1 among all the technologies evaluated in position and timing trials
