Maritime incidents rates, the relative likelihood that a vessel has an accident per unit, are a useful metric for navigation authorities in understanding under which conditions and which areas vessels are more at risk of an accident. Understanding where and why accident rates vary supports targeted and cost-effective application of risk controls.

Vessel traffic data from the Automatic Identification System (AIS), principally developed for collision avoidance, has increased in availability and provides significant wider opportunities for navigation safety applications. Unfortunately, calculating spatial accident rates are subject to key methodological challenges associated with the Modifiable Areal Unit Problem that can influence the statistical validity of derived results. This phenomenon that has not been well explored in the maritime domain and requires further investigation.

This paper compares and contrasts accident rates across the United States calculated using 2.5 billion ship positions from AIS for 2018 and 130,000 accidents from the US Coastguard. Given the size and scale of the analysis, a workflow utilising big data processing technologies is developed for national risk mapping. The impacts on accident rates are evaluated of utilising three spatial data structures at different resolutions: namely administrative regions, cartesian regular grids and the Discrete Global Grid System (DGGS).

The results show significant variation in results can be achieved, exhibiting many of the hallmarks of the Modifiable Areal Unit Problem. In particular, such a method has limited utility at performing high resolution analysis, due to the sparsity of accident data, and therefore alternative methods are proposed. Of the three structures investigated, the DGGS exhibits some advantageous properties for regional scale analysis and is recommended for future navigation safety studies. This paper provides greater awareness of issues of spatial modelling for maritime risk analysis and highlight several actions which can be taken by researchers to mitigate them.

Navigation 2021

Geospatial Mining of Massive AIS Data for Strategic Management of Maritime Navigation Safety: Methodological and Policy Considerations

### Welcome to Navigation 2021!

Our aim was to bring diverse disciplines together to stimulate insights and knowledge sharing towards a more navigable world. We hope we achieved this!

Navigation and timing are critical to the world we all inhabit. We believe that the work of the wider navigation community enables societal benefit including support to national grand challenges and also the United Nations’ Sustainable Development Goals. To achieve this requires collaboration and understanding across science, technology and practice.

Navigation 2021 is about much more than technology innovation, it also showcases science and research from across the wider community, including animal navigation, cognition and human factors.


Our aim was to bring diverse disciplines together to stimulate insights and knowledge sharing towards a more navigable world. We hope we achieved this!

technical paper

Session 1.5.

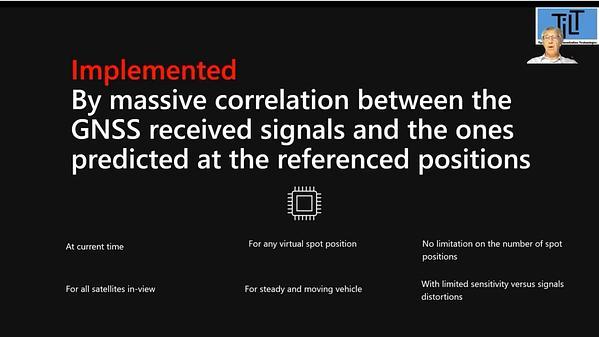

The paper presents a new positioning method based on a Generalised Spatial Correlation of GNSS signals for vehicles moving on geo-referenced tracks. Such location approach allows to detect the closest position ranges to predetermined locations by predicting the phase of satellites’ signals at and in proximity to the referenced locations, by testing the match between the predicted signals and those received by the non standard GNSS receiver.
