Shadow matching can significantly improve GNSS positioning accuracy in urban canyons by matching the observed signal availability from measurements and predicted availability from 3D building models. However, some limitations hinder its application, such as poor along-street accuracy and ambiguous solution from scoring grids. This paper improves shadow matching method by integrating road information with multi-epoch filtering.

First, the proposed method improves signal availability prediction from raw measurements within shadow matching algorithm. A machine learning model has been developed to use signal-to-noise ratio, elevation and ranging based features to classify LOS/NLOS signals. This achieves higher classification accuracy than using signal-to-noise measurement alone.

Second, the road information has been implemented to aid hypothesis positioning from the scoring grids. After calculating the matching scores, all candidate grids are clustered and weighted by scores to identify the best matching street among the search region, so that ambiguous solution from multiple high scoring candidates can be largely avoided. The error covariance in across and along-street direction can then be estimated from the grids on that street, which will be converted into navigation coordinates based on road angle and used for filtering.

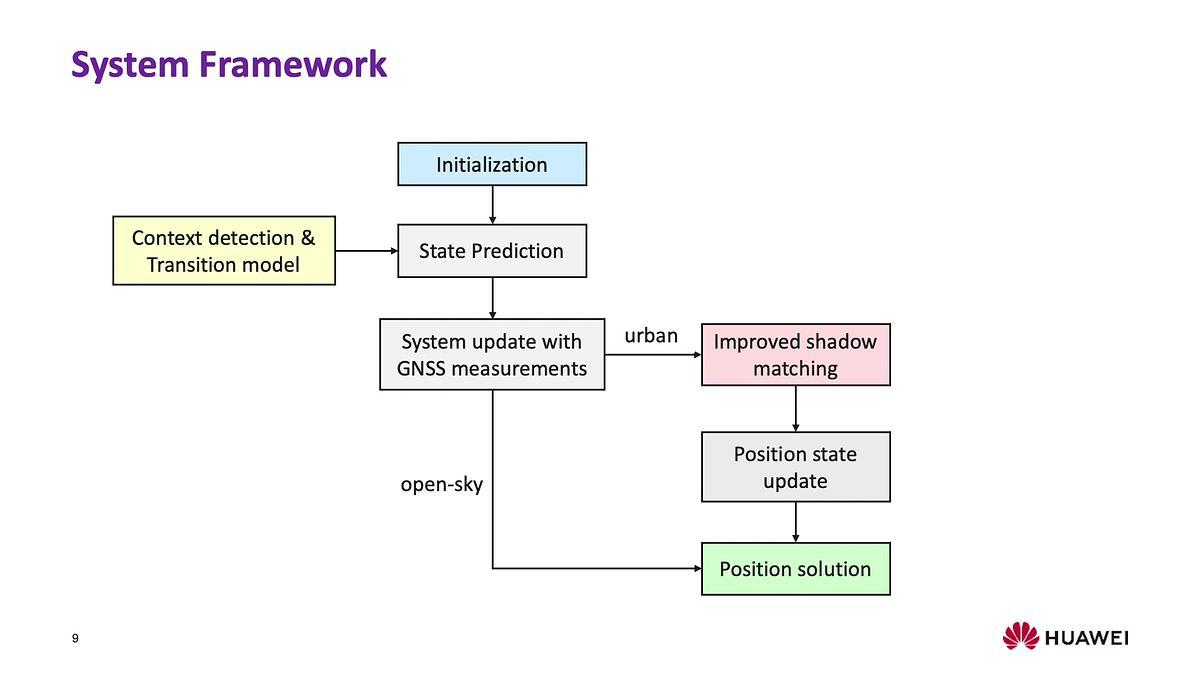

Third, shadow matching solution is loosely integrated with the conventional GNSS positioning for multi-epoch filtering. An initial EFK based state estimates can be obtained from the previous filtered solution and satellite measurements at current epoch, which will supply to shadow matching with better position initialization and ranging measurements without clock bias. Then the shadow matching solution and its error covariance are further integrated within the Kalman filter to update position estimates along only across-street direction.

The worldwide urban tests show the proposed method can achieve about 10m positioning accuracy and more than 30% same-street-side improvement than shadow matching. This would benefit various location based applications in dense urban like Uber taxiing.

Navigation 2021

Integration of Shadow Matching with Road Information for Improved Mobile Urban Positioning
