Global scheduling of real time tasks with precedence constraints has received significant attention recently. Specifically, on multiprocessor systems, the directed acyclic graph (DAG) model well-represents parallelizable workloads with precedence constraints. Hence, many studies have recently been published analyzing DAG structures using decomposition and window-based analysis methods. We identified a set of schedulable DAG taskets that are hard-to-analyze using state-of-the-art window-based schedulability tests. Additionally, we observe that the window-based test solely depends on one structural feature of the DAG taskset, which raises concerns about its pessimism in many settings. In this paper, to address these concerns, for hard real-time sporadic implicit-deadline DAG tasksets, we perform LAG-based schedulability analysis, which offers a more holistic view of the taskset than the window-based analysis. We present a companion utilization-based schedulability test to the state-of-the-art, which considers additional structural features of DAGs. Our results show that by considering such features, our LAG-based test empirically dominates the state-of-the-art test on over 80% of the evaluated DAG tasksets. Moreover, combining our LAG-based test in conjunction with the window-based tests can achieve high schedulability in many cases.

IEEE RTSS 2021

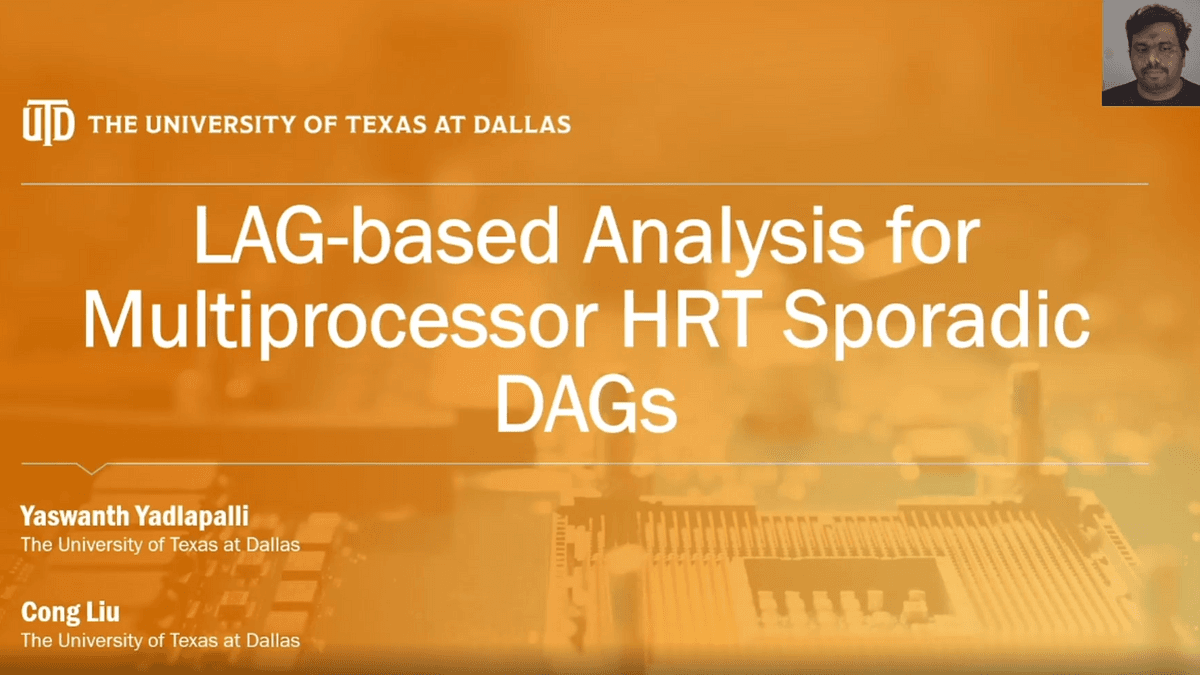

LAG-based Analysis Techniques for Scheduling Multiprocessor Hard Real-Time Sporadic DAGs

task analysis

directed acyclic graph

tools

lag based

hard real time

schedulability

real time systems

processor scheduling

parallel processing

multiprocessing systems

directed graphs

real-time systems

 **RTSS 2021** has successfully concluded. Hope you have enjoyed it, and look forward to seeing you next year in person.
    Announcement for the Awards:
 * Best Paper Award goes to: Monte Carlo Response-Time Analysis, Sergey Bozhko, Georg von der Brüggen, and Björn Brandenburg
 * Best Student Paper Award goes to: Automatic Energy-Hotspot Detection and Elimination in Real-Time Deeply Embedded Systems, Mohsen Shekarisaz, Lothar Thiele, and Mehdi Kargahi.
 * Best Solution Award for Industry Session goes to: Toward Real-Time Guaranteed Scheduling for Autonomous Driving Systems. Jinghao Sun, Tianyi Wang, Kailu Duan, Bin Lu, Jiankang Ren, Zhishan Guo, and Guozhen Tan.



The IEEE Real-Time Systems Symposium (RTSS) is the premier conference in the field of real-time systems, and is a venue for researchers and practitioners to showcase innovations covering all aspects of real-time systems, including theory, design, analysis, implementation, evaluation, and experience.

technical paper

Today’s deeply embedded systems, with real-time interactions to the environment, are largely battery-operated, and peripheral modules like LTE, WiFi, and GPS are among the most energy-hungry components of them. These components are often under the direct control of an embedded software. Some pieces of the software program are called energy hotspots if they can be transformed towards better system energy consumption while leaving it logically- and temporally-correct. This paper focuses on three such energy hotspots from the peripheral module perspective. The root causes of the hotspots in the software program are misplaced driver calls: Early acquiring or late releasing of the module causes it to waste energy in the active state, having unnecessary distance between the use operations causes extra tail energy overhead, and unaccounted releasing and re-acquiring of the module causes more energy consumption in comparison to leaving the module unreleased. We provide static analysis methods for the detection and elimination of such energy hotspots automatically with regard to some relations between temporal requirements of the real-time embedded software, the time and energy specifications of the module, and the extreme (worst-case/best-case) execution times of specific pieces of the software program. Our simulation results show about 4.7 to 20 percent of energy reductions after elimination of the energy hotspots of the test programs using our proposed method.

Automatic Energy-Hotspot Detection and Elimination in Real-Time Deeply Embedded Systems,

In mixed-criticality systems (MCSs), less-critical tasks are often terminated to ensure the correct execution of high critical tasks. This strategy could however lead to safety hazards, and largely reduce system functionality due to the absence of the discarded tasks. To overcome this problem, we introduce a high resilience and approximated computing framework for MCS, i.e., HIART-MCS. HIART-MCS introduces a novel processor which supports approximation at the hardware level. Associated with this, we also introduce a new intermediate system mode which allows less-critical tasks to be executed with reduced precision instead of being directly dropped out. Corresponding to the HIART-MCS, we further present a new theoretical model and schedulability analysis providing a timing guarantee for the system, followed by optimisations of the mode switch strategy. As demonstrated in both the theoretical and practical evaluations, HIART-MCS effectively improves the survivability of less-critical tasks with limited sacrifice of the critical tasks and negligible extra overhead. It is notable that HIART-MCS is the first practical framework for imprecise MCSs.

HIART-MCS: High Resilience and Approximated Computing Architecture for Imprecise Mixed-Criticality Systems

We present MINOTAuR, a timing predictable open source RISC-V core based on the Ariane core. We first modify Ariane in order to make it timing predictable following the approach used to design the SIC processor. We prove that the instruction parallelism in the Ariane core does not prevent from enforcing timing predictability. We further relax restrictions by enabling a limited amount of speculative execution and we are still able to formally prove that the core is timing predictable. Experimental results show that the performance is reduced by only 10% on average compared to the original Ariane core.

Speculative Execution and Timing Predictability in an Open Source RISC-V Core

The partitioned scheduling of periodic and sporadic task systems upon multiprocessor platforms (both identical and heterogeneous) is considered. The computational complexity of a large number of such partitioned schedulability problems is examined. New lower and upper bounds on complexity are presented for several problems. Some problems are pigeonholed into their precise complexity classes in this way. A list of problems for which exact classification remains open is compiled.

Partitioned Scheduling of Recurrent Real-Time Tasks

Though recent work has established the soft real-time (SRT)-optimality of Earliest-Deadline-First (EDF) variants on multiprocessor models with limited heterogeneity (e.g., uniform speeds or affinity masks), such models are insufficient to describe modern multiprocessors, which have grown increasingly heterogeneous. This fact highlights the need to extend theoretical results to more asymmetric models, such as the unrelated multiprocessor model. This paper presents an EDF variant tailored for this model and proves that it is at least nearly SRT-optimal. Simulation results for random task systems are also presented that suggest that the proposed EDF variant may actually be SRT-optimal.

Extending EDF for Soft Real-Time Scheduling on Unrelated Multiprocessors

Shared communication media are widely used in many applications including safety critical applications such as control systems on flights or autonomous vehicles. Noise and transient errors can cause transmission failures. We consider the problem of designing fault tolerant static schedules for transmitting messages in these media. In particular, we assume that the schedule of transmission over all messages must be computed in advance and must guarantee that all messages will be delivered as long as the number of medium errors falls below a provided upper bound, regardless of when the medium errors occur. It is crucial that the messages be delivered in a timely manner, and hence we are interested in minimizing the length of the schedule that achieves the desired level of fault tolerance. In this paper, we provide an efficient algorithm for producing a schedule for $n$ messages with total length $n+O(f^2\log^2n)$ that can tolerate $f$ medium errors. We also prove that fault-tolerant schedules with length $n+O(f\log f\log n)$ exist. Since $n$ steps are required to transmit $n$ messages, the overhead of fault tolerance is characterized by the additive terms of $O(f^2\log^2n)$ and $O(f\log f\log n)$, respectively. Both of these terms are sublinear in $n$ and represent asymptotic improvements to the previously best known schedule, which has overhead $fn/2$.

Sub-Linear Overhead in Static Schedules for Fault-Tolerant Transmission

Embedded systems have become extensive, complex, and automated; thus, increasingly, computing platforms for such systems are being transformed into multi-/many-core platforms. Typically, self-driving systems, involve various applications that run simultaneously, and such systems require low power consumption and large-scale computation. A many-core processor with instructions, multiple data architecture can satisfy these requirements. Shortening the time required to execute all tasks (i.e., makespan) is an important objective in task scheduling for parallel real-time systems, such as self-driving system. Machine learning algorithms have been introduced to solve this kind of problem. This paper proposes a reinforcement learning-based scheduling algorithm for parallel real-time systems represented by a directed acyclic graph (DAG), and Kalray MPPA3-80 is used as a target many-core processor.

Reinforcement Learning-based DAG Scheduling Algorithm in Clustered Many-Core Platform

This paper deals with scheduling anomalies in realtime systems. Scheduling anomalies jeopardize schedulability analysis made prior to execution. In this paper, we propose a model to specify conditions leading to scheduling anomalies. A scheduling anomaly is modeled as a set of constraints on the architecture. We use this model to detect scheduling anomalies by ofﬂine and online analysis. To validate our approach, we implemented the approach as an extension to Cheddar, a schedulability tool. We apply our approach to seven scheduling anomalies and we show that most of these anomalies can be successfully detected.

Models and tools to detect Real-Time Scheduling Anomalies

This is a brief presentation of the paper Bugaev A.S., Tatashev A.G., Yashina M.V., Lavrov O.S., Nosov E.A. Reconstruction of traffic flow dynamics based on deterministic-stochastic model and data obtained from intelligent transport systems. T-Comm, vol. 13, no. 10, pp. 35--44. (in Russian). In this paper, an algorithm has been developed to construct to adjust a mathematical traffic model to traffic modeling. The developed algorithm is used for reconstruction of the flow density and velocity on a segment of Leningradsky prospect in Moscow on the base of the 2011/19 year measurements.
