GaN power HEMTs are known to offer high switching speed, low on-resistance and much better FOM when compared to their silicon counterparts. However, the ability to operate with high power density in a smaller form factor presents new challenges for reliable and robust operation. Traditional gate driver designs for silicon-based power devices are catered to lower frequencies with large tolerance on the gate voltage swing. They do not adequately address some of the reliability issues that are unique to GaN power transistors. This talk will provide a quick review on the gate driving requirements and limitations for GaN power HEMTs. This is followed by a survey of novel smart gate driving techniques that can further exploit the performance and enhance the reliability of GaN power devices. Topics to be covered include intelligent gate driving schemes such as active gate driving, dead time optimization, and current balancing. Emphasis will be given to designs that can be integrated and those that can monitor the devices for optimum performance and safe operation. Protection features such as short-circuit detection, gate overvoltage prevention, temperature monitoring and compensation will also be discussed. Monolithic integration of power GaN ICs is an exciting area of development with increasingly sophisticated designs reported in recent years. Fully integrated GaN building blocks and state of the art designs will be addressed.

IEEE WiPDA 2021

Smart Gate Driver ICs for GaN Power Transistors

The IEEE Workshop on Wide Bandgap Power Devices & Applications (WiPDA) provides a forum for device scientists, circuit designers, & application engineers from the Power Electronics & Electron Devices Societies to share technology updates, research findings, experience & potential applications.

**Topics of interest**

* Heteroepitaxial & Bulk Materials Growth
* Gate Dielectrics & Surface Passivation
* Device Structures & Fabrication Techniques
* Device Characterization & Modeling
* Very-High Efficiency or Compact Converters
* Safe Operating Areas of Wide Bandgap Devices, Including Short Circuit, Spike, & Transient Tolerance
* Harsh Environment (High Temperature) Operation & Reliability
* Packaging Power Modules & ICs
* Hard-Switched & Soft-Switched Application Analysis
* Gate Drive & Other Auxiliary Circuits
* High-Performance Passive Components
* Applications in Renewable Energy & Energy Storage, Transportation, Industrial Drives, & Grid Power Systems
* Wide Band Gap System Design Philosophies & Strategies
* Radio Frequency (RF) GaN (New)
* Technology Roadmap of Wide Bandgap Including Devices, Applications and Packaging (New)

### Please select the button below to view and download the session papers. The Virtual Proceedings PDF can be downloaded [here.](https://drive.google.com/file/d/171y2_u63V-pc9-bC-eZgHLzJou2oCfST/view?usp=sharing)

[![](https://assets.underline.io/uploads/markdown_image/1/image/c8e1b0a2881d3bb0a75ece4761f43c9f.png)](https://drive.google.com/drive/folders/1GWEFLzH6K4aUBaJiBFJDw4x9sKLTl6-g?usp=sharing)


This event requires a registration to attend, please register [here](https://web.cvent.com/event/536cea3d-4c0d-4d50-8939-529979d80785/summary) to purchase a ticket.

The IEEE Workshop on Wide Bandgap Power Devices & Applications (WiPDA) provides a forum for device scientists, circuit designers, & application engineers from the Power Electronics & Electron Devices Societies to share technology updates, research findings, experience & potential applications.

keynote

This paper presents the design and development of a Silicon Carbide (SiC) technology-based Non-Inverting Buck-Boost (NIBB) DC-DC power conversion unit for harsh space environment application with very high temperature (HT) (>300oC) and high radiation level. This work evaluates the capability of SiC devices, comprising of LDMOSFET (Lateral Diffused MOSFET) for high temperature (>300oC) power electronics. The temperature-dependent characterization of relevant switching device parameters such as channel resistance, device junction capacitances is performed through device modeling and simulations. The selection of critical passive components of the power converter is done through rigorous characterization of their performance metrics such as capacitance, inductance, leakage current, etc. under influence of increasing operating temperature. In this work, we designed and fabricated a proof-of-concept of NIBB DC-DC converter using the fabricated SiC MOSFETs that are demonstrated to operate at 300 °C ambiance. It is designed to provide a 15A output load and convert the input side battery voltage levels of 28V, 120V, and 160V to a configurable output voltage from 30V to 48V, used as the standard for NASA space missions. Results at 300oC environment report a peak efficiency of 92.5% at 450W load and 100kHz switching frequency, which validates the developed converter architecture to be a suitable candidate for high-frequency HT power conversion.

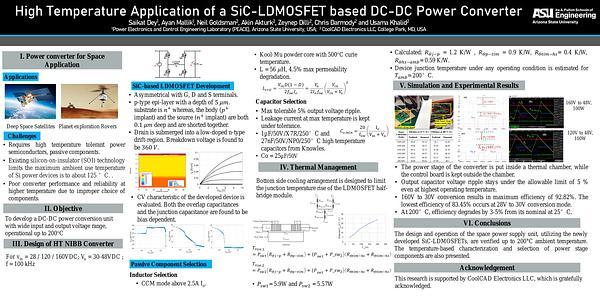

High Temperature Application of a SiC-Ldmosfet Based DC-DC Power Converter

This presentation shows a design of a 10 kV silicon carbide (SiC) MOSFET based modular multilevel converter (MMC). The MMC functions as the interconnection between a 24 kV dc bus and a 13.8 kV distribution grid. This presentation focuses on the hardware design of the MMC and its submodules. The gate driver, auxiliary power supply and bus bur in submodules are major components that need to meet high dv/dt immunity and high insulation voltage requirements. The gate driver achieves over 200 kV/µs common mode transient immunity (CMTI). Its associated auxiliary power supply is based on an on-board transformer with over 30 kV insulation capability and 1.4 pF barrier capacitance. The busbar achieves less than 11 kV/cm electric field in the air to avoid partial discharges. Validation tests of the MMC submodule were performed by double pulse tests at 5 kV and buck converter tests at 3 kV, 52 A (peak). Reliable operations were achieved in validation tests.

Hardware Design of Medium Voltage SiC-based Modular Multilevel Converters for Grid-tied Applications

We investigate the impact of soft- (SS) and hard-switching (HS) transitions on threshold voltage (VTH) and on-resistance (RON) drifts in packaged Silicon Carbide (SiC) MOSFETs. To this end, we present a novel measurement setup that allows, for the first time, the on-the-fly characterization of both VTH and RON during HS mode operation. During measurement, we observed VTH reduction and RON increase under both SS and HS conditions, with significantly higher drifts found in HS. The larger degradation found in HS was ascribed to the additional self-heating induced by the conduction of high currents (IDS) at high voltage during transitions. This hypothesis was demonstrated by connecting a heatsink to the Device Under Test (DUT), thanks to which we highlighted the thermal contributions on the observed drifts.

Impact of Soft- and Hard-Switching transitions on VTH and RON Drifts in packaged SiC MOSFETs

This paper presents a FPGA-based real-time emulator
of silicon carbide (SiC) metal-oxide-semiconductor fieldeffect
transistor (MOSFET) employing dynamic device model.
The threshold-based model utilizes the Shichman and Hodges
equations with voltage-dependent non-linear device capacitances
to obtain an accurate model for the turn-on switching transients
of the device. Accurate dynamic switching behavior including
the key states drain-current, drain-source voltage and gate-source
voltage can be achieved in real-time and monitored with a digital
to analog converter. Such models are beneficial for rapid and costeffective
manufacturing of high-power SiC-based converters. The
simulation results are verified experimentally on a 3.3kV SiC
MOSFET module, showing good correspondence.

Real-Time FPGA Simulation of Silicon Carbide MOSFETs

6.5 kV-rated 4H-SiC MOSFETs have been successfully fabricated and demonstrated on 60 µm-thick, 1.2×1015 cm-3 doped N-type epi-layer on 6-inch, 4H-SiC N+ substrates. Devices were fabricated at the 6-inch SiC foundry, X-FAB, TX, USA. Active and edge termination areas of high voltage (>3.3 kV) SiC devices require critical design consideration due to implant straggles from the low background doping concentration. Despite the fabrication and design challenges, we have demonstrated Ron,sp of 47 mΩ-cm2 with a breakdown voltage of 7.9 kV with a very low leakage current using ring-based edge termination structure. Devices were then diced and packaged in a SUNY Poly’s custom-made package to evaluate short circuit capabilities. Short circuit withstand time of 6.2 µs was recorded from the nominal device, along with 7 µs and 13 µs from the device with narrower JFET width and wider channel length, respectively.

Critical Design Considerations for Static and Dynamic Performances on 6.5 kV 4H-SiC MOSFETs Fabricated in a 6-inch SiC Foundry

This talk discusses the dynamic characterization of a 3.3 kV SiC-based reverse voltage blocking switch for three different switch configurations used for the current source inverter (CSI). The static characterization of the devices is done for the latest generation 3.3 kV SiC MOSFET and diode. Based on these results, a preferred current switch is suggested for a medium voltage CSI.

Performance Evaluation of 3.3 kV SiC MOSFET and Schottky Diode for Medium Voltage Current Source Inverter Application

For efficient converter design, modeling of switching components must be both accurate and fast. A variety of simulation models
for SiC Power MOSFETs has been developed. To achieve adequate accuracy, models are adjusted to experimental data by applying fitting methods. However, proposed universal fitting methods result in high-dimensional optimization problems. Their computational inefficiency leads to either long run times or low accuracy. This paper proposes a new universal parameter fitting method that is at least twice as fast and yields a more accurate outcome than presented methods under comparable conditions. It effectively reduces the dimensionality of the parameter fitting optimization problem by sensitivity-based reduction of optimization parameters.
Thereby, it optimizes both model adjustment speed and accuracy, which are critical factors for an efficient converter design process. The method does not compromise flexibility as it is universally applicable to any SPICE model and can meet any model architecture preference.

Smart Universal Parameter Fitting Method for Modeling Static SiC Power MOSFET Behavior

Gallium nitride (GaN), one of the wide-bandgap compound semiconductors, has unique material properties such as high electron saturation velocity and high breakdown field. A two-dimensional electron gas (2DEG) formed at an AlGaN/GaN heterointerface via spontaneous and piezoelectric polarization effects exhibits high sheet density and high electron mobility. Using these features, transistors with various device topologies (lateral and vertical) have been developed for both RF and power electronics applications. Among them, AlGaN/GaN-HEMTs fabricated on a high thermal conductivity SiC substrate are most widely used in high-power RF amplifiers for radars, satellite communications, cell phone base stations, etc. Owing to the rapidly increasing demand for higher bandwidths in the next generation communication and higher resolution imaging systems, millimeter-waves (30 – 300 GHz) are expected to play a critical role. Accordingly, GaN-based power amplifiers that have a high gain, output power, efficiency, and linearity at millimeter-wave frequencies are required. The frequency performance of GaN-HEMTs has been successfully improved through aggressive device scaling, and the cutoff frequency (fT) of highly scaled GaN HEMTs reached a 450-GHz range, i.e., 3-4× higher than conventional devices. The high-frequency device scaling, however, comes at the expense of reduced transistor’s power density due to the limited voltage swing. To overcome a well-known performance trade-off of millimeter-wave transistors among operational frequency, power density, efficiency, linearity, and reliability, new III-N material platforms as well as novel transistor architectures were proposed. They include (1) new III-N barrier materials such as AlN, InAl(Ga)N, ScAlN utilizing a larger polarization effect, (2) an Al composition graded AlGaN channel, (3) N-polar GaN-HEMTs, and (4) multiple 2DEG channels with a lateral gate. In this talk, I will discuss the progress of GaN-based high-frequency transistor development and technical challenges and introduce our new approaches on multiple 2DEG channel HEMTs with a buried dual gate (BRIDGE HEMTs).

High-Frequency GaN-Based Transistor Technologies: Progress and Future

Power design engineers want simplicity and the maximum degrees of freedom in making choices for the design challenges they face every day. They don’t want transistor suppliers to predefine the operation of a circuit in ways that may limit their approach to maximizing performance. Power designers want to innovate, optimize and not be constrained. There will always be a need for a mix of discrete, multi-chip packages, and power module form factors in order to meet the growing number and variety of GaN applications.

One Size Doesn't Fit All - The Need for Multiple Approaches to GaN Circuit Design

The adoption of high voltage GaN on Silicon power devices is accelerating at a rapid pace over the last several years. The key for designers and system insertion has been robust and reliable, easy to interface and design, high performance normally off GaN compatible with multiple controller and driver architectures. With complete control of the core GaN materials and wafer technology as well as manufacturing, Transphorm’s high speed-high efficiency-easy to use SuperGaN FET with a proven field reliability (FIT < 0.4) products provide superior solutions for applications ranging from 30 Watts to 10 kiloWatts, today and already shipping in volume. This talk will review the growing use of GaN in markets like Fast chargers/adapters (lower power) to server, gaming, crypto mining, industrial (mid-high power) to renewables, energy and electric vehicles (high power), targeting 200% year over year growth.
