Alnico permanent magnets contain a number of major alloying additions such as Fe, Co, and Ni, along with some other minor elemental additions; this alloying convention is similar to the high entropy alloys (HEAs) concept [1]. In this paper, we investigate the hard magnetic properties of FeCoNiAl-based HEAs with additions of Cu/Ti. Additions of both Cu and Ti to an equimolar FeCoNiAl alloy are more effective at enhancing coercivity compared to Cu only, but they also decrease the saturation magnetization and remanence (Figure 1). By changing the Fe/Co amounts, however, we can regain some of these properties. Fe2CoNiAlCu0.4Ti0.4 shows promising hard magnetic properties as an isotropic, cast magnet, with a coercivity (HC) of 1.1 kOe and maximum energy product, (BH)max, of 2.06 MGOe, which is slightly better than the performance of isotropic, cast Alnico 2 magnets [2]. The thermal stability is also sufficient to be used at temperatures over 200 °C. The drastic change in HC might be strongly associated with spinodal decomposition at annealing temperatures of ~650-700 °C for all samples (Figure 2).References: [1] D. B. Miracle and O. N. Senkov, Acta Mater. Vol. 122, p.448 (2017). [2] https://en.wikipedia.org/wiki/Alnico.

MMM 2020

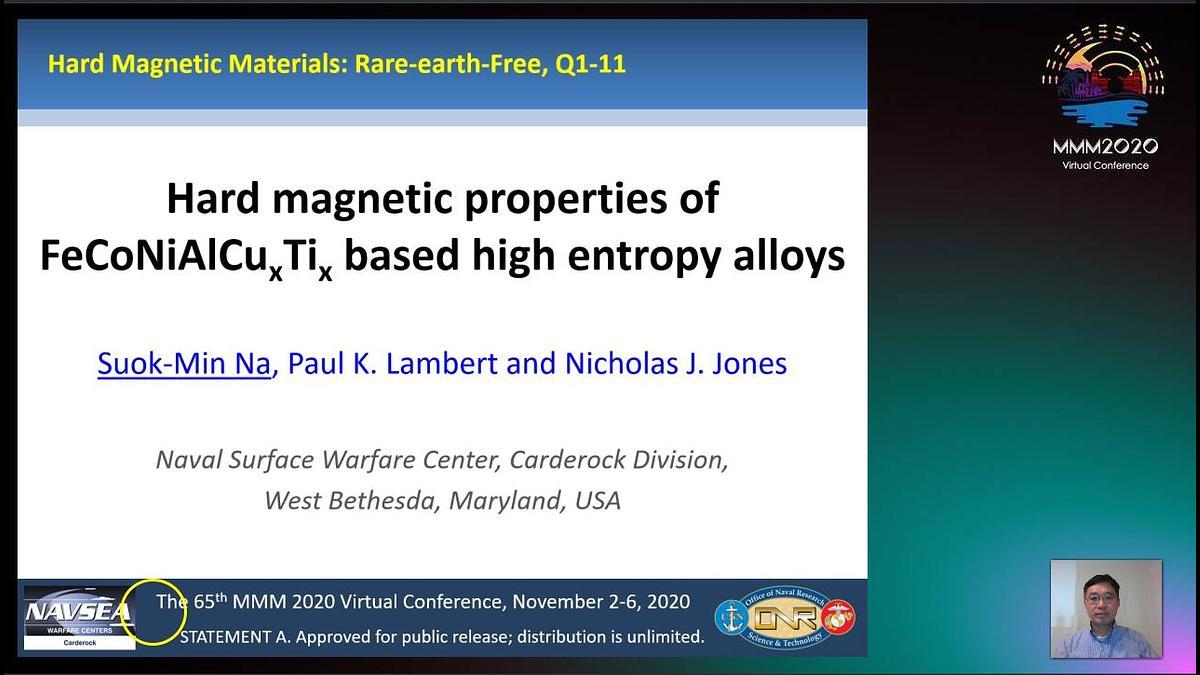

Hard magnetic properties of FeCoNiAlCuxTix based high entropy alloys
