This paper presents a FPGA-based real-time emulator
of silicon carbide (SiC) metal-oxide-semiconductor fieldeffect
transistor (MOSFET) employing dynamic device model.
The threshold-based model utilizes the Shichman and Hodges
equations with voltage-dependent non-linear device capacitances
to obtain an accurate model for the turn-on switching transients
of the device. Accurate dynamic switching behavior including
the key states drain-current, drain-source voltage and gate-source
voltage can be achieved in real-time and monitored with a digital
to analog converter. Such models are beneficial for rapid and costeffective
manufacturing of high-power SiC-based converters. The
simulation results are verified experimentally on a 3.3kV SiC
MOSFET module, showing good correspondence.

IEEE WiPDA 2021

Real-Time FPGA Simulation of Silicon Carbide MOSFETs

The IEEE Workshop on Wide Bandgap Power Devices & Applications (WiPDA) provides a forum for device scientists, circuit designers, & application engineers from the Power Electronics & Electron Devices Societies to share technology updates, research findings, experience & potential applications.

**Topics of interest**

* Heteroepitaxial & Bulk Materials Growth
* Gate Dielectrics & Surface Passivation
* Device Structures & Fabrication Techniques
* Device Characterization & Modeling
* Very-High Efficiency or Compact Converters
* Safe Operating Areas of Wide Bandgap Devices, Including Short Circuit, Spike, & Transient Tolerance
* Harsh Environment (High Temperature) Operation & Reliability
* Packaging Power Modules & ICs
* Hard-Switched & Soft-Switched Application Analysis
* Gate Drive & Other Auxiliary Circuits
* High-Performance Passive Components
* Applications in Renewable Energy & Energy Storage, Transportation, Industrial Drives, & Grid Power Systems
* Wide Band Gap System Design Philosophies & Strategies
* Radio Frequency (RF) GaN (New)
* Technology Roadmap of Wide Bandgap Including Devices, Applications and Packaging (New)

### Please select the button below to view and download the session papers. The Virtual Proceedings PDF can be downloaded [here.](https://drive.google.com/file/d/171y2_u63V-pc9-bC-eZgHLzJou2oCfST/view?usp=sharing)

[![](https://assets.underline.io/uploads/markdown_image/1/image/c8e1b0a2881d3bb0a75ece4761f43c9f.png)](https://drive.google.com/drive/folders/1GWEFLzH6K4aUBaJiBFJDw4x9sKLTl6-g?usp=sharing)


This event requires a registration to attend, please register [here](https://web.cvent.com/event/536cea3d-4c0d-4d50-8939-529979d80785/summary) to purchase a ticket.

The IEEE Workshop on Wide Bandgap Power Devices & Applications (WiPDA) provides a forum for device scientists, circuit designers, & application engineers from the Power Electronics & Electron Devices Societies to share technology updates, research findings, experience & potential applications.

poster

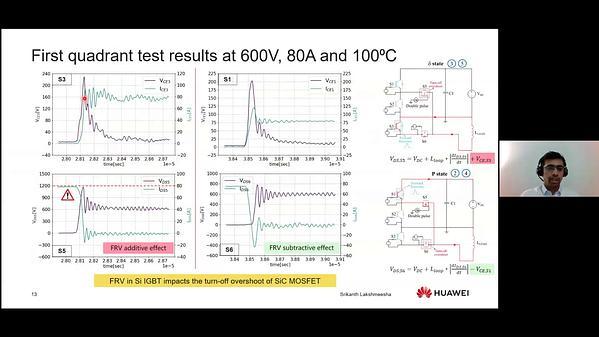

The work presented in this paper investigates the switching behavior of the power semiconductors at a hybrid Si/SiC ANPC circuit, where the Si IGBTs switch at line frequency while the SiC MOSFETs switch at PWM frequency. In particular, this work quantifies the impact of the forward recovery voltage (FRV) originated in the bipolar devices, i.e., IGBTs and freewheeling diodes, during the transition from non- to full-conduction. Such transition being originated by the on/off commutation of the SiC devices. The obtained experimental results also show the impact of various operational and environmental factors on the FRV magnitude and evolution. The evaluation done indicates that FRV effects must be taken into account both in terms of power loss dissipation and voltage overshoots when using hybrid Si/SiC ANPC topology.

Switching behavior of a hybrid Si-IGBT and SiC MOSFET based ANPC Topology

In this presentation, an intelligent gate driver for parallel-connected SiC MOSFETs is presented. Commercial gate drivers often slow down the switching event to compensate for unevenly distributed switching losses in parallel-connected MOSFETs. With the use of the presented gate driver, it is possible to match the temperature of parallel-connected MOSFETs even with low gate resistances. To achieve this, the gate signals of the parallel-connected MOSFETs are delayed in the nano second range in order to influence the current distribution during the switching events. This allows fast switching operations without the need for derating the switching cell. The measurement results are compared with a push-pull gate driver. It is shown that the temperature difference of two MOSFETs connected in parallel can be reduced from 8 K when using a push-pull gate driver to 0 K when using the presented gate driver. The gate driver thus makes it possible to fully exploit the potential of SiC MOSFETs and to increase the power density of power electronics converters.

Balancing Unequal Temperature Distributions of Parallel-Connected SiC MOSFETs Using an Intelligent Gate Driver

Silicon carbide (SiC) power devices operate at high switching frequencies with high voltages and good stabilities owing to their advantages in excellent breakdown field strength, heat dissipation characteristics, and electron saturation velocity, and so on. Therefore, SiC-based systems can achieve a high power density compared to conventional Si-based systems. However, high dv/dt and di/dt accompanied with high-speed switching operations can cause EMI noise issues. Traditional gate drivers cannot actively control such EMI noise problems. This digest proposes an integrated active gate driver (AGD) to solve the noise issues. The proposed AGD controls the switching speed through controllable AGD voltages in real-time according to the system feedbacks such as the DC-link voltage, output current, and device temperature. The proposed AGD enables switching devices to control the switching speed accurately under various system operational conditions. Simulation and experimental results are presented to verify the proposed method.

An Integrated Active Gate Driver for SiC MOSFETs

This presentation shows a liquid metal-based cooling system for power converters with an inductor integrated magnetohydrodynamic (MHD) pump. The inductor in this case not only functions as the pump for liquid metal but also can be an essential part of typical power converters such as the output inductor of a buck converter. Two prototypes of liquid metal-based cooling systems were designed and built. The first prototype is an MHD pump with an external current source and permanent magnets and to evaluate the effectiveness and power consumption of liquid metal-based cooling. The second prototype for the first time integrates the MHD pump into an inductor, which eliminates the need for an external power supply and permanent magnets. Since the inductor is part of the power converter to be cooled, the flow rate can be self-adjusted with the load condition. Simulation and experimental results validate the concept of the inductor integrated liquid metal pump and demonstrate the advantage of the liquid metal cooling system over non-metallic fluid-based liquid cooling systems in terms of power density, cooling efficiency, power consumption, reduction of rotatory components, and lowered acoustic noise.

Liquid Metal based Cooling for Power Electronics Systems with Inductor Integrated Magnetohydrodynamic Pump (MHD Pump)

In this work, electrical parameters of silicon carbide MOSFETs and their temperature dependency, as well as their electrical behavior over time are investigated. An approach is presented to make assertions about the condition of the
transistors during operation through the measurement of multiple temperature and degradation-sensitive electrical parameters. The on-state voltage, peak gate current and quasi-threshold voltage are monitored through dedicated acquisition circuits. An exemplary AC power cycling setup which combines switching and conduction losses while applying nominal DC-link voltage is used to characterize the parameters in operation. The setup consists of two half-bridge modules with measurement circuitry connected directly to the devices under test. Results show the capability
of the proposed circuits to measure parameters carrying temperature and health information in normal operation. A high linearity of the quasi-threshold voltage in regards to the junction temperature is found, with a relative temperature sensitivity in the per mille range, comparable to the sensitivity of the on-state resistance. No significant temperature sensitivity is found for the peak gate current, due to the specific gate driver design.

Characterization of Electrical Parameters for Health Monitoring in SiC MOSFETs During AC Power Cycling

LLC converters are the most popular isolated dc/dc converter with high efficiency power conversion and simple control strategy. To facilitate the designand optimization of LLC converters, in this article, we investigate the circuit and power loss models. The high accuracy of the circuit and power loss models are ensured by adopting time domain modelling. The power loss model is developed solely based on the manufacture provided datasheets with convenient yet effective evaluation of components performances. A simulation and design tool is built to further facilitate the evaluation of the LLC converters. Experimental results from a 500 W symmetric half-bridge LLC converter are presented and compared with the theoretical analysis results to validate the accuracy and effectiveness of the developed models.

Experimental Validations of the SiC MOSFET based LLC Converter Circuit and Power Loss Models

The use of wide bandgap (WBG) devices in the dominant voltage-source inverters (VSIs) creates more challenging conducted common-mode (CM) electromagnetic interference (EMI) issues. Traditional way of suppressing CM EMI is by adding external filters. However, the added filter can add significant mass and volume to the inverter. The use of existing current-source inverter (CSI) can help relieve the CM EMI issue, but WBG-CSI’s EMI profile still exceeds EMI standards. In this paper, two new balanced current-source inverter (CSI) topologies are proposed that provide several advantages over the standard VSIs or existing CSI topology when using WBG power switches. For both balanced CSI topologies, the use of additional three switches generate a second common-mode voltage (V_cm) component that forces the total V_cm of both inverters to be close to zero. This significantly reduces the inverters’ conducted CM EMI. Moreover, the proposed H10-Balanced-CSI topology combined with its modulation scheme make its CMV cancellation insensitive to propagational delay distortions among its switches.

A Balanced Current-Source Inverter and its dc-Link Shunted Variant for Common-Mode Voltage Cancellation

This paper presents the design and development of a Silicon Carbide (SiC) technology-based Non-Inverting Buck-Boost (NIBB) DC-DC power conversion unit for harsh space environment application with very high temperature (HT) (>300oC) and high radiation level. This work evaluates the capability of SiC devices, comprising of LDMOSFET (Lateral Diffused MOSFET) for high temperature (>300oC) power electronics. The temperature-dependent characterization of relevant switching device parameters such as channel resistance, device junction capacitances is performed through device modeling and simulations. The selection of critical passive components of the power converter is done through rigorous characterization of their performance metrics such as capacitance, inductance, leakage current, etc. under influence of increasing operating temperature. In this work, we designed and fabricated a proof-of-concept of NIBB DC-DC converter using the fabricated SiC MOSFETs that are demonstrated to operate at 300 °C ambiance. It is designed to provide a 15A output load and convert the input side battery voltage levels of 28V, 120V, and 160V to a configurable output voltage from 30V to 48V, used as the standard for NASA space missions. Results at 300oC environment report a peak efficiency of 92.5% at 450W load and 100kHz switching frequency, which validates the developed converter architecture to be a suitable candidate for high-frequency HT power conversion.

High Temperature Application of a SiC-Ldmosfet Based DC-DC Power Converter

This presentation shows a design of a 10 kV silicon carbide (SiC) MOSFET based modular multilevel converter (MMC). The MMC functions as the interconnection between a 24 kV dc bus and a 13.8 kV distribution grid. This presentation focuses on the hardware design of the MMC and its submodules. The gate driver, auxiliary power supply and bus bur in submodules are major components that need to meet high dv/dt immunity and high insulation voltage requirements. The gate driver achieves over 200 kV/µs common mode transient immunity (CMTI). Its associated auxiliary power supply is based on an on-board transformer with over 30 kV insulation capability and 1.4 pF barrier capacitance. The busbar achieves less than 11 kV/cm electric field in the air to avoid partial discharges. Validation tests of the MMC submodule were performed by double pulse tests at 5 kV and buck converter tests at 3 kV, 52 A (peak). Reliable operations were achieved in validation tests.

Hardware Design of Medium Voltage SiC-based Modular Multilevel Converters for Grid-tied Applications

We investigate the impact of soft- (SS) and hard-switching (HS) transitions on threshold voltage (VTH) and on-resistance (RON) drifts in packaged Silicon Carbide (SiC) MOSFETs. To this end, we present a novel measurement setup that allows, for the first time, the on-the-fly characterization of both VTH and RON during HS mode operation. During measurement, we observed VTH reduction and RON increase under both SS and HS conditions, with significantly higher drifts found in HS. The larger degradation found in HS was ascribed to the additional self-heating induced by the conduction of high currents (IDS) at high voltage during transitions. This hypothesis was demonstrated by connecting a heatsink to the Device Under Test (DUT), thanks to which we highlighted the thermal contributions on the observed drifts.

Premium content

Real-Time FPGA Simulation of Silicon Carbide MOSFETs

Downloads

Next from IEEE WiPDA 2021

Switching behavior of a hybrid Si-IGBT and SiC MOSFET based ANPC Topology

Similar lecture

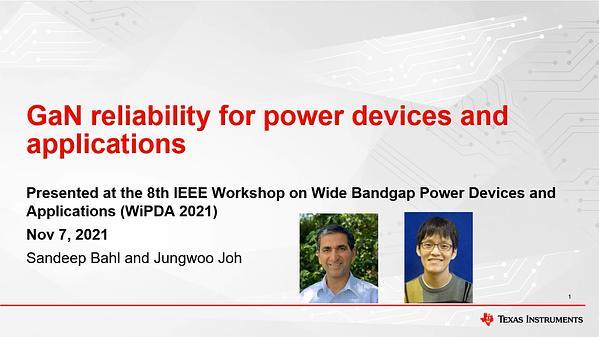

GaN Technology
