In this paper, a direct bonded GaN intelligent power module (IPM) with liquid cooling is demonstrated. A half bridge module with GaN high electron mobility transistors (HEMTs) is bonded on active metal brazed (AMB) substrates which are pre-brazed on a copper liquid-cooled heat exchanger. The design of this power module, such as the selections of the GaN dies and the placement of the GaN dies with respect to the AMB dimensions, is determined based on thermal simulations, estimated electrical parasitics and experiments. The prototype GaN IPMs are demonstrated in a buck converter configuration. The modules are tested up to 110 W with top surface temperature of the PCB module kept below 125 °C, measured by an infrared camera (FLIR). The proposed IPM with liquid cooling offers an effective packaging solution for electric vehicle applications.

IEEE WiPDA 2021

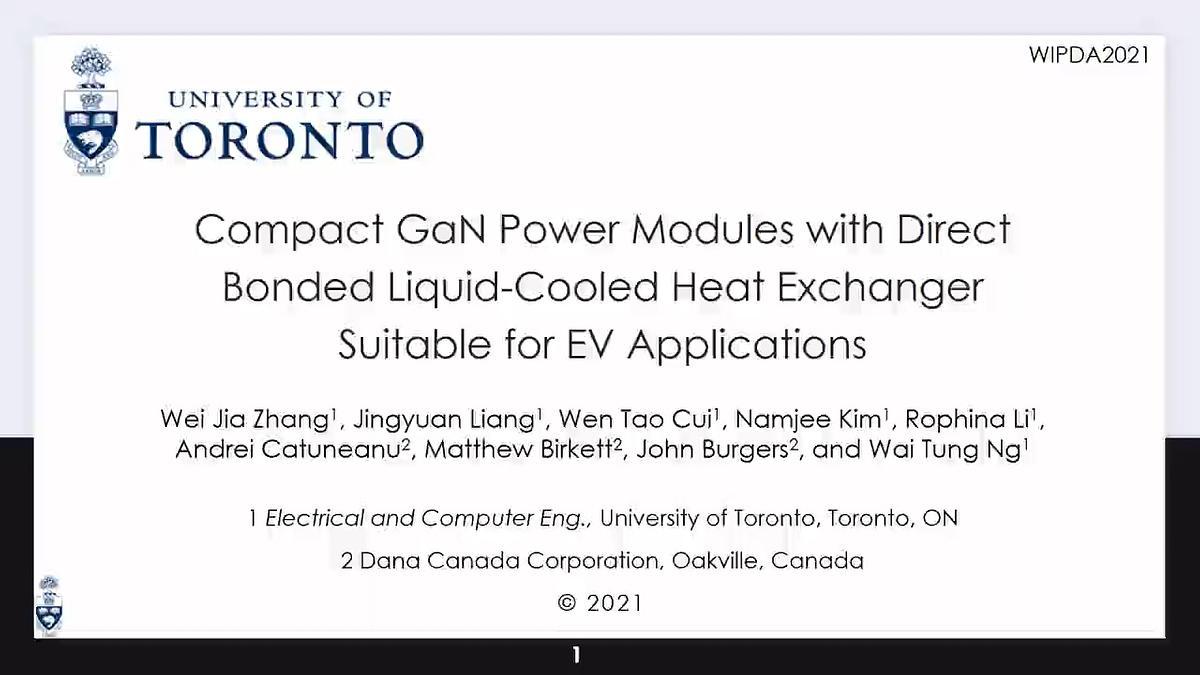

Compact GaN Power Modules with Direct Bonded Liquid-Cooled Heat Exchanger Suitable for EV Applications

The Electronic Materials Conference (EMC) is the premier annual forum on the preparation, characterization and use of electronic materials. This year’s event will feature a plenary session, topical sessions, a poster session and more.

EMC is coordinated with the Device Research Conference (DRC). This recognizes the strong interaction between device and electronic materials research and provides fruitful exchange of information between attendees of both Conferences.

EMC 2023

The Electronic Materials Conference (EMC) is the premier annual forum on the preparation, characterization and use of electronic materials.

technical paper

The IEEE Workshop on Wide Bandgap Power Devices & Applications (WiPDA) provides a forum for device scientists, circuit designers, & application engineers from the Power Electronics & Electron Devices Societies to share technology updates, research findings, experience & potential applications.

**Topics of interest**

* Heteroepitaxial & Bulk Materials Growth
* Gate Dielectrics & Surface Passivation
* Device Structures & Fabrication Techniques
* Device Characterization & Modeling
* Very-High Efficiency or Compact Converters
* Safe Operating Areas of Wide Bandgap Devices, Including Short Circuit, Spike, & Transient Tolerance
* Harsh Environment (High Temperature) Operation & Reliability
* Packaging Power Modules & ICs
* Hard-Switched & Soft-Switched Application Analysis
* Gate Drive & Other Auxiliary Circuits
* High-Performance Passive Components
* Applications in Renewable Energy & Energy Storage, Transportation, Industrial Drives, & Grid Power Systems
* Wide Band Gap System Design Philosophies & Strategies
* Radio Frequency (RF) GaN (New)
* Technology Roadmap of Wide Bandgap Including Devices, Applications and Packaging (New)

### Please select the button below to view and download the session papers. The Virtual Proceedings PDF can be downloaded [here.](https://drive.google.com/file/d/171y2_u63V-pc9-bC-eZgHLzJou2oCfST/view?usp=sharing)

[![](https://assets.underline.io/uploads/markdown_image/1/image/c8e1b0a2881d3bb0a75ece4761f43c9f.png)](https://drive.google.com/drive/folders/1GWEFLzH6K4aUBaJiBFJDw4x9sKLTl6-g?usp=sharing)


This event requires a registration to attend, please register [here](https://web.cvent.com/event/536cea3d-4c0d-4d50-8939-529979d80785/summary) to purchase a ticket.

The IEEE Workshop on Wide Bandgap Power Devices & Applications (WiPDA) provides a forum for device scientists, circuit designers, & application engineers from the Power Electronics & Electron Devices Societies to share technology updates, research findings, experience & potential applications.

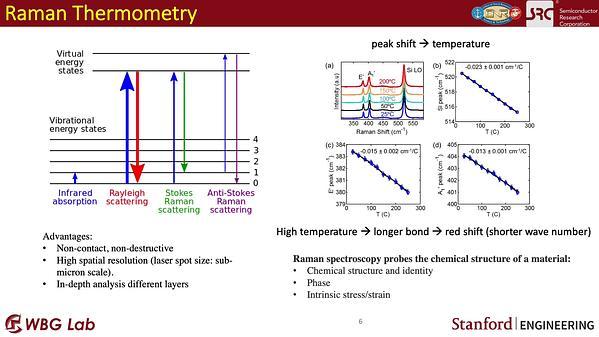

GaN-based transistors offers the highest power density for radio-frequency (RF) applications. However, self-heating significantly limits device performance and reliability that must be managed for the transistors to perform. Exploiting the high thermal conductivity of polycrystalline diamond (300-2000 W/mK near room temperature), we have demonstrated polycrystalline diamond integration on top of the GaN channels for effective device cooling, while preserving its electrical performance. Various thicknesses of polycrystalline diamond were grown on top of the GaN channel to investigate its impact on the device temperature. Using Raman thermometry, a remarkably lower temperature (by 30-60 °C) was measured in the channel for devices with diamond compared to control devices without diamond. The effect of diamond thickness (250-650 nm) and device layout on the heat dissipation was carefully studied and discussed. We have shown that thicker diamond (~650 nm) along with the metal-diamond overlap improves channel cooling capabilities of the diamond heat spreader by a factor of two.
