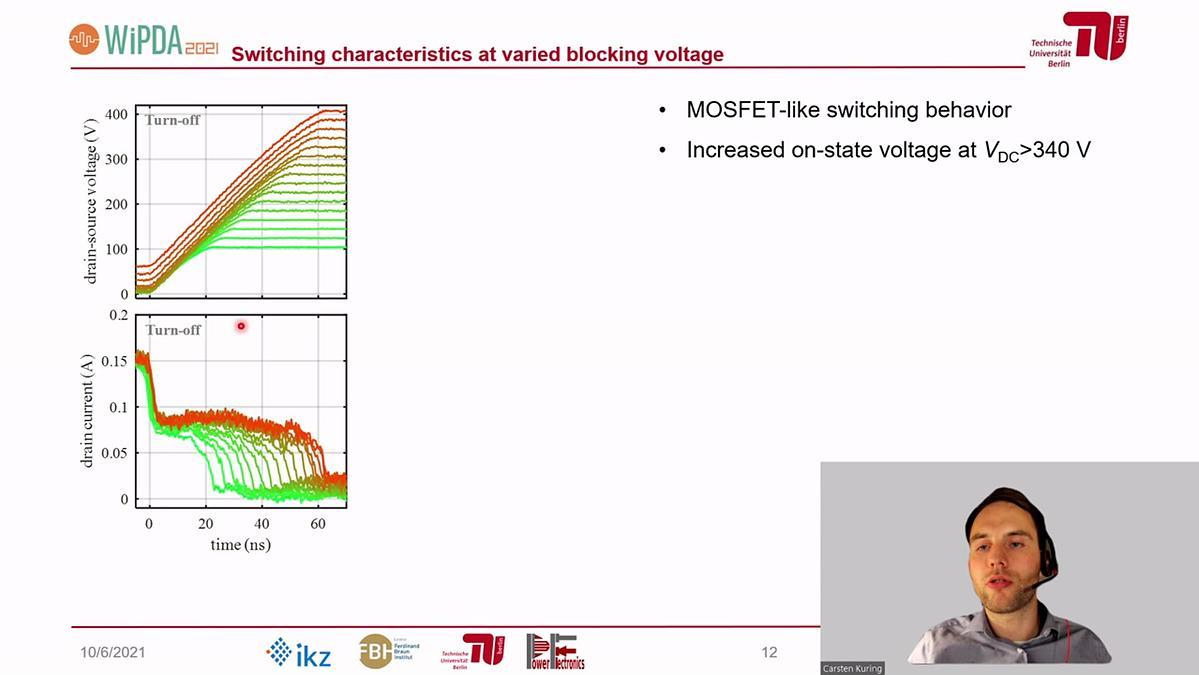

This paper studies switching behavior and dynamic on-state characteristics of lateral 10 mm depletion-mode β-Ga2O3 met-al-oxide-semiconductor field-effect transistors (MOSFETs). Improvements in device technology and fabrication enable hard-switching operation with an increase of the maximum blocking voltage to 400 V at 0.26 A load current in a double-pulse test configuration. Compared to static measurements, dispersion effects lead to an increased on-resistance in hard-switched operation, which becomes especially pronounced at blocking voltages above 200 V. The extend of dynamic Ron-increase further depends on several operation conditions such as switching speed, on-state duration and load current.
