All-optical spin switching and demagnetization are two sides of the same physics. We find a way to unify them through the same model that takes into account the Heisenberg exchange between spins and spin-orbit coupling. To have efficient spin switching, the electron initial momentum direction must closely follow the spin&#39;s orientation, so that the orbital angular momentum is transverse to the spin, and consequently the spin–orbit torque lies in the same direction as the spin. The demagnetization can be understood from the spin-orbit coupling-mediated spin-wave excitation. The efficiency of laser-induced demagnetization is very high. We also observe the collapse of the spin-spin correlation length within 20 fs, consistent with the experimental findings [2]. Upon laser excitation there is a massive spin wave generated. The wave starts at the center of the laser beam and propagates outwards. Figure 1(b) shows the effect of the linearly polarized light at 123 fs after laser excitation. The spins close to the center bend strongly to the –z-axis. The situation is quite different with a right-circularly polarized laser (see Fig. 1(c)), where the spins are much more strongly affected. For left-circularly polarized light, the effect is much weaker. The demagnetization results from spin misalignment across the sample. This is similar to the traditional spin wave theory, with the low-energy spin wave excitation across several hundred lattice sites, which is far beyond the capability of the time-dependent density functional theory. Our simulation shows that the spin-spin correlation is reduced within 20 fs [3], consistent with the experimental results.References: [1] G. P. Zhang and M. Murakami, Journal of Physics: Condensed Matter 31, 345802 (2019). [2] P. Tengdin et al., Science Advances 4, eaap9744 (2018). [3] G. P. Zhang , M. Murakami , Y. H. Bai, Thomas F. George, and X. S. Wu, J. Appl. Phys. 126, 103906 (2019).

MMM 2020

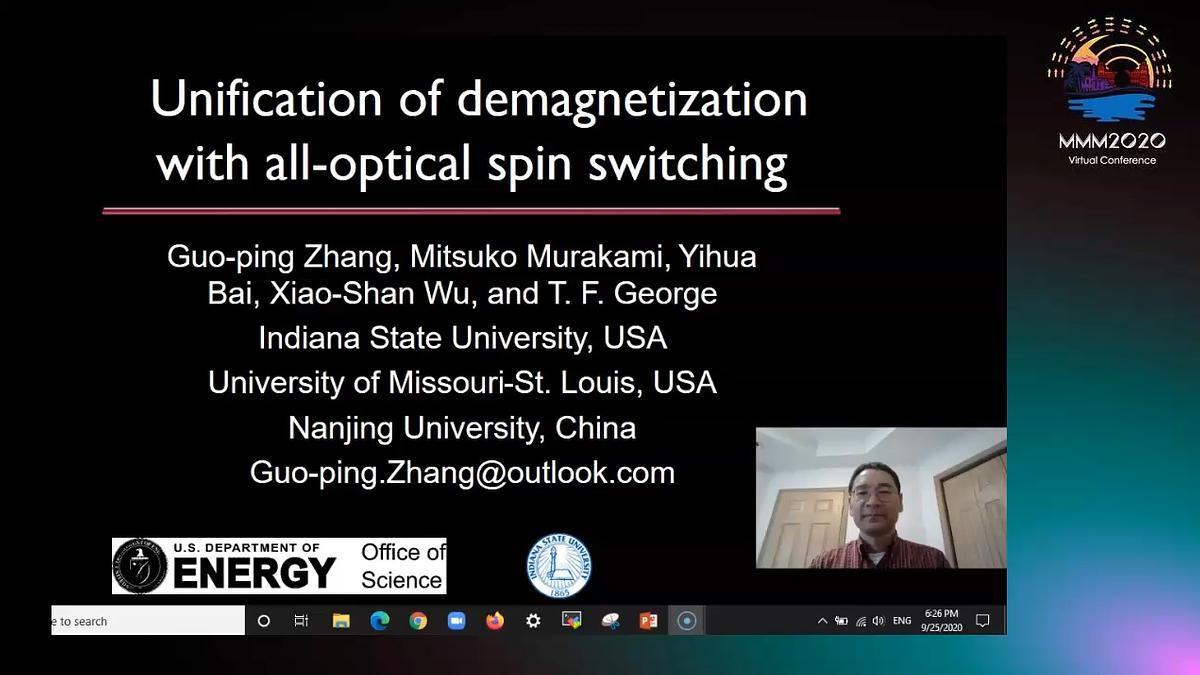

Unification of ultrafast demagnetization and switching

The 65th Annual Conference on Magnetism and Magnetic Materials (MMM 2020) was held in a virtual form. The COVID-19 pandemic, with its associated uncertainty about international travel and the ability to gather in large groups, meant that the Steering Committee decided to cancel the face-to-face meeting that had been planned in Palm Beach, Florida November 2-6, 2020.

We were reluctant to give up the benefits of meeting face-to-face, and know that shifting to a virtual conference is a significant change for this community. Nevertheless, we are first and foremost concerned about the health and safety of all our Conference participants and their loved ones on returning home after travelling.

The MMM 2020 Steering Committee was working exceptionally hard, along with our sponsors, the IEEE Magnetics Society and AIP Publishing, to make this event serve the needs of our participants, who live in time zones all around the globe, in the best possible way.

You need a ticket to explore this event.

If you have already registered for MMM 2020, and you have already created an account, then you
just need to login (above).

If you have already registered for MMM 2020, but you have not yet created an account, then you
need to click on &quot;create an account&quot; (above) and then login.

Forgot your password? Go to
https://www.underline.io/log-in

If you have not yet registered for MMM 2020 but would like to do so, go to
https://magnetism.org/register

Still need help? Contact our team!


All-optical spin switching and demagnetization are two sides of the same physics. We find a way to unify them through the same model that takes into account the Heisenberg exchange between spins and spin-orbit coupling. To have efficient spin switching, the electron initial momentum direction must closely follow the spin's orientation, so that the orbital angular momentum is transverse to the spin, and consequently the spin–orbit torque lies in the same direction as the spin. The demagnetization can be understood from the spin-orbit coupling-mediated spin-wave excitation. The efficiency of laser-induced demagnetization is very high. We also observe the collapse of the spin-spin correlation length within 20 fs, consistent with the experimental findings [2]. Upon laser excitation there is a massive spin wave generated. The wave starts at the center of the laser beam and propagates outwards. Figure 1(b) shows the effect of the linearly polarized light at 123 fs after laser excitation. The spins close to the center bend strongly to the –z-axis. The situation is quite different with a right-circularly polarized laser (see Fig. 1(c)), where the spins are much more strongly affected. For left-circularly polarized light, the effect is much weaker. The demagnetization results from spin misalignment across the sample. This is similar to the traditional spin wave theory, with the low-energy spin wave excitation across several hundred lattice sites, which is far beyond the capability of the time-dependent density functional theory. Our simulation shows that the spin-spin correlation is reduced within 20 fs [3], consistent with the experimental results.References: [1] G. P. Zhang and M. Murakami, Journal of Physics: Condensed Matter 31, 345802 (2019). [2] P. Tengdin et al., Science Advances 4, eaap9744 (2018). [3] G. P. Zhang , M. Murakami , Y. H. Bai, Thomas F. George, and X. S. Wu, J. Appl. Phys. 126, 103906 (2019).

technical paper

After the first observation of the ultrafast demagnetization process, a huge experimental and theoretical effort was devoted to reveal the microscopic mechanism governing the ultrafast optically induced loss of magnetic order in ferromagnetic materials. Almost all experimental fs-demagnetization studies so far employed fs light pulses of 1.55 eV to trigger the magnetization-dynamics. Hence, the role of the photon energy of the exciting light pulse has been largely neglected so far. Therefore, we have implemented an all-optical time-resolved MOKE setup with variable pump photon energy in the range of 1.55 to 3.10 eV. As prototypical system, we investigated the ultrafast demagnetization dynamics of thin Ni films on insulating and conducting substrates. The characteristic parameters of the demagnetization process, i.e., the demagnetization time for various excitation photon energies are compared with simulations applying a temperature-based model. These simulations consider the density of states of Nickel and interface effects to describe the non-equilibrium dynamics of the spin-carrying excited electrons. For metallic substrates, we further discuss the magnitude and timescale of the optically injected spin carriers across the magnetic/non-magnetic interface.References: M. Hofherr, et al., Physical Review B 96, 100403 (2017) U. Bierbrauer, et al., J. Phys.: Condens. Matter 29, 244002 (2017) B.Y. Mueller and B. Rethfeld, Phys. Rev. B 90, 144420 (2014)

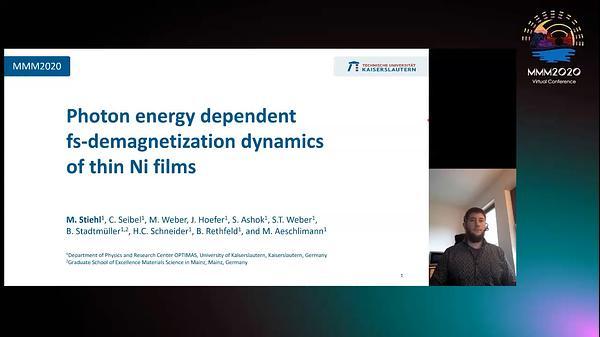

Photon energy dependent fs-demagnetization dynamics of thin Nickel films

The observation of ultrafast manipulation and coherent control of spins in magnetic materials at room temperature [1-2] has prompted the intense experimental and theoretical efforts to understand the underlying microscopic mechanisms and relevant interactions (exchange, spin-lattice, electron-phonon, coulomb etc.) driving such magnetic phenomena at sub-picosecond timescales. Stoichiometric B2 ordered epitaxial (001) FeRh undergoes a first order magnetic phase transition from antiferromagnetic (AFM) to ferromagnetic (FM) at ≈ 380K. In the AFM phase of FeRh, only Fe has net magnetic moment, whereas in the FM phase both Fe and Rh carry net moments. The phase transition is also accompanied by a ≈ 1% isotropic lattice expansion in the bulk BCC structure, and changes in electronic structure, see [3-5] and refs. therein.Since magnetic and structural dynamics occur at different timescales, it makes FeRh an ideal candidate for disentangling relevant interaction mechanisms at different timescales. The phase transition has been extensively studied theoretically and experimentally[6-8], in thermal equilibrium and in the time domain, but a precise understanding of the roles of the electronic, phononic and spin sub-systems remains elusive. We have studied the laser-driven AFM to FM phase transition in FeRh with small angle X-ray scattering (tr-SAXS) and X-ray absorption spectroscopy (tr-XAS) around the Fe L3 edge. The experiments were performed at the SCS Instrument of the European XFEL. We also performed the time-dependent density functional theory(TD-DFT) calculations to simulate the XAS spectra at different time delays. In this contribution, we will discuss the changes of the electronic structure of FeRh on the femto- and picosecond timescales, derived from the XAS and scattering measurements at the Fe L3 absorption edge performed at European XFEL, and compare them with the theoretical simulations (see the figure) , in order to show the relation between them and the first order AFM-FM phase transition in FeRh.References: [1] E. Beaurepaire et al., Phys. Rev. Lett. 76, 4250 (1996) [2] J.-Y. Bigot et al., Nature Physics 5, 515 (2009) [3] J.-U. Thiele et al. Appl. Phys. Lett. 82, 2859 (2003) [4] A.X. Gray et al., Phys. Rev. Lett. 108, 257208 (2012). [5] C. Baldasseroni et al., Appl. Phys. Lett. 100, 262401 (2012). [6] J.-U. Thiele, M. Buess, C.H. Back, Appl. Phys. Lett 85, 2857 (2004). [7] G. Ju et al., Phys. Rev. Lett. 93, 197403 (2004) [8] I. Radu et al., PRB 81, 104415 (2010)

Probing the Laser-driven Antiferromagnetic to Ferromagnetic Phase Transition of FeRh with Femtosecond Time-resolved Small Angle X-ray Scattering (tr-SAXS) and X-ray Absorption Spectroscopy (tr-XAS)

Antiferromagnetically coupled ferromagnetic thin films have recently attracted significant attention in magnonics because of the possibility to tune the spin-wave dispersion by altering the interlayer exchange coupling, which would help to achieve the spin-wave nonreciprocity [1]. To implement such coupled films in magnonic devices, a detailed understanding of the precessional dynamics of magnetization in such systems is required. Here, we present a systematic characterization of the precessional dynamics for systems with the layer magnetization going from nearly antiparallel to parallel alignment on application of a magnetic field. Experimentally, we have measured the ultrafast-laser-induced magnetization precession in samples with different interlayer exchange coupling strengths using the time-resolved magneto-optical Kerr effect. In addition to the acoustic and optical modes, an extra mode is observed that is due to the laser-induced decoupling of the two ferromagnetic layers. The observed precessional dynamics is in good agreement with our theoretical model based on the Landau-Lifshitz-Gilbert equation, and can be separated into three different field regions determined by the relationship between the Zeeman energy and the energy associated with the interlayer exchange coupling, as shown in Fig. 1 [2]. This work gives a detailed insigth of how the interlayer exchange coupling and Zeeman energy influence the precessional dynamics, and provides an important guide to implement antiferromagnetically coupled films in functional magnonic devices.References: [1] R. A. Gallardo, et al. Phys. Rev. Appl. 12, 034012 (2019) [2] J. Zhou, et al. Phys. Rev. B, 101, 214434 (2020)

Ultrafast Laser Induced Precessional Dynamics in Antiferromagnetically Coupled Ferromagnetic Films

While chiral spin structures stabilized by Dzyaloshinskii-Moriya interaction (DMI) are candidates as novel information carriers, their dynamics on the fs-ps timescale is little known [1-4]. Since with the bulk Heisenberg exchange and the interfacial DMI two distinct exchange mechanisms are at play, the ultra-fast dynamics of the chiral order needs to be ascertained and compared to the dynamics of the conventional collinear order. Using an XUV free-electron laser we determine the fs-ps temporal evolution of the chiral order in domain walls in a magnetic thin film sample by an IR pump - X-ray magnetic scattering probe experiment. Upon demagnetisation we observe that the dichroic (CL-CR) signal connected with the chiral order correlator mzmx in the domain walls recovers significantly faster than the (CL+CR) sum signal representing the average collinear domain magnetisation mz2+mx2 [5]. We explore possible explanations based on spin structure dynamics and reduced transversal magnetisation fluctuations inside the domain walls and find that the latter can explain the experimental data leading to distinctly different dynamics for collinear magnetic order and chiral magnetic order.References: [1] Beaurepaire, E. et al., Phys. Rev. Lett. 76, 4250–4253 (1996). [2] Koopmans, B. et al., Nat. Mater. 9, 259–265 (2010). [3] Battiato, M. et al., Phys. Rev. Lett. 105, 027203 (2010). [4] Pfau, B. et al., Nat. Commun. 3, 1100 (2012). [5] Kerber N. et al., arXiv:2002.03971 (2020).

Chiral versus collinear magnetic order dynamics: faster chiral recovery after optical excitation revealed by femtosecond XUV scattering

Thermal coupling parameters between different baths (electron, phonon, and magnon) in a nanoscale ferromagnetic Ni layer is investigated. To observe the local thermal interactions, we use time-resolved pump-probe spectroscopy. We collect both thermoreflectance and magneto-optical Kerr rotation, which represent the phonon temperature and magnon temperature, respectively, in a picosecond time scale. To analyze the experimental data, we employ the three-temperature thermal model including a spatial diffusion and local coupling mechanisms. We determine the thermal coupling parameters of Ni and find that the coupling parameter between phonon and magnon baths has a comparable magnitude to that between electron and magnon. The phonon-magnon coupling is responsible for the fast restoration of magnetization right after the ultrafast demagnetization (Fig. 1). In addition, we compare the coupling parameters with direct heating of Ni and in-direct heating of Ni via Au (Fig. 1). The in-direct heating suppresses the non-thermal electrons that reach to Ni, so that we can investigate the effect of thermal electrons on the ultrafast demagnetization. Both direct and in-direct heating situations lead to similar values of the coupling parameters, and the discrepancy is less than 30 %. We conclude that the thermalized electrons play the major role in the ultrafast demagnetization of Ni.References: Kyuhwe Kang and Gyung-Min Choi, J. Magn. Magn. Mater., Vol. 514, p.167156 (2020)

Thermal coupling parameters between electron, phonon, and magnon of Nickel

A thorough understanding of femtosecond magnetism will address the important questions of how fast the magnetization can be reoriented in a material and what physical processes present fundamental limits to this speed. Ultimately, light represents the fastest means to alter the state of a material since laser pulses can now be generated with extremely short temporal duration down to a few tens of attoseconds. One particularly interesting and novel scheme for the ultrafast manipulation of spins using light takes advantage of the optically-induced spin transfer (OISTR), which was recently introduced by Dewhurst et al. [1]. This microscopic mechanism is driven by a spin-selective direct optical excitation from one magnetic sublattice to another. Guided by time dependent density functional theory calculations, we are able to monitor the optically induced transient changes in the model systems FeNi in real time by time-resolved magneto-optical Kerr spectroscopy using high-harmonic generation (HHG TMOKE) [2]. Exploiting the spectral sensitivity of this measurement technique we are able to follow the ultrafast spin transfer from Fe to Ni during the optical excitation. OISTR, therefore, opens up a new avenue towards manipulating solids on timescales only limited by the duration of the exciting light pulse, which forecasts a control of the spin dynamics on the attosecond time scale. How far this spin manipulation via OISTR is a general phenomenon or restricted to a subset of materials with specific properties is an open experimental and theoretical question. In order to opens up a systematic path for coherent manipulation of spin dynamics by direct light-matter interaction we started to investigate OISTR in a variety of different compounds with higher complexity [3]. We reveal for example that the half-Heusler materials NiMnSb and CoMnSb exhibit strong signatures of OISTR, whereas this is less pronounced in the full-Heusler compounds Co2MnSi, Co2FeSi, and Co2FeAl in agreement with ab initio calculations [4].References: [1] J.K. Dewhurst et al, Nano Lett. 18 1842 (2018) [2] M. Hofherr et al. Sci. Adv. 6 eaay8717 (2020) [3] P. Tengdin et al , Sci. Adv. 6 eaaz1100 (2020) [4] D. Steil et al, Phys. Rev. Research 2, 023199 (2020)

Ultrafast optically induced Spin Transfer (OISTR) in Ferromagnetic Alloys INVITED

Co1-xMgxFe2O4（x = 0.0, 0.2, 0.4, 0.6, 0.8, 1.0）nanoparticles surrounded by amorphous SiO2 with particle sizes around 5 nm were prepared by an original wet chemical method. Furthermore, in order to develop the particles for conjugation with proteins, thiol group was modified. These particles were further confirmed as an agent for hyperthermia treatment. The heat dissipation characteristics of the particles were investigated by measuring AC magnetic susceptibility and the relationship between the imaginary part of AC magnetic susceptibility χ” and the increase in temperature in the AC field was estimated. We have carried out spin echo MRI measurements for Co1-xMgxFe2O4 nanoparticles using a 0.3-T MRI system. The particles showed drastic T2 shortening effect comparing to agarose as background depending on the composition. All the particles showed effective relaxivity, R2 values and significant contrast was observed in the phantom image. These particles are expected for future agents for theranostics.References: [1] T. Kondo, K. Mori, M. Hachisu, T. Yamazaki, D. Okamoto, M. Watanabe, K. Gonda, H. Tada, Y. Hamada, M. Takano, N. Ohuchi, and Y. Ichiyanagi, J. Appl. Phys. 11717D157 (2015). [2] D. Shigeoka, T. Yamazaki, T. Ishikawa, K. Miike, K. Fujiwara, T. Ide, A. Usui, Y. Hosokai, H. Saito and Y. Ichiyanagi, IEEE Trans. Magn., 54 6100707 (2018).
