This research reports a fundamental study of transport and magnetic properties of pulsed laser deposited metallic (film thickness ≈ 25-100 nm) and semiconducting (film thickness ≈ 25 – 10 nm) titanium nitride (TiN) thin films. The study is motivated to discern the critical thickness at which the properties of TiN films digress from bulk-like (3D) to 2D thin films. The study showed that while the crystal structure remains rock salt in the entire thickness range, the films undergo a metal-to-insulator (MI) transition around ~15 nm. The thickness (dimensionality) dependent MI transition, which is free from a structural phase transition, is attributed to a the localization of 3d1 electrons in the valence band, which takes place due to the separation in the energy states larger than the gaps between the valence and conduction bands. Analysis of transport resistivity data in different temperature regions indicated that while the Arrhenius law governs the transport properties for all the TiN films in 300 – 350 K range, the transport properties are governed by a thickness-dependent variable range hopping mechanism below 300 K. The magnetic properties of metallic and semiconducting TiN films were also found to be interesting. A room temperature ferromagnetic behavior was observed for both metallic and semiconducting TiN films, there was a marked correlation between coercivity (Hc) and saturation magnetization (Ms) with TiN film thickness. At room temperature, Hc increased from 66 to134 Oe as the thickness decreased from 100 to 9 nm. Similarly, the Ms (2.8 emu/g) at room temperature for the 9 nm sample was the highest. The maximum values of Hc and Ms are among the best values reported for TiN thin films in the literature. Contrary to previous reported causes of ferromagnetism in TiN due to nitrogen vacancies or oxygen doping, we have attributed the observed magnetic behavior of TiN films to the localized 3d1 electrons in TiN which become more localized with the decrease in film thickness due to the size-dependent enhanced separation of energy states. Thickness dependent ferromagnetism study of TiN thin films can add a new dimension to their current applications and tune the magnetic nature of low dimensional TiN films.

MMM 2020

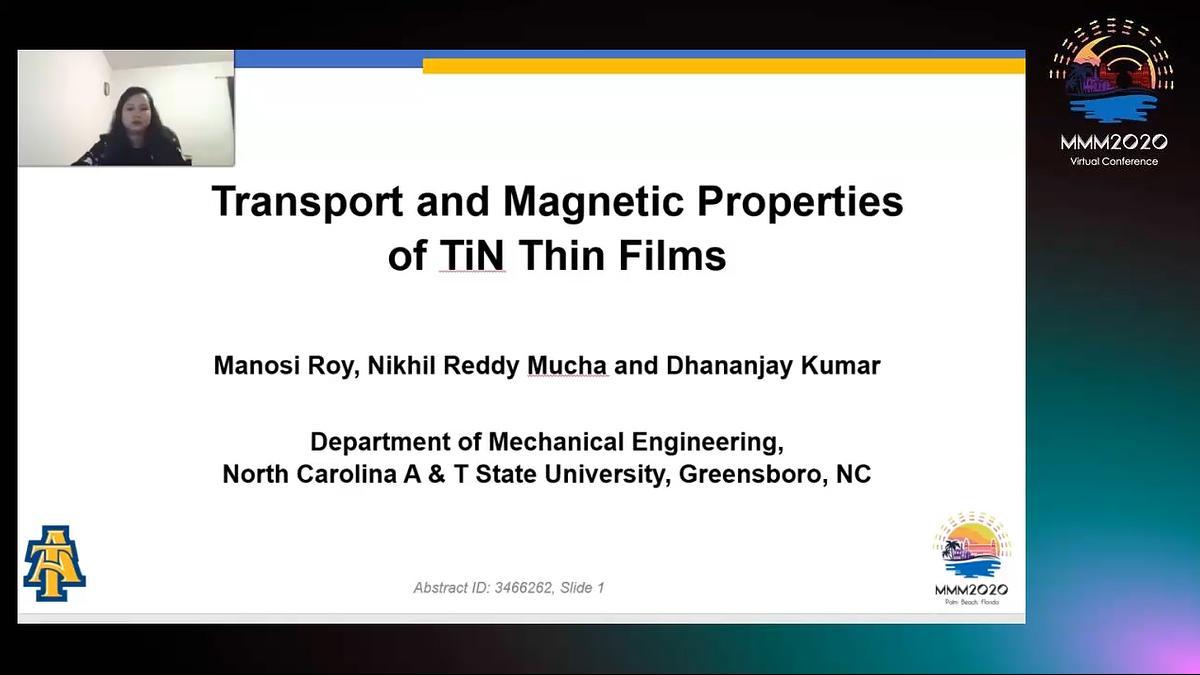

Transport and Magnetic Properties of TiN Thin Films

The 65th Annual Conference on Magnetism and Magnetic Materials (MMM 2020) was held in a virtual form. The COVID-19 pandemic, with its associated uncertainty about international travel and the ability to gather in large groups, meant that the Steering Committee decided to cancel the face-to-face meeting that had been planned in Palm Beach, Florida November 2-6, 2020.

We were reluctant to give up the benefits of meeting face-to-face, and know that shifting to a virtual conference is a significant change for this community. Nevertheless, we are first and foremost concerned about the health and safety of all our Conference participants and their loved ones on returning home after travelling.

The MMM 2020 Steering Committee was working exceptionally hard, along with our sponsors, the IEEE Magnetics Society and AIP Publishing, to make this event serve the needs of our participants, who live in time zones all around the globe, in the best possible way.

You need a ticket to explore this event.

If you have already registered for MMM 2020, and you have already created an account, then you
just need to login (above).

If you have already registered for MMM 2020, but you have not yet created an account, then you
need to click on &quot;create an account&quot; (above) and then login.

Forgot your password? Go to
https://www.underline.io/log-in

If you have not yet registered for MMM 2020 but would like to do so, go to
https://magnetism.org/register

Still need help? Contact our team!


technical paper

The spin Seebeck effect (SSE) is defined as the generation of a pure spin current (Js) when a magnetised material is subjected to a temperature gradient .[1] To detect Js, a thin non-magnetic [NM] layer such as Pt, is deposited on top of the material of interest. This converts Js into an observable thermoelectric voltage (VSSE) by way of the Inverse Spin Hall Effect (ISHE). It is of interest for thermoelectric and spintronic applications where it could be used to harvest electricity, or produce a pure spin current, respectively. The spin Seebeck effect can be phonon or magnon driven, therefore investigating the thermomagnetic voltage VSSE as a function of temperature can enable separation of these contributions – particularly in non-insulating materials such as Fe3O4 which undergoes a semiconductor-insulator phase transition at approximately 120 K.[2],[3] We have developed a measurement of VSSE as a function of temperature using the heat flux method [4][5], which enables accurate measurement of thin film samples. We will show how this technique can be used to investigate subtle changes in the SSE as a function of temperature and correlate this with measurement of the magnon dispersion in single crystal Fe3O4 using time of flight (TOF) inelastic neutron scattering (INS). We find an upper limit of the magnon diffusion length (MDL) of 34 ± 7 nm determined from bulk INS (Figure 1). Corresponding SSE measurements of Fe3O4 thin films as a function of thickness indicate an MDL of 19 ± 2 nm, which does not change significantly between 300 and 50 K.[6] We also find that the low energy magnon modes are steeper than previously reported[7] and broaden with increasing temperature (Figure 2).References: [1] K. Uchida et al., Nature, 455, 778 (2008) [2] A. Caruana et al., Phys. Status Solidi: RRL, 10, 613-617 (2016) [3] E. J. W. Verwey, Nature, 144, 327 (1939) [4] A. Sola et al., Sci. Rep. 7 46752 (2017) [5] G. Venkat et al., arXiv:2003.07925, submitted to Rev. Sci. Instrum. [6] G. Venkat et al., arXiv:2001.03738, accepted to Phys. Rev. Mat. (2020) [7] R. J. McQueeney et al., Phys. Rev. B 73 174409 (2006)

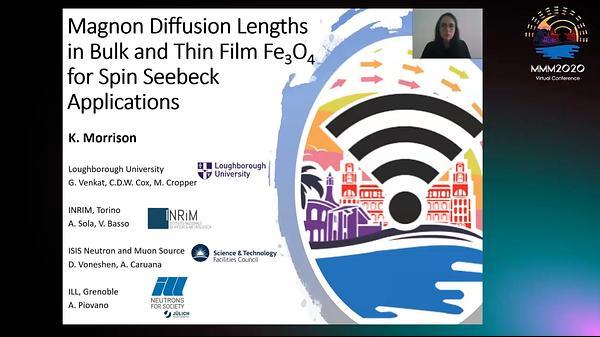

Magnon Diffusion Lengths in Bulk and Thin Film Fe3O4 for Spin Seebeck Applications
