Magnetic skyrmions are nanoscale spin structures which can be stabilized at room temperature in multilayer films [1, 2]. In particular, the amorphous multilayer film presents a pinning-free material platform, enabling efficient spin-orbit-torque manipulation of skyrmion dynamics. The device-relevant configuration of dots is of immense interest for realizing skyrmionic tunnel junctions for next-generation memory and computing applications [3]. Here, we first establish an amorphous multilayer composite stack comprising [Pt/CoB(x)/Ir]3/[Pt/CoB(y)/MgO], where x: 1.7-2.2 nm and y: 1-1.4 nm, with demonstrable skyrmions of sizes ~100 nm stabilized at zero field (ZF). By varying both the bottom (x) and top (y) CoB thicknesses, the magnetic anisotropy, Keff, can be tuned by an order from -0.03 to 0.126 MJ/m3. Next, we present ZF stabilization of skyrmions confined in such multilayer nanodots over a range of Keff and geometric sizes (w: 300 – 1000nm). Kerr magnetometry characterization of these nanodot arrays shows a monotonic increase in squareness with decreasing w. Expectedly, at ZF, we observe a gradual evolution in magnetic textures from the labyrinthine stripe to skyrmion phase, and eventually to the uniform magnetisation phase with w reduction (Figure 1). Notably, the stabilization of ZF skyrmions is observed over a wide w range from 400 to 700 nm across samples and skyrmion multiplets are stabilized in dots with low Keff. Finally, we demonstrate that at intermediate OP applied fields, skyrmion multiplets can be stabilized across varying w. Micromagnetic simulations are performed to model the geometric confinement effect of the nanodots on the skyrmion nucleation probability and size. These results provide a platform for harnessing the properties of nanoscale skyrmions in confined geometries for device applications.

MATERIALS FOR HUMANITY (MH 21)

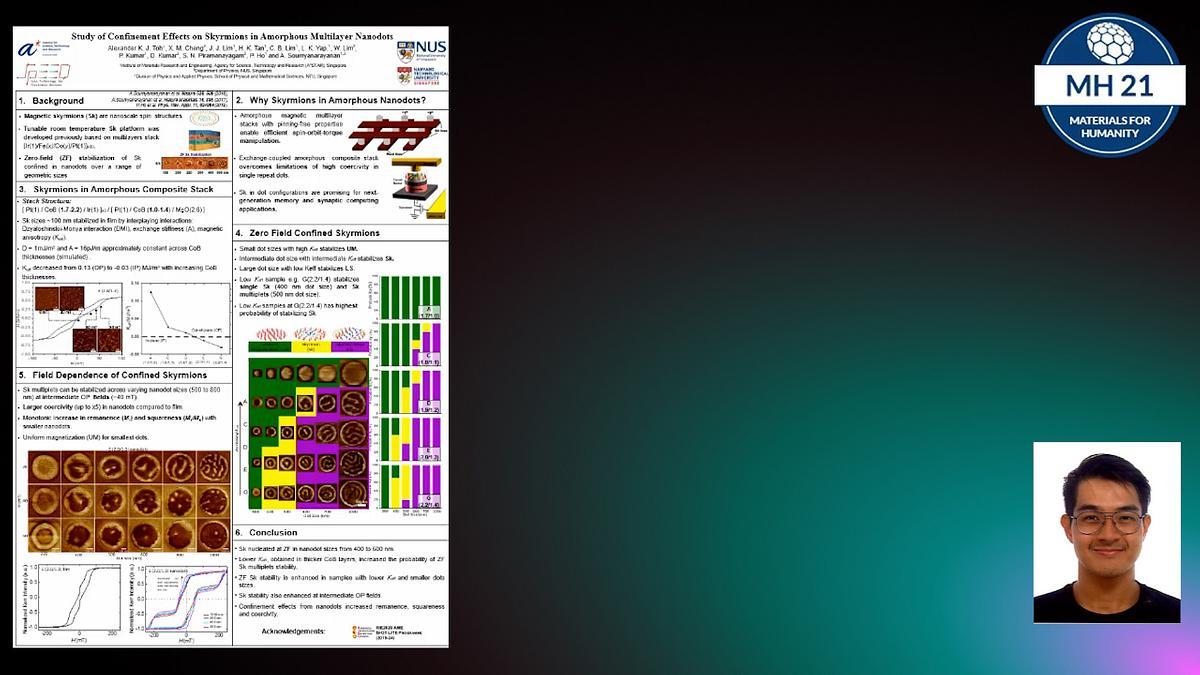

Study of Confinement Effects on Skyrmions in Amorphous Multilayer Nanodots

**Please view our Welcome to MH21 video.**

<center>
<figure class="video_container">
	 <iframe src="https://screencast-o-matic.com/watch/cr1UYHV1pcz?v=6&ff=1&title=0&controls=1" width=826 height=526 frameborder="0" allowfullscreen="true"> </iframe>
</figure>
	</center>


**Walkthrough Video**

Here is a Walkthrough showing how to navigate the conference and network with others

<center>
<figure class="video_container">
	 <iframe src="https://screencast-o-matic.com/watch/cr1vnrV1paE?v=6&ff=1&title=0&controls=1" width=826 height=526 frameborder="0" allowfullscreen="true"> </iframe>
</figure>
	</center>




	 Organized by

<a href="https://mrs.org.sg/">
<img src="https://s3.eu-west-1.amazonaws.com/underline.prod/uploads/markdown_image/1/image/95d5789689d5f900b90e9fe54ea3cf0d.jpg"</a>



	 In association with

<a href="http://www.ntu.edu.sg/">
<img src="https://s3.eu-west-1.amazonaws.com/underline.prod/uploads/markdown_image/1/image/334cd171ad2fdee033c635b368e5e160.png"</a>
	<a href="https://www.nus.edu.sg/">
<img src="https://s3.eu-west-1.amazonaws.com/underline.prod/uploads/markdown_image/1/image/32e6f82c0440f7bb24c590f9f67821bd.png"</a>
		<a href="https://www.a-star.edu.sg/">
<img src="https://s3.eu-west-1.amazonaws.com/underline.prod/uploads/markdown_image/1/image/72557865b589cfa3d2a0243ffce4a270.png"</a>




	 Supported by

		 <a href="https://www.visitsingapore.com/mice/en/about-us/about-secb/">
<img src="https://s3.eu-west-1.amazonaws.com/underline.prod/uploads/markdown_image/1/image/6e679842ead62be522ba6a630b82d5c9.png"</a>

To access the MH 21 Conference, [please register](https://mh21.mrs.org.sg/event/da3f9651-429f-4763-81b2-ebd7311b6bc8/websitePage:206f7605-1731-41f9-8421-56d3890f398f)

MH 21 is arranged around 6 themes that focus attention on pressing needs that should be addressed to enhance the well-being of communities and provide a forum for presenting breakthrough discoveries.

technical paper

Emulating advanced synaptic functions of the human brain with electronic devices contributes an important step toward constructing high-efficiency neuromorphic systems. Ferroelectric materials are promising candidates as synaptic weight elements in neural network hardware due to their controllable polarization states. However, the increased depolarization field at the nanoscale and the complex fabrication process of the traditional ferroelectric materials hamper the development of high-density, low power and highly sensitive synaptic devices. Here we report the implementation of 2D ferroelectrics α-In2Se3 as an active channel material to emulate typical synaptic functions. The α-In2Se3-based synaptic device features multi-mode operations, enabled by the coupled ferroelectric polarization under various voltage pulses applied at both drain- and gate-terminals. Moreover, the energy consumption can be reduced to ~ 1 pJ by using high-κ dielectric (Al2O3). The successful control of ferroelectric polarizations in α-In2Se3 and its application in artificial synapses are expected to inspire the implementation of 2D ferroelectric materials for future neuromorphic systems. （Acknowledgment: This work was supported by the Science and Engineering Research Council of A*STAR (Agency for Science, Technology and Research) Singapore, under Grant No. A20G9b0135.

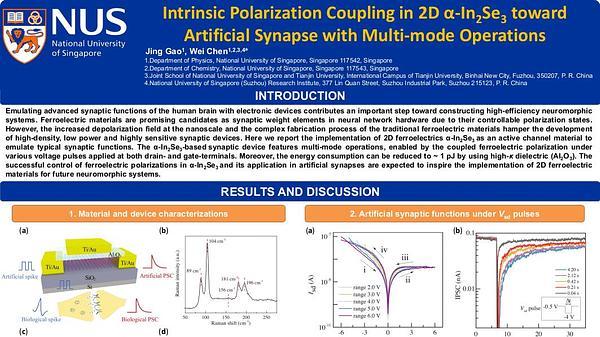

Intrinsic Polarization Coupling in 2D α-In2Se3 toward Artificial Synapse with Multi-mode Operations
