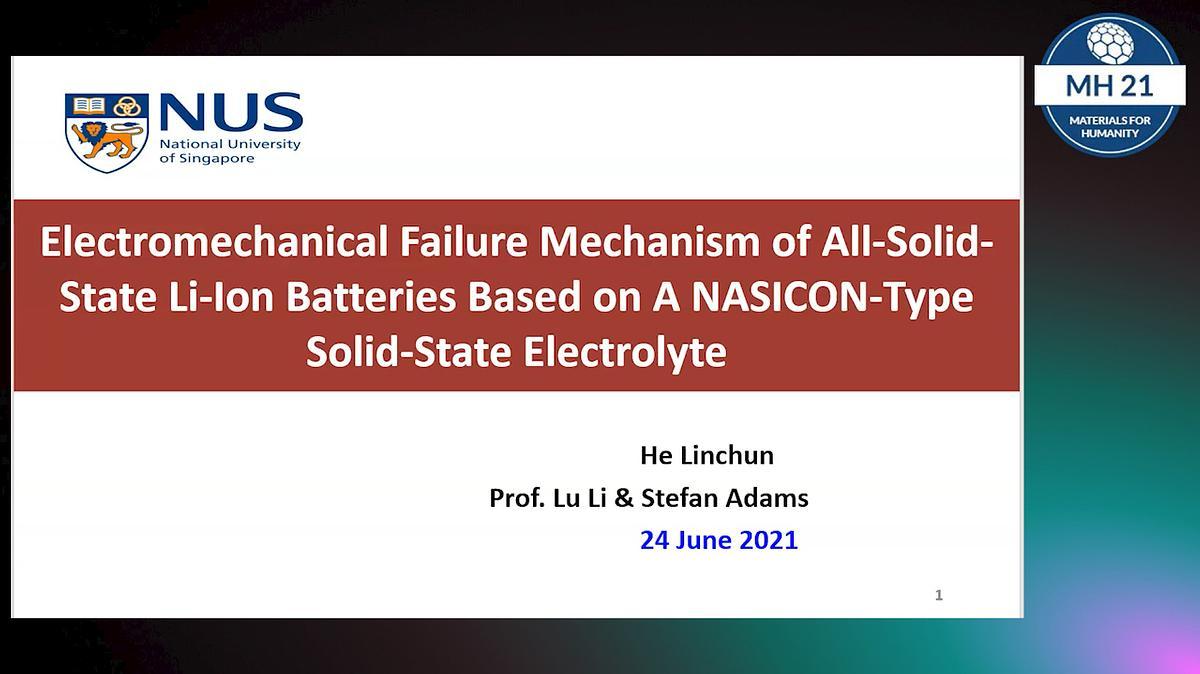

Electromechanical Failure Mechanism of All-solid-state Li-ion Batteries based on a NASICON-type Solid-state Electrolyte
Linchun He, Stefan Adams
Department of Materials Science and Engineering, National University of Singapore

All-solid-state lithium batteries (ASSLiB) are promising candidates for next-generation energy storage. Beyond design requirements and concerns of conventional batteries, the undeformable nature of solid-state electrolytes (SSEs)1 raises new issues for ASSLiBs such as poor interface bonding, limited contact area and cathode utilization.2 Moreover, volume changes of electrodes during Li-ion (de)intercalation are restricted by the SSE, resulting in large internal stresses that may drive crack creation. Such cracks reduce the utilization of electrodes and the available cross-section of the SSE for ion transport. Increased currents in the remaining connected regions turn this into a self-accelerating aging process. Hence it is essential to synergize understanding of the ion transport with insight into mechanochemical processes in the SSE or at its interfaces to overcome these obstacles.
Here, we demonstrate and analyze a model bulk ASSLiB with MnO2-CNT nanocomposite anode, high voltage LiNi0.5Mn1.5O4 cathode and ambient-stable Li1.5Al0.5Ge(PO4)3 (LAGP) as SSE. This ASSLiB has a discharge capacity of 82 mAh g-1 at 0.15 C at 23.8°C. Electrochemical impedance studies reveal a decrease in impedance by solid interface layer formation, followed by an increase over extended cycling. Electrochemical evaluation and first-principle calculations are used to explore the aging processes. Li4P2O7, Li3PO4, Ge5P6O25, AlPO4 and GeO are identified as products of the decomposition of LAGP, which is assisted by Li-ions and free electrons from voids and grain boundaries. Finite element method (FEM) simulations reveal that the volume expansion on forming the decomposition products causes maximum internal stresses of 2.5 to 125 GPa (for Li excess ratios from 0 to 6), resulting in crack formation and growth within the SSE on multiple cycling.
1. C. Chen, Y. Sun, L. He et al., ACS Appl. Mater. Interfaces (2020).
2. L. He, C. Chen, M. Kotobuki et al., J. Mater. Chem. A 7, 9748 (2019).



MATERIALS FOR HUMANITY (MH 21)

Electromechanical Failure Mechanism of All-solid-state Li-ion Batteries based on a NASICON-type Solid-state Electrolyte

**Please view our Welcome to MH21 video.**

<center>
<figure class="video_container">
	 <iframe src="https://screencast-o-matic.com/watch/cr1UYHV1pcz?v=6&ff=1&title=0&controls=1" width=826 height=526 frameborder="0" allowfullscreen="true"> </iframe>
</figure>
	</center>


**Walkthrough Video**

Here is a Walkthrough showing how to navigate the conference and network with others

<center>
<figure class="video_container">
	 <iframe src="https://screencast-o-matic.com/watch/cr1vnrV1paE?v=6&ff=1&title=0&controls=1" width=826 height=526 frameborder="0" allowfullscreen="true"> </iframe>
</figure>
	</center>




	 Organized by

<a href="https://mrs.org.sg/">
<img src="https://assets.underline.io/uploads/markdown_image/1/image/95d5789689d5f900b90e9fe54ea3cf0d.jpg"</a>



	 In association with

<a href="http://www.ntu.edu.sg/">
<img src="https://assets.underline.io/uploads/markdown_image/1/image/334cd171ad2fdee033c635b368e5e160.png"</a>
	<a href="https://www.nus.edu.sg/">
<img src="https://assets.underline.io/uploads/markdown_image/1/image/32e6f82c0440f7bb24c590f9f67821bd.png"</a>
		<a href="https://www.a-star.edu.sg/">
<img src="https://assets.underline.io/uploads/markdown_image/1/image/72557865b589cfa3d2a0243ffce4a270.png"</a>




	 Supported by

		 <a href="https://www.visitsingapore.com/mice/en/about-us/about-secb/">
<img src="https://assets.underline.io/uploads/markdown_image/1/image/6e679842ead62be522ba6a630b82d5c9.png"</a>

To access the MH 21 Conference, [please register](https://mh21.mrs.org.sg/event/da3f9651-429f-4763-81b2-ebd7311b6bc8/websitePage:206f7605-1731-41f9-8421-56d3890f398f)

MH 21 is arranged around 6 themes that focus attention on pressing needs that should be addressed to enhance the well-being of communities and provide a forum for presenting breakthrough discoveries.

technical paper

Understanding the alkali interaction with the organic functional groups is significant for molecular-level design of potential anode materials.In this work,we investigate the chemical and electronic interactions between Li/Na and PTCDA/PTCDI during the deposition processes. The change of molecular electronic structures has been studied by X-ray photo electron spectroscopy (XPS), ultraviolet photoelectron spectroscopy (UPS), synchrotron-based near edge X-ray absorption fine structure (NEXAFS), and corroborated by density functional theory (DFT) calculations.

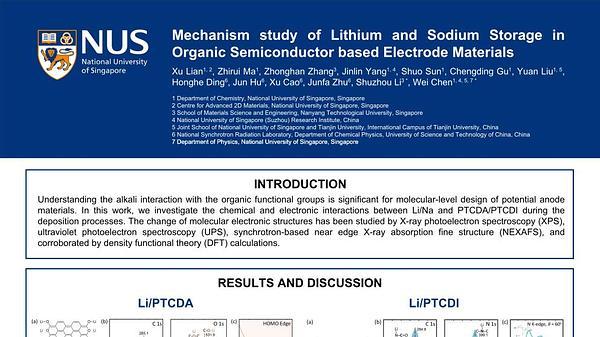

Alkali Metal Storage Mechanism in Organic Semiconductor of PTCDA and PTCDI
