Abstract Body:Herein we p resent details of the photoluminescence, photoconduction and polaronic charge transport studies on crystalline quasi-2D γ-alumina synthesized by the two-step graphene assisted Atomic Layer Deposition (ALD) [1]. The Crystallographic and morphology analysis reported prior by us reveals the synthesized 2D nanosheet network to be polycrystalline cubic spinel γ-alumina with a close packed cubic texture in the &lt;111&gt; ALD induced growth direction whereas the morphology of 2D flakes was probed by both SEM and TEM and results point to the nanosheets with nominal thickness in the order of 10nm being sintered together achieving a large thickness for the 2D flakes. Photoluminescence (PL) spectroscopy of crystalline quasi-2D γ-alumina was done by exciting the network with ~320 nm (3.8 eV) light and the samples possess a single emission band centered at ~387 nm (3.2 eV) at the room temperature. The PL-excitation (PLE) measurements confirm presence of three excitation defect bands located within the band gap of 2D γ-Alumina. The PL band at 387 nm (3.2 eV) is assigned to non-interband, intrinsic defect-assisted radiative recombinations involving F, F2+ and Ali+ defect states. [2] Charge transport mechanism of the 2D-γ-alumina network was investigated by carrying out temperature- and wavelength dependent photoconduction measurements and the charge transport is confirmed to be polaronic with small polarons undergoing a field-induced drift within the polycrystalline network which is in part facilitated by thermally-assisted hopping as well as quantum mechanical tunneling. The polaronic charge transport shows two separate regimes characterized by two activation energies with the polarons bound to deep trap states controlling the charge transport at T&gt;303 K. The RT conductivity of the network exceeds by up to four orders of magnitude that of prior reported by Morell for ~99.5% pure α-alumina.[3] Bandgap energy reduction, presence of transport-active defect centers [4] and texture [5] are likely to play a key role behind enhanced electrical conductivity of 2D-γ-alumina. Intensity dependent photocurrent measurements show that when samples are excited with photons with energy of 4.1 eV (300 nm) the current drops, and the change in the photocurrent depends linearly on the excitation intensity. These results indicate that crystalline, quasi-2D γ-alumina synthesized by the facile graphene assisted ALD synthesis could be a candidate for multiple device applications ranging from photodetectors, photocatalysts to radiation-hard, thermally-stable light emitters, and related nano-optoelectronic devices. Ref. [1] E. Kheirandish, M. Schofield, M. Gajdardziska-Josifovska, N. Kouklin, Advanced Material Interfaces, 7, 2000561 (2020)] [2] E. Kheirandish, N. Kouklin, Journal of Electronic Materials Topical Collections 62ndElectronic Materials Conference (2021) [3] R. Morell, Handbook properties of Technical Engineering Ceramics, Part 2, Data Reviews, Section I, High Alumina Ceramics, London, p.255, 1987 [4] B. Ealet, M. Elyakhloufi, E. Gillet, M. Ricci, Thin Solid Films, 250, 90-100 (1994) [5] A.Tan, C.K. Kuo and P.S. Nicholson, Solid State Ionics, 42, 233-241 (1990)

EMC 2021

Charge Transport and Photoconduction Effects in Quasi Two-Dimensional γ-Al2O3 Grown by Graphene Assisted Atomic Layer Deposition

small polaron

color centers

alumina

photoluminescence

graphene

atomic layer deposition

transport

**WELCOME TO THE 2021 CAP VIRTUAL CONGRESS UNDERLINE PLATFORM**

The CAP staff and our organizing and program committees are pleased to welcome you to our 2021 Congress filled with plenary talks, technical sessions/talks, student presentations and competition sessions, workshops, and several symposia offered by the CAP divisions and its partners.

You will also have opportunities to network with other delegates through the Gathertown platform accessed by selecting the lounge or posters button on the left.

Registered delegates should use the schedule button to call up the details of the session/event they wish to attend.  Each sessions includes a link to access the online platform where the event is taking place, either within Underline or through other Congress-related Zoom meetings.

Invited speaker talks are identified with an (I), and student competitors include a (G*) or (U*) to identify graduate or undergraduate presenters.

Please take the time to check out the information about our sponsors and exhibitors, request further information, or leave a note of thanks for their support.

General information about the Congress can be found on the CAP website Congress pages at https://www.cap.ca/congress/2021.

Looking for a specific talk?   A full searchable list is available on our Indico Congress site at https://indico.cern.ch/event/985448/contributions/

We look forward to sharing this exciting week with you!


CAP Virtual Congress 2021

Abstract Body:Herein we p resent details of the photoluminescence, photoconduction and polaronic charge transport studies on crystalline quasi-2D γ-alumina synthesized by the two-step graphene assisted Atomic Layer Deposition (ALD) [1]. The Crystallographic and morphology analysis reported prior by us reveals the synthesized 2D nanosheet network to be polycrystalline cubic spinel γ-alumina with a close packed cubic texture in the <111> ALD induced growth direction whereas the morphology of 2D flakes was probed by both SEM and TEM and results point to the nanosheets with nominal thickness in the order of 10nm being sintered together achieving a large thickness for the 2D flakes. Photoluminescence (PL) spectroscopy of crystalline quasi-2D γ-alumina was done by exciting the network with ~320 nm (3.8 eV) light and the samples possess a single emission band centered at ~387 nm (3.2 eV) at the room temperature. The PL-excitation (PLE) measurements confirm presence of three excitation defect bands located within the band gap of 2D γ-Alumina. The PL band at 387 nm (3.2 eV) is assigned to non-interband, intrinsic defect-assisted radiative recombinations involving F, F2+ and Ali+ defect states. [2] Charge transport mechanism of the 2D-γ-alumina network was investigated by carrying out temperature- and wavelength dependent photoconduction measurements and the charge transport is confirmed to be polaronic with small polarons undergoing a field-induced drift within the polycrystalline network which is in part facilitated by thermally-assisted hopping as well as quantum mechanical tunneling. The polaronic charge transport shows two separate regimes characterized by two activation energies with the polarons bound to deep trap states controlling the charge transport at T>303 K. The RT conductivity of the network exceeds by up to four orders of magnitude that of prior reported by Morell for ~99.5% pure α-alumina.[3] Bandgap energy reduction, presence of transport-active defect centers [4] and texture [5] are likely to play a key role behind enhanced electrical conductivity of 2D-γ-alumina. Intensity dependent photocurrent measurements show that when samples are excited with photons with energy of 4.1 eV (300 nm) the current drops, and the change in the photocurrent depends linearly on the excitation intensity. These results indicate that crystalline, quasi-2D γ-alumina synthesized by the facile graphene assisted ALD synthesis could be a candidate for multiple device applications ranging from photodetectors, photocatalysts to radiation-hard, thermally-stable light emitters, and related nano-optoelectronic devices. Ref. [1] E. Kheirandish, M. Schofield, M. Gajdardziska-Josifovska, N. Kouklin, Advanced Material Interfaces, 7, 2000561 (2020)] [2] E. Kheirandish, N. Kouklin, Journal of Electronic Materials Topical Collections 62ndElectronic Materials Conference (2021) [3] R. Morell, Handbook properties of Technical Engineering Ceramics, Part 2, Data Reviews, Section I, High Alumina Ceramics, London, p.255, 1987 [4] B. Ealet, M. Elyakhloufi, E. Gillet, M. Ricci, Thin Solid Films, 250, 90-100 (1994) [5] A.Tan, C.K. Kuo and P.S. Nicholson, Solid State Ionics, 42, 233-241 (1990)

technical paper

The Electronic Materials Conference (EMC) is the premier annual forum on the preparation, characterization and use of electronic materials. This year’s event will feature a plenary session, topical sessions, a poster session and more.

EMC is coordinated with the Device Research Conference (DRC), which will be held during the same week, from June 20-23. This recognizes the strong interaction between device and electronic materials research and provides fruitful exchange of information between attendees of both Conferences.

![](https://assets.underline.io/uploads/markdown_image/1/image/eb26c24a18d5d1030616afa4f993cf89.png)

<a href="https://www.mrs.org/docs/default-source/meetings-events/mrs-conference-services/2021/emc-2021/2021-emc-program-at-a-glance-6-16-21.pdf?sfvrsn=e39f950c_4">Latest Program-at-a-Glance</a>

<a href="https://drive.google.com/file/d/1eiS1ao4p83VNy8xgHs3Rls7gTQjx7Rc4/view?usp=sharing">Full Program with Abstracts</a>

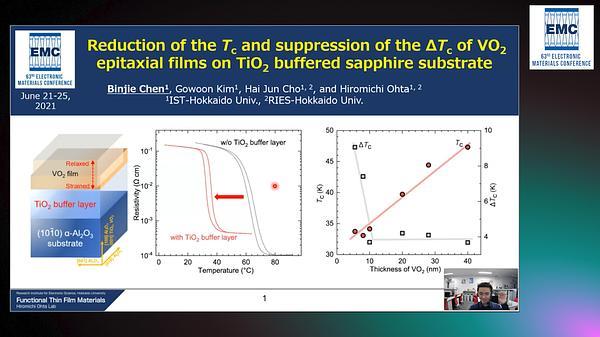

Abstract Body: Vanadium dioxide (VO2) is well-known for its temperature-driven metal-to-insulator transition between the monoclinic (M1) phase and the rutile (R) phase, which is accompanied with abrupt changes in electrical and optical properties. These intriguing changes have attracted great interest and promises a lot of potential applications. However, the phase transition of bulk VO2 usually occurs around 68 °C with significant thermal hysteresis induced by the latent heat of the first-order transition. The relatively high phase transition temperature Tc and broad hysteresis width ΔTc are adverse to its practical application. Therefore, the modulation of its phase transition behavior is quite necessary. Accumulating evidence suggests that the strain state plays an important role in the phase transition behavior of VO2 and it has been confirmed that the specific strain between VO2 and TiO2 can significantly reduce Tc[1, 2]. Based on this, in order to finely modulate the phase transition behavior and further investigate its relationship with strain state, we inserted TiO2 epitaxial film between VO2 film and the (100) α-Al2O3 substrate as the buffer layer. By controlling the thickness of both VO2 film and TiO2 buffer layer, the variational strain state can be introduced and further lead to the change of lattice parameters and phase transition behavior of VO2 film. Specifically speaking, when both VO2 and TiO2 layers are thin (~10 nm), these two layers are highly strained to the Al2O3 substrate. Due to inconsistent lattice mismatch between [100] and [010] direction, the lattice parameter a and b of VO2 will be stretched and compressed respectively, leading to the suppression of phase transition. If increasing the thickness of TiO2 layer to 200 nm and maintaining the VO2 thickness of 10 nm, due to the lattice relaxation, TiO2 will be relaxed to the rutile phase. As the result, the structure of VO2 layer which is still strained to TiO2 will change synchronously and exhibit the sharper phase transition with reduced Tc of ~34 °C. This phenomenon is similar to the VO2 film epitaxially grown on TiO2 substrate. Lastly, by further increasing the VO2 thickness from 5.5 to 50 nm, the VO2 layer will also tend to be relaxed to bulk M1 phase and the Tc can be continuously adjusted in a wide range from 34 to 58 °C. More interestingly, when the VO2 is thicker than 30 nm, the ΔTc is extremely narrowed to ~0.4 °C and the lattice parameter c exceeds the bulk value correspondingly. We consider the strain-induced lattice parameter change can modify both of the Tc and ΔTc. And by controlling the strain state, the phase transition behavior of VO2 can be finely designed. These results may be useful for the design of VO2-based functional material and device. [1] Y. Muraoka, Z. Hiroi, Appl. Phys. Lett. 80, 583-585 (2002) [2] N. B. Aetukuri et al., Nat. Phys. 9.10, 661-666 (2013)

Reduction of the Tc and Suppression of the △Tc of VO2 Epitaxial Films on TiO2 Buffered Sapphire Substrate

Abstract Body: The addition of boron into conventional III-V alloys reduces their lattice constants, expanding the materials options for near-infrared photonics on GaAs1 and offering a path towards direct-bandgap III-V materials lattice-matched to Si.2 B-III-V active region emitters and detectors on GaAs and Si could have a profound impact on technologies such as telecommunications, laser radar, and photovoltaics. However, the addition of boron into conventional III-Vs forms a highly-mismatched alloy and their material properties alloy are underexplored. Other highly-mismatched constituents in conventional III-V alloys, most notably nitrogen and bismuth, significantly perturb the host band structure, resulting in a technologically-advantageous reduction in the bandgap, while undesirably degrading material properties required for high-performance devices. The addition of B to conventional III-V materials is predicted to degrade material properties less severely than other highly mismatched alloys, since boron is predicted to have a higher solid solubility.3 This suggests that superior quality material and higher levels of incorporation may be achievable with boron. This work investigates the effects of dilute boron incorporation on the electronic band structure of III-V alloys to determine their ultimate device potential. Dilute-nitrides have been found to suffer a significant reduction in carrier mobility, which was attributed to alloy scattering from large variations in the band edges due to band anticrossing.4 However, we previously observed a weaker reduction in carrier mobility in the dilute-borides as compared to dilute-nitride alloys and the carrier mobility of p-type doped B0.05Ga0.95As can be at around 180 cm2/Vs.2,5 We performed theoretical calculations of the band structure using the density functional theory (DFT) package Vienna Ab initio Simulation Package (VASP) with HSE06 hybrid functionals. We observed a splitting of the conduction band (CB) and a slight perturbation of the lower CB (relative to GaAs) when boron was incorporated substitutionally into (In)GaAs. The perturbed CB showed increased electron effective mass and density of states, which could be leveraged for low-threshold diode lasers with high differential gain, as well as low-noise avalanche photodiodes with suppressed electron-initiated impact ionization. Additionally, we observed similar conduction band perturbation when boron was incorporated as B-B split interstitials into GaAs. Detailed investigation of boron-related defects in BGa(In)As and their effects on the band structure is underway and will be reported. Experimental characterization of the CB splitting in BGa(In)As alloys, grown by solid-source molecular beam epitaxy, will also be reported. This work was performed in part at the University of Texas Microelectronics Research Center, a member of the National Nanotechnology Coordinated Infrastructure (NNCI), which is supported by the NSF (No. ECCS-1542159). This work was also supported by the National Science Foundation (Award Nos. ECCS-1933836, DMR-1508646, and CBET-1438608). The authors also acknowledge the Learning, Exploration, Analysis, and Processing (LEAP) cluster at Texas State University for computing resources. 1 El-Jaroudi et al. Appl. Phys. Lett. (2012) 2 McNicholas et al. 60th Electronic Materials Conference (2018) 3 Hart and Zunger. Phys. Rev. B. (2000) 4 Fahy and O’Reilly. Appl. Phys. Lett. (2003) 5 McNicholas et al. Manuscript in preparation

Effect of B Distribution on the Band Structure of BGa(In)As Alloys

Abstract Body: III-V-bismide alloys have received significant attention over the past few decades due to the extreme bandgap reduction induced by the introduction of small concentrations of bismuth. However, dilute-bismides have struggled to achieve material quality commensurate with other III-V alloys, often attributed to the dramatically different growth temperatures of III-Bi and III-Sb/As materials. InSb1-xBix is a particularly promising candidate for accessing the midwave- to longwave-infrared (MWIR, LWIR respectively) with high-performance optical devices. Surprisingly, while GaSb1-xBix and InAs1-xBix have been widely studied, InSb1-xBix remains comparatively underexplored, with relatively few experimental investigations since the alloy was first synthesized nearly 50 years ago.1 In particular, growth in the “unity sticking” regime2 has not been demonstrated and photoluminescence (PL) has not been observed. In this work, we demonstrate high-quality InSb1-xBix films that exhibit a linear dependence of the bismuth concentration on the bismuth flux and, consequently, report the first PL from InSb1-xBix alloys. Epitaxial films, nominally 250 nm thick, were grown by solid-source molecular beam epitaxy on n-type (100) InSb substrates using a growth regime similar to that employed for high-quality GaSb1-xBix3 and InAs1-xBix4 synthesis. Samples were grown at a low substrate temperature of approximately 300°C with V/III flux ratios near stoichiometry. A comparatively fast growth rate of approximately 1 µm/hr was utilized to encourage bismuth incorporation. X-ray diffraction (XRD), PL, and atomic force microscopy (AFM) measurements were performed to characterize the bismuth content, optical quality, and surface roughness. X-ray diffraction measurements of the InSb1-xBix films suggested bismuth concentrations up to ~1.8%, assuming a lattice constant of 6.63 Å for InBi, which is reasonable given Rutherford backscattering spectrometry (RBS) measurements of both InAs1-xBix5 and InSb1-xBix.6 Photoluminescence measurements of the same InSb1-xBix films showed a red shift of PL associated with the InSbBi with increasing bismuth concentration. Specifically, PL measurements suggest a bandgap reduction of ~23 meV/% bismuth, which is comparable to previous reports of bandgap reduction estimated from optical absorption measurements of InSb1-xBix films.1,6 Temperature-dependent PL measurements of the highest Bi concentration film, containing 1.8% bismuth, showed a decrease in bandgap energy with increasing temperature that is consistent with a direct interband transition. AFM measurements of all films showed relatively smooth surfaces (RMS roughness of approximately 1 nm), however the highest concentration film exhibited large bismuth droplets. We expect droplet formation could be mitigated through optimization of the growth parameters. Thorough studies of the full growth space, particularly substrate temperature, as well as the effects of annealing on optical properties are in progress and will be presented. This work was supported by Lockheed Martin and NSF (ECCS-1933836). This work was performed in part at the University of Texas Microelectronics Research Center, a member of the National Nanotechnology Coordinated Infrastructure (NNCI), which is supported by the NSF (No. ECCS-1542159). This work was also supported by an NSF Graduate Fellowship (RCW). *Corresponding Author: coreywhite@utexas.edu, Phone: 1-336-340-8587 1A. M. Jean-Louis, B. Ayrault, and J. Vargas Phys. Status Solidi B 34 (1969). 2S. Spruytte et al., MRS Internet J. Nitride Semicond. Res. 5 (2000). 3A. J. Ptak et al., J. Cryst. Growth 338 (2012). 4S. J. Maddox et al., 54th Electronic Materials Conf. (2012). 5S. J. Maddox et al., 55th Electronic Materials Conf. (2013). 6M. K. Rajpalke et al., Appl. Phys. Lett. 105 (2014).

Growth Optimization of InSbBi Alloys for Wavelength Extension on InSb

Abstract Body: Vacancy defects are unavoidable in 2D materials due to the challenges involved in fabricating defect-free lattice from experimental methods. While defects are known to degrade the mechanical properties of a lattice, they offer unique opportunities to tailor the electronic and thermal properties by controlling the mean free path of electrons and phonons. It is therefore important to develop a fundamental understanding of the role of defects in modulating the local electronic character of a lattice. Nevertheless, the understanding of defect-induced alteration of electronic properties (the electronic states for example) remains less understood, particularly under finite deformation. Although researchers have investigated the mechanical and electronic properties of pristine graphene under stress, there is little research on the chirality effects on electron distribution at defective sites in 2D materials under applied stress. In this work, we use the density functional theory simulations and the Mulliken charge population analysis to investigate the electronic behavior of an isolated defect in graphene under the uniaxial loading condition for five different chiralities of the lattice. We analyze how chirality and intensity of loading affect the mechanical properties, bond length and bond angle change, charge distributions, the density of states, and the partial density of states surrounding the vacancy. Our results show that there is a uniform pattern for bond length redistribution as well as electron redistribution at all orientation angles and that such bond and electron redistributions are directly correlated. During all simulations, we observe a bond reconstruction at the defective site at higher deformation. In terms of the orientation angle, we demonstrate that increased orientation angle yields changes in the strength, toughness, stiffness, bond distributions, and electronics surrounding a mono vacancy. We find that differing orientation angles result in different failure processes and speeds. Additionally, the redistribution at the defective site is chirality-dependent, and there is a significant localization of electronic states at the defective site. The pattern of density of states is deformation-dependent. This talk will present a comprehensive view on the specific effects of electron redistribution on mechanical and electronic characteristics of the defective lattice.

Electron Redistribution at Monovacancy in Graphene

Abstract Body: Beta-gallium oxide (β-Ga2O3) has emerged as an excellent candidate for transparent conducting oxides (TCO) applications such as ultraviolet photodetectors and optoelectronics due to its high electrical conductivity and transparency. To fulfill the extensive potential as an electronic material, β-Ga2O3 can be alloyed with Al2O3 for the tunability of a large bandgap up to 8.8 eV and modifiable photoresponse spectral range. The crystal structure of ground state Al2O3 is corundum phase (a), which is extensively different from the monoclinic phase of ground state Ga2O3. Density functional theory (DFT) calculations have denoted the monoclinic phase of (AlxGa1-x)2O3 is as an energetically preferred structure for up to 71% Al incorporation [1], despite the structural variations between these two materials. However, previous studies on the growth of (AlxGa1-x)2O3 heterostructures with high Al composition indicated impaired film quality or phase transformations [2], indicating the challenges in the controlling point and extended defects and achieving the theoretical maximum Al content while maintaining the monoclinic phase. These limitations have demonstrated the demand for direct characterization of Al incorporation and defects in beta-(AlxGa1-x)2O3 thin films. In this report, we investigated the atomic structure and defects in beta-(AlxGa1-x)2O3 thin films using scanning transmission electron microscopy (STEM). Our quantitative STEM analysis for beta-(AlxGa1-x)2O3 films grown by molecular beam epitaxy (MBE) and metal organic chemic vapor deposition (MOCVD) revealed two significant pieces of information for atomic-scale origins of growth characteristics and properties of the heterostructures. Our characterization indicated that 54% of the incorporated Al occupied the octahedrally coordinated Ga2 site, suggesting the non-equilibrium growth conditions lead to a higher energy structure. DFT calculations have shown that Al can be incorporated on the less thermally favorable tetrahedral Ga1 site due to its occupation in particular configurations on the surface and kinetic limitations. On the other hand, the formation of a planar defect perpendicular to the growth direction associated with a larger Al concentration corresponded to a local inclusion of the gamma phase. We have identified the local Al content reaches a critical value of about 50%, which could destabilize the monoclinic phase of (AlxGa1-x)2O3 films. DFT calculations have demonstrated these planar defects are thermally stable at higher Al compositions, and its formation reduces the in-plane stress of tensile-strained films. The projection of cation columns identically match with the recently observed divacancy-interstitial complex structures [3]. In summary, our STEM research offers essential atomic scale insights on exact control of impurity incorporation for semiconductor bandgap engineering, and eventually provides guidance to the future epitaxial growth of (AlxGa1-x)2O3 for high-performance power electronics applications. We acknowledge support by the Department of Defense, Air Force Office of Scientific Research GAME MURI Program (Grant No. FA9550-18-1-0479). [1] H. Peelaers, J. B. Varley, J. S. Speck, and C. G. Van De Walle, Structural and Electronic Properties of Ga2O3-Al2O3 Alloys, Appl. Phys. Lett. 112, 242101 (2018). [2] A. F. M. A. U. Bhuiyan, Z. Feng, J. M. Johnson, H. L. Huang, J. Sarker, M. Zhu, M. R. Karim, B. Mazumder, J. Hwang, and H. Zhao, Phase Transformation in MOCVD Growth of (AlxGa1-x)2O3 Thin Films, APL Mater. 8, 031104 (2020). [3] J. M. Johnson, Z. Chen, J. B. Varley, C. M. Jackson, E. Farzana, Z. Zhang, A. R. Arehart, H. L. Huang, A. Genc, S. A. Ringel, C. G. Van De Walle, D. A. Muller, and J. Hwang, Unusual Formation of Point-Defect Complexes in the Ultrawide-Band-Gap Semiconductor β-Ga2 O3, Phys. Rev. X 9, 041027 (2019).

Atomic Scale Investigation of Aluminum Incorporation, Defects and Phase Stability in β-(AlxGa1-x)2O3 Films

Abstract Body: Controllable n-type doping in AlGaN and AlN is crucial for applications in electronics, optoelectronics, and power electronics. Si and recently Ge have been utilized as n-type dopants in AlxGa1-xN with low ionization energy for x<0.8 and x<0.5, respectively.1,2 However, the transition of the Si and Ge shallow donors to deep states occurs at x>0.8 and x>0.5, presenting challenges for novel applications employing Al rich AlGaN and AlN. While such a transition was previously observed in the AlGaAs system, it was confirmed to be an acceptor type DX-1. However, no such direct proof of the Si and Ge charge states in Al rich AlGaN and AlN exists. In this work we present direct evidence of single electron occupancy in the Ge deep state in AlxGa1-xN (x>0.5) i.e., Ge transitions to a deep neutral donor. Co-doping with the shallow donor Si (at x < 0.8) was used as a source of free electrons in Ge doped AlGaN grown via MOCVD to follow on the charge state of Ge. The measured carrier concentration (n) in Al rich AlGaN shows whether Ge is a shallow donor (n~[Si]+[Ge]), neutral deep donor (n~[Si]) or a compensating acceptor type DX-1 (n~[Si]-[Ge])). Temperature dependent carrier concentration measurements suggested an increase in the ionization energy of Ge: AlGaN with increase in Al content and a sudden drop in the carrier concentration was shown to occur at x>0.5 showing that Ge transitions to a deep state.1 Si remained a shallow donor with low ionization energy up to x~0.8. Therefore, both dopants are expected to be shallow donors in Al0.4Ga0.6N forming a d+ state. However, possible electron compensation in Si and Ge codoped Al0.65Ga0.35N where Ge transitions into a deep state, would directly show the charge sate of the deep state Ge, either D0 or DX-1. Carrier concentration measurements versus Al content under constant Si and Ge concentrations of 1×1019 cm-3 and 8×1018 cm-3, respectively, were realized at RT and 600°C. Negligible compensation and a temperature independent carrier concentration are observed in Al0.4Ga0.6N were both Ge and Si are expected to be in their shallow states. Interestingly, a reduction in carrier concentration at x~0.65 corresponding only to the Ge concentration was observed, indicating that Ge is not providing free electrons nor compensating the free electrons provided by Si. This is the signature of a deep donor having a higher ionization energy and not of an acceptor state. At higher temperatures, the ionization of the deep donor Ge provides higher carrier concentrations as expected for such a donor. Contrary to the formation of a stable DX-1, which is expected to pin the Fermi level at the (-/+) thermodynamic transition3, transition to a deep donor allows for the possibility of highly conducting AlN and Al rich AlGaN by degenerately doping the system. Hence, this work cast light on the true nature of donor related deep states in nitrides, further opening pathways for doping engineering and achievement of high conductivity in Al rich AlGaN and AlN. 1. Bagheri, P. et al. The nature of the DX state in Ge-doped AlGaN. Appl. Phys. Lett. 116, 222102 (2020). 2. Collazo, R. et al. Progress on n-type doping of AlGaN alloys on AlN single crystal substrates for UV optoelectronic applications. Phys. Status Solidi C 8, 2031–2033 (2011). 3. Gordon, L., Lyons, J. L., Janotti, A. & Van de Walle, C. G. Hybrid functional calculations of D X centers in AlN and GaN. Phys. Rev. B 89, 085204 (2014).

Direct Evidence of Ge Becoming a Deep Donor Instead of a DX- in Al Rich AlGaN

Abstract Body: Control over dopant concentration and distribution is essential to engineering nanowire-based devices. However, controllable n-type doping has remained challenging for GaAs, which is the foundation for many important III-V heterostructures. In particular, silicon behaves as a p-type dopant in GaAs nanowires grown by a vapor-liquid-solid (VLS) process in molecular beam epitaxy (MBE) conditions. Recently, it was shown that Si can act as a donor when incorporated in a catalyst free vapor-solid (VS) growth process,[1] highlighting the importance of understanding the growth and dopant incorporation mechanisms to controlling conductivity and carrier type. Here we present evidence that Si stabilizes the nanowire facets necessary for nanowire elongation, leading to uniform doping in a core region and enhanced doping at the nanowire surface. The growth conditions used here produce crystalline clusters of GaAs on Si (111) substrates in the absence of a Si flux. The introduction of Si leads to a high yield of uniform vertical nanowires (Figure 1(b)). We used atom probe tomography (APT) to measure the Si distribution in three dimensions and resolve variations in doping across the diameter of the nanowire. The reconstructions in Figure 2(a) and Figure 3(a) show a portion of the GaAs nanowire and the AlGaAs passivation layer (the entire diameter is not within the field of view). The dopant concentration increases from the nanowire center to the edge and peaks near the interface between GaAs core and AlGaAs shell (Figure 2(b)), indicating that different incorporation rates may be associated with distinct facets whose prevalence is influenced by the Si dopant itself. Additionally, Si-enriched regions and clusters appear at the intersection of {110} facets of some nanowires (Figure 3(b)), which maybe be linked to variations in surface faceting. The above observations suggest that Si alters the surface energy of GaAs and stabilizes the facets that promote nanowire growth via preferential incorporation. Si has previously been observed to induce twin-defect mediated growth in GaAs,[2] which may also be related to modification of surface energies. Surface etching to remove Si enriched layers provides a pathway to uniformly doped n-type GaAs nanowires that are free of catalyst impurities. References: [1] Ruhstorfer, D., et al. Demonstration of n-type behavior in catalyst-free Si-doped GaAs nanowires grown by molecular beam epitaxy. Applied Physics Letters, 2020, 116, 052101. [2] Keitaro Ikejiri, et al, Growth characteristics of GaAs nanowires obtained by selective area metal-organic vapor-phase epitaxy. Nanotechnology, 2008, 19, 265604.

Si Dopants Enable Catalyst-Free n-Type GaAs Nanowire Growth by Modifying Facet Energies

Abstract Body: We have used depth-resolved cathodoluminescence spectroscopy (DRCLS) to measure defects, defect complexes, and dopant densities localized at nanoscale interfaces of ultrathin indium tin oxide (ITO) on fused silica. Electronic and geometric structural properties of ITO in ultrathin, degenerate thin films strongly affect its transport properties on a nanometer scale. ITO grown by pulsed laser deposition (PLD) is a degenerately doped semiconductor due to Sn cation dopants supplied by Sn alloying into the otherwise In2O3 lattice. With its 3.5 eV or higher band gap and high conductivity, ITO is widely used as a transparent conducting oxide (TCO). Degenerate charge densities are achievable even with ultrathin films of 10 – 20 nm thickness and can provide plasmonic coupling with light via a tunable refractive index. Indeed, such nanoscale film thicknesses maximize electric fields in electric double layers used to modulate amplitudes of photons propagating in, i.e., optical waveguides to maximize tunability. Using ITO for electro-optic modulators enables devices to be made smaller and operate at higher frequencies than conventional materials1, but the minimum electrical or effective thickness of such highly conductive dielectric layers is less than the actual material thickness due to a disordered layer.2 The nature of such disordered layers in ITO and other TCO semiconductors has not yet been explored at the nm scale of films and can involve a combination of native point defects, lattice disorder, film morphology, and ITO/substrate interface chemical structure. Our DRCLS results for ITO films grown by pulsed laser deposition reveal the presence of new defects localized within 1 -3 nm of the ITO/glass interface that can account for lattice disorder and disordered transport layer. This is in agreement with quantum magnetoconductivity measurements, which find strong disorder at the interface that falls off exponentially toward the surface with a decay constant of about 6 nm. Figure 1 illustrates Monte Carlo rates of electron-hole pair creation inside In2O3:10%SnO2 films on fused silica as a function of incident electron beam energy EB showing that 0.4 kV to 1.5 kV EB controls measurement depth on a near-nanometer scale. Figure 2 illustrates significant changes in CL spectrum shape as a function of depth in the 13.1 nm thick ITO film, arising due to variations in defect density and band gap intensity. Defects are labeled with their tentative identifications. Figure 4 shows the CL emission spectrum at the interface with both ITO and SiO2 characteristic spectra subtracted out, leaving only features unique to the interface. It reveals a prominent feature at the interface at 3.38 eV and several smaller features at sub-EG energies. Figure 3 illustrates the subtraction process and Fig. 4 shows the deconvolved spectra used to generate normalized depth profiles. Figure 5 displays emission area as a fraction of total spectrum emission as a function of depth in the 13.1 nm thick ITO film, showing peak intensities in several defect features at or near the interface. Figure 6 depicts one possible band diagram of ITO that could produce luminescence features like those seen in our ITO CL spectra. Other possible explanations for various features include H complexes with native point defects, H interstitials, Sn-related traps, or In interstitials paired with two indium vacancies.[3] Defect and doping densities show significant differences between bulk-like films of several hundred nm versus ultrathin films in the 5 – 40 nm range, suggesting new approaches to minimize disordered layers and optimize interface conductivity. LJB and JC gratefully acknowledge National Science Foundation Grant no. DMR-18-00130. 1. K. Shi and Z. Lu, J. Nanophotonics 9, 093793 (2015). 2. D.C. Look and K.D. Leedy, Sci. Repts. 9, 1290 (2019). 3. J.B. Varley, H. Peelaers, A. Janotti, and C.J. Van de Walle, J. Phys.: Condens. Matter 23, 334212 (2011).

Defects and Dopants at Ultra-Thin Film Indium Tin Oxide (ITO) Interfaces

Abstract Body: Transparent oxide semiconductors (TOSs) that transmit deep ultraviolet (DUV, 200−300 nm in wavelength) are considered to be preferable as the active material for next generation optoelectronics such as biosensor.[1,2] Among many TOSs, La-doped ASnO3 (A = Ba, Sr and Ca) are considered as a promising candidate f DUV-TOS because of their rather high electrical conductivity and large bandgap (Eg). The optical Eg of electron-doped BaSnO3 and SrSnO3 are ~3.1 eV[3] and ~4.6 eV[4], respectively. Based on this trend, if Ca, an even smaller alkaline element, occupies the A-site, further widening of the Eg value can be expected. However, the effect of A-site substitution on the optical and electrical properties of ASnO3 has not been clarified in detail due to the lack of a systematic study. Here we show that the optical and electrical properties of ASnO3 films can be tuned systematically by changing the average size of A-site ions.[5] We used lattice parameter as a bridge to build the relationship between the A-site substitution and structure factors, and clarified the effect of lattice parameter on the optical and electrical properties. The lattice parameter almost linearly increased from 3.95 to 4.14 Å with increasing A-site ionic radius from 1.34 Å (Ca2+) to 1.61 Å (Ba2+). The optical bandgap (Eg opt) of the resultant films gradually decreases from ~4.6 to ~3.6 eV with increasing lattice parameter with a small positive bowing, while the electrical conductivity gradually increased from ~100 to ~103 S cm−1 due to gradual increases in both the carrier concentration and mobility. These results indicate that larger A-site ion substitutions reduce the Eg opt and the Fermi energy exceeds the mobility edge (degenerate semiconductor). On the other hand, the carrier generation efficiency increases when the Eg opt decreases. The carrier relaxation time increases when the mobility edge decreases. Thus, the conductivity increases when larger ion is substituted in the A-site. Meanwhile, La-doped SrSnO3 exhibited a great balance of wide bandgap and high electrical conductivity, which makes it a suitable ASnO3 system for advanced optoelectronic applications. The present results are essentially important for designing ASnO3 based DUV-TFTs. References [1] M. Wei et al., Adv. Electron. Mater. 6, 2000100 (2020). [2] M. Wei et al., Appl. Phys. Lett. 116, 022103 (2020). [3] H.J. Kim et al., Phys. Rev. B 86, 165205 (2012). [4] Q. Liu et al., J. Alloys Compd. 717, 62 (2017). [5] M. Wei et al., ACS Appl. Electron. Mater. 2, 3971 (2020).

Modulation of Optical and Electronical Properties for Transparent Oxide Semiconductor ASnO3 by the A-Site Ion Substitution

Abstract Body: Amorphous oxide semiconductor (AOS) thin film transistors (TFTs) based on In2O3 have attracted much interest for use as pixel switching elements in next generation active-matrix liquid crystal and active-matrix organic light emitting diode displays. The high field effect mobility of In2O3-based AOS devices (10–25 cm2/Vsec) offers significant performance improvements over present-day a-Si TFTs (<1 cm2/Vsec) technology. There have been considerable efforts to incorporate AOSs into devices, particularly in current-driven active matrix displays such as organic light emitting diode displays as pixel-driving switching elements. Strategies to enhance amorphous phase stability, improve channel/metallization contacts, and suppress channel carrier densities have been studied and successfully applied to the switching TFT application. Third cation elements are often added to binary cation oxide systems to limit the channel carrier generation for TFT channel application. We have recently reported that the addition of Al to InZnO, a typical binary cation material system leads to enhanced amorphous phase stability, carrier suppression capability and higher carrier mobility, up to ~45 cm2/Vs (Hall Effect mobility) and ~20 cm2/Vs (field effect mobility)1. All of these characteristics are expected to be a key enabler for realizing the next generation ultra-high-definition displays. Post-process annealing is widely employed in AOS-based TFT fabrication since annealing has been shown to improve field effect mobility2-3 and channel/metallization contacts4-5 as well as reduce trap density6-7. However, the post-annealing is often accompanied by an increase in channel carrier density that induces an unfavorable increase in the device off-state current and operation voltages2, 8. To date, the origin of the increase in channel carrier density has not been fully understood. Furthermore, it has been reported that gate-bias stress (either positive or negative) leads to TFT threshold voltage (VTh) instabilities. In order to achieve reliable device performance by mitigating the VTh shift issues, the understanding of the mechanisms for the VTh instability is to be enhanced. The current study aims to identify the origin of an increase in carrier density after low-temperature annealing conducted in air, particularly for a third-cation AOS system of InAlZnO (IAZO). Through work function investigations and bandgap analysis, the carrier density of IAZO is found to be increased by > 1E4 times compared to that of unannealed IAZO after low temperature annealing at 200 °C in air. Photoelectron spectroscopic studies reveal that the typical intrinsic (vacancy-based native defect) or extrinsic (cation substitution) doping mechanisms are not the primary cause of the channel carrier increase. From high pressure oxidation with much enhanced reactivity of reaction gases, it is identified that the equilibrium carrier density of IAZO is much higher than those used in typical TFT channel application. The low channel carrier density tends to increase and reach the higher equilibrium carrier density in the absence of kinetic constraints. In addition, to investigate the bias stability of IAZO TFTs, the transfer characteristics were measured over bias stress time at a negative gate bias of -30 V and a positive gate bias of 30 V. During the negative bias stress (NBS) tests, no significant changes were observed in transfer characteristics, which is attributed to the depletion of channel free carriers due to the application of negative bias, regardless of stress time. However, clear positive shifts of the TFT transfer characteristics are detected during the positive bias stress (PBS) measurements as shown in the figure above. TFT parameters such as field effect mobility, sub-threshold swing, VTh and interfacial trap density were carefully analyzed during PBS measurements. (Financial support: NSF Award No. ECCS-1931088)

Charge Transport and Photoconduction Effects in Quasi Two-Dimensional γ-Al2O3 Grown by Graphene Assisted Atomic Layer Deposition
