This experimental study measures interface spin Seebeck effect (SSE), spin current generation by a temperature gradient, in two antiferromagnetic crystals using optical pump-Terahertz emission spectroscopy. We utilise the absorption of a femtosecond optical pulse in an adjacent Pt thin layer to create a strong temperature discontinuity at the interface, which subsequently generates an incoherent spin current. The Pt layer also converts the spins to a charge current, generating a single-cycle Terahertz electric field pulse. The ultra-fast probing technique enables focusing the interpretation to only the interface effect. Strong THz emissions from both antiferromagnets indicate their excellent interface quality for spin transport. We observe disparate nature of the SSE signal dependence on temperature in the two antiferromagnets, which unambiguously reveals the influence of magnon resonant frequency.

Materials Challenges for Memory

Probing Interfacial Spin Transport in Antiferromagnets using Terahertz Spin Seebeck Effect

interface

spin seebeck effect

antiferromagnet

terahertz

spintronics


![](https://assets.underline.io/uploads/markdown_image/1/image/2e10c515564e9ec3287ee4c664011c20.png)

The energy cost of storing and moving data is enormous, and is growing at such a rapid pace that within a few years the power demand may overwhelm some developed nations. Non-volatile memory (NVM) and neuromorphic computing are enabling critical advances in this area, but there are many scientific and technological challenges. This conference will cover the materials challenges of different memory technologies, from the fundamental processes and mechanisms, to industry perspectives on materials specifications and manufacturing.

poster

Most optoelectronic and memristive devices are fabricated using a vertically aligned configuration, where one or more layers of the active material(s) are “sandwiched” between the metal electrodes. Coplanar electrode architectures on the other hand, may offer many advantages, such as lower power consumption, faster operating speed, greater sensitivity and higher-level of integration. Furthermore, using nanogap (<15 nm)-separated coplanar electrodes, extreme downscale of the active layer thickness can be achieved, resulting in fast response speed photodetectors and low-power resistive switching in memristive devices.
Herein, we show memristive devices based on coplanar nanogap electrodes. These have been fabricated at a wafer scale with an inexpensive nanopatterning technique, compatible with flexible substrates, named adhesion lithography. We demonstrate memristors based on empty and metal oxide, polymer and carbon-nanotube materials, discuss the mechanism dominating their operation and showcase their ability to be integrated in arrays.

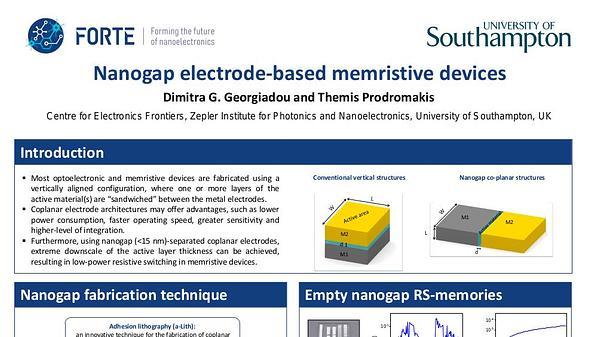

Nanogap electrode-based memristive devices

The paper presents the results of numerical modeling and experimental studies of the regularities of the manifestation of the memristor effect of oxide nanodots obtained by the method of local anodic oxidation.

Memristive properties of titanium oxide nanodot structures for resistive memory

High density, high-speed and low power consuming nonvolatile memories are currently being vigorously explored for use in next-generation computation, particularly due to the performance gap between the logic and memory elements of the current computational architecture.[1–3] Of various explored material systems, electrically switchable spontaneous polarization of ferroelectric materials enables a robust nonvolatile memory solution.[4–6] Using ultrathin films of ferroelectric materials as a tunnel barrier in metal/ferroelectric/metal trilayer structure, so called ferroelectric tunnel junctions (FTJ), is being explored widely as a potential nonvolatile memory elements. Unlike to ferroelectric RAM (FeRAM), FTJ offers nondestructive readout, in addition to low operation energy and high operation speed.[7]
In this work,[8] we have demonstrated FTJs with a very large OFF/ON resistance ratio and relatively low resistance area product (RA) with ~ 1 nm thick Zr doped HfO2 (HZO) ferroelectric tunnel barrier. We stabilized ferroelectricity in ultrathin films of rhombohedral HZO (R-HZO) through the substrate-induced compressive strain. The resistance area product at the bias voltage (~ 300 mV) required for one-half of the zero-bias TER ratio is three orders of magnitude lower than reported value with relatively thick ferroelectric barriers. [9, 10] The OFF/ON resistance ratio of 135 achieved with ~ 1 nm barrier, which is enhanced to 105 with increasing the barrier thickness to 2.5 nm, is the highest reported value for HZO barrier based FTJs. These results set the stage for further exploration of Hafnia-based FTJs for non-volatile memory applications.

References
[1] S. Manipatruni, D. E. Nikonov, I. A. Young, Nat.
Phys. 2018, 14, 338.
[2] H. S. P. Wong, S. Salahuddin, Nat. Nanotechnol.
2015, 10, 191.
[3] B. Prasad, Y. L. Huang, R. V. Chopdekar, Z. Chen,
J. Steffes, S. Das, Q. Li, M. Yang, C. C. Lin, T.
Gosavi, D. E. Nikonov, Z. Q. Qiu, L. W. Martin, B.
D. Huey, I. Young, J. Íñiguez, S. Manipatruni, R.
Ramesh, Adv. Mater. 2020, 32, 1.
[4] S. Manipatruni, D. E. Nikonov, C.-C. Lin, T. A.
Gosavi, H. Liu, B. Prasad, Y.-L. Huang, E.
Bonturim, R. Ramesh, I. A. Young, Nature 2019,
565, 35
[5] S. Oh, H. Hwang, I. K. Yoo, APL Mater. 2019,
091109 7.

Hf0.5Zr0.5O2 ferroelectric tunnel barriers for nonvolatile memory applications

Phase change alloys have seen widespread use from rewritable optical discs to the present day interest in their use in emerging neuromorphic computing architectures. In spite of this enormous commercial interest, the physics of carriers in these materials is still not fully understood. In particular, the role of non-thermal process in the switching physics of PCM is still debated. Here, we describe the time and space dependence of the coupling between photoexcited carriers and the lattice in both the amorphous and crystalline states of one phase change material, GeTe. Our work reveals a clear evolution of the electron-phonon coupling during the phase transformation as the spectra of photoexcited acoustic phonons in the amorphous (a-GeTe) and crystalline (α-GeTe) phases are different. In particular and surprisingly, our analysis of the photoinduced acoustic pulse duration in crystalline GeTe suggests that a part of the energy deposited during the photoexcitation process takes place over a distance that clearly exceeds that defined by the pump light skin depth. In the opposite, the lattice photoexcitation process remains localized within that skin depth in the amorphous state. We then demonstrate that this is due to supersonic diffusion of photoexcited electron-hole plasma in the crystalline state. Consequently these findings prove the existence of a non-thermal transport of energy which is much faster than lattice heat diffusion.

Non-thermal transport of energy driven by photoexcited carriers in switchable solid states of GeTe

Resistive switching devices based on metal-insulator-metal (MIM) structures have substantial potentials in both non-volatile memories (NVM) and neuromorphic computing circuits. Most of the MIM devices are highly insulating at the pristine state and requires a large bias (electroforming step) to set the devices to the operable resistive switching situation. Electroforming step may cause the stochastic characteristics of the conductive filament formation, corresponding to poor synaptic characteristics.
In the present work, we employed a WOx/ZrOx stack with Ta/Pt electrodes to achieve an electroforming-free Ta/WOx/ZrOx/Pt resistive switching device. This device is also self-rectifying because the ZrOx/Pt interface creates a Schottky barrier, which provides an opportunity to solve the sneak-path-current problem in memristive crossbar array. Furthermore, Ta/WOx/ZrOx/Pt devices show analog-switching behavior, which allow us to demonstrate the synaptic plasticity via pulse stimulation with different amplitude or interval pulse. Then, synaptic functions of potentiation/depression cycles, paired-pulse facilitation (PPF) and spike-timing plasticity (STDP) have been successfully simulated. The excellent linearity and repeatability potentiation/depression cycles in the Ta/WOx/ZrOx/Pt device were applied to model the synaptic weight update in neural network (NN) simulation platform for pattern recognition accuracy using the MINST dataset of hand-written digits. The resulting NN inference accuracy of the Ta/WOx/ZrOx/Pt synaptic devices reaches 97.7% after 100 epochs, indicating that this device make it very suitable for on-chip training of artificial neural network.

Electroforming-free resistive switching of WOx/ZrOx stack for neuromorphic computing systems

Currently, there is a high demand for developing shape memory alloys that can be used at high temperatures such as aerospace and Ti50Pd50-XRuX is found to be one of the promising alloy. This is due to their shape memory effect and super elasticity. Previous studies revealed that the alloy is mechanically stable above 25 at. % Ru with a positive C^' at 0 K. So, an understanding of its transformation temperature behaviour is required, which is currently not clear. The self-consistent-charge density functional tight binding (SCC-DFTB) approach was used to develop parameters for Ti50Pd50-XRuX employing the parameterization technique. The structural and electronic properties were determined to check stability on derived potentials using DFTB+ code. As part of the validation for the developed set, the results are in good agreement to within 5 % as compared with Dmol3 findings. Furthermore, the SCC sets of parameters were also used to determine the lattice expansions to check the transformation temperature of ternary Ti50Pd50-XRuX. It was observed that the addition of Ru reduces the transformation temperature. The findings imply that the SCC-DFTB approach was able to predict the stability and transformation behaviour of Ti50Pd50-XRuX alloys.

Parameterization and transformation temperature of Ti50Pd50-XRuX using SCC-DFTB approach

With rapid development of information technology and artificial intelligence, optically controlled ferroelectric junctions are becoming promising candidates for data storage and logics [1]. We have recently reported that the resistance state of a BaTiO3 ferroelectric tunnel barrier can the switched from ON to OFF states by illumination with a suitable wavelength (blue laser, λ = 405 nm) if an imprint field (EIMP ≈ -2.8MV/cm) exists that unbalances the equilibrium polarization up/down domain configuration. The observation that smaller energy photons (red laser, λ = 648 nm) does not produce such effect strongly suggests that photocarriers play major role on polarization and resistance switching. Here we explore in greater detail the possible role of thermal effects and potential thermally induced suppression of polarization. A number of experiments, including the time-dependent response, its sensitivity to illumination power and recovery processes, have been performed. Data shows the prominence of electronic process (photocarriers and polarization screening) as the ultimate reason for light-induced resistive switching [2].

References
[1] Uchino, Kenji. Ferroelectric devices. CRC press, 2018.
[2] Long, Xiao, et al. "Non-volatile optical switch of resistance in photoferroelectric tunnel junctions." Nature communications 12.1 (2021): 1-9.


Disentangling electronic and thermal contributions to the observed light-induced resistance switching in BaTiO3 ferroelectric tunnel junction

The atomic-scale interfaces of 3D transition-metals oxides are the fascinating playground for several atomic-scale interactions of spins. Novel physical phenomena such as magnetoelectric coupling, unconventional exchange bias (EB) coupling, etc. which originate at such interfaces have huge potential for next-generation nanoscale spintronic devices. Among them, EB is the most studied due to its importance for device applications such as high-density memory and sensor. Here, we demonstrate EB coupling (EB shift, HEB~40 Oe at 2 K) at the interface of epitaxially grown ferromagnetic (FM) La0.67Sr0.33MnO3 (LSMO) – ferroelectric (FE) BaTiO3 (BTO) bilayer thin films on SrTiO3 (STO) single crystal substrates in absence of any conventional antiferromagnetic (AFM) material. Such EB is only observed when the thickness of LSMO is only a few unit cells (<10nm). Importantly, we find that the EB coupling follows training effect, bias field dependency, and temperature dependency. By X-ray magnetic circular dichroism (XMCD) measurement, it is observed that in such epitaxial heterostructure Ti of BTO poses magnetisation at 2K and can reversibly switch between two distinct magnetization states by switching external applied magnetic field. A remanent magnetization (MR) in Ti is also observed. The magnetization of Ti as well the EB vanishes at high temperature (300K) which confirms the EB coupling between Ti of BTO and Mn of LSMO at low temperature. This is an important step towards creating EB coupling between FM and FE materials without conventional AFM materials, which may enable a new class of multi-state memory devices by switching magnetization, FE polarisation and EB coupling in the same device.

Atomic-scale control of exchange bias at BaTiO3 - La0.67Sr0.33MnO3 interface for new multi-state memory

The last years have witnessed major advancements in all-electrical doping control on cuprates. In the vast majority of cases, the tuning of charge carrier density has been achieved via electric field effect by means of either a ferroelectric polarization or by using a dielectric or electrolyte gating. Unfortunately, these approaches are constrained to rather thin superconducting layers and require large electric fields in order to ensure sizable carrier modulations1,2. In this work, we focus on the investigation of oxygen doping in an extended region through current-stimulated oxygen migration in YBa2Cu3O7−δ superconducting bridges. The underlying methodology is rather simple and avoiding sophisticated nanofabrication process steps and complex electronics. A patterned multiterminal transport bridge configuration allows us to electrically assess the directional counterflow of oxygen atoms and vacancies. Importantly, the emerging propagating front of current-dependent doping δ is probed in situ by optical microscopy and scanning electron microscopy. The resulting imaging techniques, together with photo-induced conductivity and Raman scattering investigations reveal an inhomogeneous oxygen vacancy distribution with a controllable propagation speed permitting us to estimate the oxygen diffusivity. These findings provide direct evidence that the microscopic mechanism at play in electrical doping of cuprates involves diffusion of oxygen atoms with the applied current. The resulting fine control of the oxygen content would permit a systematic study of complex phase diagrams and the design of non-volatile memories.

Direct Visualization of Current-Stimulated Oxygen Migration in YBa 2 Cu 3 O 7−δ Thin Films

High temperature shape memory alloys (HTSMAs) has attracted a great deal of scientific interest for their ability to operate at a higher temperature above 800 K, for applications as actuators for aerospace and automotive components due to the reversible martensitic transformation. TiPt amongst other binary systems undergoes a reversible martensitic transformation from B2↔B19 at elevated temperatures. Previous studies showed that the TiPt alloy is mechanically unstable with the negative C′ (–32) and soft modes in the negative frequency of the phonon dispersion curves along the gamma region at 0 K. The supercell approach was used to substitute Ti with Hf on TiPt structure to evaluate their mechanical stability from elastic properties and the phonon dispersions curves. The elastic properties suggest that an increase in Hf concentration enhances the mechanical stability of ternary structures. The C' becomes positive and larger at 25 < x < 50, which suggests a reduced martensitic transformation at x ≥ 43.75. The Ti50–xHfxPt50 ternary becomes more ductile with the increase in Hf concentration, which suggests that Hf stabilizes the system at a higher concentration. The analyses of the vibrational properties of Ti50–xHfxPt50 structures with respect to phonon dispersion are also discussed.
