We obtain orthorhombic HfO2 ferroelectric phase induced by Ge component in 3-layers of control HfO2/floating gate of Ge NPs in HfO2/tunnel HfO2/p-Si.
3-layer structures are deposited by magnetron sputtering (MS) of HfO2/Ge-HfO2/HfO2 layers stack on Si wafer and nanostructured by RTA.1–3 As-deposited Ge-HfO2 intermediate (int.) layer is rich in Ge (≈60% Ge). Morphology, structure, composition is investigated by HRTEM, HAADF-STEM, EDX, SAED, GI-XRD. Polarization studies are carried out by P–V hysteresis loops measurements, PFM and DFT. Memory properties are evidenced by C–V hysteresis loops.
We demonstrate the HfO2 orthorhombic phase formation in floating gate with extension in adjacent layers (control – ctr. &amp; tunnel – tun. HfO2). Total Pr reaches ~7 µC/cm2 - very high for the 3-layer structures having minimum thickness of 35 nm.
These memory structures have very high memory window (ΔV) of C–V hysteresis due to both contributions of Ge NPs as charge storage nodes &amp; ferroelectric HfO2.
1. Nanotechnology 30, 365604 (2019) 2. Nanotechnology 28, 175707 (2017)
3. Nanotechnology 31, 495207 (2020) 4. Appl. Phys. Lett. 113, 213106 (2018)

Materials Challenges for Memory

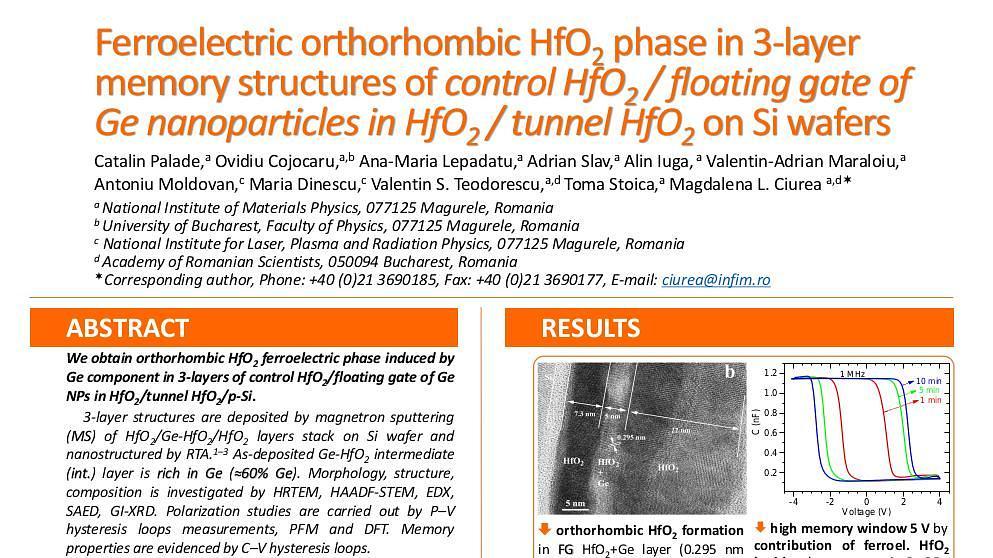

Ferroelectric orthorhombic HfO2 phase in 3-layer memory structures of control HfO2 /floating gate of Ge nanoparticles in HfO2 /tunnel HfO2 on Si wafers

3-layer with ge-rich hfo2 layer

ferroelectric hfo2

non-volatile memory


![](https://assets.underline.io/uploads/markdown_image/1/image/2e10c515564e9ec3287ee4c664011c20.png)

The energy cost of storing and moving data is enormous, and is growing at such a rapid pace that within a few years the power demand may overwhelm some developed nations. Non-volatile memory (NVM) and neuromorphic computing are enabling critical advances in this area, but there are many scientific and technological challenges. This conference will cover the materials challenges of different memory technologies, from the fundamental processes and mechanisms, to industry perspectives on materials specifications and manufacturing.

We obtain orthorhombic HfO2 ferroelectric phase induced by Ge component in 3-layers of control HfO2/floating gate of Ge NPs in HfO2/tunnel HfO2/p-Si.
3-layer structures are deposited by magnetron sputtering (MS) of HfO2/Ge-HfO2/HfO2 layers stack on Si wafer and nanostructured by RTA.1–3 As-deposited Ge-HfO2 intermediate (int.) layer is rich in Ge (≈60% Ge). Morphology, structure, composition is investigated by HRTEM, HAADF-STEM, EDX, SAED, GI-XRD. Polarization studies are carried out by P–V hysteresis loops measurements, PFM and DFT. Memory properties are evidenced by C–V hysteresis loops.
We demonstrate the HfO2 orthorhombic phase formation in floating gate with extension in adjacent layers (control – ctr. & tunnel – tun. HfO2). Total Pr reaches ~7 µC/cm2 - very high for the 3-layer structures having minimum thickness of 35 nm.
These memory structures have very high memory window (ΔV) of C–V hysteresis due to both contributions of Ge NPs as charge storage nodes & ferroelectric HfO2.
1. Nanotechnology 30, 365604 (2019) 2. Nanotechnology 28, 175707 (2017)
3. Nanotechnology 31, 495207 (2020) 4. Appl. Phys. Lett. 113, 213106 (2018)
