Development of floating gate (FG) non-volatile memories (NVMs) based on nanocrystals (NCs) is of great importance for the continuous increasing requirements for highly efficient data storage.1 NCs by tuning of their size, density &amp; interface quality with embedding oxide make possible the adjusting of device parameters. These NVMs use FG of either metal or semiconductor NCs in oxide as SiO2, HfO2, Al2O3.1–7. In particular, group IV-based NCs of Si, Ge, Sn are of high interest due to the compatibility with CMOS technology.3–8
Here we report on obtaining NVM capacitors with FG of SiGeSn NCs acting as charge storage nodes, being embedded in HfO2. The advantage of using SiGeSn NCs consists in tailoring NC compositions (up to Sn segregation limit), reducing thermal budget by using Sn for NCs formation and at same time obtaining NCs stability by alloying with Si.
We use configuration of trilayer (gate HfO2/FG of SiGeSn NCs in HfO2/tunnel HfO2) that we prepare on Si wafers.4 Trilayers are deposited by magnetron sputtering of HfO2/ SiGeSn-HfO2/HfO2 and annealed for nanostructuring in rapid thermal processor (520–530 oC). XTEM, XRD &amp; Raman spectroscopy are used for complex characterization of layers composition, morphology &amp; structure. NVM structures are capacitor-like, with Al top &amp; bottom contacts. XTEM reveals formation of ~5 nm Ge-rich SiGeSn NCs in FG, with 5% Si content &amp; diamond structure. 2 types of SiGeSn NCs are evidenced (also by Raman) in function of their position in FG. 1st type NCs are positioned inside FG (extending on the whole FG thickness), having a small Sn amount (2%), while 2nd type NCs more rich in Sn (15%) are positioned at FG interfaces with gate &amp; tunnel layers. The SiGeSn NCs in FG produce good NVM performance by C–V hysteresis loops with ~1 V memory window.
1. Chem Rev 120, 3941 (2020) 2. Sci Adv 2, e1501101 (2016)
3. ACS Appl Electron Mater 1, 1852 (2019) 4. Appl Phys Lett 113, 213106 (2018)
5. Appl Phys Lett 107, 093102 (2015) 6. Nanotechnology 30, 365604 (2019)
7. Appl Surf Sci 542, 148702 (2021) 8. Scripta Mater. 113, 135 (2016)

Materials Challenges for Memory

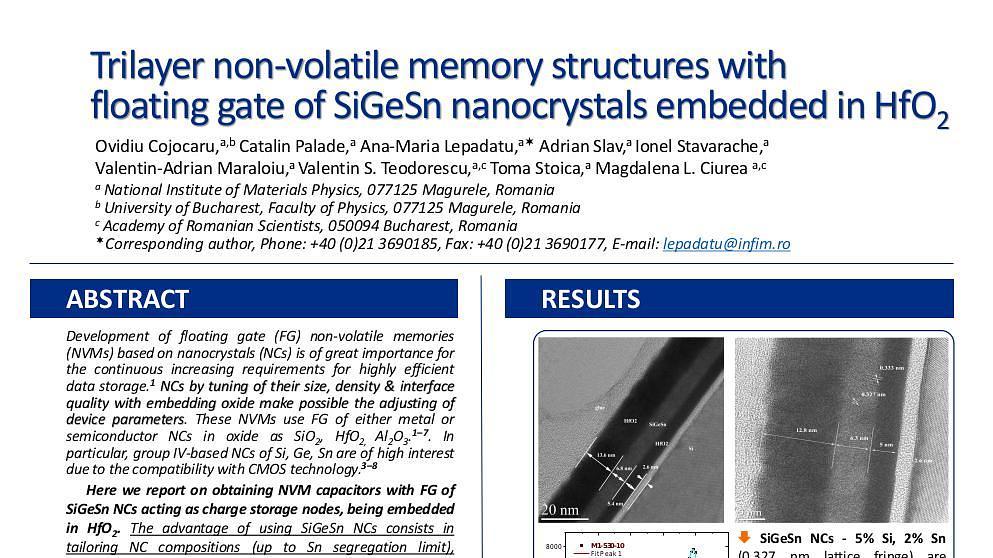

Trilayer non-volatile memory structures with floating gate of SiGeSn nanocrystals embedded in HfO2

floating gate non-volatile memory

magnetron sputtering

sigesn nanocrystals


![](https://assets.underline.io/uploads/markdown_image/1/image/2e10c515564e9ec3287ee4c664011c20.png)

The energy cost of storing and moving data is enormous, and is growing at such a rapid pace that within a few years the power demand may overwhelm some developed nations. Non-volatile memory (NVM) and neuromorphic computing are enabling critical advances in this area, but there are many scientific and technological challenges. This conference will cover the materials challenges of different memory technologies, from the fundamental processes and mechanisms, to industry perspectives on materials specifications and manufacturing.

Development of floating gate (FG) non-volatile memories (NVMs) based on nanocrystals (NCs) is of great importance for the continuous increasing requirements for highly efficient data storage.1 NCs by tuning of their size, density & interface quality with embedding oxide make possible the adjusting of device parameters. These NVMs use FG of either metal or semiconductor NCs in oxide as SiO2, HfO2, Al2O3.1–7. In particular, group IV-based NCs of Si, Ge, Sn are of high interest due to the compatibility with CMOS technology.3–8
Here we report on obtaining NVM capacitors with FG of SiGeSn NCs acting as charge storage nodes, being embedded in HfO2. The advantage of using SiGeSn NCs consists in tailoring NC compositions (up to Sn segregation limit), reducing thermal budget by using Sn for NCs formation and at same time obtaining NCs stability by alloying with Si.
We use configuration of trilayer (gate HfO2/FG of SiGeSn NCs in HfO2/tunnel HfO2) that we prepare on Si wafers.4 Trilayers are deposited by magnetron sputtering of HfO2/ SiGeSn-HfO2/HfO2 and annealed for nanostructuring in rapid thermal processor (520–530 oC). XTEM, XRD & Raman spectroscopy are used for complex characterization of layers composition, morphology & structure. NVM structures are capacitor-like, with Al top & bottom contacts. XTEM reveals formation of ~5 nm Ge-rich SiGeSn NCs in FG, with 5% Si content & diamond structure. 2 types of SiGeSn NCs are evidenced (also by Raman) in function of their position in FG. 1st type NCs are positioned inside FG (extending on the whole FG thickness), having a small Sn amount (2%), while 2nd type NCs more rich in Sn (15%) are positioned at FG interfaces with gate & tunnel layers. The SiGeSn NCs in FG produce good NVM performance by C–V hysteresis loops with ~1 V memory window.
1. Chem Rev 120, 3941 (2020) 2. Sci Adv 2, e1501101 (2016)
3. ACS Appl Electron Mater 1, 1852 (2019) 4. Appl Phys Lett 113, 213106 (2018)
5. Appl Phys Lett 107, 093102 (2015) 6. Nanotechnology 30, 365604 (2019)
7. Appl Surf Sci 542, 148702 (2021) 8. Scripta Mater. 113, 135 (2016)
