I Introduction Accurate simulation of hysteresis properties of magnetic materials is of great significance for the optimal design of electromagnetic devices. At the state of the art, the inverse Preisach model are widely used in the FEM procedures as it is easily to implementation [1]. The hysteresis operator of the exist inverse model cannot guarantee the overall positive definiteness of the distribution function on the Preisach plane, which make cause the large errors in calculating the small major hysteresis loop [2]. In this paper, an inverse Preisach model based on inverse switched hysteresis operator is proposed, which only identify the parameters of the limiting hysteresis loop. The limiting hysteresis loop and small major hysteresis loop can be accurately simulated. II Method and Discussion As shown in Fig. 1, an improved inverse Preisach switched hysteresis operator is proposed based on the classical Preisach hysteresis operator. To find the inverse distribution function corresponding to the inverse hysteresis operator, the analytic function is used to approximate the distribution function of the inverse model based on the variation of branches. A hybrid algorithm of velocity control particle swarm optimization and conjugate gradient method (VCPSO-CGM) is used to identify the function's parameters through the data of the limiting hysteresis loop. To achieve efficient numerical calculation, the inverse Preisach plane is discretized into n×n square grids. The double integral of every unit grid is calculated, and V matrix is formed. To get the output, the F matrix is obtained by accumulating the elements of the V matrix. The input coordinates are obtained by coordinate transformation of the original Preisach plane, and the output can be obtained by interpolating the F matrix. The simulation results are shown in Fig. 2, which are in good agreement with the experimental data. III Conclusion In this paper, an inverse Preisach model based on the inverse switched hysteresis operator is established, which ensures the overall positive definiteness of the distribution function. The results show that the limiting hysteresis loop and small major hysteresis loop can be accurately simulated by inverse Preisach model.

![](https://assets.underline.io/uploads/markdown_image/1/image/7b1159a1bdae9ba5ef6d491f91960d3d.jpg)

![](https://assets.underline.io/uploads/markdown_image/1/image/096f42262ccb202322a88b054bf2a8a1.jpg)

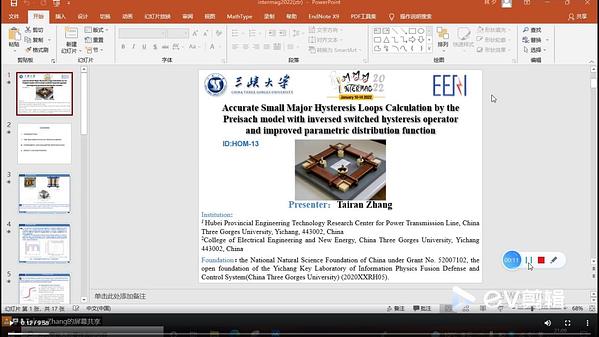

Accurate Small Major Hysteresis Loops Calculation by the Preisach Model With Inverse Switched Hysteresis Operator
