The large distribution in atomic sizes and masses in high-entropy alloys results in extreme local environments, which manifests strongly in the thermal and magnetic properties. In this work, high-entropy alloys of (Fe,Co,Cr,Ni)Alx, 0 &lt; x &lt; 2, are prepared and their temperature-dependent magnetic and electronic properties determined. Magnetometry results show that all the samples are ferromagnetic, with a high-temperature phase, TC &gt;200 K, and a second low-temperature phase with TC≈20 K. However, the high-temperature phase is not associated with an open hysteresis loop, suggesting superparamagnetic behavior. The closed hysteresis loop suggests the ferromagnetism appears as small clusters, a theory explored with small-angle neutron scattering (SANS). The samples also show downturn in the magnetization at T&lt;10 K which can be associated with an antiferromagnetic phase. Recent works have suggested that extreme strain distributions can induce antiferromagnetic ordering. This research used resources at the High Flux Isotope Reactor and the Spallation Neutron Source, as appropriate, a DOE Office of Science User Facility operated by the Oak Ridge National Laboratory, and was funded by the DOE DE-SC0021344.

![](https://assets.underline.io/uploads/markdown_image/1/image/9fbbd3220c653f72e6dbb393fd2fff76.jpg)

2D SANS image from an HEA

![](https://assets.underline.io/uploads/markdown_image/1/image/066093af3816968964a48af8671c86ab.jpg)

M vs T data for HEA.

Mixed magnetic phases in FeCoCrNiAlx high entropy alloys

Magnetic skyrmions present interesting and unique pseudo-particle behaviors which arises from their topological protection [1-2]. Key among these behaviors is their resonant dynamics, under microwave fields, which include both breathing and gyration modes. Due to their small size, and magnetic-only contrast of skyrmions, coupled with high frequency dynamics – in the GHz regime – it is challenging to do in-situ measurements on these excitations. This work reports the use of small angle neutron scattering (SANS) to capture the dynamics of hybrid skyrmions stabilized in Fe/Gd multilayers by means of dipolar interactions. Using perpendicular DC fields and in-plane RF fields, we explored the gyration modes of hybrid skyrmions away, below, at, and above resonance [Fig.1(a-d)]. We find the dynamic modes of hybrid skyrmions contribute to the SANS signal in two ways: first, the scattered neutrons incur additional transverse momentum as a result of scattering from a moving source, and second, the gyration skyrmions disrupt ordering of the lattice giving rise to enhancement form-factor scattering. Ferromagnetic resonance measurements confirm the RF and DC field conditions for these gyration modes. Our results offer new insights into the nanoscale dynamics of magnetic skyrmions and present a unique use of SANS to probe magnetization dynamics.

![](https://assets.underline.io/uploads/markdown_image/1/image/a7eefda0d3ae85f8c787ee1cd94ec130.jpg)

Fig.1 2D SANS pattern of magnetic skyrmions under different magnetic fields and excitation frequencies: (a) Static state (H=0, RF=0), (b) below-resonance state (H=150 mT, RF=1.2 GHz), (c) at-resonance state (H=150 mT, RF=1.3 GHz) and (d) above-resonance state (H=150 mT, RF=1.4 GHz). All 2D images are plotted with the same intensity scale.

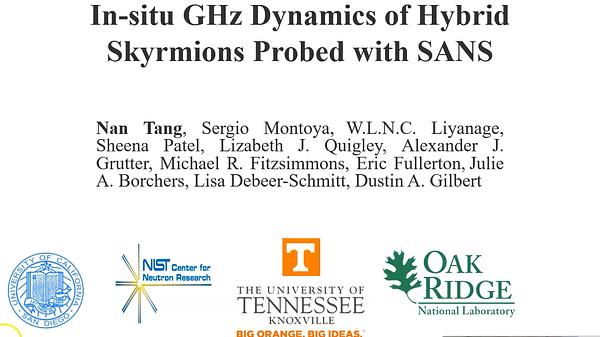

In-situ GHz Dynamics of Skyrmions Probed with SANS
