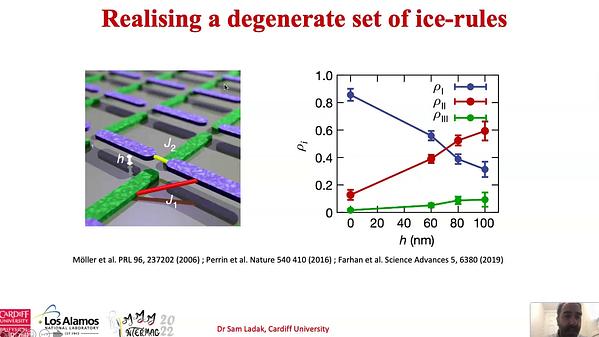

Artificial spin-ice systems (ASI) have been studied for 15 years, allowing detailed studies to examine the frustration, ordering and monopole transport in a variety of two-dimensional geometries [1]. The nanostructuring of magnetic materials in three-dimensions presents a new paradigm in condensed matter physics and allows access to a wide range of new physical phenomena [2]. With respect to ASI systems, there are several reasons why 3D geometries are interesting. This includes the realisation of a degenerate ice-rule, mimicking of bulk spin-ice geometries and studying the influence of surfaces upon ordering. In this talk, I will outline the realisation of a 3D artificial spin-ice system [3] which takes the geometry of a diamond-bond lattice (Fig. 1), capturing the arrangement of spins in bulk pyrochlore systems. By using magnetic force microscopy (Fig. 2), I will show that the vertex states upon the surface can be determined, and the global switching of the lattice can be measured. We find very different magnetic charge dynamics along two principal directions upon the lattice. For a field applied along the surface termination, local energetics force magnetic charges to nucleate over a larger characteristic distance, reducing their magnetic Coulomb interaction and producing lone, uncorrelated monopoles. In contrast, applying a field transverse to the surface termination yields large numbers of highly correlated monopole-antimonopole pairs. A combination of micromagnetic and Monte-Carlo simulations are used to understand the results. These suggest it is the difference in effective chemical potential that yields the striking differences in monopole transport. We anticipate that our study will inspire a new generation in artificial spin-ice research whereby the ground states in complex 3D frustrated lattices are explored.

![](https://assets.underline.io/uploads/markdown_image/1/image/68e61fe5f53c1aa5f59122b57dafa546.jpg)

Fig 1. Atomic force microscopy image of the 3DASI system. Distinct layers within the system are labelled L1 - L3.

![](https://assets.underline.io/uploads/markdown_image/1/image/6da2b1e596bc9e183b4530846549ee08.jpg)

Fig 2. Magnetic force microscopy of the 3DASI surface, showing a number of ice-rule and monopole states.

Magnetic charge propagation upon a 3D artificial spin-ice

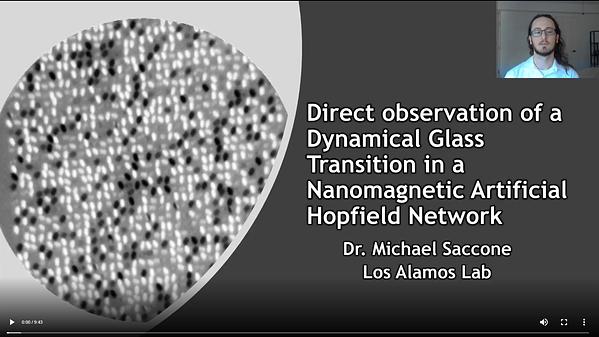

Spin glasses, generally defined as disordered systems with randomized competing interactions that result in an extensively degenerate ground state1, 2, are a widely investigated complex system. Theoretical models describing spin glasses are broadly used in other complex systems, such as those describing brain function3, error-correcting codes4, or stock-market dynamics5. This wide interest in spin glasses provides strong motivation to generate an artificial spin glass within the framework of artificial spin ice systems6. Here, we present the first experimental realization of an artificial spin glass, consisting of dipolar coupled single-domain Ising-type nanomagnets arranged onto an interaction network that replicates the aspects of a Hopfield neural network7. Using cryogenic x-ray photoemission electron microscopy (XPEEM), we performed temperature dependent imaging of thermally driven moment fluctuations within these networks and observed characteristic features of a two-dimensional Ising spin glass. Specifically, the temperature dependence of the spin glass correlation function follows a power law trend predicted from theoretical models on two-dimensional spin glasses. Furthermore, we observe clear signatures of the hard to observe rugged spin glass free energy1 in the form of sub-aging, out of equilibrium autocorrelations1 and a transition from convergent to divergent dynamics1, 8.

![](https://assets.underline.io/uploads/markdown_image/1/image/b3ae2199ab934834ddc1bb2571df82f4.jpg)

Direct observation of a Dynamical Glass Transition in a Nanomagnetic Artificial Hopfield Network
