Power modules play a main role in traction inverter applications. They control engine speed and torque, regulating the energy flow between battery and motor. Due to the demanding electric and reliability performances requested by end costumers, semiconductor devices based on wide band gap compound are introduced in novel power modules. To support such device developments, there is the need to set a robust and accurate experimental methodology that shall be supported by numerical models. The targets are the prediction of thermal performance and the reliability forecast. In this framework, it has been proposed a dedicated flow to thermally characterize a multi-chip SiC MOSFET power module for automotive applications. Body-diode drop voltage has been selected as the temperature sensitive electric parameter to monitor the average junction temperature for thermal impedance measurements. Finite element model has been employed to predict temperature distribution due to device self-heating, referring to the previous characterization for the calibration of the numerical model. Once the thermal simulation methodology has been set, module temperature during inverter operations can be calculated, collecting temperature history profile into some loading conditions using a Rainflow-like approach. The several loading cases have been characterized by different temperature swing and cycle time. These classified data can be considered to evaluate lifetime duration due to selected failure mechanisms , supporting the definition of the most proper durability assessment for the application-relevant failure modes.

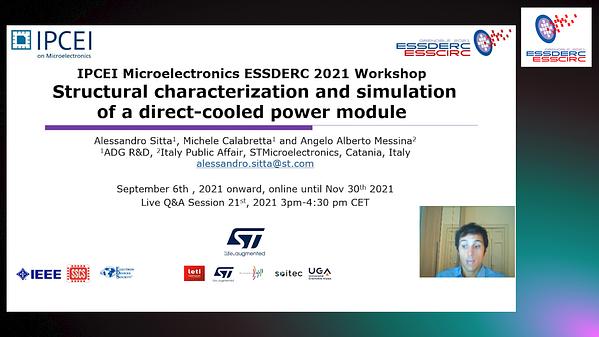

Structural characterization and simulation of a direct-cooled power module
