United States

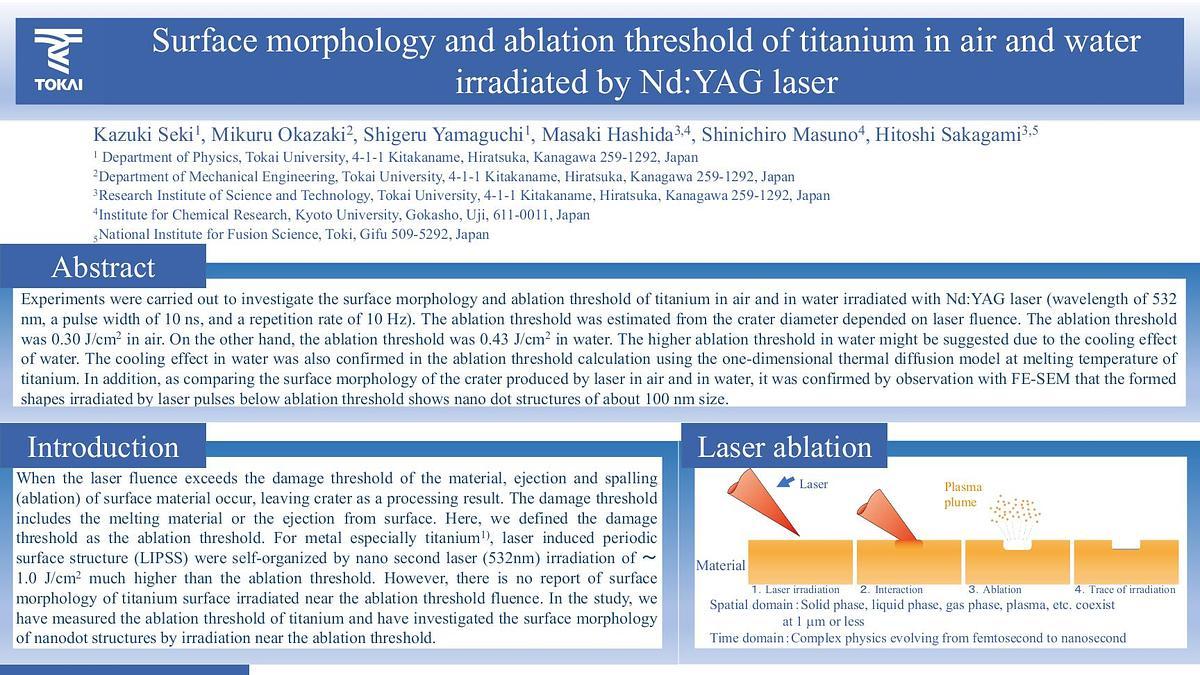

Experiments were carried out to investigate the surface morphology and ablation threshold of titanium in air and in water irradiated with Nd:YAG laser. In the experiment, a Nd:YAG laser (wavelength of 532 nm, a pulse width of 10 ns, and a repetition rate of 10 Hz) was focused to a diameter of 33 μm (FWe&lt;sup&gt;-1&lt;/sup&gt;M) by a convex lens with a focal length of 200 mm, and was irradiated to titanium surface at a incident angle of 0 degree in the atmosphere or water. Titanium surface was mechanically polished and to be obtain an optical grade.Laser energy was controlled by a&amp;nbsp;polarizing prism and a half wave plate in the range of&amp;nbsp; 1μJ to 40μJ (corresponding laser fluence&amp;nbsp;of 0.11J/cm&lt;sup&gt;2&lt;/sup&gt; to 4.61J/cm&lt;sup&gt;2&lt;/sup&gt;). The melting threshold was estimated from the crater diameter depended on laser fluence.The melting threshold was 0.30 J/cm&lt;sup&gt;2&lt;/sup&gt;&amp;nbsp;in air. On the other hand, the melting threshold was 0.43J/cm&lt;sup&gt;2&lt;/sup&gt;&amp;nbsp; in water. The higher melting threshold in water might be suggested due to the cooling effect of water. The cooling effect in water was also confirmed in the melting threshold calculation using the one-dimensional thermal diffusion model. In addition, as comparing the surface morphology of the crater produced by laser in air and in water, it was confirmed by observation with FE-SEM that the formed shapes were different.

ICALEO 2023

Surface Morphology and Ablation Threshold of Titanium in Air and Water Irradiated by Nd:YAG Laser

melting threshold

ablation threshold

surface morphology

nd:yag laser

titanium

Experiments were carried out to investigate the surface morphology and ablation threshold of titanium in air and in water irradiated with Nd:YAG laser. In the experiment, a Nd:YAG laser (wavelength of 532 nm, a pulse width of 10 ns, and a repetition rate of 10 Hz) was focused to a diameter of 33 μm (FWe-1M) by a convex lens with a focal length of 200 mm, and was irradiated to titanium surface at a incident angle of 0 degree in the atmosphere or water. Titanium surface was mechanically polished and to be obtain an optical grade.Laser energy was controlled by a&nbsp;polarizing prism and a half wave plate in the range of&nbsp; 1μJ to 40μJ (corresponding laser fluence&nbsp;of 0.11J/cm2 to 4.61J/cm2). The melting threshold was estimated from the crater diameter depended on laser fluence.The melting threshold was 0.30 J/cm2&nbsp;in air. On the other hand, the melting threshold was 0.43J/cm2&nbsp; in water. The higher melting threshold in water might be suggested due to the cooling effect of water. The cooling effect in water was also confirmed in the melting threshold calculation using the one-dimensional thermal diffusion model. In addition, as comparing the surface morphology of the crater produced by laser in air and in water, it was confirmed by observation with FE-SEM that the formed shapes were different.

poster

**General Chair Welcome**

![](https://assets.underline.io/markdown_image/1/image/d6e6dddc08bf2371b9136ea9c18dc5ab.png)

Welcome to ICALEO® 2023!

We were excited to host the world’s leading international conference on Lasers and Electro-Optics in Chicago. The Laser has been shown to have the potential to revolutionize solutions for major global challenges like energy usage and supply, global warming, and CO2 footprint. Even the fusion energy breakthrough is based on laser technology. The conference, with peer-reviewed scientific and technical presentations, focused on the newest results in Micro Applications, Macro Applications, Additive Manufacturing, Beam Shaping and Frontiers in Laser Applications. Additionally, the Battery-Manufacturing Track gave an overview of the process combined with the newest advances in laser application results.

The Business Session brought the business aspect and environment of the laser to the audience and the possibility to discuss with seasoned industry leaders from around the world.

Whether this is the first time you are hearing about ICALEO or you are a longtime attendee, you will find something of interest, new ideas, and an excellent opportunity to network with other laser specialists worldwide.

**Klaus Löffler **
ICALEO General Chair
Managing Director, Precitec GmbH

**What is ICALEO?**

ICALEO® brings together the brightest minds, seasoned professionals, and pioneering researchers from around the world. With a laser-focused agenda, ICALEO offers an exceptional platform to delve into the cutting-edge advancements, diverse applications, and transformative research that define lasers and electro-optics.

Participants will be immersed in a dynamic environment that fosters collaborative learning, networking, and idea exchange. Through engaging plenary presentations, technical sessions, an industry business panel, and networking events, attendees gain insights into the forefront of laser technology. From industrial applications to medical breakthroughs, additive manufacturing to materials processing, ICALEO covers the entire spectrum of laser-related disciplines. Moreover, the event serves as a launching pad for synergistic partnerships, paving the way for professionals to forge connections that shape the future of our industry.

Join us in Chicago and be part of an unparalleled gathering that challenges the boundaries of possibility within lasers and electro-optics. As we convene to share knowledge, explore innovations, and cultivate collaborations, ICALEO stands as a pivotal force driving the evolution of this transformative technology.

**Who attended?**

ICALEO is tailor-made for professionals, researchers, academics, and enthusiasts who are deeply passionate about the world of lasers and electro-optics. If you're an industry trailblazer, an academic luminary, an aspiring expert, or a postgraduate student looking to dive into the latest developments and trends, this is an event you won't want to miss.

Industrial leaders seeking to stay ahead of the curve in their fields, engineers working on laser applications, and manufacturing experts interested in additive manufacturing and materials processing will find ICALEO to be an invaluable platform. Researchers and scientists exploring the forefront of laser technology, from fundamental principles to groundbreaking applications, will also discover a wealth of knowledge and networking opportunities.

Medical professionals investigating laser-based medical advancements, entrepreneurs seeking to innovate with lasers, educators aiming to stay updated with the latest in laser education, and policy makers shaping the industry's landscape are all essential attendees. Whether you're an established expert or a rising star, the 42nd annual ICALEO promises to offer a diverse ecosystem of expertise, connections, and knowledge sharing that caters to the laser and electro-optics communities.

**Fields Represented:**

* Entrepreneurs and Innovators
* Manufacturing Experts
* Students and Graduates
* Policy Makers and Regulators
* Consultants and Advisors
* Technology Enthusiasts
* Suppliers and Manufacturers
* Startups and Innovators
* Researchers in Laser Education

**[View All Proceedings Here](https://icaleo.conferencespot.org/event-data)**

### **Program Tracks & Chairs**

To access the site please register [**here**](https://icaleo.org/attend).

Please register for the ICALEO 2023 Conference to join the event.

ICALEO® brings together the brightest minds, seasoned professionals, and pioneering researchers from around the world. With a laser-focused agenda, ICALEO offers an exceptional platform to delve into the cutting-edge advancements, diverse applications, and transformative research that define lasers and electro-optics.

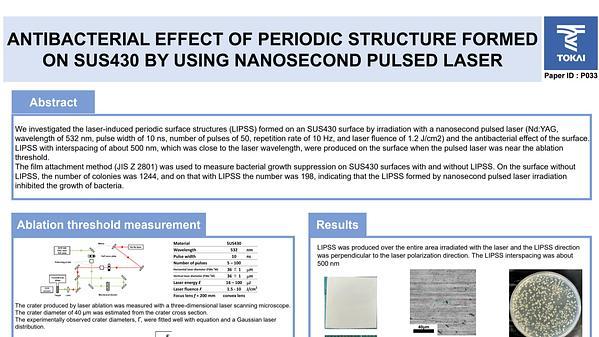

YAG laser (wavelength of 532 nm and a pulse width of 10 ns) was irradiated to SUS430 surface to produce a periodic structure with an interspace of approximately laser wavelength.
The material is used mirror-polished SUS430 (25 mm x 25 mm, thickness 1 mm).
For the periodic structure formation experiment, the melting threshold fluence (FMelt) of SUS430 was evaluated from the laser fluence dependence of the crater diameter, and it was found to be FMelt = 1.18 J/cm2.
A periodic structure was produced at a laser fluence F=0.8 J/cm2 below the melting threshold and near the ablation threshold (Fth=0.96 J/cm2).
Escherichia coli DH5α with a size of about 500 nm to 1000 nm was used for film adhesion method as an antibacterial method. The periodic structure given to the material surface was about 500 nm, which was smaller than that of Escherichia coli DH5α.
In the film adhesion method, first, the cultured bacterial solution was dropped on the surface, covered with a film, and cultured for 24 hours.
After that, the bacterial solution was diluted and cultured again in a solid medium for 24 hours, and the antibacterial function was examined from the number of colonies formed.
As a result, it was found that the number of colonies of SUS430 with microstructure was 198 compared to the number of colonies of 1244 of the bacterial solution, which is about an order of magnitude decrease.

Antibacterial Effect of Periodic Structure Formed on SUS430 by Using Nanosecond Pulsed Laser

The ISO 11146-1 is a well know standard for measuring the M-Square value of a laser or laser system. The multi-spot method of measuring the M-Square against the ISO 11146-1 standard has not, to date, been measured one to one against this standard using both the traditional scan method and the multi-spot method. This work validates the multi-spot method against the standard by using the identical optical setup and simply changing the software algorithm to accommodate both methods while staying within the ISO 11146-1 parameters.&nbsp; We then compare the results for the same laser within a very short span of time. This work covers the results of three (3) different ISO compliant measurement methods: full caustic multi-spot, scan method of one spot at a time and a smaller number of multi-spots within 3 different Rayleigh ranges of the beam caustic. The multi-spot method has the significant advantage of providing an ISO compliant measurement within a single laser pulse whether it be a femtosecond, picosecond, nanosecond, or millisecond pulse. The traditional scan method can only provide a time averaged measurement and is not possible in making a single pulse M2 measurement.&nbsp; The multi-spot, therefore, provides instant feedback of the laser performance and reduces the optimization time.

Validation of a Multi-spot M2 Measurement to the ISO 11146-1

Solidification cracking is one of the most critical weld defects in laser welding of Al 6000 alloys. It occurs at the end stage of solidification due to the shrinkage of weld metal and deteriorates the joint strength and integrity. Filler metal can control the chemical composition of weld metal, which mitigates the solidification cracking; however, the chemical composition is difficult to control in autogenous laser welding. Temporal/spatial laser beam modulations have been introduced to control the solidification cracking in autogenous laser welding because the welds morphology is one of the factors that influence the solidification cracking initiation and propagation. Solidification cracks generate thermal discontinuity and visual flaws on the bead surface. In this study, a high-speed infrared (IR) camera and a coaxial charge-coupled device (CCD) camera with an auxiliary illumination laser (808 nm) were employed to identify solidification cracking during laser welding. Deep learning models were developed using two sensor images of the solidified bead. The output of deep learning models were location-wise cracking formation. Convolution neural network (CNN)-based deep learning models showed excellent cracking identification accuracies. In this study, the multiple sensor system of high-speed IR camera and low-cost CCD camera demonstrated its capability and potential in laser welding inspection.

Identification of Solidification Cracking Using Multiple Sensors and Deep Learning in Laser Overlap Welded Al 6000 Alloy

Global initiatives and legal frameworks to achieve net-zero carbon emissions will require the development of manufacturing processes significantly different from current commercial methods. The efficiency and fine control of laser-material interactions have proven themselves as disruptive manufacturing technologies that are ideally suited to replace conventional thermal processes. Conventional textile dyeing is known to be resource-intensive, relying on slow-acting thermal dye-fixation processes. These are inherently inefficient as they indirectly heat the material's surface through steam chambers or boiling vats to chemically fixate the dye onto the fabric, resulting in large lag system responses. The typical system response time for these manufacturing processes is minutes, which equates to a work-in-progress of hundreds of linear metres of product. This paper presents a method of directly heating the textile surface with a Continuous Wave CO2 laser in combination with existing commercially available Polyamide textiles and Nylosan Acid Dye. Results from this new process show that the essential industrial quality control standards for colour fastness and mechanical properties are maintained. The key finding discussed in this paper is that using a laser source to provide a direct and rapid heating mechanism at the site of dye fixation enables the implementation of a fast response system. The heating control of the laser is effectively instantaneous, at &lt;100 µs, resulting in control responses that affect less than one linear metre of material. The results presented here represent a product family with annual manufacturing volumes of 1.5 billion meters of textile, creating potential for significant improvements to manufacturing.

Rapid Response Textile Dyeing: A Laser-enabled Manufacturing Process

Additive manufacturing is an enticing way for producing complex geometries and optimized parts for special applications. Even though the achievable static properties for the printed material are usually good when compared to wrought materials, in many cases dynamic properties are known to be much worse. Often the quality is sacrificed in respect of printing speed. Further, printed materials have usually anisotropic behavior, caused by the remelting and fast cooling of each deposited layer. This means that the mechanical properties are needed to be measured in several directions in respect of the printing direction for attaining a more holistic approach on the achieved static and dynamic behavior. As a demonstration, this study focuses on determining the properties of 316L stainless steel manufactured with laser powder bed fusion. Comprehensive set of samples for various testing methods were manufactured to investigate the effect of layer thickness and printing orientation on the microstructure, mechanical properties, impact strength and fatigue life. Fatigue performance of the material was evaluated both in axial and flexural bending comparing as built and polished surface conditions. Bending fatigue testing revealed that a fatigue limit of 100 MPa at best can be achieved with the as built surface quality, but with a polished surface and lower layer thickness it could be doubled. Impact toughness and mechanical strength of the material are heavily dependent on the layer thickness and while the best results were obtained with the lower layer thickness the printing orientation can have a detrimental effect on it.

Fatigue Strength and Impact Toughness Dependence of PBF-LB Manufactured 316L Stainless Steel on Orientation and Layer Thickness

Laser Powder Bed Fusion (LPBF) is a critical additive manufacturing process for producing complex parts with high accuracy and precision. However, LPBF faces significant challenges in increasing the process yield and printing new powders while reducing hot cracking. These challenges limit the production speed, reduce the manufacturing efficiency, and restrict the range of materials that can be used in LPBF.
Beam shaping offers a potential solution to overcome these challenges by modifying the laser beam's intensity distribution. In this paper, we explore the application of Multi-Plane Light Conversion (MPLC) to LPBF to improve the process speed and quality. MPLC is a novel beam-shaping technique that enables the creation of complex intensity profiles by redirecting the laser beam through multiple planes of phase modulators.
Our study demonstrates the successful application of MPLC to LPBF, enabling a significant increase in the process speed while maintaining high-quality parts. We use an appropriate ring shape for printing the inner part and a small Gaussian beam for the contour of the part. We compare the performance with no beam shaping as well as with beam shaping based on shaping within the fiber of the laser technology. Our results show that MPLC-based beam shaping improves the process yield, leading to faster printing and improved manufacturing efficiency.

Process Speed Increase in Laser Powder Bed Fusion Thanks to Beam Shaping with Multi-Plane Light Conversion

The accelerated electrification of vehicles boosts the demand for sustainable batteries with enhanced energy density. Lithium metal anodes are expected to be a key component for future generation energy storage such as solid state and Lithium sulfur batteries. Energy consumption needs to be further reduced in cell production and substituting the wet electrode processing will be a major step in this direction. As a consequence, innovations in production technologies are required for the manufacturing of future generation batteries.
Here, we present new concepts for manufacturing of Lithium metal batteries, including coating, cutting and contacting of Lithium anodes as well as dry film processing of composite cathodes. A unique melt deposition process is applied for achieving few micrometer thin Lithium metal films on current collector foils. Further, a laser-based cutting process enables the flexible shaping of Lithium foils and coatings with high edge quality. For direct contacting of Lithium anodes to tabs a low contact resistance and high mechanical strength is achieved via Laser beam joining. Composite cathodes based on various active materials are being produced via the solvent free process DRYtraec®. All process steps are implemented in a semi-automated cell assembly line at Fraunhofer IWS for manufacturing and evaluating Lithium metal battery cells. Thus, the developed technology concepts are being demonstrated in high energy battery cell prototypes exceeding a specific energy of 400 Wh/kg.

Processing Future Generation of Battery Electrodes with Advanced Laser and Coating Technologies

This abstract and keynote speech addresses the challenges in the development of additive manufacturing (AM) using selective laser melting (SLM) technology. With this technique, AM can produce superior and sustainable parts by the application of bionic design. In the last two decades L-PBF increased it’s productivity by a factor of 200, however it still misses commercial competitiveness. One of the main current bottlenecks lies in the high production costs of more than €1000 per kilogram of manufactured
material. These have their cause mainly in inefficient build up rates and expensive powder costs. Another constraint is the need for ensuring consistent and high-quality parts, requiring a certified quality assurance process.
To address these challenges, we developed a project idea whose goal it is to develop an optimized AM product by integrating a ring-mode laser as well as a manufacturing monitoring system for quality assurance and faster build rates. The ultimate goal is to achieve a certified and profitable product with target costs of less than €100 per kilogram of certified material to be competitive in the market.
The proposed solution aims to improve the efficiency of the SLM process, resulting in lower production costs and faster production rates, while maintaining consistent high-quality parts. The ring-mode laser provides more uniform energy distribution and reduces thermal gradients, improving the material properties and reducing distortion int the manufactured part. This will move the threshold for the maximum robust melting productivity by a factor of ten due to higher laser scanning speeds and an improved layer thickness.
The planned manufacturing monitoring system which is combined with quick destructive dynamic specimen testing ensures consistent quality while detecting and correcting any defects during production. This allows the approval of static and fatigue material properties with the certified absence of pores with a diameter bigger than 0.1 mm.
The optimized SLM process which will be developed in this project idea could enable a more cost-effective production of metal parts and reduce the entry barriers for small and medium-sized corporations. Overall, the proposed solution could enhance the metal additive manufacturing industry, enabling competitive and sustainable production of high-quality metal parts for all kinds of applications.

Profitable and Certified Metal 3D Printing

Technological developments are elementary in the production of an electric car and especially in the battery production in order to increase competitiveness. For this reason, research institutes such as the „Chair of Production Engineering of E-Mobility Components“ and the “Fraunhofer Research Institution for Battery Cell Production FFB” executing technology screenings. Based on the results of the technology screening and the requirements of the industry, process developments are carried out. In the presentation, the findings of Fraunhofer FFB’s comprehensive study analyzing the potential of laser applications in battery production will be presented. The spotlight will be placed on relevant laser applications that have been identified in battery cell production, module manufacturing, and pack assembly. The example of laser drying for electrodes is then used to illustrate the ongoing process developments.

Innovative Uses of Lasers for Advancing Battery Production

Indirect-drive Inertial Confinement Fusion (ICF) experiments on the National Ignition Facility (NIF) have, for the first time, demonstrated fusion ignition in the laboratory. This milestone occurred&nbsp;for the first time&nbsp;in an experiment conducted on December 5 th , 2022, releasing 3.15 MJ of energy from the deuterium-tritium (DT) fusion reaction using 2.05 MJ of laser energy&nbsp;for a target gain of 1.5. This talk will describe&nbsp;this and more recent ignition&nbsp;experiments, chronicle some of the important scientific and technological developments that contributed to the increase in experimental fusion energy output that occurred between 2011 and today, and the prospects of harnessing fusion in the laboratory as an energy source.

Premium content

Surface Morphology and Ablation Threshold of Titanium in Air and Water Irradiated by Nd:YAG Laser

Downloads

Next from ICALEO 2023

Antibacterial Effect of Periodic Structure Formed on SUS430 by Using Nanosecond Pulsed Laser

Stay up to date with the latest Underline news!

PRESENTATIONS

CONFERENCES

COMPANY

RESOURCES
