Laser welding using high-power laser forms a keyhole inside a molten pool to obtain a deep penetration. However, a spatter which is the scattering of a portion of the molten pool occurs causing welding defects. Therefore, it is necessary to elucidate the mechanism of spatter generation. In our previous study, it has been found the spatter generation is due to the variability of the keyhole. However, it is difficult to understand the spatter generation from keyhole observation only. In addition to the keyhole variability, real-time observation of molten pool dynamics would be understood the spatter generation mechanism.&lt;br&gt;
In this study, the longitudinal cross-section of the molten pool was directly observed using the glass transmission method to measure the temporal variation of the molten pool area in keyhole welding. A bead-on-plate welding test was conducted for the specimen with a 16 kW disk laser when the SS304 specimen butted against a glass plate was set in a vacuum chamber. The vacuum chamber was evacuated at the pressure of 10 Pa and then filled with Ar gas to the desired pressure. As the results, the average molten pool area was 17 mm&lt;sup&gt;2&lt;/sup&gt;&amp;nbsp;at 10&lt;sup&gt;5&lt;/sup&gt; Pa, which generate a large amount of spatter, while, it was 29 mm&lt;sup&gt;2&lt;/sup&gt; at 10 Pa, where the spatter generation was small. Furthermore, the standard deviation of the molten pool area was 0.9 mm&lt;sup&gt;2&lt;/sup&gt; at 10&lt;sup&gt;5&lt;/sup&gt;&amp;nbsp;Pa, and 0.36 mm&lt;sup&gt;2&lt;/sup&gt; at 10 Pa, it was indicated a large molten pool time variation was influenced to generate the spatter.

ICALEO 2023

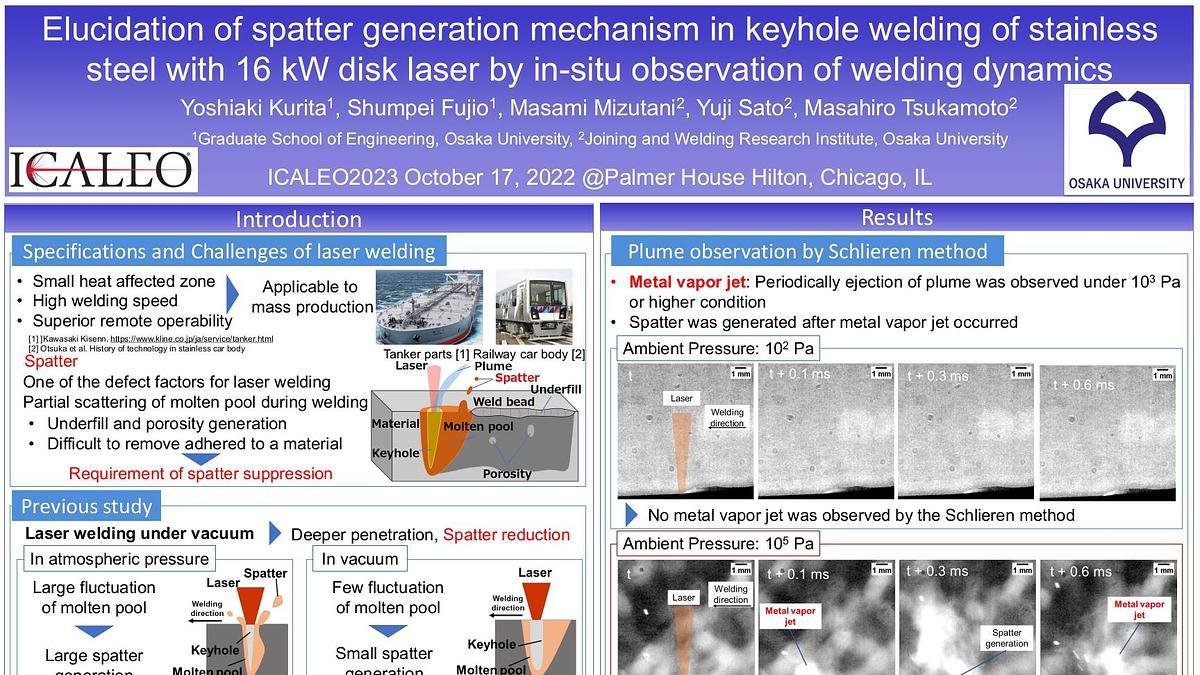

Elucidation of Spatter Generation Mechanism in Keyhole Welding of Stainless Steel With 16 kW Disk Laser by In-Situ Observation of Welding Dynamics

ss304

keyhole

molten pool

spatter

laser welding

Laser welding using high-power laser forms a keyhole inside a molten pool to obtain a deep penetration. However, a spatter which is the scattering of a portion of the molten pool occurs causing welding defects. Therefore, it is necessary to elucidate the mechanism of spatter generation. In our previous study, it has been found the spatter generation is due to the variability of the keyhole. However, it is difficult to understand the spatter generation from keyhole observation only. In addition to the keyhole variability, real-time observation of molten pool dynamics would be understood the spatter generation mechanism.
In this study, the longitudinal cross-section of the molten pool was directly observed using the glass transmission method to measure the temporal variation of the molten pool area in keyhole welding. A bead-on-plate welding test was conducted for the specimen with a 16 kW disk laser when the SS304 specimen butted against a glass plate was set in a vacuum chamber. The vacuum chamber was evacuated at the pressure of 10 Pa and then filled with Ar gas to the desired pressure. As the results, the average molten pool area was 17 mm2&nbsp;at 105 Pa, which generate a large amount of spatter, while, it was 29 mm2 at 10 Pa, where the spatter generation was small. Furthermore, the standard deviation of the molten pool area was 0.9 mm2 at 105&nbsp;Pa, and 0.36 mm2 at 10 Pa, it was indicated a large molten pool time variation was influenced to generate the spatter.
