Model cards organize and portray information
about a model’s training data, hyper parameters, and behavior,
such as predictive accuracy and bias for machine learning (ML)
algorithms or models. Consumers use these cards to determine
whether a model is well suited for a particular use case.
However, the current design of model cards does not include
resource utilization metrics, which are important when models
are being optimized for specific hardware. The main objective
of this study was to determine which set of hardware-centric
performance metrics provided the most value to users when
comparing among different algorithms for Internet of Things
(IoT) edge devices. The Department of Defense (DoD) can utilize
these metrics to select the best model for key mission tasks
within the Command and Control (C2) missions that require
AI/ML deployment on edge devices. Our study focused on
finding correlations between resource availability and machine
learning models’ computational footprint using three key metrics:
energy consumption, execution time, and memory utilization.
The data was gathered from simulated environments hosted
by Docker containers (i.e., lightweight, stand-alone, executable
package of software that includes everything needed to run an
application) with various memory sizes. Two different series of
experiments were performed. The first series of experiments
simulated environments with 256 MB to 8GB (steps of the
powers of 2) of available memory. For each memory size, we
deployed 50 different containers, calculated the metrics from
each container, and then recorded the average result of each
metric. Two ML models from Microsoft’s EdgeML library that
are designed to run more efficiently on edge devices were used:
Bonsai, a decision tree based model, and ProtoNN, a KNN based
model. Using Spearman’s correlation, we found that none of
the metrics showed promising correlations for the Bonsai model,
while the ProtoNN model demonstrated a correlation of 0.5 for its
computational time. In order to investigate the lack of adequate
results, we ran a second series of experiments in a similar fashion
but with smaller memory sizes from 250MB to 950MB (in steps of
50MB). Using Spearman’s correlation for the Bonsai model with
smaller memory sizes, we found that RAM energy consumption
showed the most promising correlation value of 0.75. While for
ProtoNN model with smaller memory sizes, both the RAM energy
consumption and total energy consumption showed promising
correlation values of 0.63 and 0.71 respectively.

NAML 2023

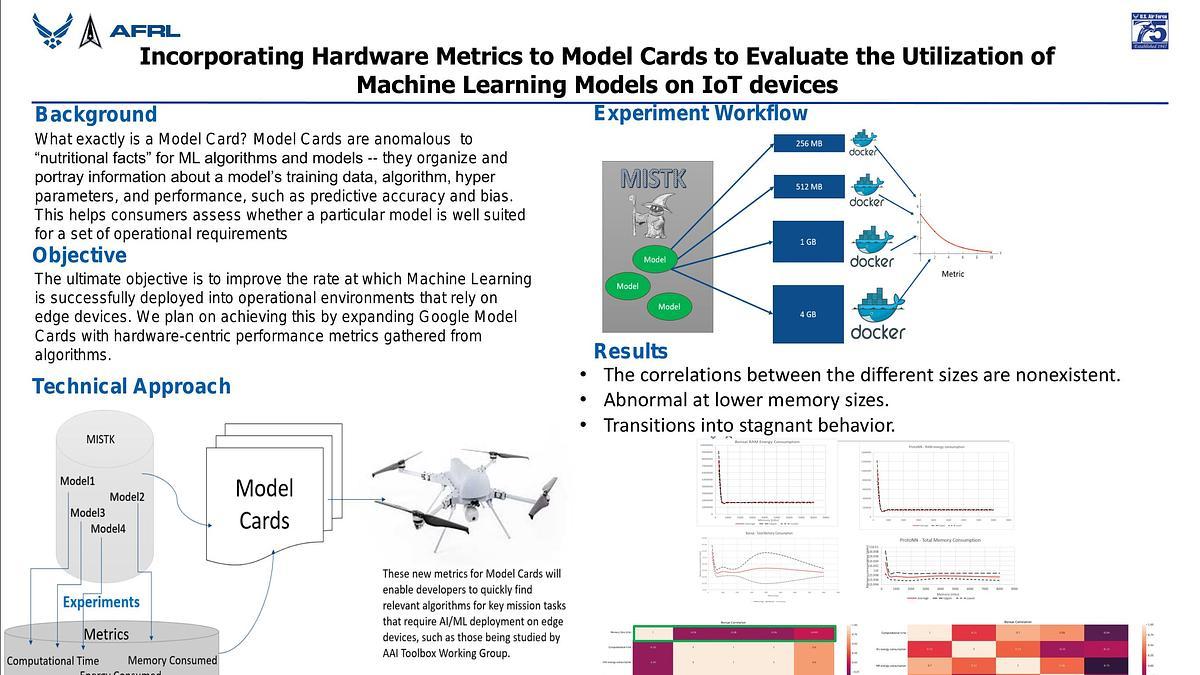

Incorporating Hardware Metrics to Model Cards to Evaluate the Utilization of Machine Learning Models on IoT devices
