In general, three aspects of an entire electrical machine design task should be analyzed: electromagnetic, mechanical, and thermal. However, in practice, designers tend to
focus on the electromagnetic aspect and deal superficially with mechanical analysis and thermal analysis. It is necessary to perform mechanical and thermal analysis in applications for
high-speed and high-power machines.
The thermal analysis can be done using two approaches: the method using lumped-parameter thermal networks (LPTNs) also known as “thermal equivalent circuits,” and the analytical
method. The LPTN is a simple model that makes it possible to obtain quickly. However, defining one or two main heat-transfer paths is necessary first, so the final result is not highly
accurate. The analytical method based on complex differential equations and boundary conditions provides more reliable results.
In this study, a comprehensive thermal analysis model was developed and applied to an 8/12 permanent magnet synchronous motor prototype. Fig. 1 shows the manufactured model and
experimental setup. Fig. 2 illustrates an LPTN model according to the front view and side view in Figs. 2(a) and (b), respectively. Fig. 2(c) shows the simplified circuit in the winding, and
Fig. 2(d) shows the temperature results for some positions. The detailed work and experiment results will be presented in the full paper.&lt;br&gt;

**References:**&lt;br&gt;

1. A. Boglietti, A. Cavagnino, D. Staton, M. Shanel, M. Mueller and C. Mejuto, &quot;Evolution and Modern Approaches for Thermal Analysis of Electrical Machines,&quot; in IEEE
Transactions on Industrial Electronics, vol. 56, no. 3, pp. 871-882, March 2009&lt;br&gt;
2. G. J. Li, J. Ojeda, E. Hoang, M. Lecrivain and M. Gabsi, &quot;Comparative Studies Between Classical and Mutually Coupled Switched Reluctance Motors Using Thermal-Electromagnetic
Analysis for Driving Cycles,&quot; in IEEE Transactions on Magnetics, vol. 47, no. 4, pp. 839-847, April 2011&lt;br&gt;
3. D. Staton, A. Boglietti and A. Cavagnino, &quot;Solving the more difficult aspects of electric motor thermal analysis in small and medium size industrial induction motors,&quot; in IEEE
Transactions on Energy Conversion, vol. 20, no. 3, pp. 620-628, Sept. 2005&lt;br&gt;

![](https://s3.eu-west-1.amazonaws.com/underline.prod/uploads/markdown_image/1/image/312f1a59d8cffaca62e0a5edbead426c.png)&lt;br&gt;

![](https://s3.eu-west-1.amazonaws.com/underline.prod/uploads/markdown_image/1/image/0146f3c52660cea859fde5ac0e7bed3d.png)

MMM 2022

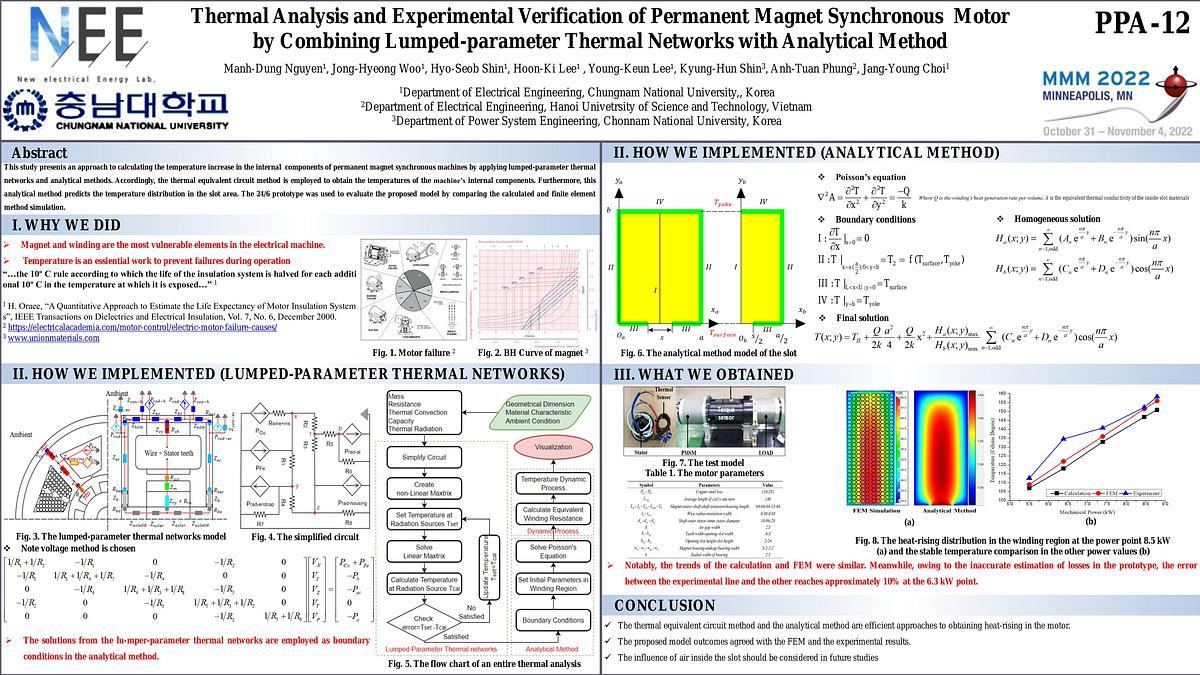

Thermal Analysis and Experimental Verification of Permanent Magnet Synchronous Motor by Combining Lumped Parameter Thermal Networks with Analytical Method

In general, three aspects of an entire electrical machine design task should be analyzed: electromagnetic, mechanical, and thermal. However, in practice, designers tend to
focus on the electromagnetic aspect and deal superficially with mechanical analysis and thermal analysis. It is necessary to perform mechanical and thermal analysis in applications for
high-speed and high-power machines.
The thermal analysis can be done using two approaches: the method using lumped-parameter thermal networks (LPTNs) also known as “thermal equivalent circuits,” and the analytical
method. The LPTN is a simple model that makes it possible to obtain quickly. However, defining one or two main heat-transfer paths is necessary first, so the final result is not highly
accurate. The analytical method based on complex differential equations and boundary conditions provides more reliable results.
In this study, a comprehensive thermal analysis model was developed and applied to an 8/12 permanent magnet synchronous motor prototype. Fig. 1 shows the manufactured model and
experimental setup. Fig. 2 illustrates an LPTN model according to the front view and side view in Figs. 2(a) and (b), respectively. Fig. 2(c) shows the simplified circuit in the winding, and
Fig. 2(d) shows the temperature results for some positions. The detailed work and experiment results will be presented in the full paper.

**References:**

1. A. Boglietti, A. Cavagnino, D. Staton, M. Shanel, M. Mueller and C. Mejuto, "Evolution and Modern Approaches for Thermal Analysis of Electrical Machines," in IEEE
Transactions on Industrial Electronics, vol. 56, no. 3, pp. 871-882, March 2009
2. G. J. Li, J. Ojeda, E. Hoang, M. Lecrivain and M. Gabsi, "Comparative Studies Between Classical and Mutually Coupled Switched Reluctance Motors Using Thermal-Electromagnetic
Analysis for Driving Cycles," in IEEE Transactions on Magnetics, vol. 47, no. 4, pp. 839-847, April 2011
3. D. Staton, A. Boglietti and A. Cavagnino, "Solving the more difficult aspects of electric motor thermal analysis in small and medium size industrial induction motors," in IEEE
Transactions on Energy Conversion, vol. 20, no. 3, pp. 620-628, Sept. 2005

![](https://s3.eu-west-1.amazonaws.com/underline.prod/uploads/markdown_image/1/image/312f1a59d8cffaca62e0a5edbead426c.png)

![](https://s3.eu-west-1.amazonaws.com/underline.prod/uploads/markdown_image/1/image/0146f3c52660cea859fde5ac0e7bed3d.png)

poster

#### Welcome to the 67th Annual Conference on Magnetism and Magnetic Materials, MMM 2022!

The Conference was held from October 31 to November 4 and offers both in-person and on-demand content.

MMM 2022 is sponsored jointly by AIP Publishing and the IEEE Magnetics Society. Members of the international scientific and engineering communities interested in recent developments in fundamental and applied magnetism are invited to attend and contribute to the technical sessions. The technical program will include invited and contributed papers in oral and poster sessions, invited symposia, a tutorial, and several special sessions. This Conference provides an outstanding opportunity for worldwide participants to meet their colleagues and collaborators and discuss developments in all areas of magnetism research.

<iframe width="560" height="315" src="https://s3.amazonaws.com/pf-user-files-01/u-59356/uploads/2022-11-02/un13zp7/MMM%20Welcome%20Video%20v5.mp4" title="YouTube video player" frameborder="0" allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture" allowfullscreen></iframe>

For tickets to the event, please register at the following link: https://magnetism.org/registration

Please register for the MMM 2022 conference to join the event.

This Conference provides an outstanding opportunity for worldwide participants to meet their colleagues and collaborators and discuss developments in all areas of magnetism research.

I. Introduction
Double mechanical port permanent-magnet (DMP-PM) motor is one of the research highlights in motor field in recent years[1],[2].As shown in Fig. 1, this motor called NS-DRFSPM
machine.In this paper,the performances of NS-DRFSPM machine under several fault operation conditions are compared and analyzed.The simultaneous operation of two groups of
armature windings and the first group of permanent magnets is called state I,namely S1;The simultaneous operation of two groups of armature windings and the second group of permanent
magnets is called state II,namely S2;The first group of armature windings and two groups of permanent magnets operate at the same time,which is called state III,namely S3;The second
group of armature windings and two groups of permanent magnets operate at the same time,which is called state IV,namely S4.
II.Performance comparisons
A series of comparisons of electromagnetic performance of several fault operation states are conducted by finite element analysis (FEA).Fig.2(a) compares the no-load phase back-EMF per
turn waveforms of four fault operation states of the NS-DRFSPM machine at 1500r/min based on FEA.It can be seen that the back-EMF amplitude of the third operating state of the motor
is the smallest,and the second is the largest.Fig.2(b) shows the flux linkage waveforms of four fault operation states of the NS-DRFSPM machine.The cogging torque waveforms of four
fault operation states of NS-DRFSPM machine shown in Fig.2(c).The cogging torque waveforms of state III and state IV are almost the same,and the torque ripple is the smallest.Fig.2(d)
present the electromagnetic torque of the NS-DRFSPM machine under id=0 control with current densities Jsa=5A/mm2.The best performance of average torque and torque ripple of the NSDRFSPM
machine is state II(6.9Nm,42.1%).
III.Conclusion
The other performance,such as the FFT results analysis and simultaneous fault operation of single armature winding and magnet,will be shown in the full paper.
