I.Introduction
Nowadays, the field-modulated permanent magnet (FMPM) machines have attracted significant attention in direct-drive applications. However, the rare-earth PMs have fluctuation price
and unstable supply. Thus, the rare earth reduction of FMPM machine is extensively regarded as a candidate for electric vehicles [1]. It is investigated that the rotor consequent-pole PM
(R-CPM) machine exhibits higher torque capability than the stator CPM machine because of the fact that various rotor permeance harmonics are more involved in torque generation [2].
Based on the study, this paper designs and analyzes a new FMPM machine with one airgap, which adopts the half Halbach array PMs embedded in the rotor slot and possesses the merit of
high PM utilization ratio.
II.Topology and Operation Principle
As shown in Fig. 1, the proposed FMPM machine consists of rare earth PMs and windings, which are located in the rotor and stator respectively. Compared to the existing FMPM machine,
the key difference is that half Halbach array PMs are employed in rotor slot. The rotor teeth, which provide a mechanical support and better effect of heat dissipation for PMs, build the
routes for the fields of PM and armature winding.
III.Results
Fig. 2(a) presents the no-load phase back-EMFs of the existing and proposed FMPM machines under the same speed. It can be observed that the maximum back-EMF obtained by the
proposed HEFM machine is similar to the existing machine that excited by both rare earth PMs and ferrite PMs. Fig. 2(b) shows that the torque densities with the same rated armature
current of 5Arms. It is found that the torque density of the proposed machine is similar to the superposition of torque produced by the machines with rare earth PMs and ferrite PMs, while
the PM volume is only 66% of the existing one. It proves the effectiveness of the improved rotor structure.&lt;br&gt;

**References:**&lt;br&gt;

[1] C. Gong and F. Deng. Design and optimization of a high-torque-density low-torque-ripple vernier machine using ferrite magnets for direct-drive applications. IEEE Transactions on
Industrial Electronics, vol. 69, no. 6, pp. 5421-5431, June 2022.&lt;br&gt;

[2] Y. Li, H. Yang and H. Lin. Comparative study of torque production mechanisms in stator and rotor consequent-pole permanent magnet machines. IEEE Transactions on Transportation
Electrification, vol. 7, no. 4, pp. 2694-2704, Dec. 2021.&lt;br&gt;

![](https://s3.eu-west-1.amazonaws.com/underline.prod/uploads/markdown_image/1/image/fc3df573743e559aef86c1a799afb4e0.png)&lt;br&gt;

![](https://s3.eu-west-1.amazonaws.com/underline.prod/uploads/markdown_image/1/image/c72beeb12ecc9e41817b5bd375bd109a.png)&lt;br&gt;




MMM 2022

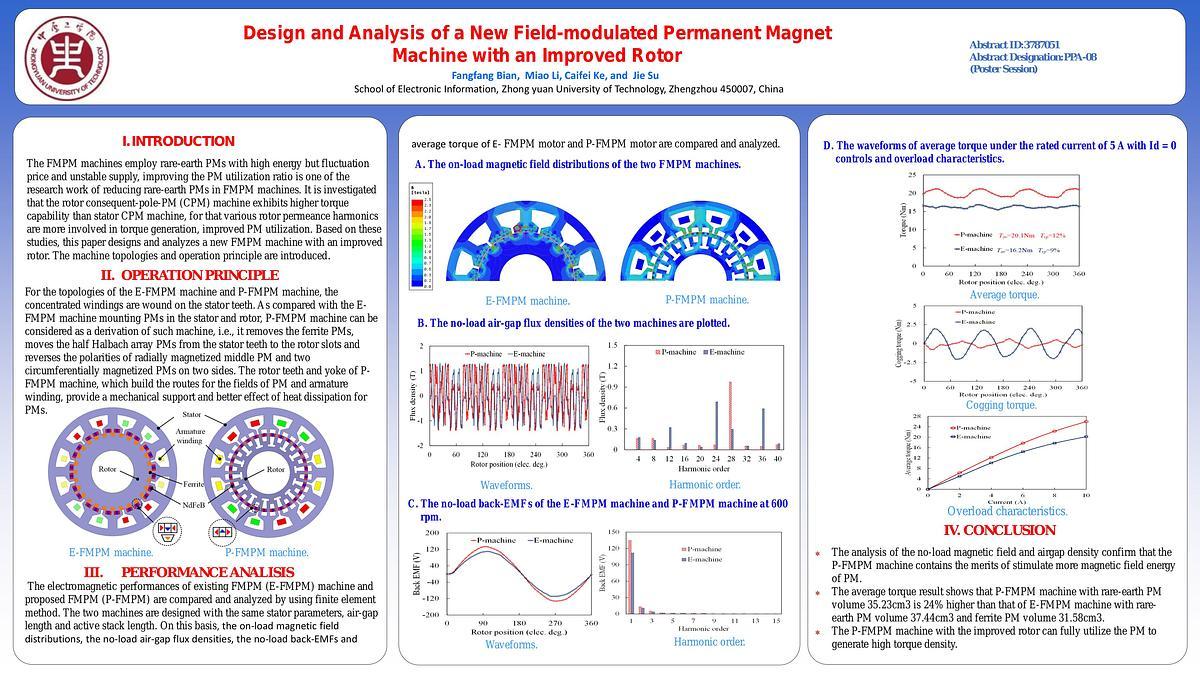

Design and Analysis of a New Field modulated Permanent Magnet Machine with an Improved PM Rotor

I.Introduction
Nowadays, the field-modulated permanent magnet (FMPM) machines have attracted significant attention in direct-drive applications. However, the rare-earth PMs have fluctuation price
and unstable supply. Thus, the rare earth reduction of FMPM machine is extensively regarded as a candidate for electric vehicles [1]. It is investigated that the rotor consequent-pole PM
(R-CPM) machine exhibits higher torque capability than the stator CPM machine because of the fact that various rotor permeance harmonics are more involved in torque generation [2].
Based on the study, this paper designs and analyzes a new FMPM machine with one airgap, which adopts the half Halbach array PMs embedded in the rotor slot and possesses the merit of
high PM utilization ratio.
II.Topology and Operation Principle
As shown in Fig. 1, the proposed FMPM machine consists of rare earth PMs and windings, which are located in the rotor and stator respectively. Compared to the existing FMPM machine,
the key difference is that half Halbach array PMs are employed in rotor slot. The rotor teeth, which provide a mechanical support and better effect of heat dissipation for PMs, build the
routes for the fields of PM and armature winding.
III.Results
Fig. 2(a) presents the no-load phase back-EMFs of the existing and proposed FMPM machines under the same speed. It can be observed that the maximum back-EMF obtained by the
proposed HEFM machine is similar to the existing machine that excited by both rare earth PMs and ferrite PMs. Fig. 2(b) shows that the torque densities with the same rated armature
current of 5Arms. It is found that the torque density of the proposed machine is similar to the superposition of torque produced by the machines with rare earth PMs and ferrite PMs, while
the PM volume is only 66% of the existing one. It proves the effectiveness of the improved rotor structure.

**References:**

[1] C. Gong and F. Deng. Design and optimization of a high-torque-density low-torque-ripple vernier machine using ferrite magnets for direct-drive applications. IEEE Transactions on
Industrial Electronics, vol. 69, no. 6, pp. 5421-5431, June 2022.

[2] Y. Li, H. Yang and H. Lin. Comparative study of torque production mechanisms in stator and rotor consequent-pole permanent magnet machines. IEEE Transactions on Transportation
Electrification, vol. 7, no. 4, pp. 2694-2704, Dec. 2021.

![](https://s3.eu-west-1.amazonaws.com/underline.prod/uploads/markdown_image/1/image/fc3df573743e559aef86c1a799afb4e0.png)

![](https://s3.eu-west-1.amazonaws.com/underline.prod/uploads/markdown_image/1/image/c72beeb12ecc9e41817b5bd375bd109a.png)

poster

#### Welcome to the 67th Annual Conference on Magnetism and Magnetic Materials, MMM 2022!

The Conference was held from October 31 to November 4 and offers both in-person and on-demand content.

MMM 2022 is sponsored jointly by AIP Publishing and the IEEE Magnetics Society. Members of the international scientific and engineering communities interested in recent developments in fundamental and applied magnetism are invited to attend and contribute to the technical sessions. The technical program will include invited and contributed papers in oral and poster sessions, invited symposia, a tutorial, and several special sessions. This Conference provides an outstanding opportunity for worldwide participants to meet their colleagues and collaborators and discuss developments in all areas of magnetism research.

<iframe width="560" height="315" src="https://s3.amazonaws.com/pf-user-files-01/u-59356/uploads/2022-11-02/un13zp7/MMM%20Welcome%20Video%20v5.mp4" title="YouTube video player" frameborder="0" allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture" allowfullscreen></iframe>

For tickets to the event, please register at the following link: https://magnetism.org/registration

Please register for the MMM 2022 conference to join the event.

This Conference provides an outstanding opportunity for worldwide participants to meet their colleagues and collaborators and discuss developments in all areas of magnetism research.

The magnetic-field-modulated permanent magnet (MFMPM) machines have attracted wide attention in hybrid electric vehicles. In order to improve the torque density, many MFMPM
machines employ two or three portions of PMs and two air gaps [1]. However, the structures with two air gaps increase the complexity and maintenance difficulty. To solve above
problems, alternative flux barriers and alternative flux bridges are introduced in the MFMPM machines with one air-gap [2]. In order to improve the utilizations of rotor space and torque
density per unit volume, this paper proposes a new MFMPM Machine with compound-structure PMs, in which both the spoke and Halbach array PMs are set in the rotor.
II.Topology and Operation Principle
Fig. 1 shows the configuration of the proposed MFMPM machine with the compound-structure Magnets. The stator contains flux-modulation tooth and slots which are filled with single
layer concentrated winding. The rotor is formed by the spoke PMs, Halbach array PMs and alternative flux bridges. The proposed MFMPM machine can be identified as the combination of
the spoke MFMPM machine and Halbach array MFMPM machine. Both the MFMPM machines work on the principle of field modulation effect. Besides, Halbach array PMs are inserted
between the flux bridge and spoke rare-earth PMs to reduce the flux leakage, resulting in improving the utilizations of spoke PMs field.
III.Results
Fig. 2(a) shows that the back EMF waves of proposed MFMPM machine. It can be seen that the proposed MFMPM machine can achieves 172 V which is almost equal to the sum of the
back-EMFs of spoke MFMPM machine and Halbach array MFMPM machine. The waveforms of torque can be obtained, as shown in Fig. 2(b). It reveals that the torque of proposed
machine can achieve 25N.m while the torques of the spoke MFMPM machine and Halbach array MFMPM machine are 19N.m and 7.3N.m respectively. It validates that proposed
compound-structure machine can realize the superposition of spoke PMs and Halbach array PMs.

**References:**

[1] G. Liu, P. Zheng, J. Bai, et al. Investigation of a dual-winding dual-flux-concentrated magnetic-field-modulated brushless compound-structure machine. IEEE Transactions on
Magnetics, vol. 58, no. 2, pp. 1-5, Feb. 2022, Art no. 8100505.
[2] Y. Zhang, D. Li, P. Yan, et al. A high torque density claw-pole permanent-magnets vernier machine. IEEE Journal of Emerging and Selected Topics in Power Electronics, vol. 10, no.
2, pp. 1756-1765, April 2022.

![](https://s3.eu-west-1.amazonaws.com/underline.prod/uploads/markdown_image/1/image/64288991527b8e1e1ef72b65f6dec1ec.png)

A New Magnetic Field Modulated Machine with Compound

In general, three aspects of an entire electrical machine design task should be analyzed: electromagnetic, mechanical, and thermal. However, in practice, designers tend to
focus on the electromagnetic aspect and deal superficially with mechanical analysis and thermal analysis. It is necessary to perform mechanical and thermal analysis in applications for
high-speed and high-power machines.
The thermal analysis can be done using two approaches: the method using lumped-parameter thermal networks (LPTNs) also known as “thermal equivalent circuits,” and the analytical
method. The LPTN is a simple model that makes it possible to obtain quickly. However, defining one or two main heat-transfer paths is necessary first, so the final result is not highly
accurate. The analytical method based on complex differential equations and boundary conditions provides more reliable results.
In this study, a comprehensive thermal analysis model was developed and applied to an 8/12 permanent magnet synchronous motor prototype. Fig. 1 shows the manufactured model and
experimental setup. Fig. 2 illustrates an LPTN model according to the front view and side view in Figs. 2(a) and (b), respectively. Fig. 2(c) shows the simplified circuit in the winding, and
Fig. 2(d) shows the temperature results for some positions. The detailed work and experiment results will be presented in the full paper.

**References:**

1. A. Boglietti, A. Cavagnino, D. Staton, M. Shanel, M. Mueller and C. Mejuto, "Evolution and Modern Approaches for Thermal Analysis of Electrical Machines," in IEEE
Transactions on Industrial Electronics, vol. 56, no. 3, pp. 871-882, March 2009
2. G. J. Li, J. Ojeda, E. Hoang, M. Lecrivain and M. Gabsi, "Comparative Studies Between Classical and Mutually Coupled Switched Reluctance Motors Using Thermal-Electromagnetic
Analysis for Driving Cycles," in IEEE Transactions on Magnetics, vol. 47, no. 4, pp. 839-847, April 2011
3. D. Staton, A. Boglietti and A. Cavagnino, "Solving the more difficult aspects of electric motor thermal analysis in small and medium size industrial induction motors," in IEEE
Transactions on Energy Conversion, vol. 20, no. 3, pp. 620-628, Sept. 2005

![](https://s3.eu-west-1.amazonaws.com/underline.prod/uploads/markdown_image/1/image/312f1a59d8cffaca62e0a5edbead426c.png)

![](https://s3.eu-west-1.amazonaws.com/underline.prod/uploads/markdown_image/1/image/0146f3c52660cea859fde5ac0e7bed3d.png)

Thermal Analysis and Experimental Verification of Permanent Magnet Synchronous Motor by Combining Lumped Parameter Thermal Networks with Analytical Method

I. Introduction
Double mechanical port permanent-magnet (DMP-PM) motor is one of the research highlights in motor field in recent years[1],[2].As shown in Fig. 1, this motor called NS-DRFSPM
machine.In this paper,the performances of NS-DRFSPM machine under several fault operation conditions are compared and analyzed.The simultaneous operation of two groups of
armature windings and the first group of permanent magnets is called state I,namely S1;The simultaneous operation of two groups of armature windings and the second group of permanent
magnets is called state II,namely S2;The first group of armature windings and two groups of permanent magnets operate at the same time,which is called state III,namely S3;The second
group of armature windings and two groups of permanent magnets operate at the same time,which is called state IV,namely S4.
II.Performance comparisons
A series of comparisons of electromagnetic performance of several fault operation states are conducted by finite element analysis (FEA).Fig.2(a) compares the no-load phase back-EMF per
turn waveforms of four fault operation states of the NS-DRFSPM machine at 1500r/min based on FEA.It can be seen that the back-EMF amplitude of the third operating state of the motor
is the smallest,and the second is the largest.Fig.2(b) shows the flux linkage waveforms of four fault operation states of the NS-DRFSPM machine.The cogging torque waveforms of four
fault operation states of NS-DRFSPM machine shown in Fig.2(c).The cogging torque waveforms of state III and state IV are almost the same,and the torque ripple is the smallest.Fig.2(d)
present the electromagnetic torque of the NS-DRFSPM machine under id=0 control with current densities Jsa=5A/mm2.The best performance of average torque and torque ripple of the NSDRFSPM
machine is state II(6.9Nm,42.1%).
III.Conclusion
The other performance,such as the FFT results analysis and simultaneous fault operation of single armature winding and magnet,will be shown in the full paper.

**References:**

[1]J. Bai,P. Zheng,C. Tong,Z. Song,and Q. Zhao,“Characteristic Analysis and Verification of the Magnetic-Field-Modulated Brushless Double-Rotor Machine,” IEEE Trans.
Ind. Electron.,vol. 62,no. 7,pp. 4023–4033,Jul. 2015.
[2]X. Zhu,L. Chen,L. Quan,Y. Sun,W. Hua,and Z. Wang,“A new magnetic-planetary-geared permanent-magnet brushless machine for hybrid electric vehicle,”IEEE Trans. Magn.,vol.
48,no. 11,pp. 4642–4645,Nov. 2012.

![](https://s3.eu-west-1.amazonaws.com/underline.prod/uploads/markdown_image/1/image/36ec580b8e0c6f24ebdcfb371dd8ec59.png)

Fault Operation Analysis Of A Novel Dual Three

Surface Permanent magnet (SPM) motors are generally used in small traction applications due to high power density, simple designing and easy manufacturing processes.
SPM motors dominates the market particularly for small permanent magnet motors.However, the major concern with the SPM motors is their higher demagnetization risks due to close
exposure of PM to the stator windings [1]. In order to avoid demagnetization risks, such motors use the critical rare-earth permanent magnets (REPMs) which are prone to supply disruption
and critical availability, hence poses a long-time sustainability challenge [2]. Many attempts have been made [3-4], for reduction of critical REPMs in permanent magnet motors. However,
most of these attempts focus on the interior permanent magnet motors but rarely on SPM motors.
This work proposes a reduced rare-earth sandwich surface permanent magnet (SSPM) motor, which uses cost-effective and abundant ferrite permanent magnets (FPM, (BH)max=3 MGOe)
between two high-energy product rare-earth PM (Nd-Fe-B, (BH)max =33 MGOe) layers. The main idea of such a magnet structure is that the REPM drives the FPM to operate at higher
flux density which reduces demagnetization susceptibilities of the FPM without degrading torque capability of the motor. Equivalent magnetic circuit (EMC) approach is applied to
investigate the SSPM motor and the approach can also be applied to represent a sandwiched multiple type magnet structure with an equivalent single magnet. The performance of
sandwich-type magnets is carried out on a small traction motor (1.75 kW, 640 rpm motor) [5]. The output torque and demagnetization performance of the motor with different magnets are
given in Table-I and Fig.1. The present work offers a way to reduce the consumption of critical REPM materials in PM motors without significant performance degradation.
This research was supported by the Critical Materials Institute, an Energy Innovation Hub funded by the U.S. Department of Energy, Office of Energy Efficiency and Renewable Energy,
Advanced Manufacturing Office.

**References:**


[1] A. M. El-Refaie. T. M. Jahns, and D. W. Novotny, IEEE Trans. Magn., vol. 21, pp. 34-43, 2006.
[2] R. T. Nguyen, D. D. Imholte, A. C. Matthews, and W. D. Swank, Waste Management, vol. 83, Pp. 209-217, 2019,
[3] W. Wu, X. Zhu, L. Quan, Y. Du, Z. Xiang and X. Zhu, IEEE Transactions on Applied Superconductivity, vol. 28, pp. 1-6, 2018.
[4] Y. Chen, T. Cai, X. Zhu, D. Fan and Q. Wang, IEEE Transactions on Applied Superconductivity, vol. 30, pp. 1-6, 2020.
[5] N. Y. Braiwish, F. J. Anayi, A. A. Fahmy and E. E. Eldukhri, 49th International Universities Power Engineering Conference (UPEC-2014), pp. 1-5, 2014.

![](https://s3.eu-west-1.amazonaws.com/underline.prod/uploads/markdown_image/1/image/1385db3e839f65a432798cee8de616c9.png)

Design and Analysis of Reduced Rare Earth Magnet Surface Permanent Magnet Motor using Sandwich Magnets

Compared with non-grain-oriented silicon sheet (NGO), the grain-oriented silicon sheet (GO) has superior magnetic characteristic along its rolling direction, but bad
characteristic along other directions. GO silicon sheet is a popular material used in transformers [1]. For electrical machines, it can be only used to design the stator teeth [2]. While,
reasonable design and optimization of joint part between the GO silicon sheets and NGO silicon sheets is very important, otherwise the main performance of electrical machine with hybrid
GO - NGO cores will be reduced. In the pasts, optimizing main dimensions is a main mainstream however shape optimization of the joint part was neglected. In this paper, the shape design
optimization method is adopted for obtaining the best joint shape between the GO and NGO silicon sheets based on an 12 slot 8 pole (12s8p) interior permanent magnet machine (IPMSM)
as shown in Fig. 1(a). For achieving better machine performance, the magnetic barrier shape are optimized as well. Specifically, the GO silicon sheets are used for building the stator teeth,
and the others are made by NGO silicon sheets. By using finite element method (FEM), the main performance of the IPMSM with different GO silicon sheets can be obtained. Piecewise
linear interpolation method is used to establish the GO silicon sheets and rotor barrier shape, as shown in Fig. 1(b) and (c). Fig. 1(d) shows the obtained new rotor barrier shape after
optimization. For benchmark comparison the optimized traditional IPMSM with 12s8p and IPMSM with 48s8p with NGO silicon sheets are adopted. Fig 2 shows the performance
comparison of 12s8p IPMSM using NGO (NGO-IPMSM (12 Slot)), 12s8p IPMSM using GO teeth (GO-IPMSM (12 Slot)), 12s8p IPMSM using GO teeth and new magnetic flux barriers
(GO-B-IPMSM (12 Slot)), and 48s8p IPMSM using NGO (NGO-IPMSM (48 Slot)). More results will be presented in the final submission.


**References:**

[1] S. Magdaleno-Adame, T. D. Kefalas, A. Fakhravar and J. C. Olivares-Galvan, "Comparative Study of Grain Oriented and Non–Oriented Electrical Steels in Magnetic
Shunts of Power Transformers," 2018 IEEE International Autumn Meeting on Power, Electronics and Computing (ROPEC), 2018, pp. 1-7.
[2] Y. Tsuchiya and K. Akatsu, "A Study of the Switched Reluctance Motor using Grain-Oriented Electrical Steel Sheets," 2020 IEEE Energy Conversion Congress and Exposition
(ECCE), 2020, pp. 3623-3628.

![](https://s3.eu-west-1.amazonaws.com/underline.prod/uploads/markdown_image/1/image/67cb4ad2fcae4f71b67db00cb1102778.png)

Shape Design Optimization of Interior Permanent Magnet Synchronous Machine with Hybrid GO and NGO Silicon Sheet Cores

Bolting or sleeve are applied to permanent magnet synchronous generators (PMSGs) to prevent shattering permanent magnet (PM)-generated defects[1],[2]. Of these,
bolting is more useful than a sleeve during manufacturing. However, as the magnetic flux is reduced due to the material characteristics of the bolting, overhang structure is often used for
PM machines to compensate for the flux reduction[2]. Therefore, the axial length of the rotor must be considered during the overhang structure-based 3D analysis[2]. However, the analysis
of a 3D model with diverse and complex design variables is time-intensive[2].
In this study, we analyzed a PMSG considering the bolting and overhang structure based on an analytical method. Preferably, the initial design process must consider several variables, and
the analysis time of a PMSG with a complex structure must be reduced[2]. Characteristic analyses using a semi-3D method have been employed previously. However, there is a limit to the
variation of 2D design variables to ensure that they are not saturated when considering a 3D shape. Therefore, we propose analytical methods using electromagnetic transfer relations[3]. It
was used to analytical method considering the operating point of the PM calculated through magnetic energy analyses of the overhang and 3D models [2]–[4]. These were applied to the
region of PMs with the overhang[1],[2]. Performance analysis of the separated overhang and bolting regions was conducted based on the superposition principle[1],[2]. A circuit parameter
was derived based on the predicted results and applied to the equivalent circuit of the generator[2]. The performance results were compared with the 3D model and experimental results.
Figs. 1(a)–(c) and 2(a) illustrate the manufactured and analysis models, respectively. Fig. 2(b) depicts the variation in the operating point of the PM. Figs. 2(c) and (d) illustrate the results
obtained from the comparison of 3D, analytical, and experiment models. The results appear to be in near agreement.

**References:**

[1] K.H Shin, J.Y. Choi, "Electromagnetic Analysis of Permanent Magnet Synchronous Generator Considering Permanent Magnet Bolting" KOSMEE, pp. 154-154, 2018.
[2] J.S. Hong, K.H. Shin, J.Y. Choi.,"Semi-3D Analysis of a Permanent Magnet Synchronous Generator Considering Bolting and Overhang Structure." Energies 15, no. 12: 4374.2022.
[3] S. Jang, M. Koo, J. Choi, "Characteristic Analysis of Permanent Magnet Synchronous Machines Under Different Construction Conditions of Rotor Magnetic Circuits by Using
Electromagnetic Transfer Relations," in IEEE Transactions on Magnetics, vol. 47, no. 10, pp. 3665-3668, Oct. 2011.
[4] J. Song, J. H. Lee, S. Jung, "Computational Method of Effective Remanence Flux Density to Consider PM Overhang Effect for Spoke-Type PM Motor With 2-D Analysis Using
Magnetic Energy," in IEEE Transactions on Magnetics, vol. 52, no. 3, pp. 1-4, March 2016.

![](https://s3.eu-west-1.amazonaws.com/underline.prod/uploads/markdown_image/1/image/956e324ff4957d483718aecf3b454888.png)

Characteristic Analysis of a Permanent Magnet Synchronous Generator Considering Overhang and Bolting Structure Based on Analytical Method

In-wheel motor technology is committed to provide a better travel for electric vehicles (EVs), which leads the way to innovation for a new generation of EVs. Quite
excitingly, the in-wheel motor generates power directly in vehicle wheel. It means that improved power performance and operation efficiency can be achieved potentially for the EVs with
in-wheel drive. Generally, the motor torque guarantees general drive requirements, while the loss determines operation efficiency. It is noted that, during the design process of motor, there
is relatively complex association between the two performances. Hence, how to obtain a capability of excellent low-speed large-torque and low loss characteristic is the essential entry point
for the study of in-wheel motor [1],[2].
In this paper, the research on improvement of torque and loss characteristics is presented for a spoke-type in-wheel PM (SIW-PM) motor. In the perspective of flux modulation, a concept
of featured airgap harmonic is introduced into the motor design. By purposely designing the featured harmonic, a well tradeoff is realized between the torque and loss of SIW-PM motor.
Fig. 1 shows the topology of the motor. Fig. 2 shows an analysis of the amplitude of main harmonics, the torque contribution of harmonics, and the rotor magnetic density, in which the 5th
harmonic produces positive loss and negative torque. Reducing the amplitude of the fifth harmonic can effectively reduce rotor loss and improve the output torque. As is shown in Fig. 3,
sensitivity analysis is used to find the parameters with high sensitivity to 5th flux density harmonic amplitude [3]. Fig. 4 shows Pareto front of harmonic amplitude generated by parameter
optimization, in which optimal sample is selected as optimization results. Fig. 5 shows the rotor core loss distribution before and after optimization. The comparison of torque and rotor loss
before and after optimization is given, as shown in Fig. 6 and Fig. 7. The results show that the rotor core loss is reduced and the output torque is increased by suppressing the amplitude of
the 5th harmonic.
More detailed analysis and experimental verification will be presented in the full paper.


**References:**

[1] Z. Q. Zhu and J. T. Chen, IEEE Trans. Magn., vol. 46, no. 6, pp. 1447-1453, Jun. 2010.
[2] X. Zhou, X. Zhu and W. Wu, IEEE Transactions on Industrial Electronics., vol. 68, no. 8, pp. 6516-6526, Aug. 2021.
[3] G. Lei, C. Liu, and J. Zhu, IEEE Transactions on Energy Conversion., vol. 30, no. 4, pp. 1574-1584, Dec. 2015.

![](https://s3.eu-west-1.amazonaws.com/underline.prod/uploads/markdown_image/1/image/c7827f5aa3b08872bbd1e0a661e370f7.png)

![](https://s3.eu-west-1.amazonaws.com/underline.prod/uploads/markdown_image/1/image/843df94952500a84a3cb607be11f53cc.png)

Research on Improvement of Torque and Loss Characteristics for an In Wheel Permanent Magnet Motor Considering Featured

Electromagnetic interference (EMI) causes various serious problems such as data loss, misinterpretation of data, and cross-talk between electronic devices. Thus, the
materials with high shielding effectiveness (SE) have been quested to attenuate or reflect EM waves. Various materials and compositions and synthetic methods have been investigated,
optimized, and adapted to achieve the desired SE (> 30 dB) [1-4]. These approaches can provide the optimal SE of the material of interest but are costly due to a long period of optimization
and expensive characterization of investigated materials.
To reduce EMI materials development time and effort, we propose Artificial Intelligence (AI)-based modeling, predicting the SE of materials. We used MATLAB to create random input
parameters, Simulink to calculate SE, and Classification Learner to determine data reliability. We take the following nine input parameters to estimate SE of FINEMET (Fe-Si-Nb-Cu-BCr-
Mn-Ni-Co), MnZn-ferrite, and NiZn-ferrite: incoming electric field, transmission (TC) and reflection (RC) coefficients, thickness, frequency, and real and imaginary parts of
permeability (μr) and permittivity (εr). Fig. 1 shows the Simulink block diagram for calculating SE. First, we sampled 200 random TC and RC of the materials and then calculate the SEs
with seven fixed input parameters. Among calculated SEs (Fig. 2e), the reliable SEs (Fig. 2f) are determined using AI. Our preliminary results show that the reliability was 19.5%, meaning
that 39 of 200 samples are reliable. The estimated SE was compared with the experimental SE [1] to assess the accuracy of the developed AI modeling. The estimated and experimental
maximum SEs are 31.87 dB and 30.61 dB, respectively, as shown in Fig. 2 (d,f,g). Accordingly, the effectiveness of our proposed method is validated. We will present how to predict the
SE of EMI materials in detail.
*This work was supported in part by the National Science Foundation (NSF) IUCRC under Grant No. 2137275.

**References:**

[1] Anatoly B. Rinkevich, Dmitry V Perov, and Yuriy I Ryabkov, Materials, 14, 3499 (2021).
[2] Isa ARAZ, Turkish Journal of Electrical Engineering & Computer Sciences, 26, 2996 (2018).
[3] Jing Li, yao-Jiang Zhang, Aleksandr Gafarov, Soumya De, Marina Y. Koledintseva, Joel Marchand, David Hess, Todd Durant, Eric Nickerson, James L. Drewniak, and Jun Fan, 2012
IEEE International Symposium on Electromagnetic Compatibility, 646, (2012).
[4] Jae Man Song, Dong Il Kim, and Kyeung Jin O, Journal of the Korea Electromagnetic Engineering Society 6, 71, (2006).

![](https://s3.eu-west-1.amazonaws.com/underline.prod/uploads/markdown_image/1/image/dffa9d75db5d2f4d6290fa4e26108489.png)

EMI Materials Design for High Shielding Effectiveness using AI (Machine Learning)

Magnetic microrobots actuated by a magnetic navigation system (MNS) have gained importance as a versatile device with minimally invasive and wireless manipulation
abilities in various biomedical applications [1, 2]. Generally, MNSs are composed of multiple numbers of coils and massive turns of wires to generate a sufficiently strong magnetic field to
manipulate the microrobots’ mechanical motions. In our previous research, we proposed a geometrically compact and magnetically efficient MNS composed of a triad of electromagnetic
coils (TEC), as shown in Fig. 1 [3, 4]. In the TEC, there are only three control variables (three coil currents) for manipulating two-dimensional (2D) microrobots. In this research, we
investigated a new magnetic field generation method to improve the TEC’s magnetic efficiency in generating 2D microrobot motions. Based on the physical property of a magnetic coil that
acts as a pulling magnet for a microrobot, we established a process and several equations by which one can maneuver the 2D microrobot motions via the selective control of only two coil
currents of the TEC. We also employed a closed-loop controller for the method so that the microrobot can move along a programmed pathway actuated by the TEC. We then constructed an
experimental setup to demonstrate and validate the controlled motions of the microrobot using the proposed method. The experimental results shown in Fig. 2 state that the combination of
only two coils of the TEC can also generate relatively complex 2D motions of a microrobot. This research can contribute to developing an optimal MNS and strategy that can be used to
manipulate 2D magnetic microrobots for various biomedical and biological applications, including minimally invasive surgery, targeted drug and cargo delivery, microfluidic control, etc.

**References:**

[1] L. Wang, Z. Meng, Y. Chen and Y. Zheng, “Engineering magnetic micro/nanorobots for versatile biomedical applications.,” Advanced Intelligent Systems., vol. 3, no. 9, pp.
2000267, 2021.
[2] T. Xu, J. Yu, X. Yan, H. S. Choi and L. Zhang, “Magnetic actuation based motion control for microrobots: An overview.,” Micromachines., vol. 6, no. 9, pp. 1346-1364, 2015.
[3] H. Lee and S. Jeon, “Two-dimensional manipulation of a magnetic robot using a triad of electromagnetic coils.,” AIP Advances., vol. 10, no. 1, pp. 015003, 2020.
[4] H. Lee, D. Lee, and S. Jeon, “A two-dimensional manipulation method for a magnetic microrobot with a large region of interest using a triad of electromagnetic coils.,”
Micromachines., vol. 13, no. 3, pp. 416, 2022.

![](https://s3.eu-west-1.amazonaws.com/underline.prod/uploads/markdown_image/1/image/f2a7b23772ecbc9c0585cf2e34332da5.png)

A Selective Magnetic Field Generation Method for the Manipulation of Two Dimensional Magnetic Microrobots Using a Triad of Electromagnetic Coils

Recently, interior permanent magnet motors have been widely employed in various commercial electric vehicles. To expand the cruising range of EVs, the analysis and
improvement of efficiency for the IPM motors have attracted increasing attention [1]. For the IPM motors, a large current is often required to weaken the PM magnetic field to increase the
speed range, which inevitably increases the copper and iron losses of the motor, resulting in a decrease in efficiency under high speed [2]. Consequently, it is necessary and full of
challenges to research and expands the high-efficiency region of the IPM motor, especially at high speed. In this paper, by introducing the new magnetic field variable effect into an interior
PM motor, the variable magnetic field can be obtained under different operation conditions, which not only helps to reduce the copper and core losses under different operation conditions
but also widens high-efficiency region.[3]
Fig 1 shows the topology of the proposed VMF motor and the structure of the corresponding variable magnetic field. To explore the performance advantage of the proposed VMF motor,
three operation points are selected to investigated, which can be classified into two operation conditions, as shown in Fig. 2. By the purposeful design of variable magnetic field structure,
the increased efficiency of high-speed operation point and the expanded high-efficiency region can be realized. Fig 3 shows the comparison of the performance of the VMF and IPM motor,
including no-load flux density and back-EMF. Fig 4 shows the flux density distributions of the VMF motor under different operation condition. Furthermore, the loss distributions of the
IPM and VMF motor under different conditions are shown in Fig 5. As can be seen from the Table I and Fig6, the efficiency of the motor has been improved and broadened, especially at
point C, the efficiency has increased to 96.5%. Consequently, it is noted that the efficiency of the VMF motor is improved and the high-efficiency region is widened, which verifies the
effectiveness of the VMF motor design proposed in this paper.
More detailed analysis and experimental verification will be presented in the full paper.

References [1] W. Jiang, S. Feng and Z. Zhang, IEEE Transactions on Magnetics., vol. 54, no. 11, pp. 1-5, Nov. 2018, Art no. 8108005.
[2] H. Hua and Z. Q. Zhu, IEEE Trans. Energy Convers, vol. 32, no. 2, pp. 495-504, June 2017.
[3] A. Athavale, T. Fukushige and T. Kato, IEEE Trans. Ind. Appl., vol. 52, no. 1, pp. 234-241, Jan.-Feb. 2016.

![](https://s3.eu-west-1.amazonaws.com/underline.prod/uploads/markdown_image/1/image/9e14347c07624b96a8c7fffb30bff60f.png)

![](https://s3.eu-west-1.amazonaws.com/underline.prod/uploads/markdown_image/1/image/6815180aef14e6b9d69facecec7470ea.png)

Premium content

Design and Analysis of a New Field modulated Permanent Magnet Machine with an Improved PM Rotor

Next from MMM 2022

A New Magnetic Field Modulated Machine with Compound

Stay up to date with the latest Underline news!

PRESENTATIONS

CONFERENCES

COMPANY

RESOURCES
