The amorphous magnetic wires are widely used as magnetic or magneto-mechanical sensors due to their very soft magnetic properties and high sensitivity to stress. [1-4].&lt;br/&gt;A new design of a high sensitivity sensor with high capability to measure applied forces or load is proposed by this paper.&lt;br/&gt;The sensor consists in four pieces of high permeability Co&lt;sub&gt;68.18&lt;/sub&gt;Fe&lt;sub&gt;4.32&lt;/sub&gt;Si&lt;sub&gt;12.5&lt;/sub&gt;B&lt;sub&gt;15&lt;/sub&gt; amorphous magnetic wire, 120 Î¼m in diameter, 20 mm in length, glued prestressed on a pcb board having 0.3 mm in thickness, 7 mm in width and 30 mm in length (Figure 1). The ends of each wire is soldered on the PCB to form a Wheatstone bridge circuit. The opposite arms of the bridge are placed on the same side of the pcb to increase the bridge unbalance when stressed. Also, all wires forming the bridge arms are parallel and close one to another to minimize the effect of the surrounding magnetic field. By using different PCB support for the bridge, it is possible to tailor the sensitivity and force measuring range. A special designed electronic device was built to power the bridge using a high frequency sinusoidal signal and to extract and amplify the unbalanced voltage of the bridge.&lt;br/&gt;The dependence of the output voltage/gain versus applied force, for a signal excitation frequency of 1 MHz, is shown is showin figure 2. The sensor shows linear behavior between Â± 0.15N and sensitivity of 43.7 mV/N, without gain, in the linear region.&lt;br/&gt;Financial support by the NUCLEU Program (PN 19 28 01 01) is gratefully acknowledged.

MMM 2022

Tailorable force sensor based on stress magneto

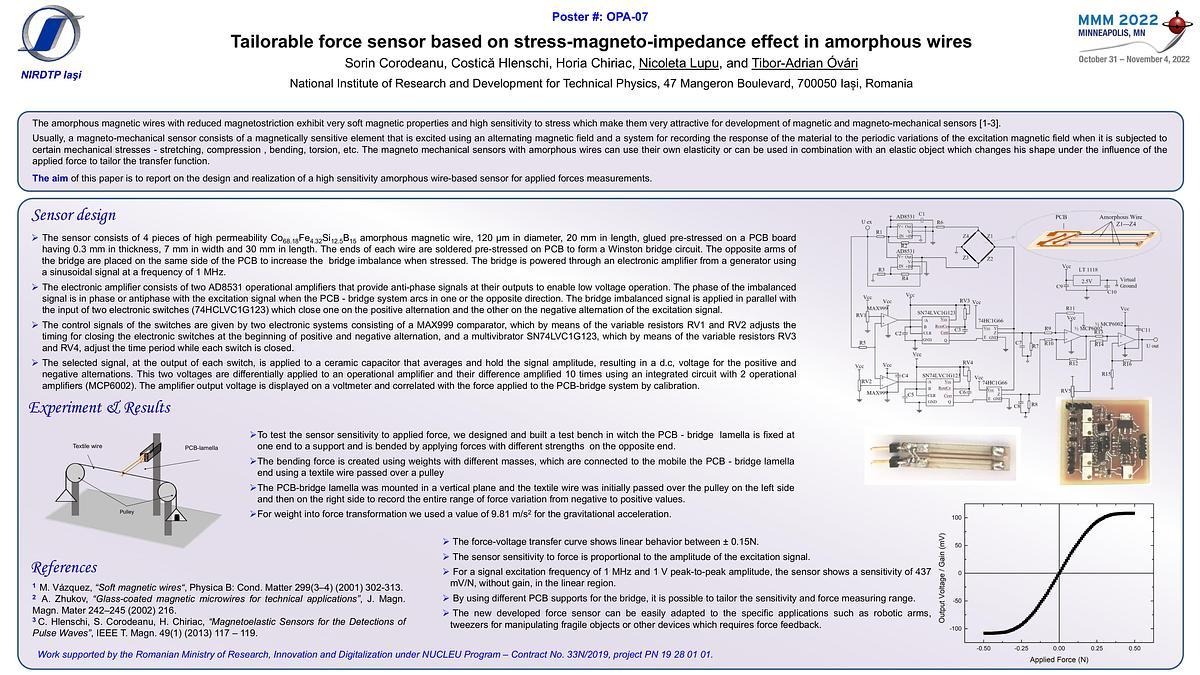

The amorphous magnetic wires are widely used as magnetic or magneto-mechanical sensors due to their very soft magnetic properties and high sensitivity to stress. [1-4]. A new design of a high sensitivity sensor with high capability to measure applied forces or load is proposed by this paper. The sensor consists in four pieces of high permeability Co68.18Fe4.32Si12.5B15 amorphous magnetic wire, 120 Î¼m in diameter, 20 mm in length, glued prestressed on a pcb board having 0.3 mm in thickness, 7 mm in width and 30 mm in length (Figure 1). The ends of each wire is soldered on the PCB to form a Wheatstone bridge circuit. The opposite arms of the bridge are placed on the same side of the pcb to increase the bridge unbalance when stressed. Also, all wires forming the bridge arms are parallel and close one to another to minimize the effect of the surrounding magnetic field. By using different PCB support for the bridge, it is possible to tailor the sensitivity and force measuring range. A special designed electronic device was built to power the bridge using a high frequency sinusoidal signal and to extract and amplify the unbalanced voltage of the bridge. The dependence of the output voltage/gain versus applied force, for a signal excitation frequency of 1 MHz, is shown is showin figure 2. The sensor shows linear behavior between Â± 0.15N and sensitivity of 43.7 mV/N, without gain, in the linear region. Financial support by the NUCLEU Program (PN 19 28 01 01) is gratefully acknowledged.

poster

#### Welcome to the 67th Annual Conference on Magnetism and Magnetic Materials, MMM 2022!

The Conference was held from October 31 to November 4 and offers both in-person and on-demand content.

MMM 2022 is sponsored jointly by AIP Publishing and the IEEE Magnetics Society. Members of the international scientific and engineering communities interested in recent developments in fundamental and applied magnetism are invited to attend and contribute to the technical sessions. The technical program will include invited and contributed papers in oral and poster sessions, invited symposia, a tutorial, and several special sessions. This Conference provides an outstanding opportunity for worldwide participants to meet their colleagues and collaborators and discuss developments in all areas of magnetism research.

<iframe width="560" height="315" src="https://s3.amazonaws.com/pf-user-files-01/u-59356/uploads/2022-11-02/un13zp7/MMM%20Welcome%20Video%20v5.mp4" title="YouTube video player" frameborder="0" allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture" allowfullscreen></iframe>

For tickets to the event, please register at the following link: https://magnetism.org/registration

Please register for the MMM 2022 conference to join the event.

This Conference provides an outstanding opportunity for worldwide participants to meet their colleagues and collaborators and discuss developments in all areas of magnetism research.

With the rapid advancement in electronics systems, there is a high demand for components that achieve size, weight, power, and cost reductions (SWaP+C). This need for greater miniaturization has contributed to a dramatic increase in heat generation within these systems, resulting in compromised performance, sacrificed reliability, and reduced device lifecycle.1 In addition, with ever-increasing spectral congestion and since electronic products incorporate faster components operating at higher frequencies than ever before, electromagnetic interference is becoming challenging to mitigate, posing a major concern for human health and the environment.2 It is therefore highly critical to develop high-performance material systems that can concurrently mitigate the detrimental effects of thermal and EM radiation while maintaining the highly desired SWaP+C configurations. To this effect, we have developed an innovative synthesis strategy involving melt blending, vacuum impregnation, and magnetic-field assisted spin coating to fabricate flexible multicomposite films comprising of FeSi particles (~30-50 Î¼m) and graphene nanoflakes (200-300 nm) confined in a shape-stabilized phase change material (PCM) matrix. In this multifunctional material, the PCM enables efficient heat absorption via the phase change process, the graphene flakes enhance the thermal conductivity to facilitate heat dissipation, and the FeSi particles enhance electromagnetic absorption in the X and Ku bands due to their high magnetization and magnetic anisotropy. With the synergistic effect of graphene and FeSi, the resulting composite displays a thermal conductivity of 0.60-0.75 W/mK, latent heat of 110-120 J/g at 70 Â°C, and excellent EM shielding effectiveness (SE) in the range of 10-60 dB depending on thickness in the range 200 Î¼m to 2 mm (an example is shown in Fig 1). Processing-structure-property correlations of the multifunctional films will be discussed in the context of their percolation threshold. Research supported by the Commonwealth Cyber Initiative (Grants HV-2Q22-003 and HV-4Q21-002).

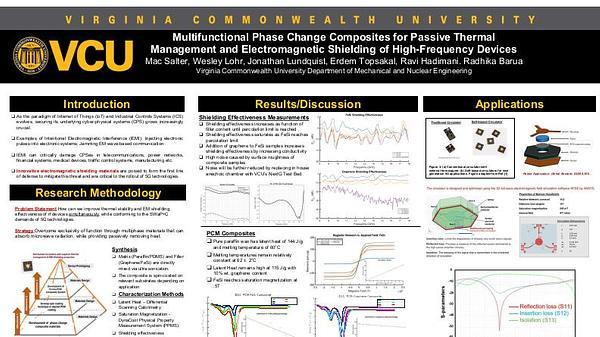

Multifunctional Phase Change Composites for Passive Thermal Management and Electromagnetic Shielding of High Frequency Devices
