Locomotion is a key aspect associated with ecologically relevant tasks for
many organisms, therefore, survival often depends on their ability to perform
well at these tasks. Despite this significance, we have little idea how
different performance tasks are weighted when increased performance in
one task comes at the cost of decreased performance in another. Additionally,
the ability for natural systems to become optimized to perform a
specific task can be limited by structural, historic or functional constraints.
Climbing lizards provide a good example of these constraints as climbing
ability likely requires the optimization of tasks which may conflict with
one another such as increasing speed, avoiding falls and reducing the cost
of transport (COT). Understanding how modifications to the lizard bauplan
can influence these tasks may allow us to understand the relative weighting
of different performance objectives among species. Here, we reconstruct
multiple performance landscapes of climbing locomotion using a 10 d.f.
robot based upon the lizard bauplan, including an actuated spine, shoulders
and feet, the latter which interlock with the surface via claws. This design
allows us to independently vary speed, foot angles and range of motion
(ROM), while simultaneously collecting data on climbed distance, stability
and efficiency. We first demonstrate a trade-off between speed and stability,
with high speeds resulting in decreased stability and low speeds an
increased COT. By varying foot orientation of fore- and hindfeet independently,
we found geckos converge on a narrow optimum of foot angles
(fore 20°, hind 100°) for both speed and stability, but avoid a secondary
wider optimum (fore −20°, hind −50°) highlighting a possible constraint.
Modifying the spine and limb ROM revealed a gradient in performance.
Evolutionary modifications in movement among extant species over time
appear to follow this gradient towards areas which promote speed
and efficiency.

SEB Annual Conference 2022

Using a biologically mimicking climbing robot to explore the performance landscape of climbing in lizards

Discover the art of creating extraordinary science at SEB’s Annual Conference at Le Corum Conference Center     in Montpellier, France from 5 to  8 July 2022.

SEB’s Annual Conference is celebrated for creating the perfect composition of research, new discoveries and collaborative connections. Be creative and innovative by exchanging ideas and knowledge with masters of biology from all over the world.

2022 will find over 1500 experimental biologists from across the globe converging on the third-largest French city near the Mediterranean coast and the fastest-growing city in the country over the past 25 years.
	<br><br><br>


Please register for the conference by clicking on this link:

https://www.sebiology.org/events/seb-annual-conference-2022/registration.html

The site will be open for registered participants closer to the event.

2022 will find over 1500 experimental biologists from across the globe converging on the third-largest French city near the Mediterranean coast and the fastest-growing city in the country over the past 25 years - Montpellier, France

technical paper

The design of robotic manipulators is confronted with a seemingly unavoidable trade-off between the level of flexibility versus strength. Unsurprisingly, nature has already come up with a solution and encapsulated it in a particular group of organisms: the seahorses. A seahorse’s body is completely enclosed in a highly articulated body armour, made of similar and modular bony plates. Yet, the combination of regional variation in this skeletal anatomy and the soft tissue interconnecting the skeletal units provides a rigid, yet controllable and flexible tail. A seahorse tail thereby intriguingly integrates these two seemingly mutually exclusive properties. Although the seahorse can serve as a bio-inspired foundation for designing a novel type of robotic manipulator, its actual design is far from intuitive and hard to do manually. This raises the need for automated design methodologies. One domain, named Evolutionary Robotics, applies evolution as an optimisation technique to provide a holistic perspective to automated robot design. Evolutionary Robotics has already shown its potential in conventional rigid robotics and provided the necessary backbone for the optimisation of more recent alternatives such as soft robotics. Our work lies at the intersection of biology and robotics, as we aim to create a generic evolutionary brain-body co-optimisation framework. Using this framework, we pursue the automated design of a seahorse-tail inspired robotic manipulator. From there on, the framework maintains applicability to other biomimetic experiments, next to providing a testbed for in-silico evolutionary experiments in biology.

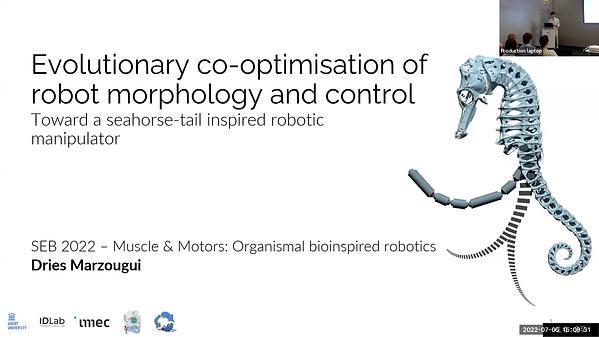

Evolutionary co-optimisation of robot morphology and control: toward a seahorse-tail inspired robotic manipulator
