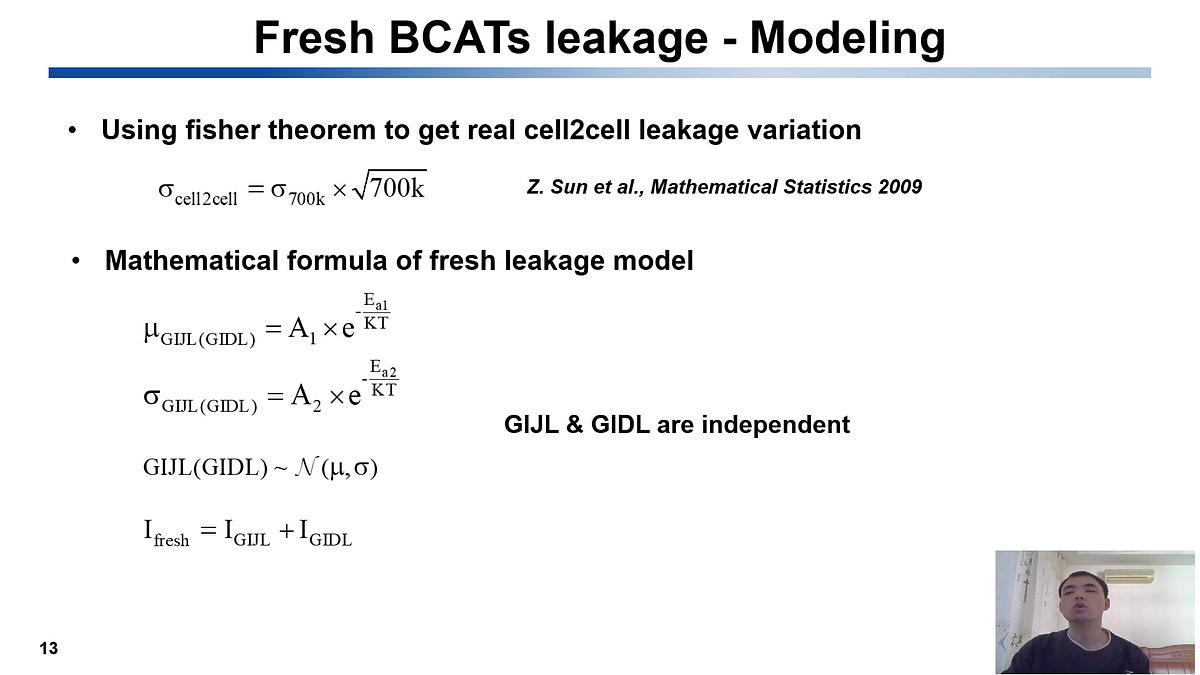

In advanced DRAM technology, buried-channel-array transistor (BCAT) will generate additional leakage during long-term read/write operations, leading to retention time reduction. In this work, we designed the accelerated aging test in wafer level and proposed a model for the long-term retention time prediction. By adding into conventional retention time simulation flow, the data of retention time at different operation time can be predicted. It was found that the aging can degrade retention time tail around 13% in 10 years. This work is thus helpful to the refresh scheme development considering aging effect.

IRPS 2022

New Insight into the Aging Induced Retention Time Degradation of Advanced DRAM Technologies

data retention time

leakage

dram

aging

monte carlo

technical paper

[![](https://assets.underline.io/uploads/markdown_image/1/image/f6b8cf9ecca2209dd3e0fcebe80a2915.png)](https://underline.io/events/282/reception)
[![](https://assets.underline.io/uploads/markdown_image/1/image/6b7a695cee2a4e6d07c0594938f00e41.png)](https://drive.google.com/file/d/1_V_fHL72jJWTmq-pUe-JJAR97y3dN5RX/view?usp=sharing)
[![](https://assets.underline.io/uploads/markdown_image/1/image/e787ff477f8d2b687fb0b54d83d35e11.png)](https://drive.google.com/drive/folders/1GAycr7pPrZG2ZzZP-geUL8vGWswjCB1N?usp=sharing)
[![](https://assets.underline.io/uploads/markdown_image/1/image/924447c4755e4e804db480b0504f6c13.png)](https://drive.google.com/drive/folders/1Mxu8R6jiCM_F1m_4pFdqgVKDfYaoTbtn?usp=sharing)
[![](https://assets.underline.io/uploads/markdown_image/1/image/7492fafcc0c623afe96fe15207855ed9.png)](https://www.irps.org/)




![](https://assets.underline.io/uploads/markdown_image/1/image/e1ce7df3286ab3a750966a5bf555716e.png)



**PROGRAM AT A GLANCE:**


![](https://assets.underline.io/uploads/markdown_image/1/image/fd55e96d31b53ac223d4e9b8d0186848.png)



**2022 IEEE International Reliability Physics Symposium has gone mobile!**

![](https://assets.underline.io/uploads/markdown_image/1/image/07a1cc9ee775657110a89eddbcc41388.jpg)




![](https://assets.underline.io/uploads/markdown_image/1/image/7a5e45b43771adf5ae4d3f97c1861ac1.png)
[![](https://assets.underline.io/uploads/markdown_image/1/image/a0cab03a0ec30cc71c71b5efec2ba603.png)](https://www.amd.com/en)[![](https://assets.underline.io/uploads/markdown_image/1/image/2921931b8aa0a090d96fd463670a0305.png)](https://www.cisco.com/)[![](https://assets.underline.io/uploads/markdown_image/1/image/d0cd3844560c9bdf8d4303b36d82dc69.png)](https://amazon.jobs/en/teams/lab126/)

![](https://assets.underline.io/uploads/markdown_image/1/image/c849d66095021f867725ff54b2c1f53e.png)
[![](https://assets.underline.io/uploads/markdown_image/1/image/8e648631fe7093b9613454de264d6745.png)](https://www.intel.com/content/www/us/en/homepage.html)[![](https://assets.underline.io/uploads/markdown_image/1/image/76970c33d96c19445badc60c21d890e8.png)](https://www.kioxia.com/en-emea/top.html)[![](https://assets.underline.io/uploads/markdown_image/1/image/546ecacb92116a8373a0cb2b3462dc1e.png)](https://about.google/)[![](https://assets.underline.io/uploads/markdown_image/1/image/91dca9e7aff5399ce0ea709d196c4f6a.png)](https://www.ibm.com/hr-en)[![](https://assets.underline.io/uploads/markdown_image/1/image/d1a1c95a5b0b551edea10f686f959c0d.png)](https://www.qualcomm.com/)[![](https://assets.underline.io/uploads/markdown_image/1/image/fa628a3cef7a5300e4ab59da0e0552fa.png)](https://www.samsung.com/hr/smartphones/galaxy-s22-ultra/?page=home)[![](https://assets.underline.io/uploads/markdown_image/1/image/948a0108c6b1b84e336b6f39bbc57fcf.png)](https://www.micron.com/)[![](https://assets.underline.io/uploads/markdown_image/1/image/74e631e654862d71a16d009817467e5c.png)](https://www.nvidia.com/en-eu/geforce/)[![](https://assets.underline.io/uploads/markdown_image/1/image/224a109509478bb0c4d361401ba65fae.png)](https://www.tsmc.com/english)[![](https://assets.underline.io/uploads/markdown_image/1/image/d70304be54ef831492c3cb99d8c1f3c7.png)](https://www.tel.com/)[![](https://assets.underline.io/uploads/markdown_image/1/image/7e60586f1c46e0157f2f452d4005fb54.png)](https://gf.com/)[![](https://assets.underline.io/uploads/markdown_image/1/image/e1c9bbe8892bbd4d89b81de064f31dfa.png)](https://www.appliedmaterials.com/)[![](https://assets.underline.io/uploads/markdown_image/1/image/dc19add30e3105172bdc93580e944dee.png)](https://www.ti.com/)[![](https://assets.underline.io/uploads/markdown_image/1/image/8e81ebc466ddd94f3fde7f3cdebb86c0.png)](https://www.skhynix.com/)[![](https://assets.underline.io/uploads/markdown_image/1/image/ccfa43258b058874e38e5903f79e63bc.png)](https://www.st.com/content/st_com/en.html)


![](https://assets.underline.io/uploads/markdown_image/1/image/e4c5690a7016a468518eeab6ed0f7e56.png)
[![](https://assets.underline.io/uploads/markdown_image/1/image/c33da95f78e91c05d51b787f02a1af01.png)](https://www.infineon.com/)
![](https://assets.underline.io/uploads/markdown_image/1/image/e708450912afd1718c5af9e9dfd70d3f.png)
[![](https://assets.underline.io/uploads/markdown_image/1/image/ffd1b2531ec1531672693a786e5a1b37.png)](https://eds.ieee.org/)[![](https://assets.underline.io/uploads/markdown_image/1/image/0a58c969093f21f088af904b1cb4e112.png)](https://rs.ieee.org/)

IRPS provides numerous opportunities for attendees to increase their knowledge and understanding of all aspects of microelectronics reliability. It is also an outstanding chance to meet and network with reliability colleagues from around the world.

Significant improvement of channel mobility in SiC MOSFETs with high reliability and deep understanding of bipolar degradation in SiC are presented. By excluding oxidation of SiC while adopting H2 etching prior to oxide formation and interface nitridation, a low interface state density of 6×1010 cm-2eV-1near the conduction band edge was achieved in SiC(0001) MOS structures, which resulted in more than two-fold improvement of channel mobility. A physics-based model for stacking fault expansion upon excess carrier injection is proposed. The critical excess carrier density for stacking fault expansion was estimated to be (4–6)×1014 cm-3 at 300 K. A design guideline of a “recombination-enhancement layer”, which prevents hole injection into the underlying substrate, is described.

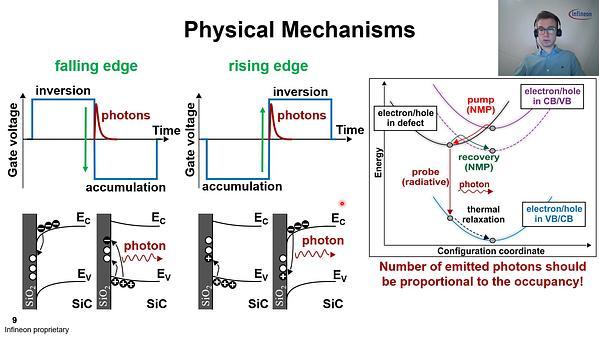

Optical Emission Correlated to Bias Temperature Instability in SiC MOSFETs
