The application of gate voltages in ferromagnet/Oxide/Heavy metal thin film multilayer has been identified as one possible candidate to manipulate their anisotropy at will [3], [1], [4]. Unfortunately, this method has proven to be unreliable in terms of the reversibility: e.g, the application of a gate voltage onMgO/CoFeB/Ta [3] causes an irreversible change of the magnetic anisotropy axis from in plane to out-of-plane, while HfO&lt;sub&gt;2&lt;/sub&gt;/CoFeB/Ta stacks display a more complicated behavior, with different regimes characterized by different reversibility behaviors [2]. The microscopic origin of these phenomena remains unclear and is the object of our inquiry. In this work we performed ab-initio simulations on 6 setups comprising Fe/O, HfO2/Fe, MgO/Fe interfaces each one with frontal and interstitial oxygen atomic configurations (fig.1). The pure Fe/O interface prefers interstitial oxygen configurations while the addition of oxides seems to switch this trend around. In particular, HfO2/Fe displays a strong preference for the frontal oxygen arrangement, leading us to identify a possible hypothesis for the phenomenon of the multiple magneto-ionic regimes displayed. In it’s as grown form, HfO2/CoFeB is characterized by an underoxidized ferromagnet interface [2]. The application of a gate voltage on HfO2/CoFeB pushes some of the oxygen species in proximity of the interface where they occupy the stable frontal site. Further application of a gate voltage pushes other oxygen atoms toward the still free and more unstable interstitial sites. The occupation of these interstitial sites has the effect of destroying perpendicular magnetic anisotropy as seen both in experiments and simulations [5] [1]. Once these more mobile interstitial sites are occupied, magnetic anisotropy can be switched reversibly by inverting the gate voltage and adjusting the interstitial site occupation (fig.2)

![](https://assets.underline.io/uploads/markdown_image/1/image/40c593503d5a4f3ee9c27db4ad2dc04d.jpg)

Comparison of the different interfacial configurations in the differentsamples. The bar plots represent the ground state energies and highlight themore stable configuration

![](https://assets.underline.io/uploads/markdown_image/1/image/f5dc5807d0f4552079d7a39375420a9e.jpg)

Hypothesis for the mechanism governing magneto-ionic regimes inHfO2/FM stacks. The text highlights the magnetic properties of the interface under different oxidation conditions.



2022 Joint MMM-INTERMAG

Reversible anisotropy manipulation via gate voltages in ferromagnet/oxide multilayers

Brought to you by **National Defense Industrial Association ([NDIA](https://www.google.com/url?q=https%3A%2F%2Fwww.ndia-sd.org%2F&sa=D&sntz=1&usg=AFQjCNHj_BQx1K4KVKKp1NTIsAltZOG9Vg))** and hosted by the **Battlespace Exploitation of Mixed Reality ([BEMR](https://cdn.dvidshub.net/media/video/2101/DOD_108139354/DOD_108139354-1024x576-1769k.mp4)) Lab**, at **Naval Information Warfare Center Pacific ([NIWC PAC](https://www.google.com/url?q=https%3A%2F%2Fwww.public.navy.mil%2Fnavwar%2FNIWC-Pacific%2FPages%2Fdefault.aspx&sa=D&sntz=1&usg=AFQjCNFNS160IEsocfaBrnCNB3u7NqLHPw))**, and welcoming academia, government/DOD, and industry leaders who support Industrial Augmented Reality/Virtual Reality by using the following technologies:


* Augmented Reality (AR) / Virtual Reality (VR)

* 2D/3D displays

* mobile displays

* wearables

* any other "immersive" technology

### In all fields that touch:

* 3D modeling

* Manufacturing

* Installations

* Maintenance and Repairs

* Construction

* Logistics

* Additive manufacturing

* Training

The technical exchange is a two day event held online this year due to COVID-19. It will feature two days of oral presentations, demonstrations, and posters from leaders in AR/VR and other display technologies, including government briefings on active projects within the DOD. The technical exchange is unclassified and we welcome participation from the Navy, DoD as well as from industry and academia.

The goals of TEAR 3M are:

*  To spread awareness of current immersive technology research relevant to Navy/DOD applications

*  To connect AR researchers with experts in DOD to learn about needs and requirements

*  To build and strengthen collaborations within the DOD research community

![](https://assets.underline.io/uploads/markdown_image/1/image/0c13ac0ffa096b2353573964d8b89789.png)

TEAR 3M General Chairs:

Heidi Buck,  Director @ BEMR Lab, Naval Information Warfare Center, Pacific

Lauren Burnette, BEMR Lab, Naval Information Warfare Center, Pacific


For more information, contact Lauren and Heidi at:  tear3m@spawar.navy.mil

Questions regarding sponsorship/registration contact:  ndiasd@sandiegositepros.com

Conference host POC is Tammy Sanchez (NDIA):  tamsanch@cisco.com

TEAR 3M 2021

The application of gate voltages in ferromagnet/Oxide/Heavy metal thin film multilayer has been identified as one possible candidate to manipulate their anisotropy at will [3], [1], [4]. Unfortunately, this method has proven to be unreliable in terms of the reversibility: e.g, the application of a gate voltage onMgO/CoFeB/Ta [3] causes an irreversible change of the magnetic anisotropy axis from in plane to out-of-plane, while HfO2/CoFeB/Ta stacks display a more complicated behavior, with different regimes characterized by different reversibility behaviors [2]. The microscopic origin of these phenomena remains unclear and is the object of our inquiry. In this work we performed ab-initio simulations on 6 setups comprising Fe/O, HfO2/Fe, MgO/Fe interfaces each one with frontal and interstitial oxygen atomic configurations (fig.1). The pure Fe/O interface prefers interstitial oxygen configurations while the addition of oxides seems to switch this trend around. In particular, HfO2/Fe displays a strong preference for the frontal oxygen arrangement, leading us to identify a possible hypothesis for the phenomenon of the multiple magneto-ionic regimes displayed. In it’s as grown form, HfO2/CoFeB is characterized by an underoxidized ferromagnet interface [2]. The application of a gate voltage on HfO2/CoFeB pushes some of the oxygen species in proximity of the interface where they occupy the stable frontal site. Further application of a gate voltage pushes other oxygen atoms toward the still free and more unstable interstitial sites. The occupation of these interstitial sites has the effect of destroying perpendicular magnetic anisotropy as seen both in experiments and simulations [5] [1]. Once these more mobile interstitial sites are occupied, magnetic anisotropy can be switched reversibly by inverting the gate voltage and adjusting the interstitial site occupation (fig.2)

![](https://assets.underline.io/uploads/markdown_image/1/image/40c593503d5a4f3ee9c27db4ad2dc04d.jpg)

Comparison of the different interfacial configurations in the differentsamples. The bar plots represent the ground state energies and highlight themore stable configuration

![](https://assets.underline.io/uploads/markdown_image/1/image/f5dc5807d0f4552079d7a39375420a9e.jpg)

Hypothesis for the mechanism governing magneto-ionic regimes inHfO2/FM stacks. The text highlights the magnetic properties of the interface under different oxidation conditions.

technical paper

The 15th Joint MMM-INTERMAG Conference (2022 Joint) is sponsored jointly by AIP Publishing and the IEEE Magnetics Society. Members of the international scientific and engineering communities interested in recent developments in fundamental and applied magnetism are invited to attend and contribute to the technical sessions. The technical program will include invited and contributed papers in oral and poster sessions, invited symposia, a plenary session, and an evening session, with about 1500 presentations overall. This Conference provides an outstanding opportunity for worldwide participants to meet their colleagues and collaborators and discuss developments in all areas of magnetism research.

The 2022 Joint Conference will offer both in-person and prerecorded on-demand content.

For tickets to the event, please register at the following link: https://magnetism.org/register

Please register for the Joint MMM-Intermag conference to join the event.

This Conference provides an outstanding opportunity for worldwide participants to meet their colleagues and collaborators and discuss developments in all areas of magnetism research.

CoFeB/MgO-based p-MTJs are the de facto standard for current STT-MRAM [1-7]. A Co/Pt-based Ru-synthetic antiferromagnetic (SyF) coupling reference layer is widely used in p-MTJs to compensate the stray magnetic field from the reference layer owing to its high thermal stability [4]. However, to scale down MTJs, a higher stable reference layer is required [8]. To improve the reference layer stability, an Ir-SyF coupling layer has been proposed [9]. To utilize the Ir coupling layer in the Co/Pt-based reference layer, one needs to understand the relationship between MTJ properties and sputtering conditions. In this study, we have investigated the effect of the sputtering conditions on the magnetic and transport properties and also compared them with those of Ru. We prepared two types of stacks with Co/Pt-based Ir- and Ru-SyF coupling layers, as shown in Figs. 1-2. Ir was deposited by two sputtering conditions, denoted as Condition-A and Condition-B. The stacks were annealed at 400°C for 1 h. The magnetic and transport properties of the MTJ stacks were measured using VSM and CIPT method, respectively. The stack with Condition-A exhibits a larger exchange coupling field Hex than that with Condition-B (Fig.1). In the EDX line analysis (Fig.2), Ir profile for Condition-A is wider than that for Condition-B, resulting in lower Hex for Condition-B. A possible reason for the different intermixing degree of Ir and Co seems to be that the atoms for Condition-A recoiled from the Ir sputtering target have a higher energy than the atoms for Condition-A[10]. The stacks with the Ir-SyF show lower TMR ratio (Fig.2), resulting from the Pt diffusion into the MgO barrier. In contrast, the stacks with Ru show high TMR ratio because the Pt diffusion is suppressed. These results indicate that the suppression of Ir and Pt diffusion in the reference layer is crucial to achieving robust MTJs that can withstand annealing. This work was supported by CIES’s Industrial Affiliation on the STT MRAM program, CIES Consortium, JST-OPERA, and NEDO.

![](https://assets.underline.io/uploads/markdown_image/1/image/8b97ecf7501066e33eae609224bcb3c4.jpg)

Fig. 1 Coupling layer thickness dependence of Hex for SyF.

![](https://assets.underline.io/uploads/markdown_image/1/image/fdf4e7680e9287faf2ebfc8521f25e40.jpg)

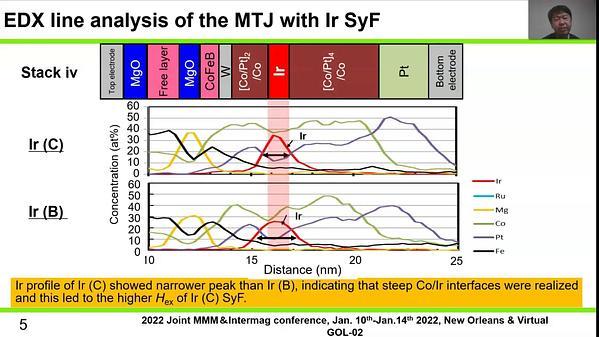

Fig. 2 EDX depth profiles of the stacks with (a) Ir for Condition-B, (b) Ir for Condition-A , and (c) Ru.

Influence of sputtering conditions on the magnetic properties of Co/Pt-based iridium-synthetic antiferromagnetic coupling reference layer

As one of the next-generation memory technologies, magnetic random access memory (MRAM) is of great interest because of its non-volatility, high access speed, large integration density and low power consumption. Current-induced spin-orbit torque (SOT) magnetization switching has been proposed for improving the writing performance of MRAM. Meanwhile, it has been demonstrated that the Co-based full Heusler alloys show potential for increasing the magnetoresistance ratio and achieving efficient reading due to their relatively large spin polarization1. Therefore, achieving the SOT magnetization switching in full Huesler alloys will be promising for optimizing both the reading and writing performance of MRAM devices. Here, we report a successful full SOT magnetization switching in a perpendicularly magnetized full Heusler alloy Co2FeSi2 by using Pd as a spin current generating layer. To eliminate the heating effect, a large writing pulse current with a pulse width of 0.1 ms (red columns in Fig. 1) was applied to switch the magnetization, and a small reading current of 1 mA (blue columns in Fig. 1) was applied for 0.5 s to read the Hall resistance. As shown in Fig. 2, with the assistance of the external magnetic field of 500 Oe, the magnetization can be fully switched with a switching current density of 3.7×107 A cm-2, which is in the same order of magnitude as that required in the conventional heavy metal (HM)/ferromagnet system even though the Pd shows a relatively smaller spin Hall angle than that of HM3. By using harmonic Hall measurements, the damping-like and field-like effective fields per unit current density are estimated to be 56.9 (10–7 Oe A–1 cm2) and 39.8 (10–7 Oe A–1 cm2), respectively. Our findings will advance the development of SOT-MRAM devices with both better reading and writing performance. This work was partly supported by Grants-in-Aid for Scientific Research (Nos. 18H03860, 20H05650, and 20F20366), CREST Program of JST (JPMJCR1777), Spintronics Research Network of Japan (Spin-RNJ), and Grant-in-Aid for JSPS Fellows (20F20366).

![](https://assets.underline.io/uploads/markdown_image/1/image/3b1aaee3c5eb41883e2f839f28df7ddf.jpg)


Fig. 1 Pulse current train used for the SOT switching measurements.

![](https://assets.underline.io/uploads/markdown_image/1/image/2dd84c170180b84b3de155838d52a263.jpg)

Fig. 2 SOT switching in the MgO/Co2FeSi/Pd heterostructure at room temperature.

Spin-orbit torque magnetization switching in a perpendicularly magnetized full Heusler alloy Co2FeSi

The rhythmic spiking behavior observed in biological neurons [1] has inspired oscillator based implementations of neural networks [2]. We theoretically investigate the use of synchronized spin-torque nano-oscillators (STNOs) to create an associative memory encoded with synaptic weights as time delays. STNOs frequency lock to external AC drives if the external drive frequency is close to the natural frequency of the STNO [3] but the relative phase varies with the details. Fig. 1 shows the implementation of a complex Hopfield network in which the relative phases between the synchronized STNO oscillations encode quasi-continuously varying information, such as the pixel values of a grayscale image. The synaptic feedback matrix implements a complex weight matrix by taking the AC output voltages from the STNO array and re-injecting weighted and time-delayed superpositions of AC currents back into the STNO array. The feedback matrix is set using one of several training methods. Then, retrieval of a stored pattern in the associative memory proceeds as shown in Fig. 2. The feedback is disconnected and the individual oscillators are injection locked to an array of external AC sources that encode the query image. A schematic evolution of the relative phases of the individual oscillators, starting from a random state, during this preparation phase is plotted in Fig. 2a. Then, the feedback connections are engaged and the network evolves towards one of the patterns stored in the synaptic weights as shown in Fig. 2b. We design CMOS circuitry to implement the synapses and use a compact model for the STNO dynamics to simulate the circuit with SPICE. These simulations give energy efficiencies and parametric restrictions on the properties of the STNOs and the CMOS circuitry needed for implementing large associative memories.

![](https://assets.underline.io/uploads/markdown_image/1/image/a51918677f3e133fdef9e7b4b0ee3a96.jpg)

Schematic of the complex Hopfield network implemented using STNO neurons

![](https://assets.underline.io/uploads/markdown_image/1/image/a751556a04383cb4f92620da4a94de34.jpg)

Steps involved in a typical pattern retrieval operation. (a) The phases of the oscillators are prepared to encode the query image by driving the oscillators with an array of external inputs. (b) The oscillators evolve towards one of the stored images as the feedback is turned on.



Complex Hopfield Networks Implemented Using Coupled Spin-Torque Oscillator Arrays

Spintronic diodes (STDs) are emerging as a technology for the realization of high-performance microwave detectors [1]. In this paper, we use their rectification properties to perform the analog multiplication between any two numbers. For this purpose, we introduce the concept of degree of rectification (DOR) and we confirm its applicability with micromagnetic and experimental data. The proposed method is suitable for highly integrated implementations and has promising perspectives for neural networks applications [2]. The multiplication can be obtained by measuring the response of a parabolic phenomenon to three well-determined inputs [3][4][5]. Therefore, we analyze the DOR of spintronic diodes, which is the output dc voltage measured for a variable input dc current in injection-locked devices. This Vdc/Idc curve can be well approximated to a parabola as shown in Fig. 1, the experimental data are taken from [6]. The voltage can be approximated by the following equation [6]: Vdc=[(RAP-RP )/4] Iac,MAX cos(φ(Idc)) √p (1) where RAP and RP are the device resistances in the antiparallel and parallel state, respectively, p is the power of the magnetoresistive signal, φ(Idc) is the intrinsic phase shift between the ac current and the magnetoresistive signal, and the cosine can be well approximated with a parable using Taylor’s second-order expansion. Moreover, Eq. 1 can be fully characterized knowing the physical parameters of the device and the values of Idc,MAX, Vdc,MAX (both represented in Fig. 1) and the second derivative of Vdc with respect to Idc evaluated in Idc=Idc,MAX. Fig. 2 shows the application of the presented method for 200 cases with random inputs, the red line shows the ideal result; the correlation coefficient found is r=99.83%. We will show how the proposed method can be used to implement the convolution for neural networks applications with excellent results for image recognition.

![](https://assets.underline.io/uploads/markdown_image/1/image/8be5d570eb2198667334d746191b22a6.jpg)

Fig. 1: Output dc voltage depending on the input dc current (data taken from [4]) for an injection-locked diode (blue circles) and parabolic fit (red line).

![](https://assets.underline.io/uploads/markdown_image/1/image/ef2d86778d75be9a7a2f863250048857.jpg)

Fig. 2: 200 multiplications obtained with the proposed method (black circles) compared with the ideal result (red line).

Analog multiplication implemented with spin-torque diodes for neural networks applications

Perpendicular Spin Transfer Torque Magnetic Random Access Memory (p-STT-MRAM) needs to combine high speed and low critical switching current at technological nodes below 30 nm. Higher STT write efficiency is therefore required. Double magnetic tunnel junctions (DMTJ) stacks have been proposed to achieve this goal [1-5]. The DMTJ critical switching current is decreased by the combined effect of the STT exerted from two antiparallel polarizers on the storage layer (SL). The retention is increased by doubling the SL/MgO interfaces contributing to the layer’s effective perpendicular anisotropy (PMA). Despite the efficiency advantage, the development of p-DMTJ presents several complexities. First, ensuring enough PMA for the top polarizer [6] and second, controlling the stray field compensation of both polarizers acting on the SL. A p-DMTJ structure having a switchable reference layer was recently proposed [7], showing through magnetic simulation similar performance as conventional p-DMTJ with static polarizers. In this work, we report experimental evidence of the working principle for this type of novel p-DMTJ. We fabricated and optimized an ASL-DMTJ structure having a switchable polarizer acting as a switching assistance layer (ASL). Fig.1.(a) and (b) show the two switching sequences, from AP to P and from P to AP states respectively. Both reversals show a transition through an intermediate resistance state (IRS). Differing from the working principles proposed in [7], the ASL is designed to switch its magnetic orientation during the write operation. This maximizes the STT efficiency independently of the switching direction, while also increasing the SL retention, since the assistance layer always aligns parallel to the SL in standby Fig.2(a)-(b). Validation of the switching sequences was possible by performing time-resolved resistance measurements Fig.2.(c)-(b).

![](https://assets.underline.io/uploads/markdown_image/1/image/0c7395b35a105c6f992d8d15bd884588.jpg)

Figure 1. (a) AP→P and (b) P→AP reversal sequence through an intermediated resistance state.

![](https://assets.underline.io/uploads/markdown_image/1/image/938d95a5c9fad68f070f40573955c5dd.jpg)

Figure 2. (a) RH of ASL-DMTJ (b) RV loops of ASL-DMTJ. (b) Real time AP→P switching sequence and (d) real time P to AP switching sequence both transiting through the IRS with (I) applied field, (II) at zero field.

Real time investigation of Double magnetic tunnel junction with switchable assistance layer for high efficiency STT-MRAM

Magnetoresistive random access memories (MRAM) based on spin-transfer torque are a scalable low-power memory solution being actively developed by industry, where the magnetization of a perpendicularly magnetized thin disk is reversed by a spin polarized current. During the switching process domain walls (DWs) can form [1-5] and understanding their dynamics in a disk geometry becomes of great interest. Here we show that DW surface tension always leads to oscillatory DW motion and instabilities that affect the switching dynamics. In a disk, a DW generally takes a circular form to minimize the sum of the surface and volume energies of the reversed domain, with the domain boundary perpendicular to the element boundary [1]. In a collective coordinate model the domain wall has two degrees of freedom, its position relative to the center of the disk q and the angle of the spins relative to the normal to the DW Φ. Here, Φ=0 is a Neel and Φ=90 deg. is a Bloch DW. We analyze the dynamics with micromagnetic and the collective coordinate model. Fig. 1a shows micromagnetic simulations of the evolution of the average perpendicular magnetization (mz) with fixed initial DW position q, such that mz&lt;0, and different initial angles Φ, with no field or current applied. Whereas both Neel and Bloch DWs states relax towards a reversed state (mz=-1), an intermediate initial angle DWs (Φ=45 deg) switches. Fig. 1b shows the (q,Φ) phase diagram indicating that the dynamics of domains close to the disk center is sensitive to small changes in Φ. Moreover, we show that the application of a spin-polarized current (I/Ic~0.2) mitigates the sensitivity of the final state to Φ. This opens a way to reduce the required power for a magnetization switching. The application of a short current pulse to nucleate a DW followed by a significant reduction of the pulse amplitude, well below the critical current, can still reliably switch the nanodisk (Fig. 2, blue curve); in this situation the power, which scales as I^2, can be drastically reduced.

![](https://assets.underline.io/uploads/markdown_image/1/image/ae7093247bc72273459ea2152e057f0d.jpg)

FIG. 1 a) Time evolution of mz for different Φ. b) (q,Φ) Relaxation phase diagram.

![](https://assets.underline.io/uploads/markdown_image/1/image/c3e1ee77b13cbb246c1c8906c9b8f14c.jpg)

FIG. 2 a) Time evolution of mz for two different currents after 5 ns. b) Spin-current amplitude as a function of the time.

Reduction of power consumption and micromagnetic instabilities associated with domain wall dynamics in perpendicular magnetic tunnel junction nanopillars

Reservoir computing (RC) is a computational framework where a fixed, non-linear reservoir maps the inputs into higher-dimensional space and the readout is trained with linear regression and classification [1]. Spintronic nanomagnetic devices are well suited for physical reservoir computing due to their interactive non-linear dynamics, recurrence characteristic, enduring lifetime, and low energy consumption [2-3]. A frustrated nanomagnet layer can also implement physical RC [4]. In this work, we demonstrate via micromagnetic simulation that a nanomagnet array excited by surface acoustic waves (SAW) can be used as a reservoir to classify sine and square waves with high accuracy. The simulated nanomagnet array has an input, 7 outputs (Fig. 1) and a 4 GHz SAW is applied to the input nanomagnet. The SAW amplitude is varied in such a way that its envelope forms a random sequence of sine and square waves of 100 MHz frequency (Fig. 2 (a)). The non-linear responses of the output nanomagnets due to this input are processed by reading the reservoir state every 1 ns while the period of the input is 10 ns. The envelopes of the output magnets’ magnetization are shown in Fig. 2 (b) which are used to train the output weights obtained by regression via Moore-Penrose pseudoinverse. For the classification, a random sequence of 100 square and sine wave samples are used. About 80 % of the total samples are trained, and the rest of the samples are used for testing. Various combination of the output nanomagnets exhibit 100 % training accuracy and 100 % testing accuracy which is indicative of the nanomagnet oscillator array being well suited for physical reservoir computing applications. Thus, this proposed strategy to implement reservoir computing could lead to energy efficient neuromorphic devices. Acknowledgment: M.F.F.C, W.A, D.B and J.A are supported in part by the National Science Foundation grant CCF-1815033.

![](https://assets.underline.io/uploads/markdown_image/1/image/ba0e1e285d3ea4a4474a2b29418b77a9.jpg)

Figure 1: A micro-magnetic snapshot of the input, the reservoir and output nanomagnets.

![](https://assets.underline.io/uploads/markdown_image/1/image/0bbde6989de89be932a0e0791dc0c7a5.jpg)

Figure 2: (a) SAW and input response (b) The envelopes of the responses vs. time (ns) of several output nanomagnets.

Surface Acoustic Wave Induced Nano-oscillator Based Reservoir Computing

In superparamagnetic tunnel junctions (SMTJ), the energy barriers that separate the parallel and the antiparallel magnetization configurations are sufficiently small that the thermal noise causes stochastic magnetization fluctuations between the two states. Through magnetoresistance effects, those stochastic fluctuations give rise to telegraphic noise signals with two voltage levels (see Fig.1) [1, 2]. The relative average time spent in each of the two configurations can be controlled by an applied dc current via the spin-transfer torque. Due to their inherent stochastic nature, SMTJs are promising candidates for truly random number generator applications [3, 4], brain-inspired and probabilistic computing [5-10]. However, an external bias magnetic field was always required to fully operate the SMTJ’s with current, which represents a drawback to their integration with the required microelectronic circuits. In this work, we report for the first time, SMTJs that are fully controlled by DC current at zero applied magnetic field using perpendicular magnetic tunnel junctions (pMTJ). Stable pMTJs are used in densely magnetic memories [11], nevertheless their thermal stability can be strongly reduced by tuning their free layer thickness, leading to a superparamagnetic state. Here, we use pMTJ’s with a free layer thickness of t=1.6 nm, and with diameters ranging from 150 nm to 80 nm. By applying a DC current in one direction (sign), without any external bias field, we observe stochastic fluctuations in the resistance for dc currents between -0.3 mA and -0.27 mA. As shown in Fig. 2, the average probability in being in high and low resistance state is well controlled by the applied current. In order to obtain good statistics on the extracted probability, we record to stochastic transitions. We extracted the dwell time distribution, which follows an exponential distribution with a mean dwell time that is in agreement with the modified Néel-Brown model. The authors acknowledge partial funding from ERC MAGICAL No 669204, and the Nanoscience Foundation (Grenoble, France).

![](https://assets.underline.io/uploads/markdown_image/1/image/032d011551d8698e3dc1b74244af9c81.jpg)

Figure 1 : Experimental voltage time trace of the SMTJ.

![](https://assets.underline.io/uploads/markdown_image/1/image/f8c0fe8daabe77b0c738c5d388eadce3.jpg)

Figure 2 : The probability of occupancy of the high resistance state versus current.

Current controlled perpendicular superparamagnetic tunnel junctions operating at zero applied magnetic field

Spin-transfer torque (STT) based magnetoresistive random-access memory (MRAM) is of great current interest for embedded applications, due to its high speed, high endurance, and long retention time. However, state-of-the-art STT MRAM requires a large switching current that leads to reliability issues, high write energy, and limits the density scaling. In this talk, we will show that a conventional current-controlled MTJ can be changed to a voltage-controlled device if we replace the thin oxide barrier with a resonant tunneling barrier. Such a simple modification will combine two established quantum phenomena: interlayer exchange coupling and resonant tunneling within the scaled magnetic structure to enable a resonant-exchange controlled (REC) magnetization switching [1]. REC-driven magnetization switching can substantially lower the write energy, decouple the energy and speed of operations, eliminate the reliability issues, and enable denser MRAM technologies. A voltage-controlled MTJ has a high baseline resistance, which may cause compatibility issues with standard CMOS. We will discuss a magnetic gain cell structure that consists of a REC MTJ and two transistors for a large separation in the output current for the two memory states while retaining the low power advantages of a voltage-controlled write mechanism [2]. We analyze the REC MTJ using quantum-transport simulations on a CoFeB/MgO/Ru/MgO/CoFeB structure and combine the results with an empirical SPICE model to analyze the magnetic gain cell using 45 nm CMOS models in HSPICE. Our simulation results suggest approximately 103 times change in the read current in the gain cell between the two magnetic states. The expected energy and delay are 29.5 fJ/bit and 1.6 ns respectively for a write operation and 7.6 ~ 39 fJ/bit and 0.6 ~ 1 ns respectively for a read operation, thus promising for low energy, fast, and high-density REC MRAM technology.

![](https://assets.underline.io/uploads/markdown_image/1/image/8f55c819fa0feacf6498620a60124061.jpg)

A magnetic gain-cell structure for efficient voltage-controlled MRAM

Voltage control of magnetism provides a promising path toward the development of low-power spintronic devices. Magneto-ionics exploiting voltage-driven ion migration as a control mechanism has attracted interest because it can generate large magnetoelectric effects at low voltage. Here, we demonstrate the use of all-solid-state lithium-ion battery technology for reversible voltage-controlled switching between perpendicular and in-plane magnetization states in a Co/Pt bilayer. The magneto-ionic battery structure consists of a 2 nm Ta/5 nm Pt/20 nm LiCoO2/70 nm LiPON/3 nm Co/5 nm Pt crossbar junction (Fig. 1a,b). Here, the LiPON film functions as a solid-state electrolyte and the LiCoO2 acts as the Li+ storage layer. Using magneto-optical Kerr effect (MOKE) microscopy, we show that the magnetization of the Co film switches between in-plane and perpendicular directions when voltages of +2.5 V and –2 V are applied (Fig. 1c,d). The magneto-ionic switching effect is reliably reproduced over multiple cycles (Fig. 2a,b) and switching takes less than 0.5 s at room temperature (Fig. 2c). Our structure can be cycled for &gt;500 times without degradation. The magnetoelectric coupling efficiency is estimated to be 7,700 fJ/Vm at room temperature, which is the strongest magnetoelectric effect reported to date. We attribute the effect to changes in the hybridization of electron orbitals at the Co/Pt interface upon voltage-controlled insertion and deinsertion of Li+ ions. Our work sets a new benchmark for lithium-based magneto-ionics and demonstrates the relevance of battery design principles for the development of low-power spintronic devices.

![](https://assets.underline.io/uploads/markdown_image/1/image/0e0e0a222892a8e22e21ad864ff48d48.jpg)

Fig. 1 (a) Schematic of the magneto-ionic battery structure. (b) Optical microscopy image of a single crossbar junction. (c) Polar and (d) longitudinal MOKE hystersis curves recorded at –2.0 and +2.5 V.

![](https://assets.underline.io/uploads/markdown_image/1/image/7f80d4c4edc9f54a6a38f9541a3f553c.jpg)

Fig. 2 Reversible voltage-controlled switching of (a) the perpendicular magnetization and (b) the in-plane magnetization in zero magnetic field. (c) Time-resolved modulation of the longitudinal MOKE signal at room temperature recorded while toggling the voltage between –2.0 V and +2.5V in 0.5 s intervals.

Reversible anisotropy manipulation via gate voltages in ferromagnet/oxide multilayers
