While classical electronics focuses on the control of the charge current, spintronics aims at using a spin current, e.g. a flow of angular momentum for logical and memory applications. One of the main use of such a spin current is magnetization switching used for writing in memory devices. Indeed, when a spin current enters into a ferromagnet, its angular momentum (or polarization) is transmitted to the magnetization, and possibly changes its orientation.&lt;br/&gt;The transfer of angular momentum from the spin current to the magnetization can be done in two ways depending on the relative orientation between the polarization and the magnetization direction. If they are collinear, the polarization is absorbed by the ferromagnet through diffusive processes originating from the spin switchings during scattering on defects. However, when the magnetization and polarization are transverse, ballistic processes originating from the conduction electron’s spin rotation around the exchange field of the ferromagnet drive the polarization absorption.&lt;br/&gt;Understanding the mechanisms of the spin current relaxation into a ferromagnet is therefore of crucial interest for spintronics applications, and remain a seldom explored fundamental question.&lt;br/&gt;One of the main difficulty in studying spin current relaxation in a ferromagnetic material is the fact that a charge current generates parasitic effects through the anisotropic magnetoresistance and planar Hall effect. We consequently used lateral spin valves, allowing the measurement of the spin relaxation in a ferromagnet with different relative magnetization direction using a pure spin current, e.g. a flow of angular momentum in the absence of charge current. This measurement allowed us to observe the spin-current relaxation anisotropy in a ferromagnet and to extract the spin mixing conductance, an elusive but fundamental parameter of the spin-dependent transport [1]. Finally, these results allows us to move toward the study of magnetization dependent Spin Hall Effect in ferromagnetic materials.

2022 Joint MMM-INTERMAG

Spin absorption anisotropy in lateral spin valves

INTERMAG 2021 Welcome Video




<figure class="video_container">
 <iframe src="https://screencast-o-matic.com/player/crflqFVnUpZ?v=6&ff=1&title=0&controls=1" width=640 height=360 frameborder="0" allowfullscreen="true"> </iframe>
</figure>

Want to buy a ticket?

Register for INTERMAG 2021 here

[![](https://assets.underline.io/uploads/markdown_image/1/image/17ce76e7960db633258024eef8d6da7f.png)](https://intermag.org/register)

Got your ticket, but still can’t access the event?

Contact us and our team will look into it.

INTERMAG 2021

While classical electronics focuses on the control of the charge current, spintronics aims at using a spin current, e.g. a flow of angular momentum for logical and memory applications. One of the main use of such a spin current is magnetization switching used for writing in memory devices. Indeed, when a spin current enters into a ferromagnet, its angular momentum (or polarization) is transmitted to the magnetization, and possibly changes its orientation. The transfer of angular momentum from the spin current to the magnetization can be done in two ways depending on the relative orientation between the polarization and the magnetization direction. If they are collinear, the polarization is absorbed by the ferromagnet through diffusive processes originating from the spin switchings during scattering on defects. However, when the magnetization and polarization are transverse, ballistic processes originating from the conduction electron’s spin rotation around the exchange field of the ferromagnet drive the polarization absorption. Understanding the mechanisms of the spin current relaxation into a ferromagnet is therefore of crucial interest for spintronics applications, and remain a seldom explored fundamental question. One of the main difficulty in studying spin current relaxation in a ferromagnetic material is the fact that a charge current generates parasitic effects through the anisotropic magnetoresistance and planar Hall effect. We consequently used lateral spin valves, allowing the measurement of the spin relaxation in a ferromagnet with different relative magnetization direction using a pure spin current, e.g. a flow of angular momentum in the absence of charge current. This measurement allowed us to observe the spin-current relaxation anisotropy in a ferromagnet and to extract the spin mixing conductance, an elusive but fundamental parameter of the spin-dependent transport [1]. Finally, these results allows us to move toward the study of magnetization dependent Spin Hall Effect in ferromagnetic materials.

technical paper

The 15th Joint MMM-INTERMAG Conference (2022 Joint) is sponsored jointly by AIP Publishing and the IEEE Magnetics Society. Members of the international scientific and engineering communities interested in recent developments in fundamental and applied magnetism are invited to attend and contribute to the technical sessions. The technical program will include invited and contributed papers in oral and poster sessions, invited symposia, a plenary session, and an evening session, with about 1500 presentations overall. This Conference provides an outstanding opportunity for worldwide participants to meet their colleagues and collaborators and discuss developments in all areas of magnetism research.

The 2022 Joint Conference will offer both in-person and prerecorded on-demand content.

For tickets to the event, please register at the following link: https://magnetism.org/register

Please register for the Joint MMM-Intermag conference to join the event.

This Conference provides an outstanding opportunity for worldwide participants to meet their colleagues and collaborators and discuss developments in all areas of magnetism research.

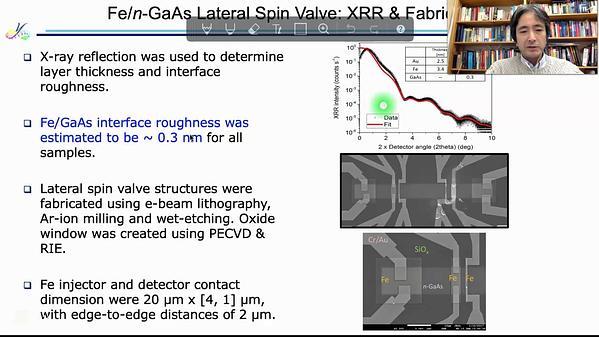

Efficient modulation of electrically-injected spin signals that is suitable for modern-day transistor functionality is yet to be established. In this work, we demonstrate in detail the fabrication of Fe/n-GaAs spin injection device and the experimental setup for an optical gating of the non-local spin transport signal. Three- and four-terminal Hanle measurements confirm successful spin injection into n-GaAs, with strong interfacial spin dephasing at high magnetic fields. Tunable-wavelength, time-resolved pump-probe Kerr rotation [1] was used to verify the strongest photoexcitation signal with 822 nm and the long spin relaxation time of ~ 2.4 ns in the channel n-GaAs layer. As seen in Figure 1, changes in the non-local spin transport signal, V3-4, were measured with the modulation light with opposite helicity illuminated in the region of pure spin current. The helicity-dependent optical modulation efficiency, calculated as the ratio between the difference and the sum of the signals at the opposite helicity, of (0.4 ± 0.3)% was obtained at 30 K at the maximum available laser power of 7 mW. Furthermore, in-situ scanning electron microscope interface imaging, developed by authors [2], was used to reveal the correlation between the contrast inhomogeneity of the Fe/n-GaAs injector interface and the injection current, as displayed in Figure 2. The larger contrast inhomogeneity observed at lower injection currents suggest “pin-hole” type charge transport at bias voltage lower than the Schottky barrier height.

![](https://assets.underline.io/uploads/markdown_image/1/image/1fb23f3b9f343fc75dd41d8812ec204e.jpg)

![](https://assets.underline.io/uploads/markdown_image/1/image/d955ce302deb8d7f30dd574b818b0b9c.jpg)

Development of an Optically-Gated Fe/n-GaAs Spin-Polarised Transistor

Development of an Optically-Gated Fe/n-GaAs Spin-Polarised Transistor

Nonreciprocal electrical transport responses arise in materials with broken inversion and time-reversal symmetries [1]. Although these nonlinear magnetoresistance or Hall effects are typically weak compared with their linear analogs, they can be used to probe exotic properties like spin-orbit interaction, spin textures and superconductivity. At the surface of the 3D topological insulator (TI) Bi2Se3, a nonlinear planar Hall effect (NPHE) was reported to exist due to the hexagonally warped spin structures [2]. This NPHE is expected to be small at low carrier densities because the hexagonal warping effect is negligible at the Dirac point. In this study, we observed a similar NPHE in Bi2Se3/CoFeB and magnetic insulator/Bi2Se3 heterostructures. Though with a lower carrier density, the NPHE in these systems is two orders of magnitude larger than the previously reported one. Moreover, the strength of this NPHE scales inversely with carrier density. This suggests that the intrinsic hexagonal warping is not the dominant mechanism for the observed NPHE. Instead, we attribute this large NPHE to the recently proposed extrinsic mechanism based on the interplay between current-induced spin-polarization and scattering from spin-momentum locking inhomogeneities [3]. Our results provide experimental evidence for this new mechanism and show that the NPHE can be enhanced by disorder engineering.

![](https://assets.underline.io/uploads/markdown_image/1/image/a5ea6152d1cf679c7030c2ca6f2fb62d.jpg)

Fig. 1 Nonlinear planar Hall effect in a YIG(2.46m)/Bi2Se3(8nm) sample.

![](https://assets.underline.io/uploads/markdown_image/1/image/895b64111427635788c6e4f435603dcd.jpg)

Fig. 2 Carrier density dependence of the nonlinear planar Hall effect.

Nonlinear planar Hall effect from spin-momentum locking inhomogeneities in topological insulator Bi2Se3

Diodes are a key component in electronics with their nature of asymmetric conduction enabling rectification in circuits. Non-linear response is one criterion to have such effects and spin waves, or the quanta magnons are known to be highly nonlinear with respect to input power or spin transfer torques (STT), which leads to microwave rectification in spin torque nano oscillators[1,2]. While non linear dynamics of magnons due to STT in confined geometry has been well studied thanks to the macrospin nature, its nonlinear nature has been so far elusive in extended films. We measure non-linear spin transport behavior of magnetic garnet thin films by spin orbit torques (SOT) in non-local geometry (Fig.1) [3] and report spin diode effect marked by a strong asymmetric conductance at large current density. Namely higher spin conductance is obtained for the polarity increasing spin fluctuations than for the opposite polarity. We demonstrate that spin diode effects are determined by the collective dynamics of magnetostatic magnons and emergence of the asymmetry requires to work in the long-range regime (large separation between the 2 electrodes &gt; 2μm) to efficiently filter out the spurious symmetric contribution of the rapidly decaying thermal magnons[3]. As the intensity of the spin current increases, the transport properties of magnetostatic magnons crosses 3 different regimes. i) At low currents, it is ballistic set by the film thickness. ii) Close to the damping compensation threshold, it switches to a highly correlated dynamical regime limited by spin-spin relaxation and shows a sharp increase of the non-local conductance. iii) As the temperature of the magnons approaches the Curie temperature, it switches to a diffusive regime, where the propagation length is reduced by collisions with thermal magnons, showing negative differential spin conductance (Fig.2).

![](https://assets.underline.io/uploads/markdown_image/1/image/e9026ed56a884d6b8ad6be08af8ce715.jpg)


Fig.1. Schematics of the four-terminal diode device which consists of two Pt electrodes (Pt1 and Pt2) separated by distance d on a Yttrium Iron Garnet thin film.


![](https://assets.underline.io/uploads/markdown_image/1/image/22ad15451ed7354affa41a5500699ba1.jpg)

Fig.2. Renormalized SOT contribution of the spin conduction i2 detected in Pt2 as a function of I1, the current injected in Pt1. Here T1 is the temperature of the Pt1 and Tc is the Curie temperature.

Spin diode effect in magnetic garnets

The longitudinal spin Seebeck effect (LSSE) is an efficient method for generating incoherent magnon excitations by applying a vertical temperature gradient across a magnetic material. To avoid the contamination of the thermally generated “pure” spin current by the electronic degrees of freedom, magnetic insulators are exclusively preferred for LSSE. Although the ferrimagnetic insulator Y3Fe5O12 (YIG) is known as the hallmark system for LSSE because of its ultra-low Gilbert damping,[1] other members of the insulating iron garnet family, including the compensated ferrimagnet Gd3Fe5O12 (GdIG), have recently attracted considerable interest due to their unique compensated spin configurations.[2] In particular, the fascinating observation of the change in sign of the LSSE signal in a GdIG/Pt bilayer around the magnetic compensation temperature due to reorientation of sublattice magnetizations has motived us to address to an emerging fundamental question: “Is there a general trend for the temperature dependence of LSSE in compensated ferrimagnets?” Therefore, we have performed a comprehensive investigation of LSSE in GGG/GdIG(t)/Pt(5nm) bilayers with 5 different thicknesses ranging between 31 and 272 nm. We find that all the GdIG films possess an in-plane magnetic easy axis, and the compensation temperature decreases from 270 to 220 K with decreasing film-thickness from 272 to 31 nm. Using a proposed rescaling method, we have demonstrated, for the first time, a “universal scaling” behavior for the temperature dependence of LSSE signal for our GdIG films with different compensation temperatures, which, we believe, holds true for other compensated ferrimagnetic systems as well. In addition, we have performed the LSSE study on a 31 nm GdIG film grown on lattice-mismatched GSGG substrate that exhibits an out-of-plane magnetic easy axis and observed a clear distinction in the magnetic field dependent LSSE signal, relative to the 31 nm GGG/GdIG film showing an in-plane magnetic easy axis. This highlights a strong correlation between the LSSE signal and the magnetic anisotropy in compensated ferrimagnets. Our findings will pave the way to explore LSSE in other novel compensated ferrimagnets.

Universal scaling of the temperature dependence of longitudinal spin Seebeck effect in compensated ferrimagnets

The seach for ferromagnetic insulating materials with multifunctional properties is currently a highly sought after objective in spintronics. In current spintronics, functional devices are typically made of a bilayer composed of a material with large spin-orbit coupling (NM) and a ferromagnet (FM). These type of devices allow functionalities like the manipulation of the FM magnetization by the spin Hall effect (SHE)1 in the NM or energy harvesting by means of its inverse counterpart the inverse spin Hall effect.2 Insulating ferrimagnets are preferred for this purpose to pave the way towards low dissipation spintronics devices.3 Additional functionalities like the possibility of the electric field control of the magnetic properties of such systems could be given to these heterostructures through the introduction of multifunctional ferromagnets opening the possibility of having more efficient and versatile devices.4 In this work we have studied the thermo-spin current generation in bilayers composed of Pt and the multifunctional magnetoelectric Ga0.6Fe1.4O3 (GFO).5 We compare the performance of the system with the widely used yttrium iron garnet obtaining a similar value of the spin Seebeck effect, likewise to what was observed previously in spin Hall magnetoresistance. We also rule out the possibility of a dominant proximity effect in the thermo-spin voltage by exploring the different magnetoresistive effects in the bilayer. In addition, by fabrication of thermo-spin devices with controlled dimensions we are able to accurately quantify the relevant parameters of the thermal effects, obtaining more accurate and comparable values for the spin Seebeck coefficient. These results pave the way for the use of the magnetoelectric multiferroic GFO with a view to control the spin current production of NM/FM heterostructures by an electric field.

![](https://assets.underline.io/uploads/markdown_image/1/image/13d9b9f0af0c5a8976a8a2c5fc7f452e.jpg)

Fig. 1. Thermo-spin current generation in YIG and GFO. The thermo-spin voltage is comparable in both systems.

Thermal spin current generation in the multifunctional ferrimagnet Ga0.6Fe1.4O3

Charge-spin interconversion using large Spin Orbit (SO) material has been intensively studies thanks to potential spintronic application in information and communication technology. It has been demonstrated that the interface between heavy metal and both metallic and insulating ferromagnetic layers could lead to spin current absorption and manipulation of the magnetization driven by electrical pulse[1][2]. More recently Rashba surface states and Topological insulator (TI) have been reported like a good candidate for the spin to charge interconversion[3]. Nevertheless, current shunting by metallic ferromagnet at the interface with TI makes hard to address unambiguously the charge to spin conversion from surface states. As a supplementary effect, the role of proximity effect and exchange interaction in between ferromagnetic material and TI needs to be clarified. To comprehend this issue, we first grow a thin film of magnetic insulator Tm3Fe5O12(TmIG) by off-axis sputtering and demonstrated the high quality of the film in the thickness range of 5 to 15 nm (Figure. 1(a)). We achieved to demonstrate, as a reference experiment, spin current absorption at the interface in between Pt and TmIG by 2nd harmonic experiment to extract torque and magnetization reversal driven by pulse current experiment. The high quality of the film makes possible to growth by MBE Bi2Se3 TI on top of it as illustrated in Figure 1(b). The TmIG films exhibit perpendicular magnetic anisotropy (Figure 1 (c)) with nearly bulk magnetization. We will address a comparative study of the interfacial effect when using SHE material (Pt) or TI (Bi2Se3) with ferromagnetic insulator TmIG. This work has been supported by the Defense Advanced Research ProjectsAgency (DARPA) Topological Excitations in Electronics (TEE) program, through Grant MIPR No. HR0011831554.

![](https://assets.underline.io/uploads/markdown_image/1/image/d2384c7e071cf59f2e36c9d864aa2f2a.jpg)

Figure 1 (a) X-Ray (θ-2θ) diffraction patterns recorded on TmIG(5-15nm) thin films grown on GGG substrate. (b) RHEED patterns recorded before (on TmIG surface) and after Bi2Se3 growth. (c) Magnetization hysteresis recorded in out-of-plane field on TmIG(15nm) sample.

Towards the development of Tm3Fe5O12 magnetic insulator and Bi2Se3 topological insulator for charge-spin interconversion

The combination of spin-driven thermoelectric (STE) devices based on spin Seebeck effect (SSE), and radioactive isotopes as heat sources, has potential as a next-generation method of power generation in applications such as power supplies for space probes. However, there has been very limited knowledge available [1] indicating the irradiation tolerance of spin thermoelectric devices. Through analysis using a heavy ion-beam accelerator and the hard X-ray photoemission spectroscopy (HAXPES) measurements, we show that a prototypical STE device based on Y3Fe5O12/Pt heterostructures has tolerance to irradiation of high-energy heavy-ion beams [2]. We used 320 MeV gold ion beams modeling cumulative damages due to fission products emitted from the surface of spent nuclear fuels. By varying the dose level, we confirmed that the thermoelectric and magnetic properties of the SSE elements are not affected by the ion-irradiation dose up to 1010 ions/cm2 fluence and that the SSE signal is extinguished around 1012 ions/cm2, in which the ion tracks almost fully cover the sample surface. In addition, the HAXPES measurements were performed to understand the effects at the interface of Y3Fe5O12/Pt. The HAXPES measurements suggest that the chemical reaction that diminishes the SSE signals [3] is enhanced with the increase of the irradiation dose. We share the current understandings of the damage analysis in Y3Fe5O12/Pt for developing better STE devices applicable to harsh environmental usages. This work was supported by MEXT Innovative Nuclear Research and Development Program Grant Number JPMXD0212345678.

The damage analysis for irradiation tolerant spin-driven thermoelectric device based on Y3Fe5O12/Pt heterostructures

Recent discovery of “unexpected” spin-orbit torques (SOTs) within magnetic single layers has attracted attention. However, it has remained elusive as to how to understand and how to tune the SOTs. In this talk, we will first show a strong bulk dampinglike SOT and its characteristics in composition-uniform ferromagnetic CoPt that is polycrystalline and chemically disordered. We find that the bulk dampinglike SOT arises from the interplay of a strong bulk spin Hall effect of CoPt (an imbalanced internal spin current that is transversely polarized and independent of the magnetization orientation) with a “hidden” inversion symmetry-breaking (not a gradient in composition, magnetism, electron scattering, or grain shapes). In the second part, utilizing the single layers of chemically disordered FexPt1-x, we unveil the mechanism of the bulk SOTs by studying their dependence on the introduction of a controlled vertical composition gradient and on temperature. We find that the associated “hidden” inversion symmetry-breaking that allows for a non-zero net torque is most likely a strain non-uniformity that can arise from a composition gradient and/or the substrate. The findings point to the possibility of developing low-power single-layer SOT devices by strain engineering.

Bulk spin-orbit torques in centrosymmetric magnetic single layers

The spin Hall effect, and its inverse, are important spin-charge conversion mechanisms widely investigated due to their fundamental importance in the development of spintronics devices. Its measurement has been mostly related to electrical detection schemes involving an interface with another magnetic material and thus, a combination of the properties of both materials as well as the interface are measured. The large scattering of reported results from these methods for the same material and temperature call out for a more direct and interface-free approach. Optical detection schemes have been successfully used for the determination of SHE in semiconductor. However, this approach has proven challenging for metallic systems, due to their considerably shorter spin diffusion lengths. Only recently, optical measurements for Pt and W have been reported [1]. Considering that magnetic circular dichroism (XMCD) has become a reference tool for precision measurements of small or diluted magnetic signals, We propose the use of XMCD-PEEM microscopy for direct, interface-free determination of SHE in metals. In particular, we report the observation of spin separation due to SHE in a single layer of Bi-doped Cu (Cu95Bi5), a material in which giant SHE has been already reported [2,3]. We have performed interface free x-ray spectroscopy measurements at the Cu L3,2 absorption edges while applying electrical current to the sample. The sign of spin accumulation depends on the direction of the current and the amplitude of the X-ray magnetic circular dichroism (XMCD) signal scales with the density current and have different sign when measuring in the L2 or L3 absorption edges, as expected for SHE. We have measured an induced magnetic moment of (2.7 ± 0.5) x 10-12μB A-1 cm2 per Cu atom averaged over the probing depth, which is of the same order as for Pt measured by magneto-optics. Our results constitute the proof of concept for the direct, interface free and element-selective measurement of the SHE in a single material by means of X-ray spectromicroscopy and highlight the potential of CuBi for spin-charge conversion applications [4].

![](https://assets.underline.io/uploads/markdown_image/1/image/0f5bce09fb325fa1a3fcfbf281b8cd98.jpg)

(a) Visualization of the spin accumulation in a Cu95Bi5 electrode. (b) XMCD signal.

Direct X-ray detection of the spin Hall effect in CuBi

Precise control of magnetic dynamics can enable many novel computing applications, including magnetic random access memory and spin torque oscillator-based neuromorphic computing. Spin torques stand out as an excellent tool for efficiently manipulating magnetic states, and can be easily produced via spin-orbit effects in a spin source layer. Unfortunately, underlying crystal symmetries in the spin source material often restrict the geometry of the spin torques, making them poorly suited to practical applications. Magnetic ordering can break the symmetries of a spin source material and allows the generation of versatile spin torques with controllable geometries tailored to applications. Antiferromagnetic materials in particular have robust magnetic ordering that makes them ideal as spin sources. We present spin torque ferromagnetic resonance measurements (Fig. 1) and second harmonic Hall measurements characterizing the geometry and efficiency of spin torques generated in antiferromagnetic iron rhodium alloy. We find highly temperature-dependent spin torques with spin torque efficiencies above 90% at room temperature and above 300% at 170K, much higher than most competing materials. Further, these torques do not show the angular dependence expected for ordinary spin Hall torques. Instead, it appears that the torque derives from a spin current with spin polarization parallel to the FeRh magnetic order, which makes these torques useful for exciting dynamics in a variety of samples. This makes iron rhodium a compelling option for the development of spin torque technology. This work was supported as part of Quantum Materials for Energy Efficient Neuromorphic Computing, an Energy Frontier Research Center funded by the U.S. DOE, Office of Science.

![](https://assets.underline.io/uploads/markdown_image/1/image/2acaeb111f16139961cbc9f870795133.jpg)

Fig. 1 DC Biased Spin Torque Ferromagnetic Resonance. (a) Diagram of the measurement setup. (b) Characteristic resonance scans. (c) Linewidth over a range of DC currents. Increasing current increases the spin current, modifying the effective damping linearly. Shown at 300K, 275K, 260K, and 170K. (d) Spin torque efficiency is huge and grows by a factor of 3.5 between 300K and 170K.
