AC losses in segmented rare earth magnets
Gerhard Martinek, Maximilian Lanz, Gerhard Schneider, Dagmar Goll
Aalen University, Materials Research Institute, Aalen, Germany

In permanent magnet machines, significant eddy current losses may occur in the electrically conducting rare earth magnets. It has become common practice to reduce these losses by segmenting the magnets into thin, electrically insulated slices. Magnets with varying degrees of segmentation, often referred to as “laminated” magnets, are now readily available from numerous permanent magnet suppliers.
The reduction of eddy currents is straightforward and can be evaluated using numerical modeling or analytical formulae. However, the developers of the machines often pay little attention to the disadvantages of segmenting. One obvious consequence is the loss in magnet volume due to the gaps between the magnet segments: In magnets with very high degrees of segmentation, adhesive and spacers (for electrical insulation) may make up several percent of the magnet volume. Further negative consequences arise from the degradation of the magnetic properties at the surfaces of rare earth magnets. The well-known formation of surface layers with reduced coercivity will not only cause a further reduction of the useful magnetization levels. It may also give rise to hysteresis losses in alternating fields. The creation of additional magnet surfaces by segmenting is therefore not without risk. Determining the degree of segmentation without considering possible surface losses can potentially lead to severely incorrect decisions in the design of an electrical machine.
In order to assess these dangers, segmented rare earth magnets were characterized by two kinds of magnetic measurements [1]: Static hysteresis curves, including minor loops, were determined in a conventional hysteresisgraph. Dynamic loss measurements at frequencies up to 2000 Hz were performed using a custom-made laminated yoke.
The static demagnetization curves of segmented NdFeB magnets show a pronounced drop at small demagnetizing fields. The amplitude of this drop corresponds to low-coercive surface layers with a thickness of about 15 µm. In Sm2Co17 magnets, the curve shape is not affected by segmentation.
AC loss measurements show the expected reduction of eddy current losses by segmentation in the NdFeB and in the Sm2Co17 samples. However, the NdFeB magnets also show hysteresis losses, which increase with finer degrees of segmentation. In an AC field of ± 80 kA at 1000 Hz, the total losses in NdFeB samples thus show a minimum for a segmentation into 2 mm slices. For finer segmentation, the losses increase again, and the total losses at 0.5 mm segmentation were of the same magnitude as in the samples without any segmentation.
Segmentation did not lead to hysteresis losses in Sm2Co17. However, this material did show substantial hysteresis losses at larger field amplitudes. These losses were independent of the degree of segmentation, showing the same level in bulk and in heavily segmented samples.
The strong hysteresis losses in NdFeB are observed for AC fields oscillating around H = 0. DC bias fields of &gt;100 kA/m reduce the hysteresis losses by more than one order of magnitude.
Determining the hysteresis losses from quasi-static minor loop measurements gives similar results as found in the AC measurements. An evaluation of the hysteresis losses is thus possible by hysteresisgraphs, which are more widely available than AC measuring systems for permanent magnets.
[1] G. Martinek, M. Lanz, G. Schneider, D. Goll; J. Appl. Phys. 128, 113902 (2020), doi.org/10.1063/5.0010031


REPM 2021: The 26th International Workshop on Rare-Earth and Future Permanent Magnets and their Applications

AC losses in segmented rare earth magnets

surface damage

hysteresis losses

segmented magnets

It is our great pleasure to invite you to attend the 26th International Workshop on Rare Earth and Future Permanent Magnets and Their Applications (REPM2021) which will be held virtually on June 7-10, 2021. Please note, this is an updated schedule due to COVID-19 travel restrictions which forced us to postpone the conference from summer of 2020. The REPM workshop takes place every two years and is the premier conference on permanent magnets covering a wide range of topics including:

* Rare earth magnets
* Rare earth-free magnets
* Raw materials, mining and recycling
* Advanced synthesis, processing and characterization techniques
* Theoretical modeling of coercivity
* Fundamental properties of advanced magnetic materials
* Thin film magnets
* Applications of permanent magnets

***Workshop***
The workshop will be chaired by Professor George C. Hadjipanayis, University of Delaware, Newark, DE and Dr. Jinfang Liu, President & COO of Electron Energy Corporation, Landisville, PA.
The objectives of the workshop are to bring together engineers and scientists who work on permanent magnets and their applications to present their latest results and exchange ideas on a wide range of relevant topics including resources, raw materials, recycling, processing, fundamental and hard magnetic properties and applications of rare earth and future magnets.

To regsiter for this event, please follow the link below.

AC losses in segmented rare earth magnets
Gerhard Martinek, Maximilian Lanz, Gerhard Schneider, Dagmar Goll
Aalen University, Materials Research Institute, Aalen, Germany

In permanent magnet machines, significant eddy current losses may occur in the electrically conducting rare earth magnets. It has become common practice to reduce these losses by segmenting the magnets into thin, electrically insulated slices. Magnets with varying degrees of segmentation, often referred to as “laminated” magnets, are now readily available from numerous permanent magnet suppliers.
The reduction of eddy currents is straightforward and can be evaluated using numerical modeling or analytical formulae. However, the developers of the machines often pay little attention to the disadvantages of segmenting. One obvious consequence is the loss in magnet volume due to the gaps between the magnet segments: In magnets with very high degrees of segmentation, adhesive and spacers (for electrical insulation) may make up several percent of the magnet volume. Further negative consequences arise from the degradation of the magnetic properties at the surfaces of rare earth magnets. The well-known formation of surface layers with reduced coercivity will not only cause a further reduction of the useful magnetization levels. It may also give rise to hysteresis losses in alternating fields. The creation of additional magnet surfaces by segmenting is therefore not without risk. Determining the degree of segmentation without considering possible surface losses can potentially lead to severely incorrect decisions in the design of an electrical machine.
In order to assess these dangers, segmented rare earth magnets were characterized by two kinds of magnetic measurements [1]: Static hysteresis curves, including minor loops, were determined in a conventional hysteresisgraph. Dynamic loss measurements at frequencies up to 2000 Hz were performed using a custom-made laminated yoke.
The static demagnetization curves of segmented NdFeB magnets show a pronounced drop at small demagnetizing fields. The amplitude of this drop corresponds to low-coercive surface layers with a thickness of about 15 µm. In Sm2Co17 magnets, the curve shape is not affected by segmentation.
AC loss measurements show the expected reduction of eddy current losses by segmentation in the NdFeB and in the Sm2Co17 samples. However, the NdFeB magnets also show hysteresis losses, which increase with finer degrees of segmentation. In an AC field of ± 80 kA at 1000 Hz, the total losses in NdFeB samples thus show a minimum for a segmentation into 2 mm slices. For finer segmentation, the losses increase again, and the total losses at 0.5 mm segmentation were of the same magnitude as in the samples without any segmentation.
Segmentation did not lead to hysteresis losses in Sm2Co17. However, this material did show substantial hysteresis losses at larger field amplitudes. These losses were independent of the degree of segmentation, showing the same level in bulk and in heavily segmented samples.
The strong hysteresis losses in NdFeB are observed for AC fields oscillating around H = 0. DC bias fields of >100 kA/m reduce the hysteresis losses by more than one order of magnitude.
Determining the hysteresis losses from quasi-static minor loop measurements gives similar results as found in the AC measurements. An evaluation of the hysteresis losses is thus possible by hysteresisgraphs, which are more widely available than AC measuring systems for permanent magnets.
[1] G. Martinek, M. Lanz, G. Schneider, D. Goll; J. Appl. Phys. 128, 113902 (2020), doi.org/10.1063/5.0010031


poster

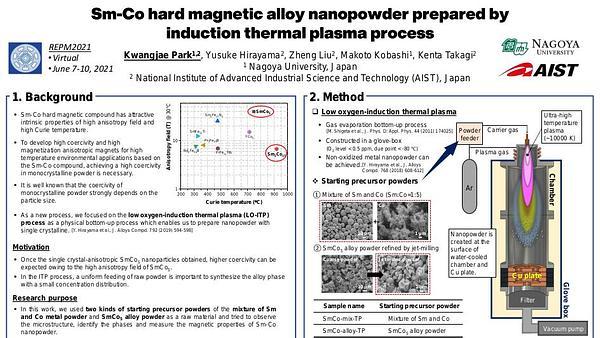

Sm-Co hard magnetic compound has attractive intrinsic properties of high anisotropy field and high Curie temperature. To develop high coercivity and high magnetization anisotropic magnets for high temperature environmental applications based on the Sm-Co compound, achieving a high coercivity in monocrystalline powder is necessary. It is well known that the coercivity of monocrystalline powder strongly depends on the particle size. As a new process, we focused on the induction thermal plasma (ITP) process as a physical bottom up process which enables us to prepare nanopowder with single crystalline. In this work, we explored the potential and the possibility to apply this ITP process to prepare Sm-Co alloy nanopowder.
